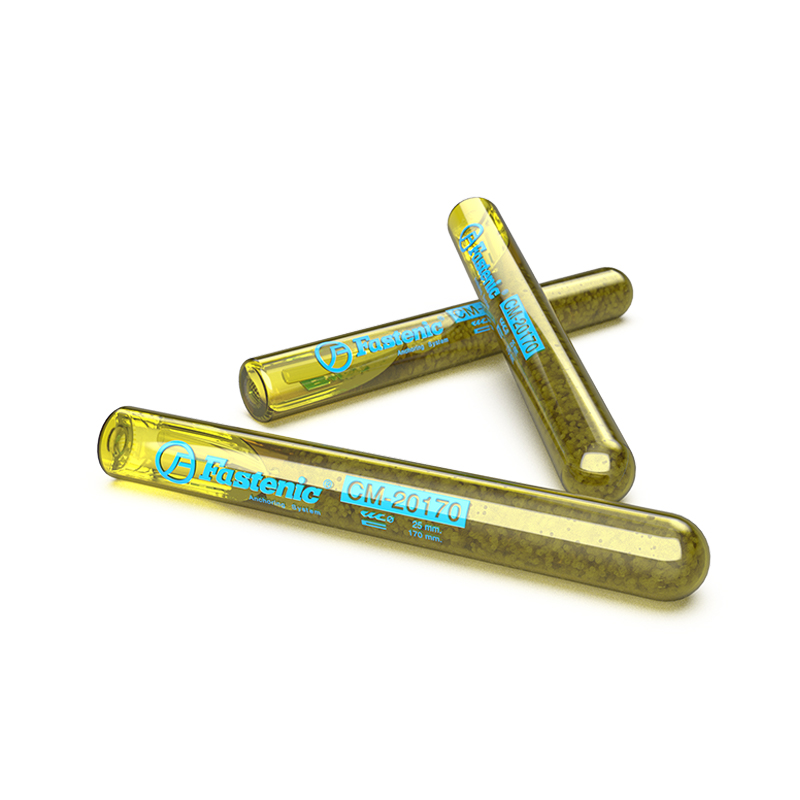

Chemical Anchor CM
High safe working loads capacity without expansion stresses.

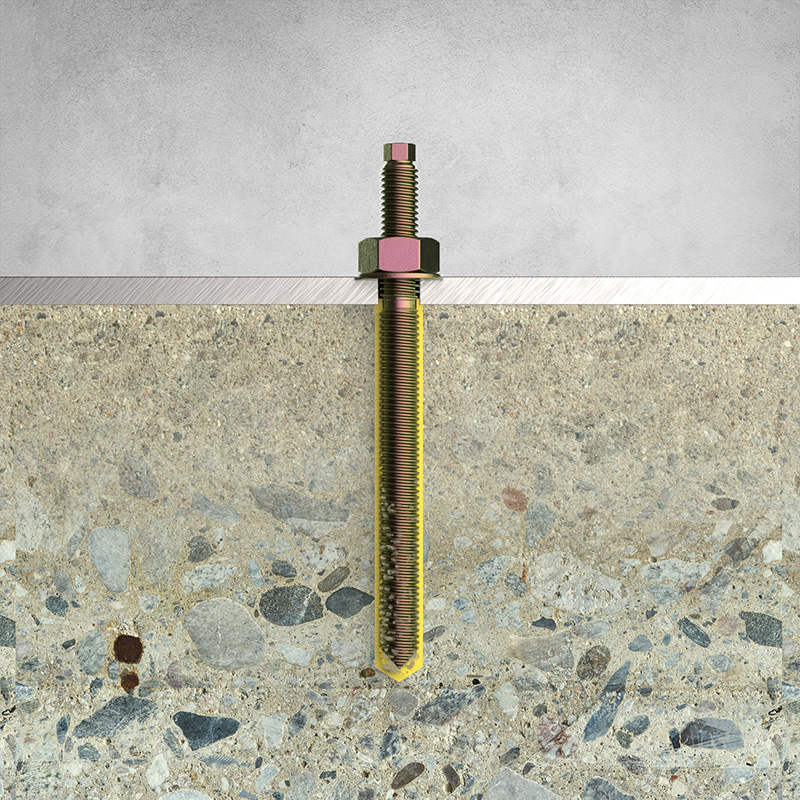

- Anchorage by strong mechanical bonding of chemical resin on both anchor stud and sides of drilled hole.
- The anchoring capacity is up to 75 kN in compression area.
- No expansion stresses inbase material.
- Close anchors spacing and edge distance.
- Sealed drilled hole.
- Vibration resistance
- Provides safe and secure anchoring in sifficult application.
High safe working loads capacity without expansion stresses.
- Anchorage by strong mechanical bonding of chemical resin on both anchor stud and sides of drilled hole.
- The anchoring capacity is up to 75 kN in compression area.
- No expansion stresses inbase material.
- Close anchors spacing and edge distance.
- Sealed drilled hole.
- Vibration resistance
- Provides safe and secure anchoring in sifficult application.

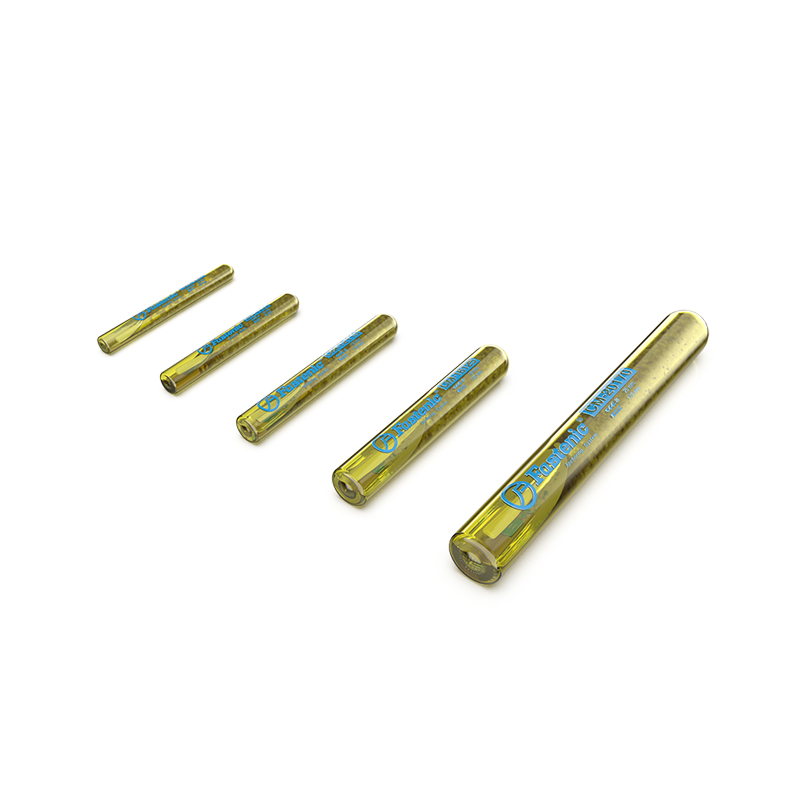

| SKU | Thread Size | Anchor Length (mm.) | Drill Size (mm.) | Drill Hole Depth (mm.) | Pull-Out (kN) | Shear (kN) |
|---|---|---|---|---|---|---|
| CM-880 | M8 | 80 | 10 | 80 | 6.0 | 2.8 |

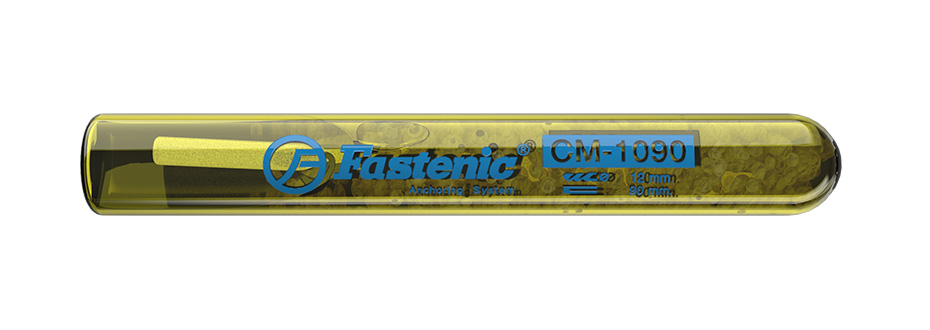

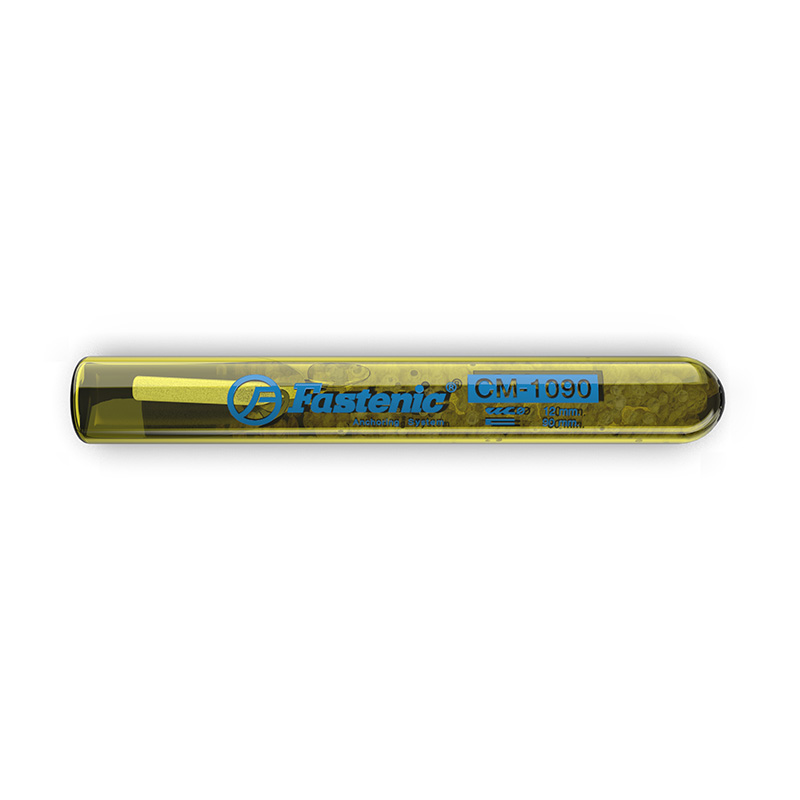

| CM-1090 | M10 | 80 | 12 | 90 | 8.1 | 4.4 |
| CM-12110 | M12 | 95 | 14 | 110 | 11.5 | 6.4 |
| CM-16125 | M16 | 95 | 18 | 125 | 16.8 | 12.0 |
| CM-20170 | M20 | 175 | 25 | 170 | 31.8 | 18.8 |
| CM-24210 | M24 | 210 | 28 | 210 | 43.6 | 25.9 |
| CM-27250 | M27 | 205 | 32 | 250 | 56.6 | 34.2 |
| CM-30280 | M30 | 265 | 35 | 280 | 67.1 | 41.5 |
