Concrete insert - CE
Please select product

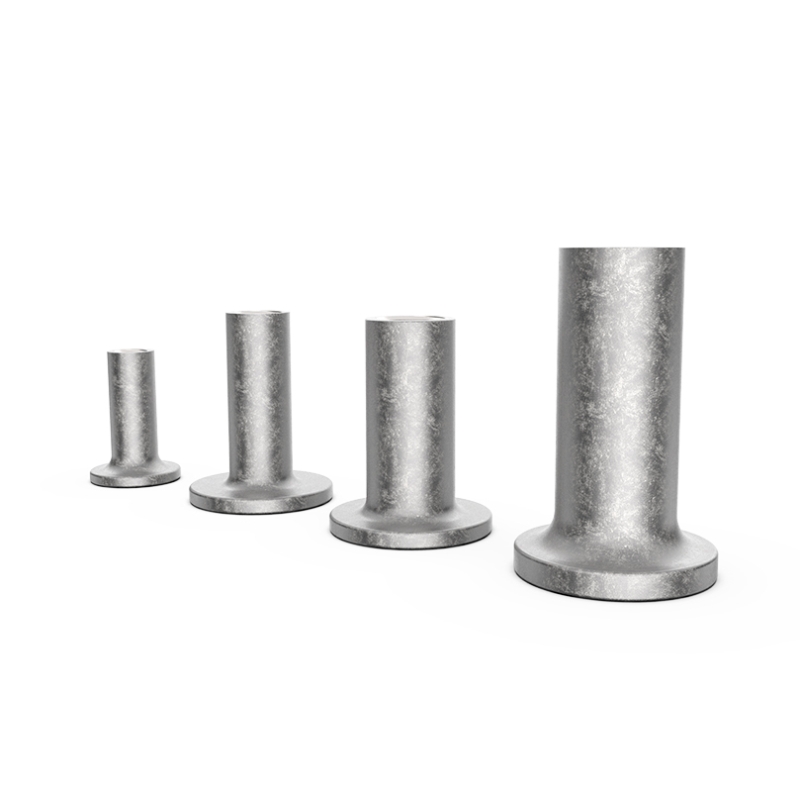

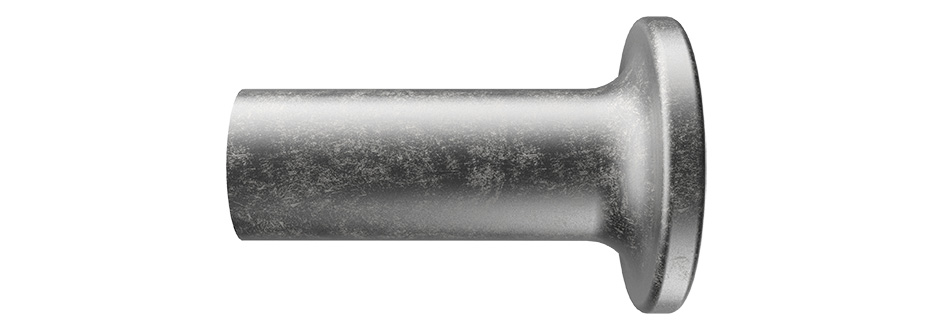

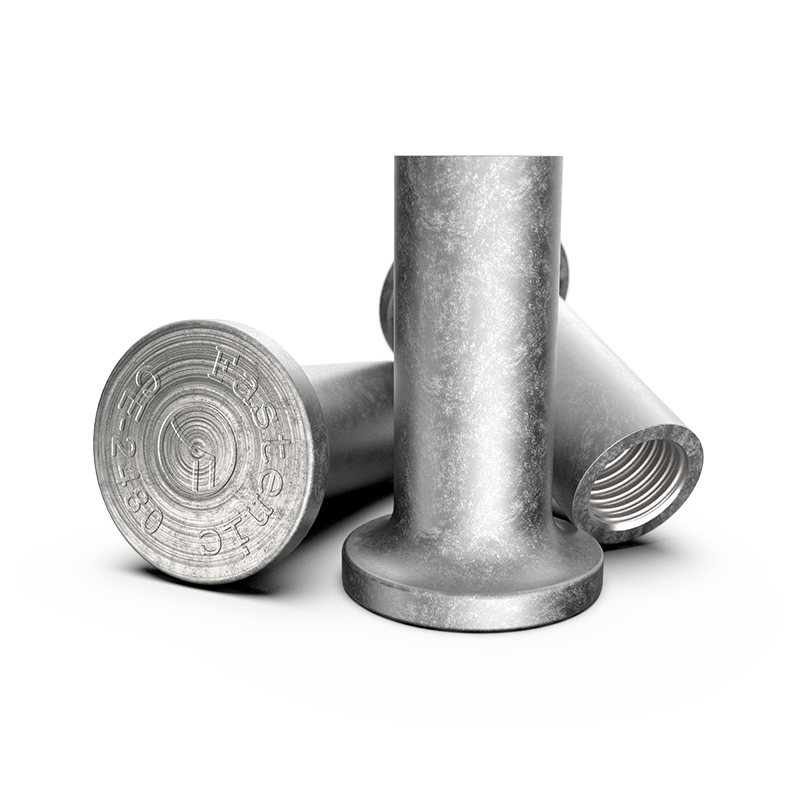

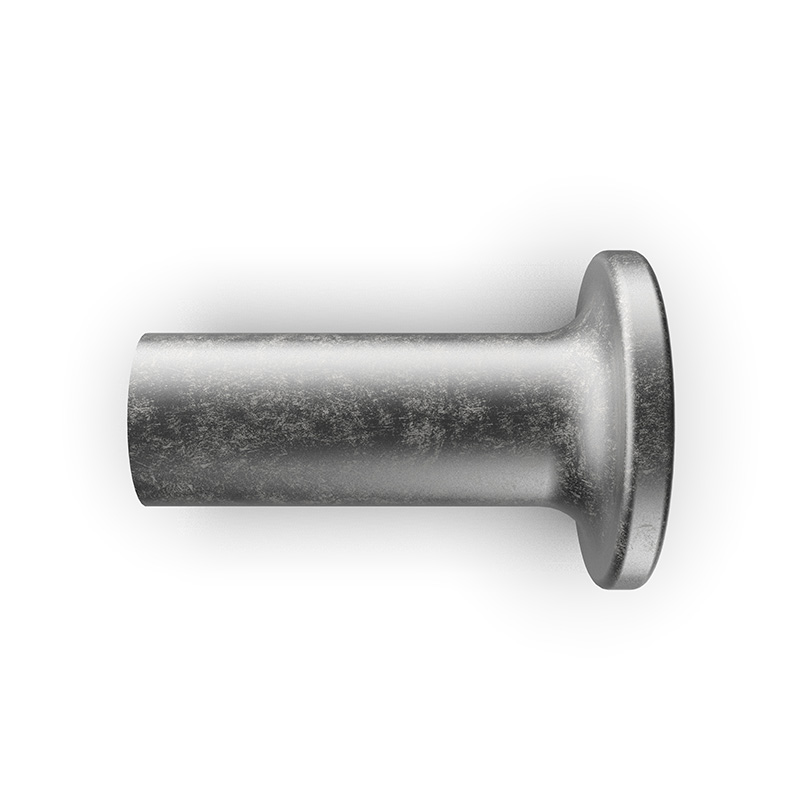

Concrete insert - CE

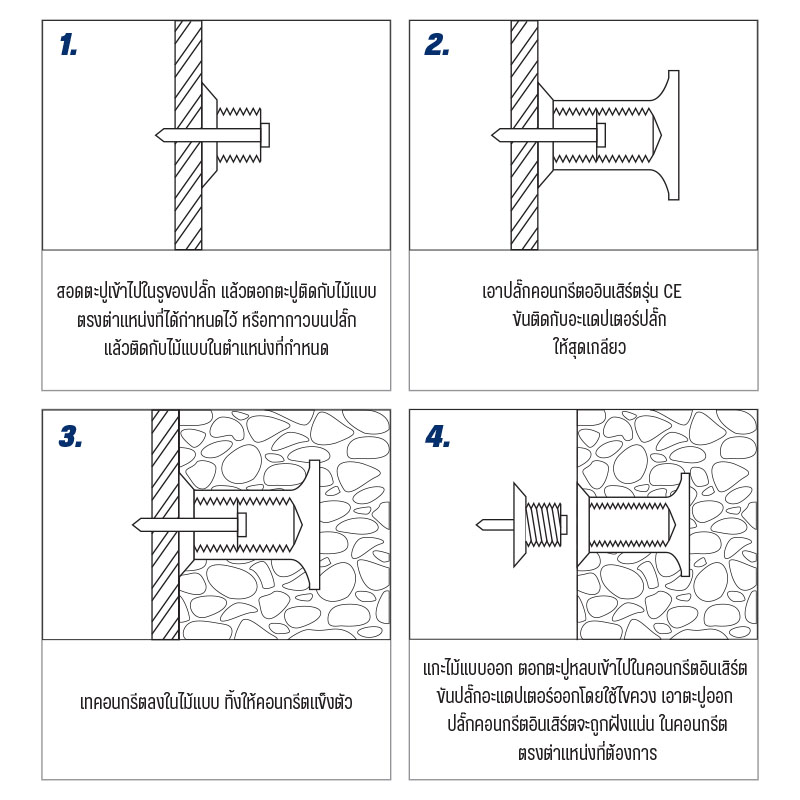

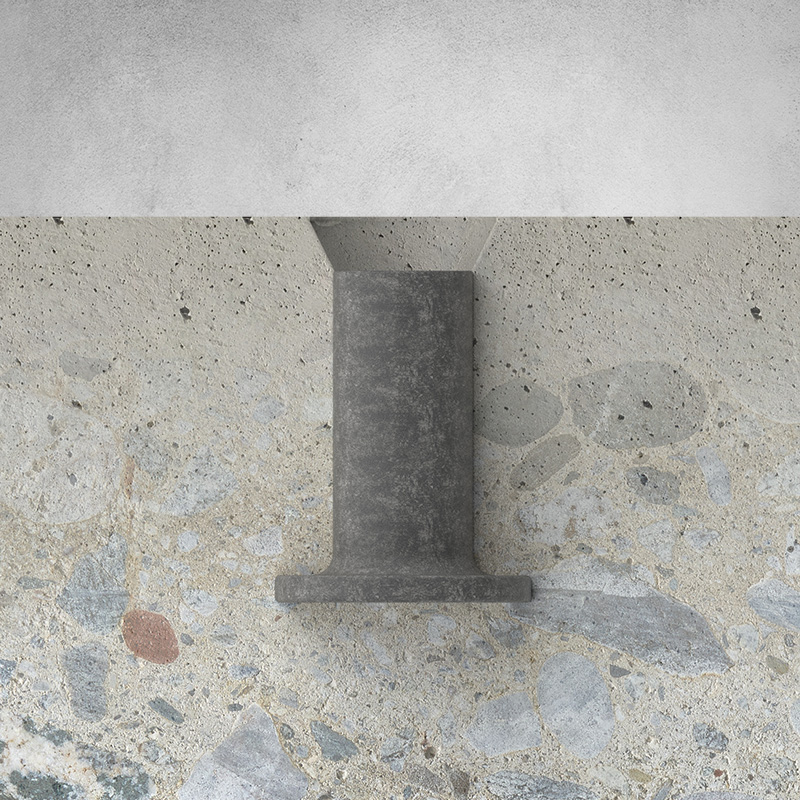

Designed for casting into concrete at determined point to provide heavy duty load.
- Made from high quality Steel
- No expansion stress reduces anchor spacing and edge distance
- Eliminate the drilling holes that can hitting steel reinforcing bar in heavily reinforced structure.
- Handle high permissible load in short embedment
* not suitable for lifting concrete panel
Designed for casting into concrete at determined point to provide heavy duty load.
- Made from high quality Steel
- No expansion stress reduces anchor spacing and edge distance
- Eliminate the drilling holes that can hitting steel reinforcing bar in heavily reinforced structure.
- Handle high permissible load in short embedment
* not suitable for lifting concrete panel

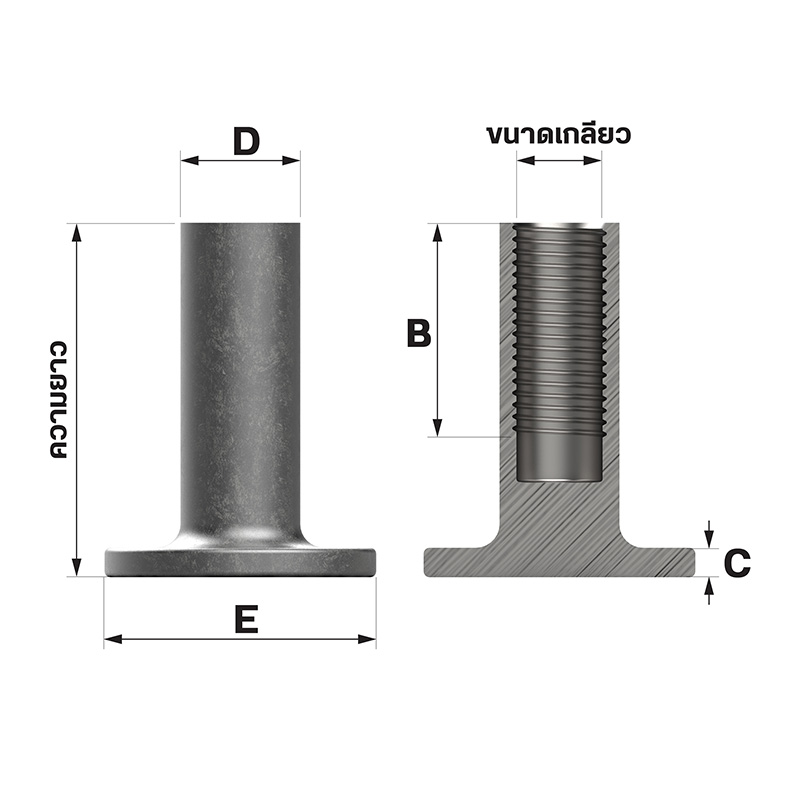

| SKU | Thread Size | Anchor Length (mm.) | Drill Size (mm.) | Drill Hole Depth (mm.) | Pull-Out (kN) | Shear (kN) |
|---|---|---|---|---|---|---|
| CE-630 | M6 | 30 | - | - | - | - |
| CE-835 | M8 | 35 | - | - | - | - |
| CE-1045 | M10 | 45 | - | - | - | - |
| CE-1245 | M12 | 45 | - | - | - | - |
| CE-1258 | M12 | 58 | - | - | - | - |
| CE-1660 | M16 | 60 | - | - | - | - |
| CE-2060 | M20 | 60 | - | - | - | - |
| CE-2070 | M20 | 70 | - | - | - | - |
| CE-2480 | M24 | 80 | - | - | - | - |
| CE-30100 | M30 | 100 | - | - | - | - |
| CE-36125 | M36 | 125 | - | - | - | - |
| CE-42145 | M42 | 145 | - | - | - | - |
