Concrete insert - CF

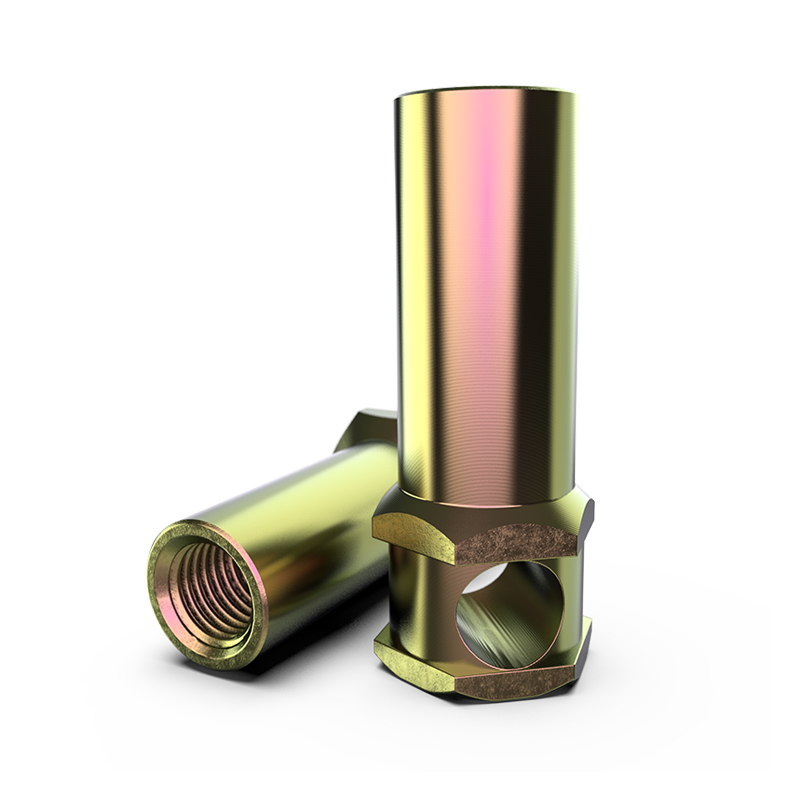

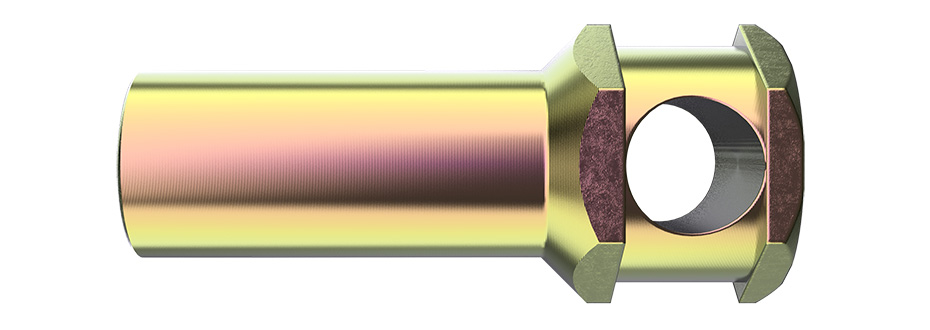

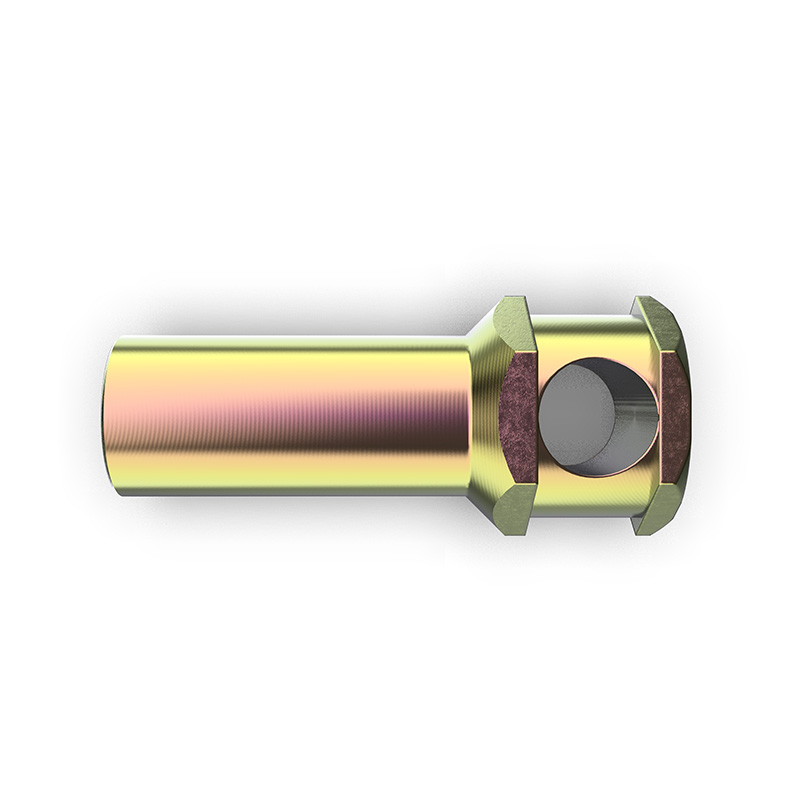

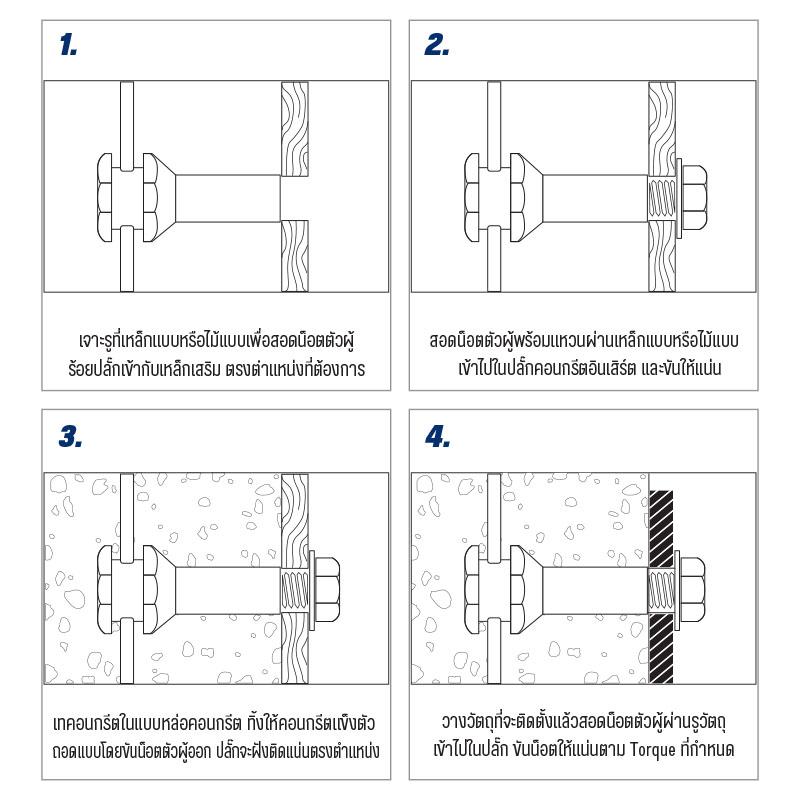

Designed for casting into concrete at determined point to provide heavy power load capacity.
- Made from electro plated high quality Steel

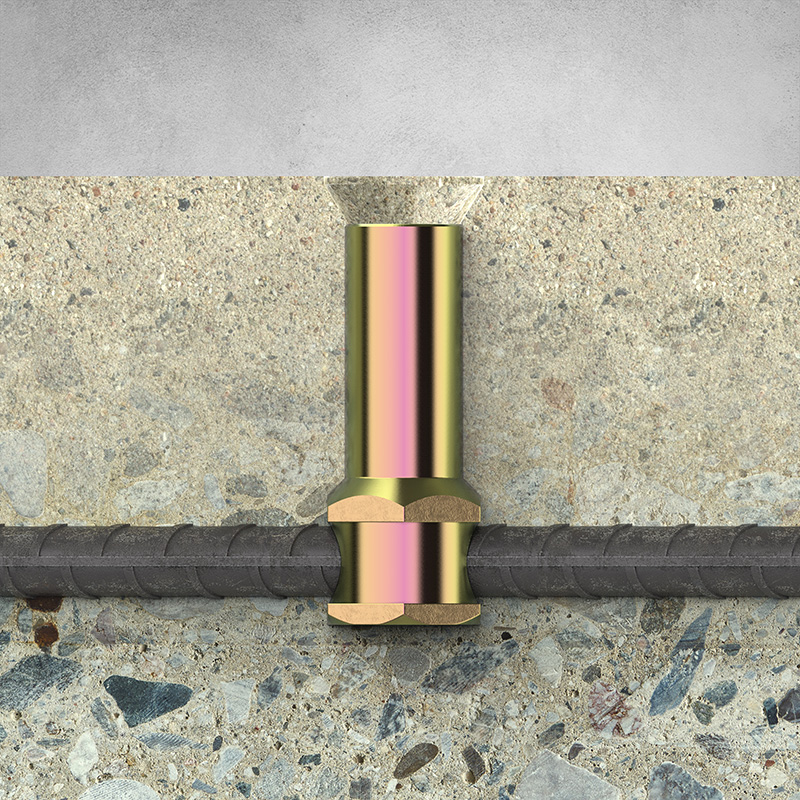

- Reinforcing bar can be connected to plug through a hole for maximum load capacity.
- Hexagon head (except M24/1in) prevent plug from rotation.
- For maximum load value of insert , the hex bolt thread engagement must be at least 80% of the thread depth.
Designed for casting into concrete at determined point to provide heavy power load capacity.
- Made from electro plated high quality Steel
- Reinforcing bar can be connected to plug through a hole for maximum load capacity.
- Hexagon head (except M24/1in) prevent plug from rotation.
- For maximum load value of insert , the hex bolt thread engagement must be at least 80% of the thread depth.

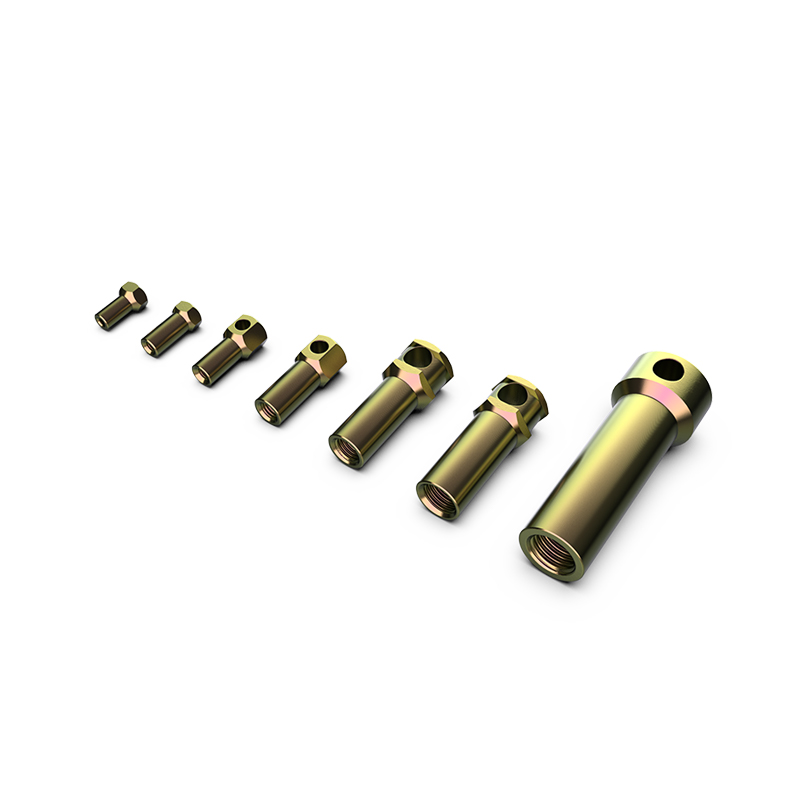

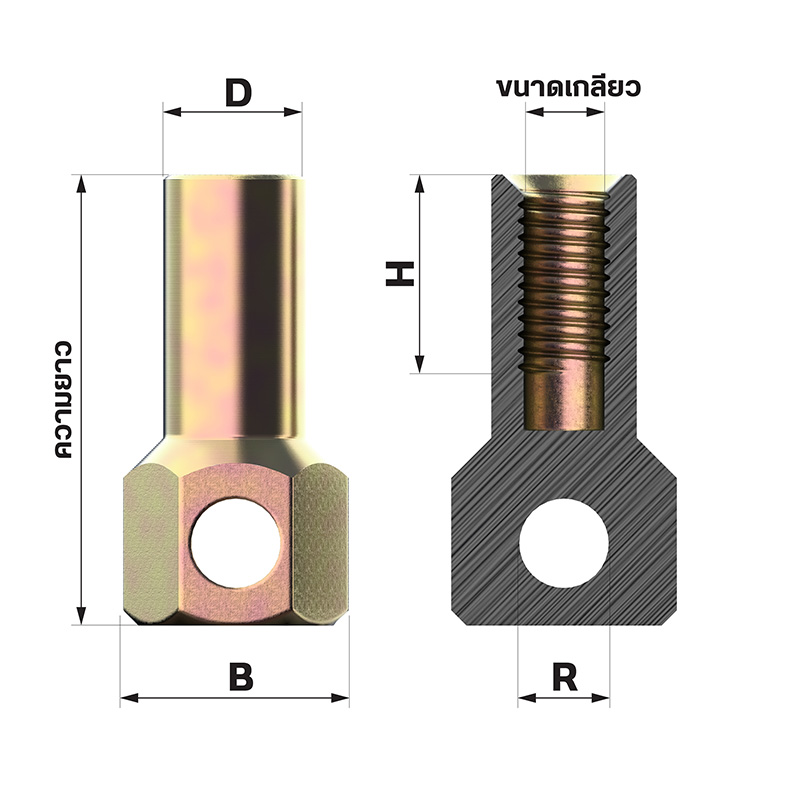

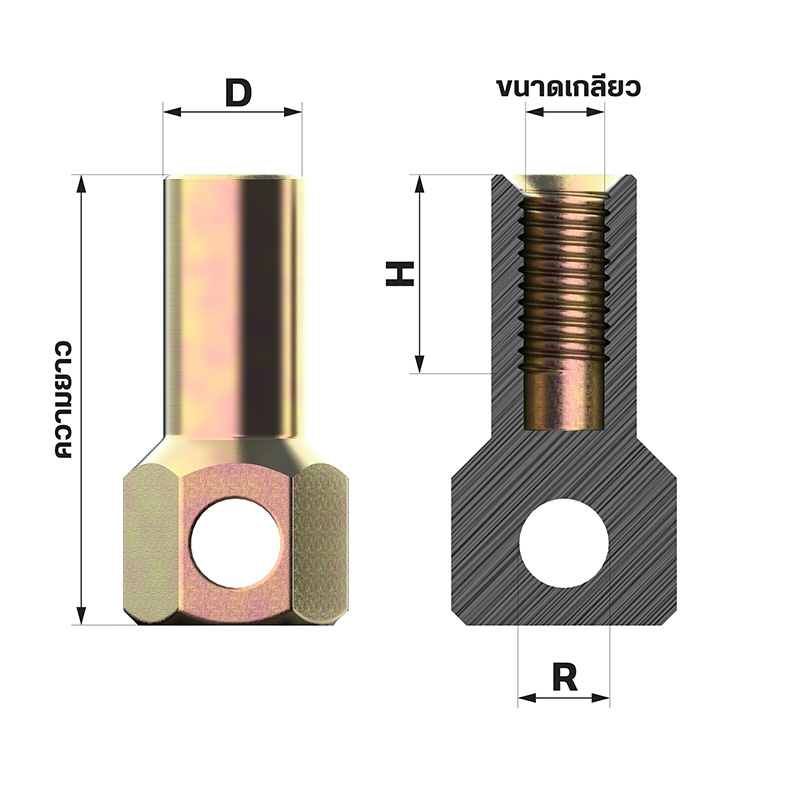

| SKU | Thread Size | Anchor Length (mm.) | Thread Length (mm.) | Ø Drill (mm.) | Size (mm.) | Pull-Out Load (kN.) | Anchor Shear (kN.) |
|---|---|---|---|---|---|---|---|
| CF-14 | 1/4 in | 30 | 12 | 11 | - | 4.1 | 1.3 |
| CF-516 | 5/16 in | 35 | 16 | 13 | - | 4.2 | 1.9 |
| CF-38 | 3/8 in | 44 | 20 | 14.2 | 8.7 | 5.0 | 4.2 |
| CF-12 | 1/2 in | 54 | 25 | 18 | 10 | 9.2 | 6.7 |
| CF-58 | 5/8 in | 75 | 32 | 22.2 | 15 | 13.3 | 11.5 |
| CF-34 | 3/4 in | 79 | 38 | 25 | 15 | 16.4 | 15.0 |
| CF-1 | 1 in | 125 | 50 | 33.3 | 15 | 30.6 | 28.8 |
| CFM-6 | M6 | 30 | 12 | 11 | - | 4.1 | 1.3 |
| CFM-8 | M8 | 35 | 16 | 13 | - | 4.2 | 1.9 |
| CFM-10 | M10 | 44 | 20 | 14.2 | 8.7 | 5.0 | 4.2 |
| CFM-12 | M12 | 54 | 25 | 18 | 10 | 9.2 | 6.7 |
| CFM-16 | M16 | 75 | 32 | 22.2 | 15 | 13.3 | 11.5 |
| CFM-20 | M20 | 79 | 38 | 25 | 15 | 16.4 | 15.0 |
| CFM-24 | M24 | 125 | 50 | 33.3 | 15 | 30.6 | 28.8 |
