Concrete Insert - CI

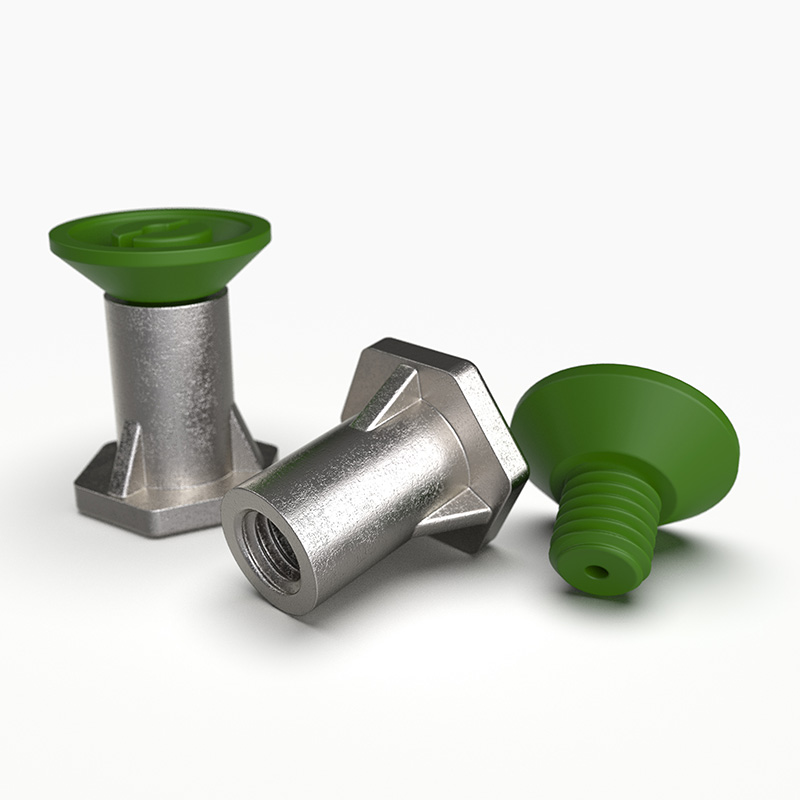

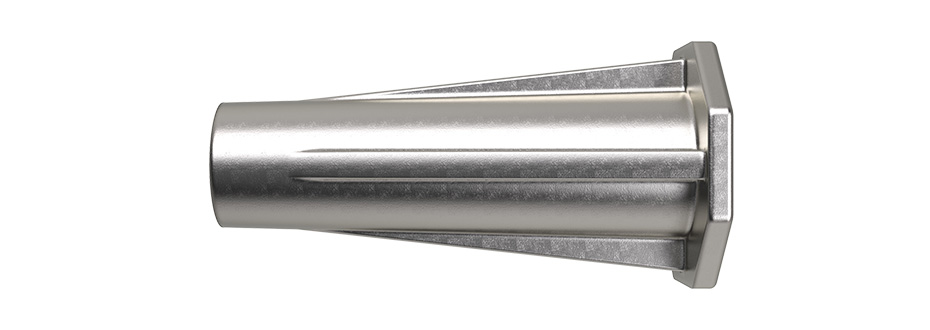

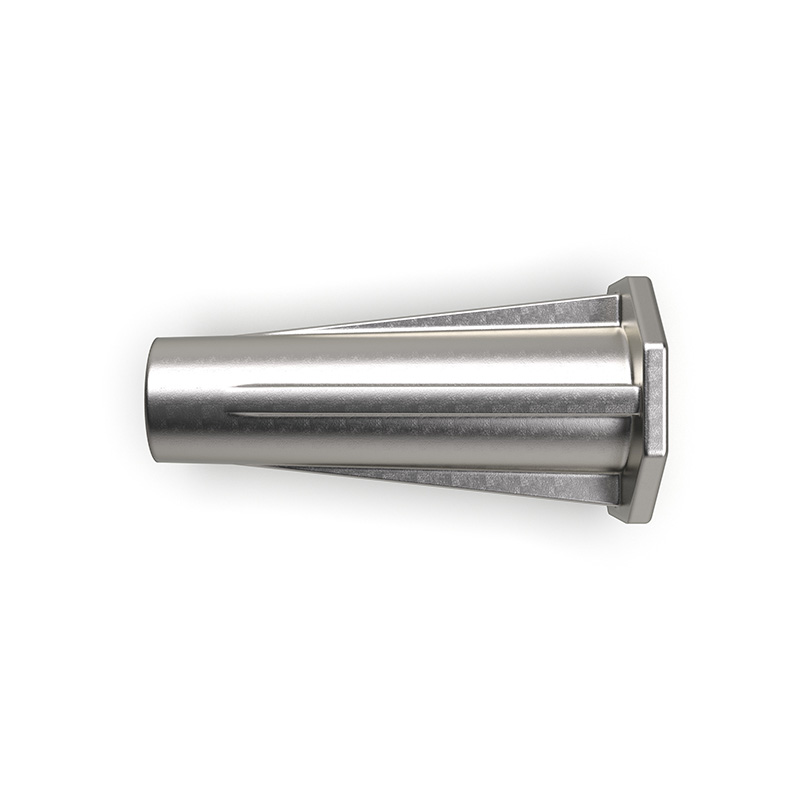

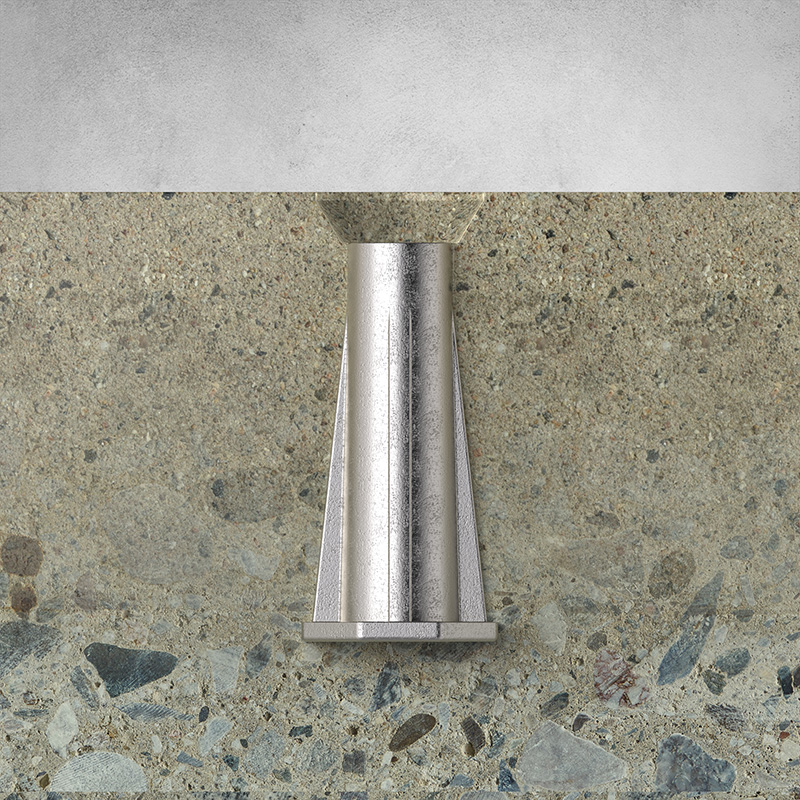

Fastenic Concrete insert is designed for casting into concrete
- Made from zinc alloy die casting, rust proof
- Direct transfer of the load to the concrete therefore ensuring high pull-out values.
- Avoid drilled hole hitting steel reinforcing bars in reinforced concrete.
Fastenic Concrete insert is designed for casting into concrete
- Made from zinc alloy die casting, rust proof
- Direct transfer of the load to the concrete therefore ensuring high pull-out values.
- Avoid drilled hole hitting steel reinforcing bars in reinforced concrete.

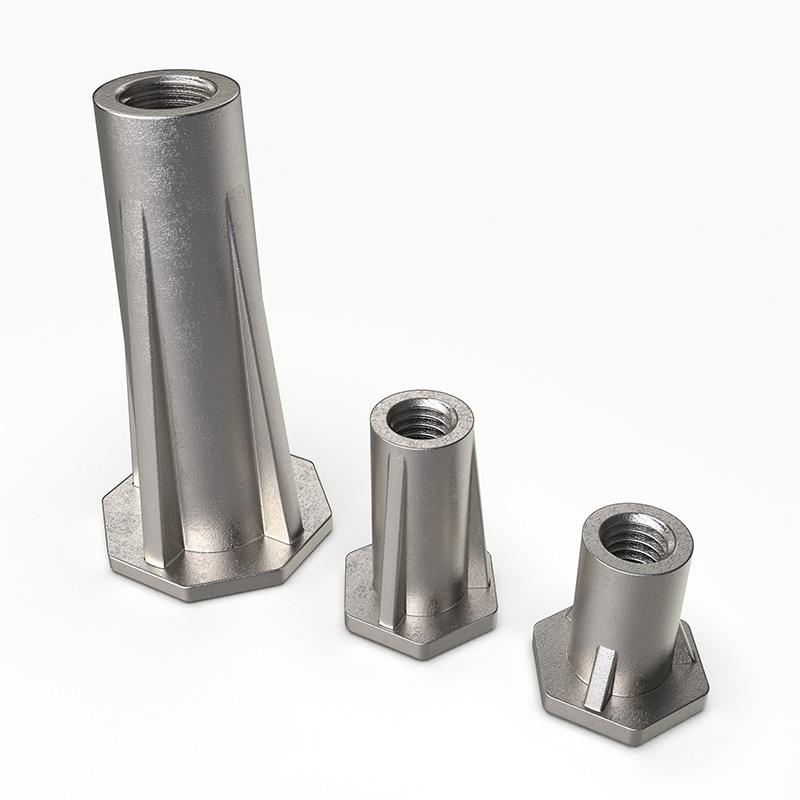

| SKU | Thread Size | Anchor Length (mm.) | Length of Thread "H" (mm.) | Based on Concrete "D" (mm.) | Size of plug cap "Z" (mm.) | Plug cap thickness "Y" (mm.) | Plug Length "U" (mm.) | Size of Nail ole "X" (mm.) | Pull out (kN) | Shear (kN) |
|---|---|---|---|---|---|---|---|---|---|---|
| CI-38 S | 3/8" | 25 | 20 | 22 | 20 | 5 | 13 | 3.8 | 2.3 | 1.4 |
| CI-38 L | 3/8" | 33 | 25 | 22 | 20 | 5 | 13 | 3.8 | 3.6 | 2.2 |
| CI-12 L | 1/2" | 71 | 40 | 35 | 25 | 6 | 16 | 3.8 | 7.9 | 4.7 |
