Concrete insert - CV

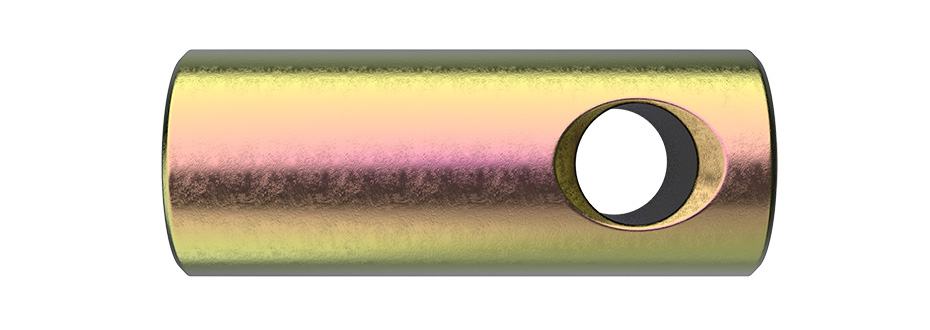

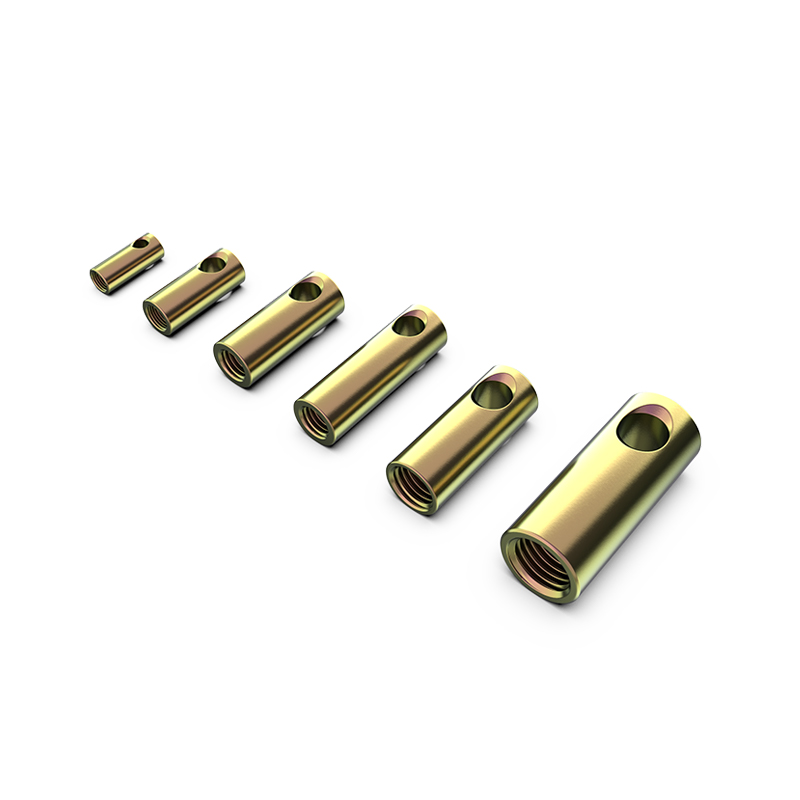

Designed for casting into concrete at determined point to provide heavy power load capacity.
- Made from electro plated high quality Steel

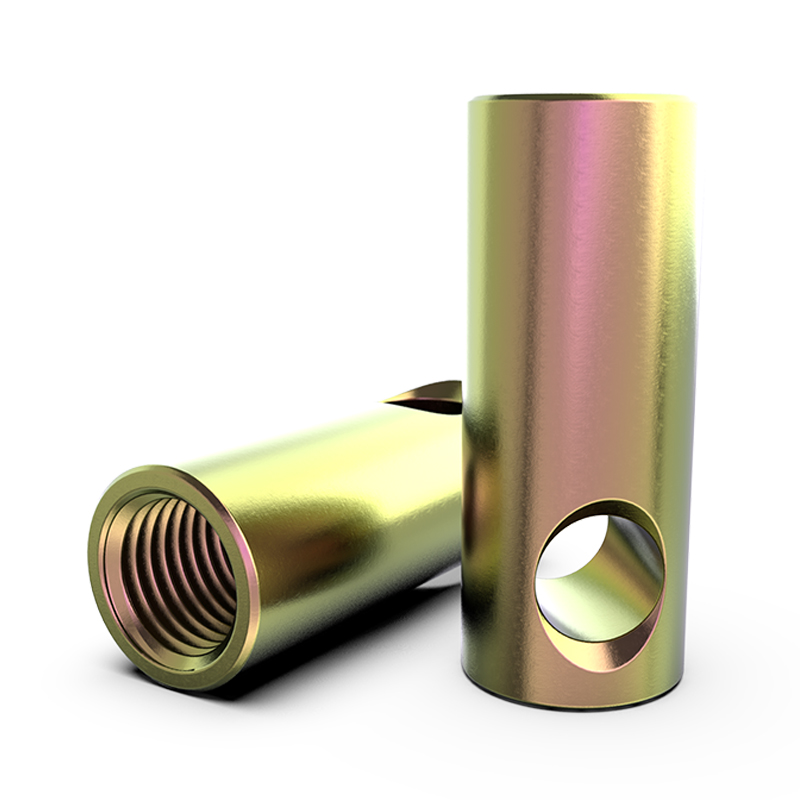

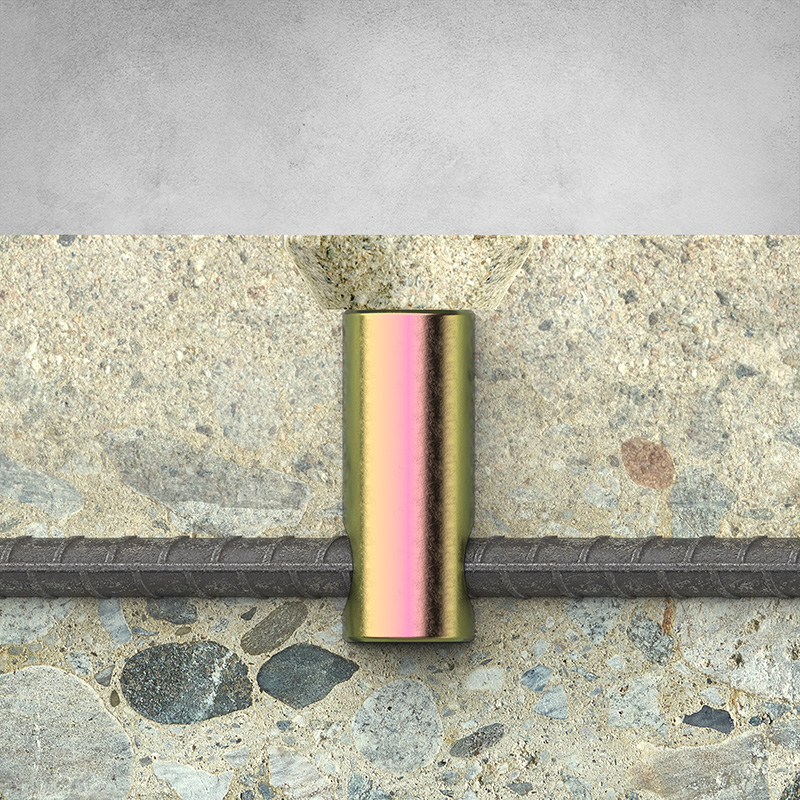

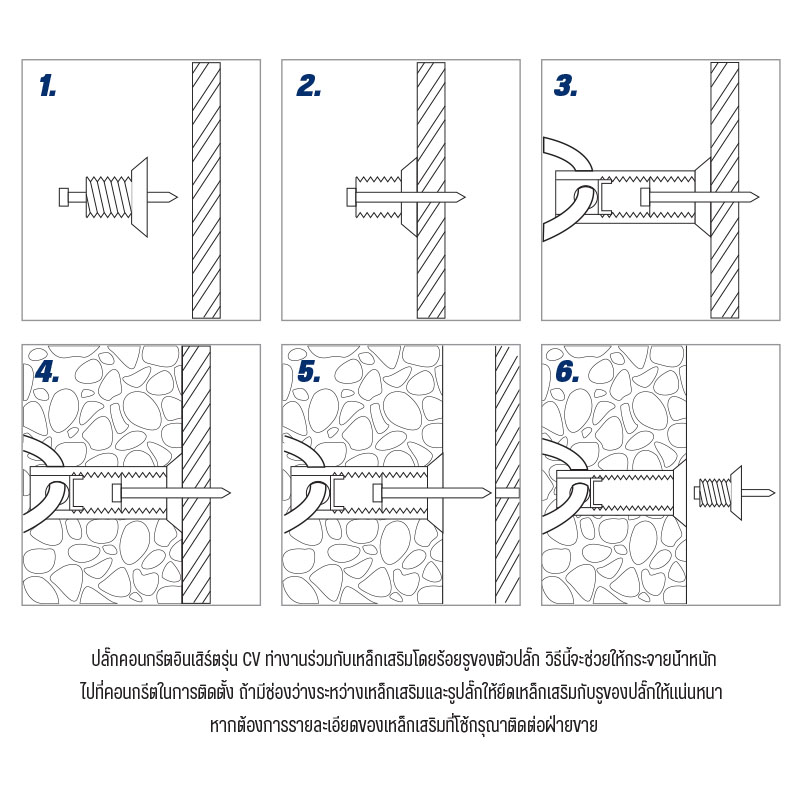

- Reinforcing bar can be connected to plug through a hole for maximum load capacity.
- For maximum load value of insert , the hex bolt thread engagement must be at least 80% of the thread depth.

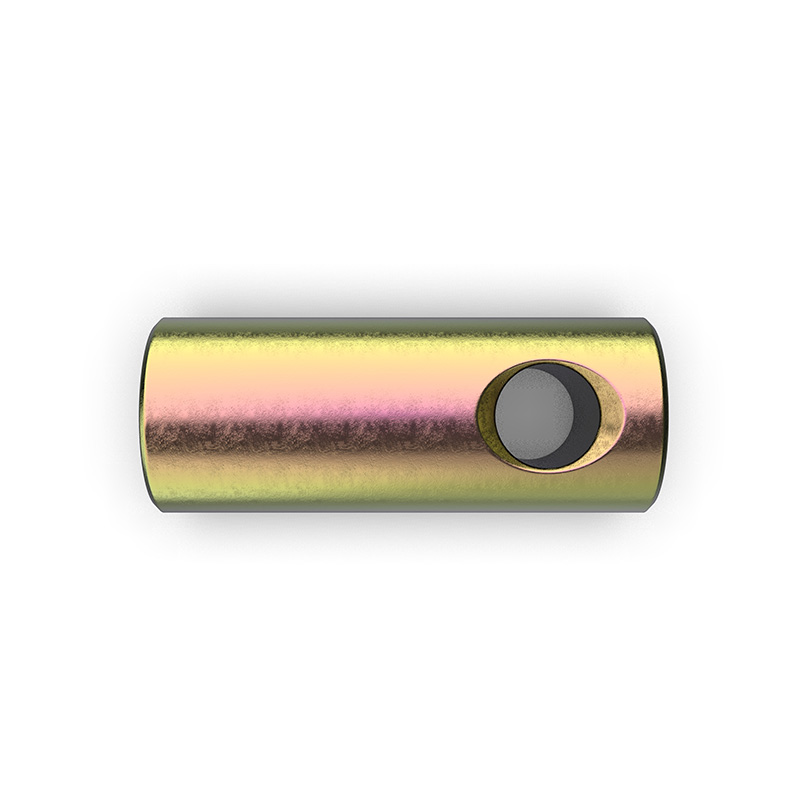

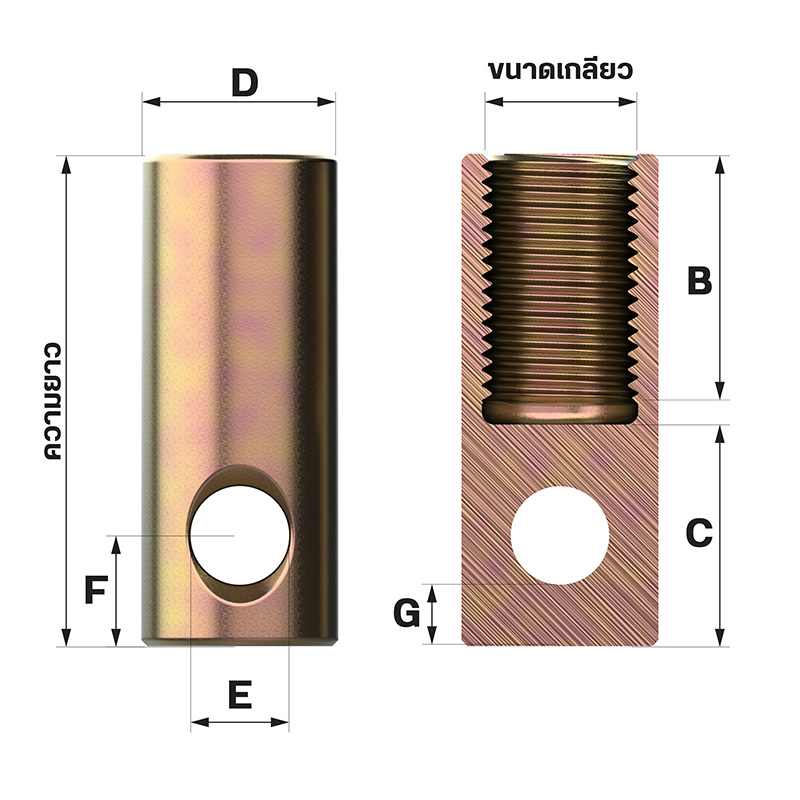

SKU	Thread Size	Anchor Length (mm.)	B (mm.)	C (mm.)	D (mm.)	E (mm.)	F (mm.)	G (mm.)
CV-1240	M12 x 1.75p	40	22	18	16	8	9	5
CV-1654	M16 x 2.0p	54	27	27	22	13	12.5	6
CV-2069	M20 x 2.5p	69	36	33	27	15	14.5	7
CV-2085	M20 x 2.5p	85	50	33	27	15	14.5	7
CV-2478	M24 x 3.0p	78	43	35	30	18	18	9
CV-30100	M30 x 3.5p	100	56	44	40	22	22	11
CV-36125	M36 x 4.0p	125	68	57	47	27	26.5	13
CV-42145	M42 x 4.5p	145	80	65	54	32	31	15
CV-52200	M52 x 5.0p	200	100	100	68	40	40	20
