CA

Cut Anchor - CA

CA

Cut Anchor - CA
Please select product
This is a typical product of the "female screw type" for post-construction anchors. For installation of concrete buildings, light sky, temporary scaffolding, civil engineering, electricity, air conditioning, machinery, signboards, etc.

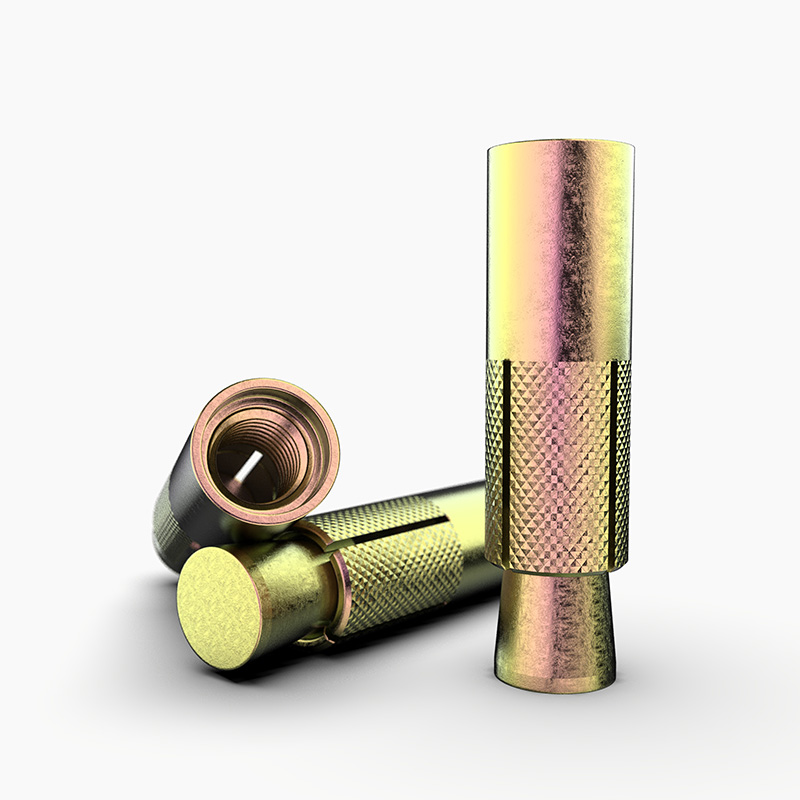

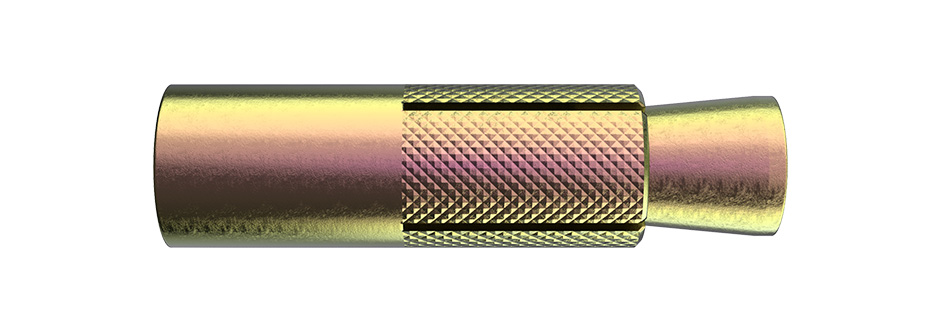

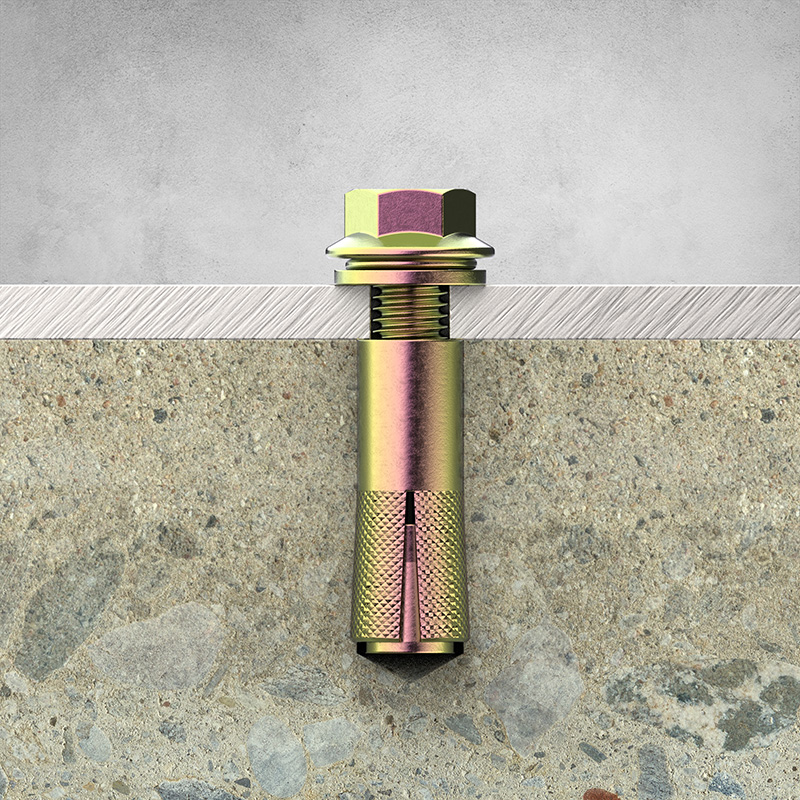

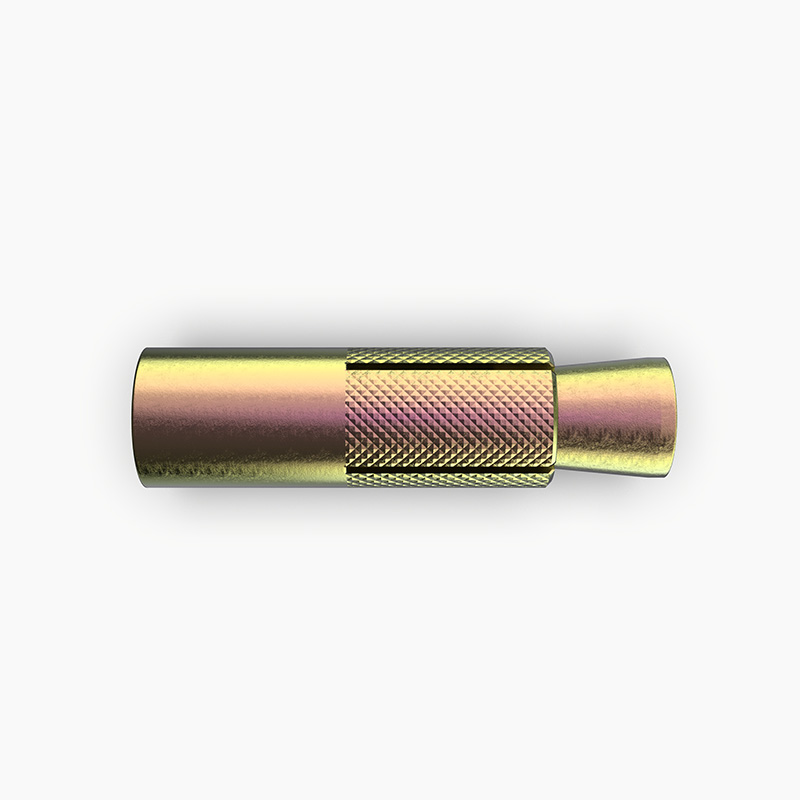

- Cut Anchor is a cylindrical shell that consists of internal thread and expansion plug below the shell
- No setting tools required
- Manufactured from anti-rust yellow-Zinc electro plated Steel. .

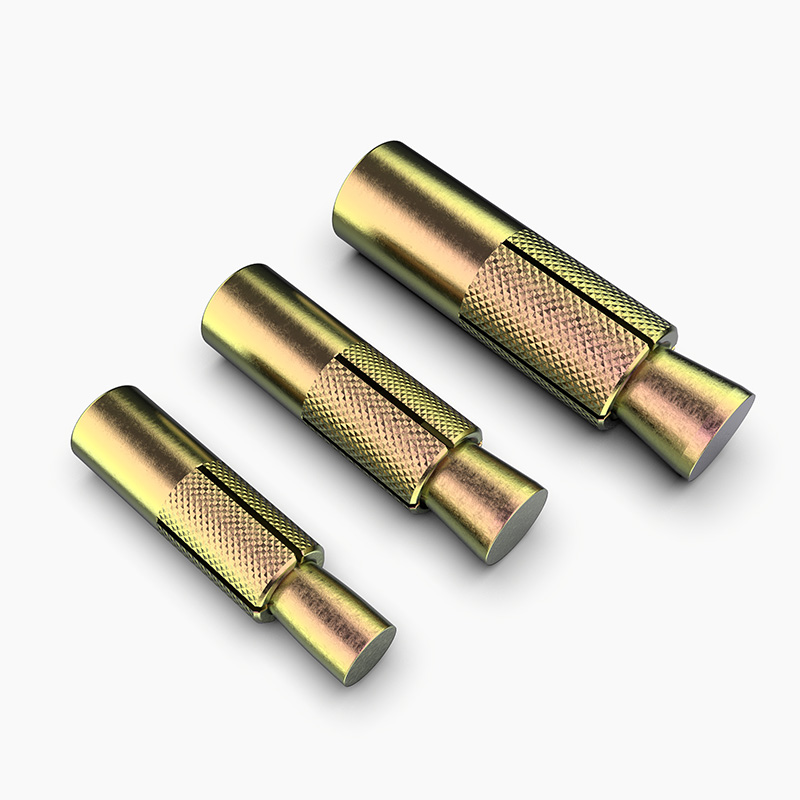

SKU Thread Size Anchor Length (mm.) Drill Size (mm.) Drill Hole Depth (mm.) Pull-Out (kN) Shear (kN)
CA-8 M8 49 12.5 35 3.1 2.5
CA-10 M10 50 14.5 40 3.7 4.2
CA-12 M12 64 18 50 5.6 6.8

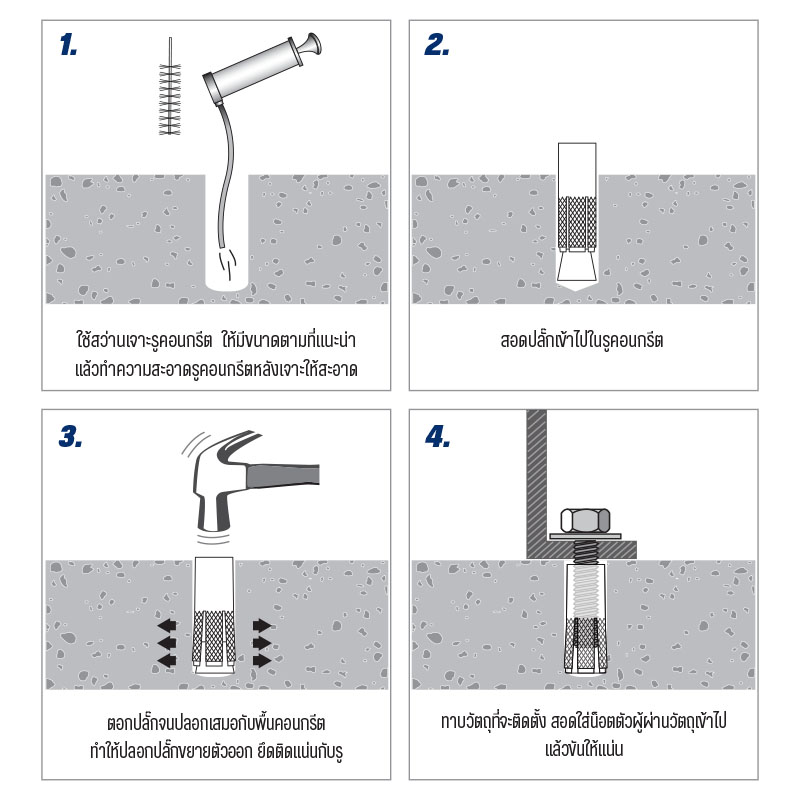

Installation guide
