Double Expansion Anchor with Eye Bolt - DE
Please select product
Double Expansion Anchor with Eye Bolt - DE

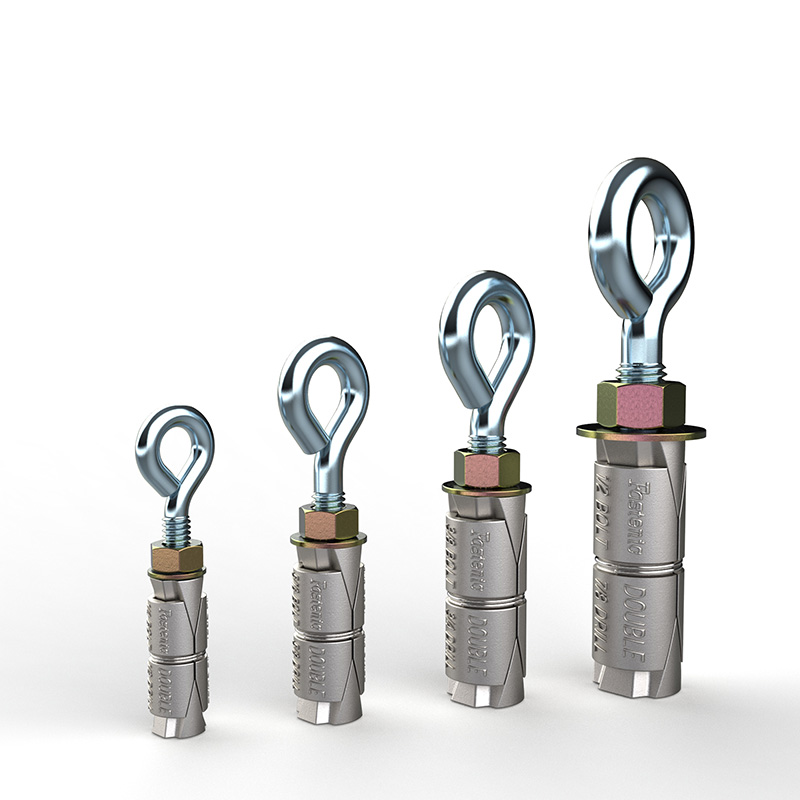

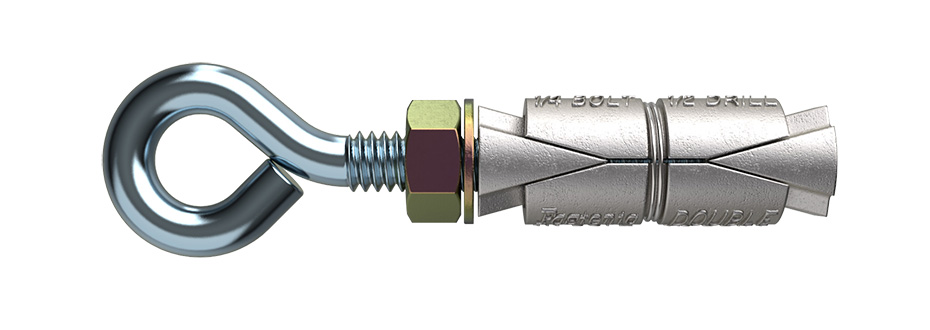

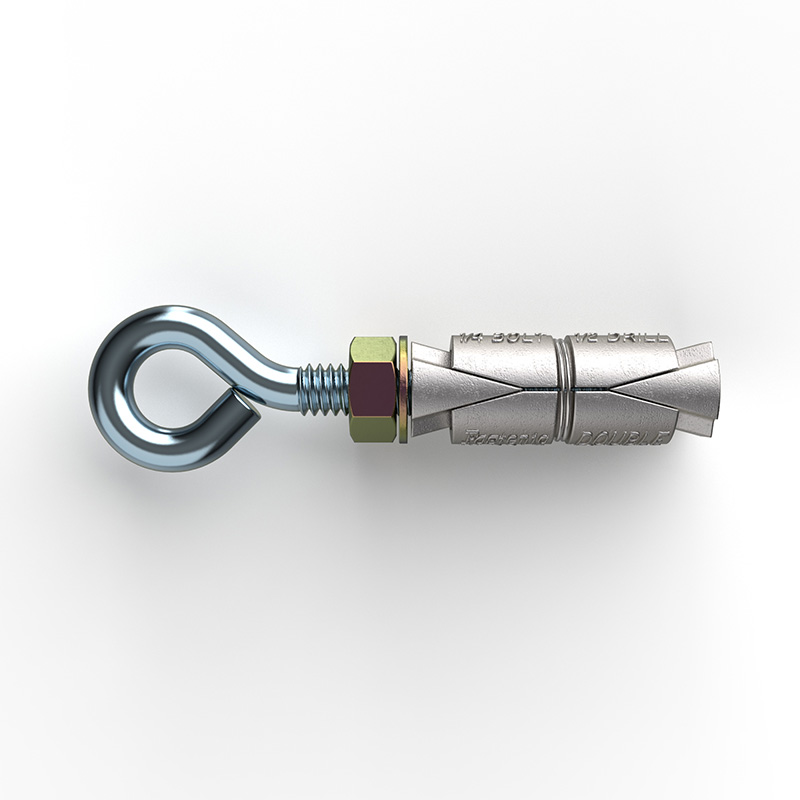

Eye bolt-Bolt with Double Expansion Anchor - ready to install

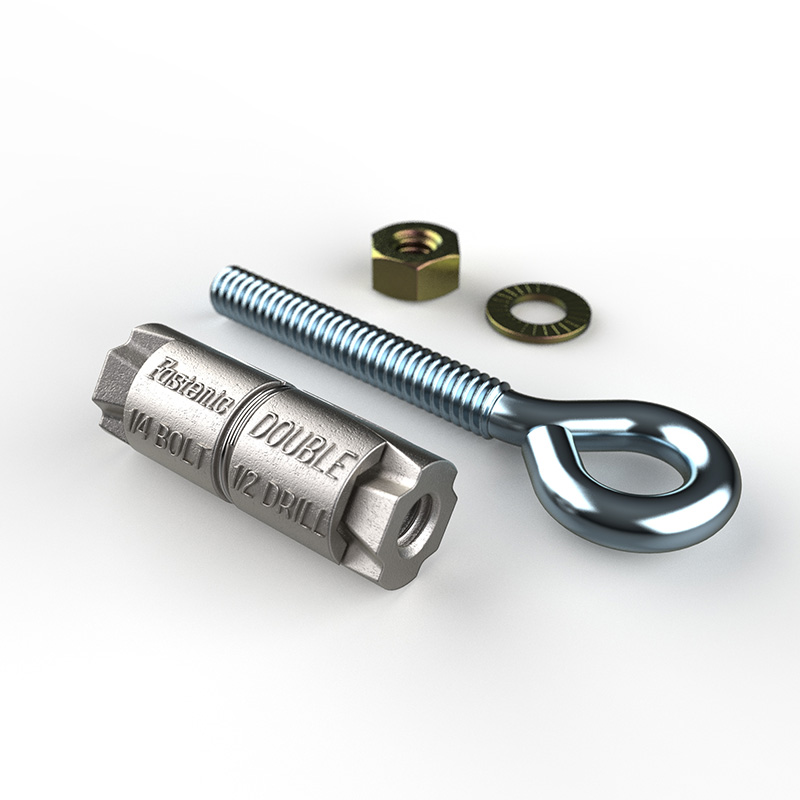

- The Fastenic Double Expansion Shield fitted with locking lug on bolt nut and collar.
- Eliminates high stress points detrimental in fastening into materials of medium hardness.
- Fastenic Double Expansion Shield does not fracture and permits fastening at any depth.
- Recommended for their loads or where bolt is subject to side pressure or vibration.

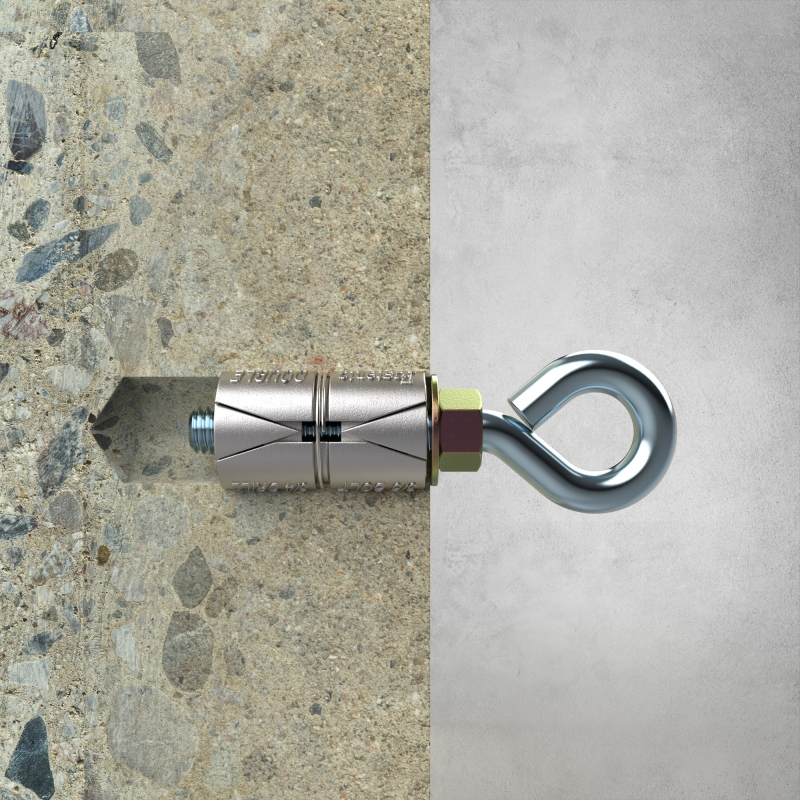

- Fastening into rock, concrete, brick, etc
Eye bolt-Bolt with Double Expansion Anchor - ready to install
- The Fastenic Double Expansion Shield fitted with locking lug on bolt nut and collar.
- Eliminates high stress points detrimental in fastening into materials of medium hardness.
- Fastenic Double Expansion Shield does not fracture and permits fastening at any depth.
- Recommended for their loads or where bolt is subject to side pressure or vibration.
- Fastening into rock, concrete, brick, etc
| SKU | Thread Size | Anchor Length (mm.) | Drill Size (mm.) | Drill Hole Depth (mm.) | Pull-Out (kN) | Shear (kN) |
|---|---|---|---|---|---|---|
| DE-14 | BSW 1/4 in | 70 | 12.7 | 35 | 2.2 | 2.0 |
| DE-516 | BSW 5/16 in | 85 | 15.9 | 41 | 2.3 | 3.3 |
| DE-38 | BSW 3/8 in | 108 | 19.0 | 51 | 4.5 | 4.1 |
| DE-12 | BSW 1/2 in | 130 | 22.2 | 64 | 5.4 | 8.5 |
