Drop-in Anchor DR
Steel anchor for universal fixings in concrete with bolts and stud of any length.
- Shallow embedment depth with high performance.

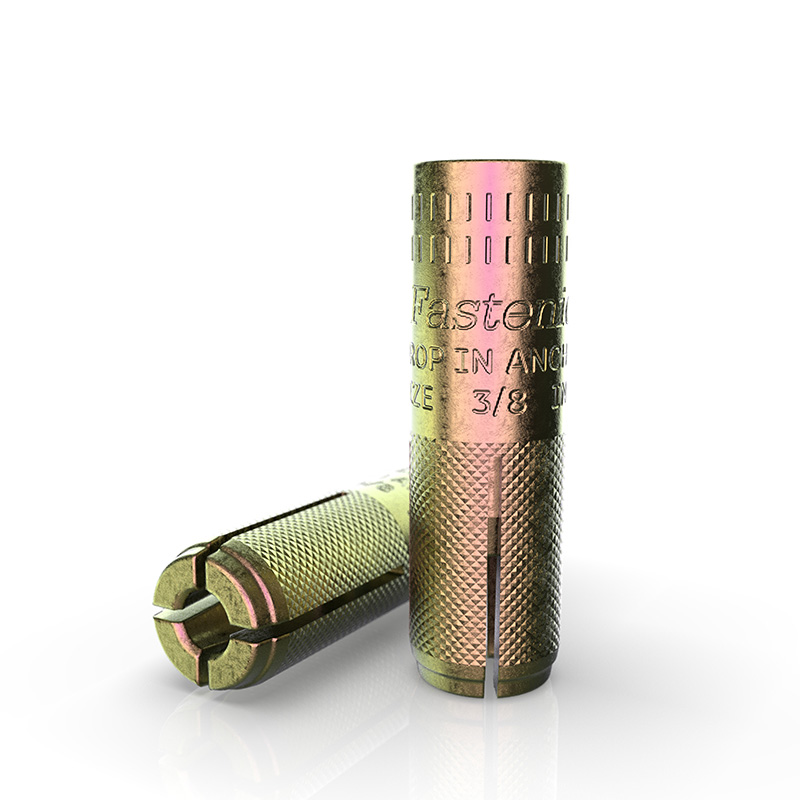

- Drop-in Anchor is a cylindrical shell that consists of internal thread and expansion plug.
- Ideal for overhead installations, hanging pipe duct work, machinery, etc.

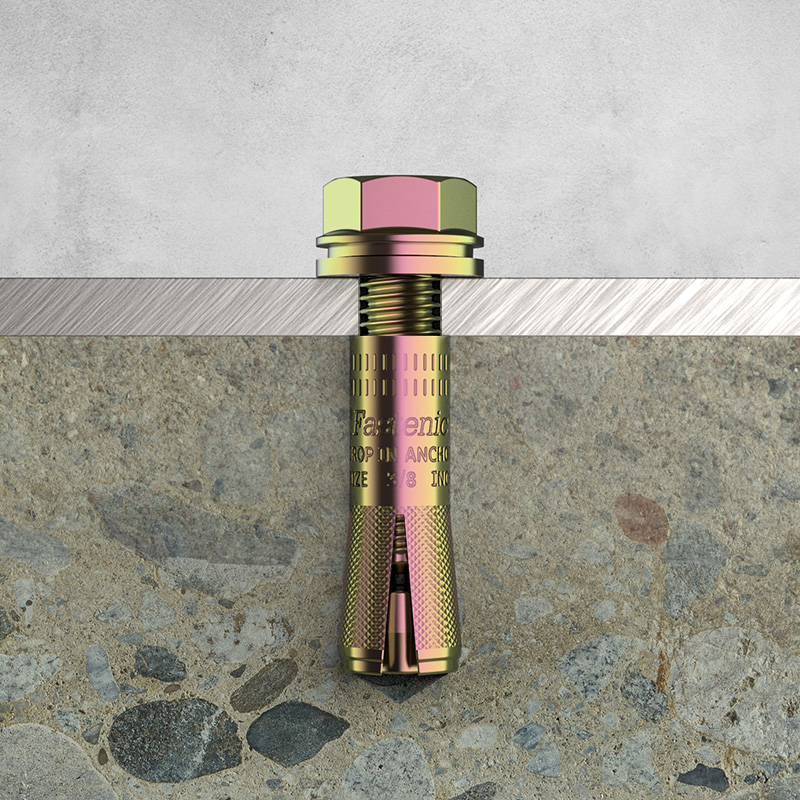

- Anchor is installed flush with base material.

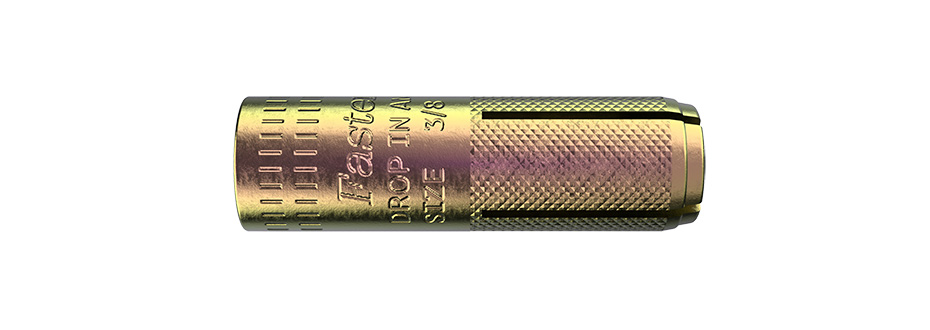

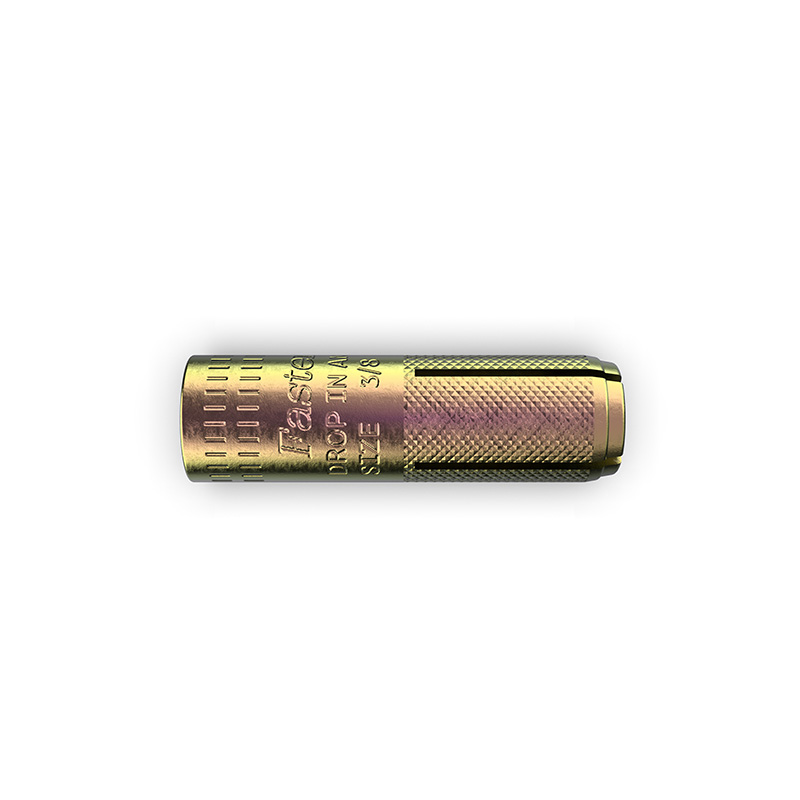

- The knurled surface for improved grip.
- Gold passivated zinc finish.
Steel anchor for universal fixings in concrete with bolts and stud of any length.
- Shallow embedment depth with high performance.
- Drop-in Anchor is a cylindrical shell that consists of internal thread and expansion plug.
- Ideal for overhead installations, hanging pipe duct work, machinery, etc.
- Anchor is installed flush with base material.
- The knurled surface for improved grip.
- Gold passivated zinc finish.

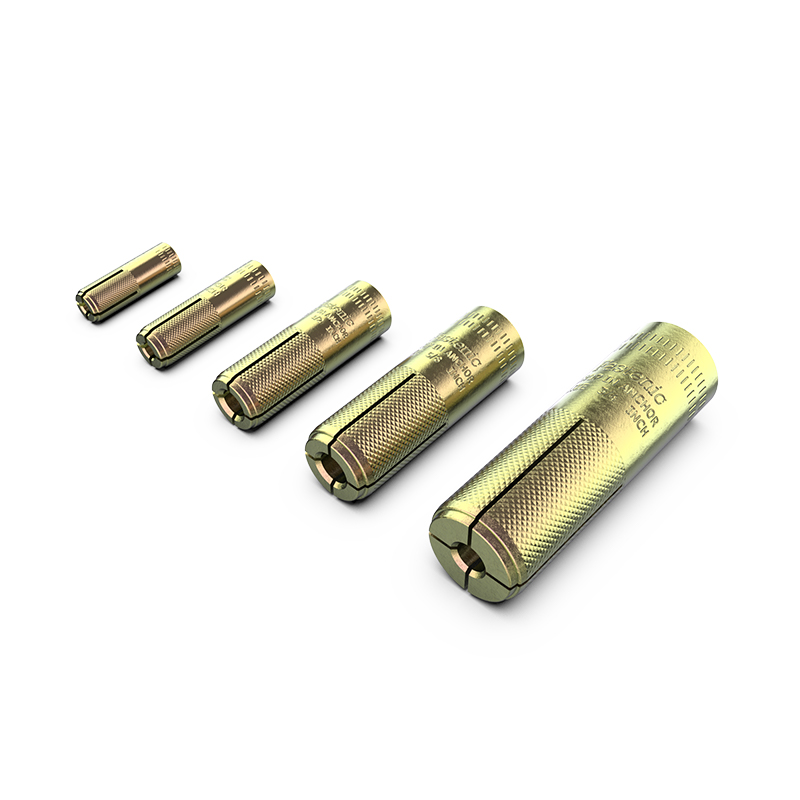

| SKU | Thread Size | Anchor Length (mm.) | Drill Size (mm.) | Drill Hole Depth (mm.) | Pull-Out (kN) | Shear (kN) |
|---|---|---|---|---|---|---|
| DR-14 | ฺBSW 1/4in | 25 | 8 | 25 | 2.7 | 1.3 |
| DR-516 | BSW 5/16in | 30 | 10 | 30 | 3.3 | 2.4 |
| DR-38 | BSW 3/8in | 40 | 12 | 40 | 5.0 | 3.8 |
| DR-12 | BSW 1/2in | 50 | 16 | 50 | 7.6 | 5.5 |
| DR-58 | BSW 5/8in | 60 | 20 | 60 | 10.2 | 10.2 |
| DR-34 | BSW 3/4in | 80 | 25 | 80 | 15.4 | 15.9 |
