Hammer Drive Anchor - HD
Please select product
Hammer Drive Anchor - HD

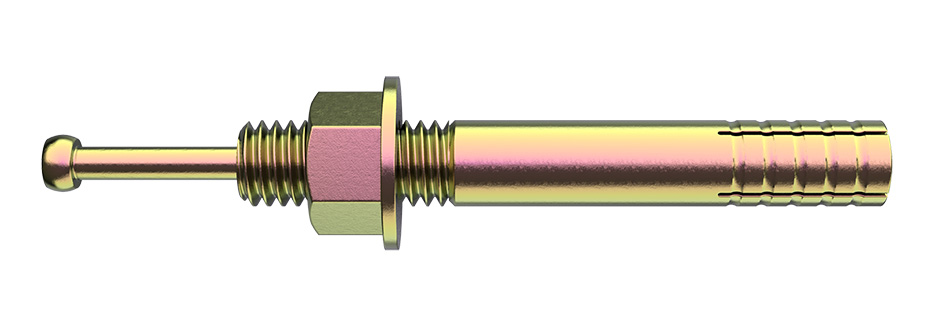

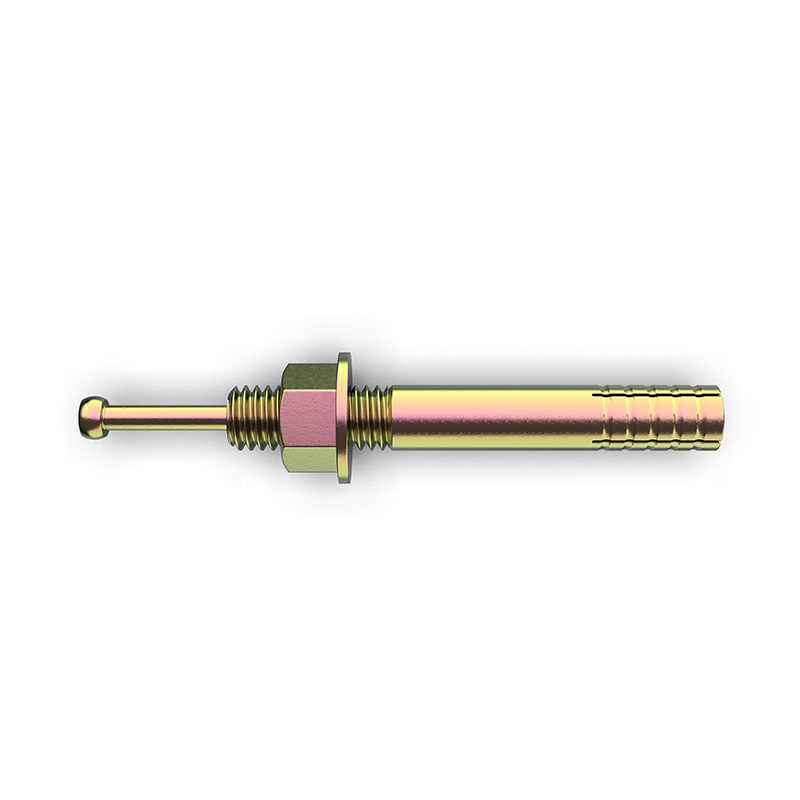

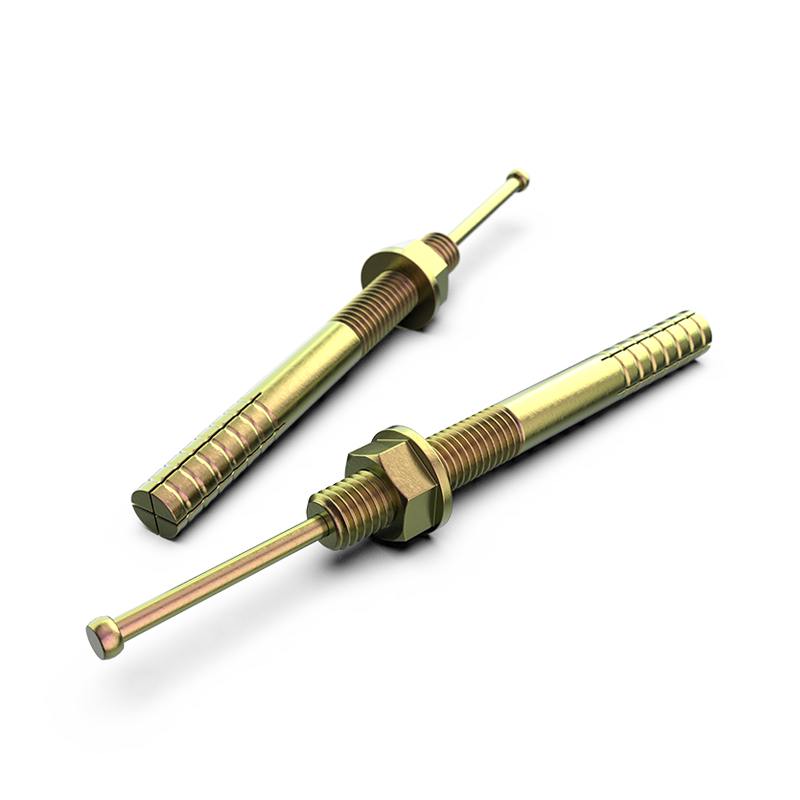

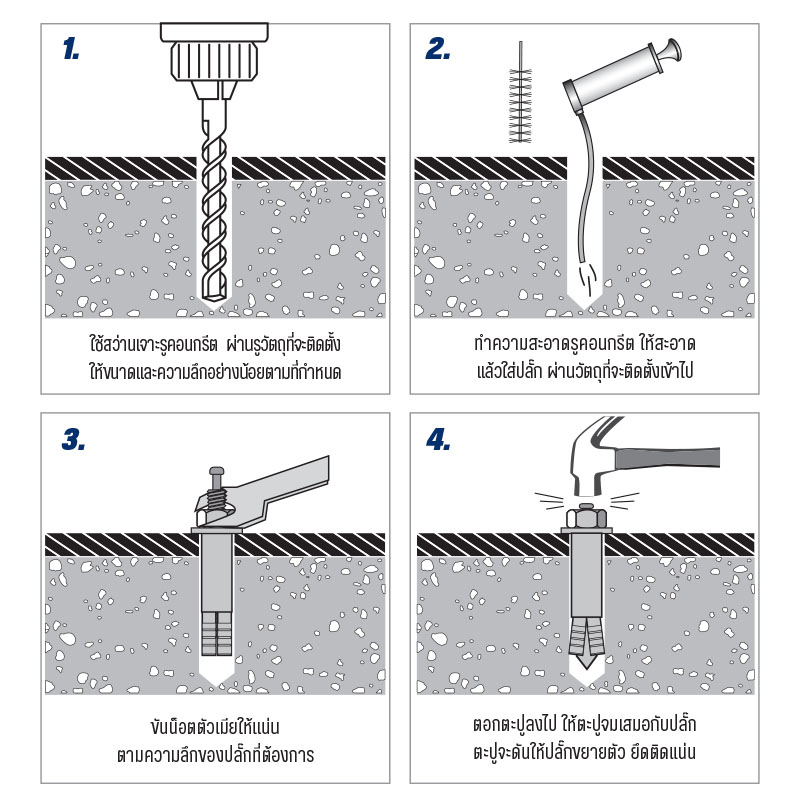

The anchor for fast and easy installation by using hammer action to save time.
- Supplied complete unit and ready to use.
- Anchor size is the same as the hole size.
- Easy to install, fast push-through fixture into concrete hole.
- Save time by hammer drive pin flush with top.

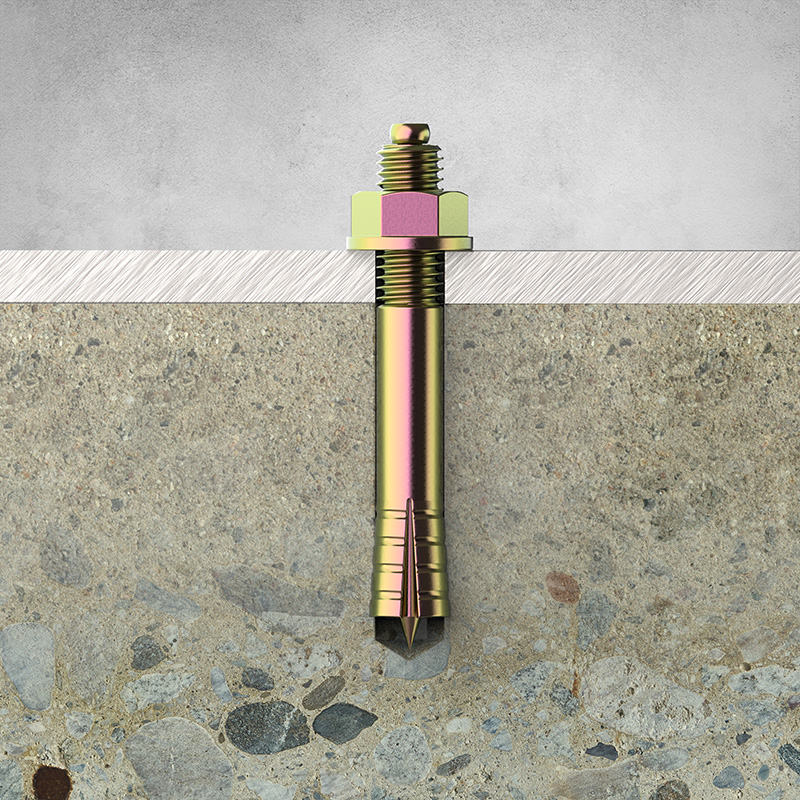

- Hardened Center Pin acts as an expansion and locking pin, the fixture is locked, leaving it unaffected by vibration.
- No torque wrench require to set.
- Does not require exact hole depth.
- Made from steel and finished with rust resistant gold zine plate.
The anchor for fast and easy installation by using hammer action to save time.
- Supplied complete unit and ready to use.
- Anchor size is the same as the hole size.
- Easy to install, fast push-through fixture into concrete hole.
- Save time by hammer drive pin flush with top.
- Hardened Center Pin acts as an expansion and locking pin, the fixture is locked, leaving it unaffected by vibration.
- No torque wrench require to set.
- Does not require exact hole depth.
- Made from steel and finished with rust resistant gold zine plate.

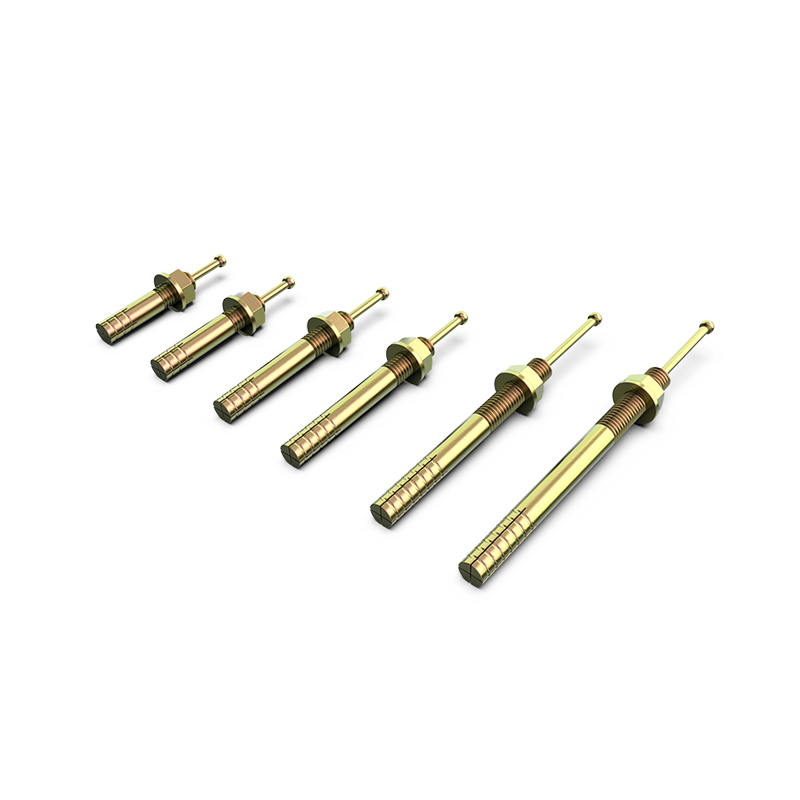

| SKU | Thread Size | Anchor Length (mm.) | Drill Size (mm.) | Drill Hole Depth (mm.) | Pull-Out (kN) | Shear (kN) |
|---|---|---|---|---|---|---|
| HD-6045 | M6 | 45 | 6.0 | 35 | 1.0 | 2.0 |
| HD-6060 | M6 | 60 | 6.0 | 35 | 1.0 | 2.0 |
| HD-8050 | M8 | 50 | 8.0 | 40 | 1.7 | 3.6 |
| HD-8070 | M8 | 70 | 8.0 | 40 | 1.7 | 3.6 |
| HD-1050 | M10 | 50 | 10.0 | 45 | 2.9 | 4.5 |
| HD-1060 | M10 | 60 | 10.0 | 45 | 2.9 | 4.5 |
| HD-1070 | M10 | 70 | 10.0 | 45 | 2.9 | 4.5 |
| HD-1080 | M10 | 80 | 10.0 | 45 | 2.9 | 4.5 |
| HD-1090 | M10 | 90 | 10.0 | 45 | 2.9 | 4.5 |
| HD-10100 | M10 | 100 | 10.0 | 55 | 2.9 | 4.5 |
| HD-10120 | M10 | 120 | 10.0 | 55 | 2.9 | 4.5 |
| HD-12060 | M12 | 60 | 12.0 | 50 | 3.6 | 6.5 |
| HD-12070 | M12 | 70 | 12.0 | 50 | 3.6 | 6.5 |
| HD-12090 | M12 | 90 | 12.0 | 50 | 3.6 | 6.5 |
| HD-12100 | M12 | 100 | 12.0 | 50 | 3.6 | 6.5 |
| HD-12120 | M12 | 120 | 12.0 | 60 | 3.6 | 6.5 |
| HD-12150 | M12 | 150 | 12.0 | 60 | 3.6 | 6.5 |
| HD-16100 | M16 | 100 | 16.0 | 65 | 6.3 | 12.5 |
| HD-16120 | M16 | 120 | 16.0 | 65 | 6.3 | 12.5 |
| HD-16150 | M16 | 150 | 16.0 | 65 | 6.3 | 12.5 |
| HD-20130 | M20 | 130 | 20.0 | 65 | 10.2 | 14.5 |
| HD-20150 | M20 | 150 | 20.0 | 85 | 10.2 | 14.5 |
| HD-20190 | M20 | 190 | 20.0 | 85 | 10.2 | 14.5 |
