Hanger Anchor - HB
Please select product

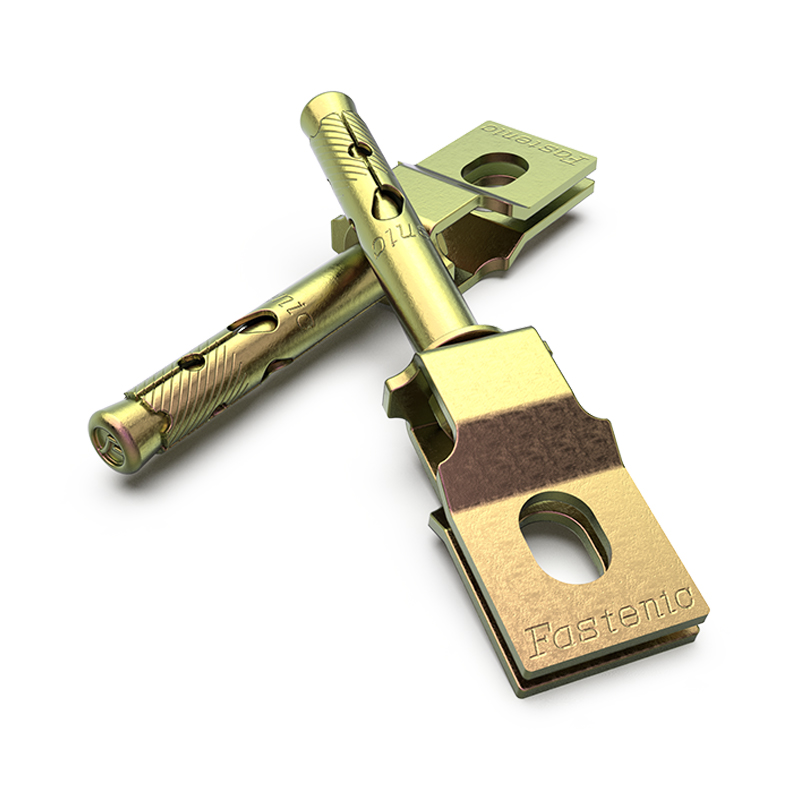

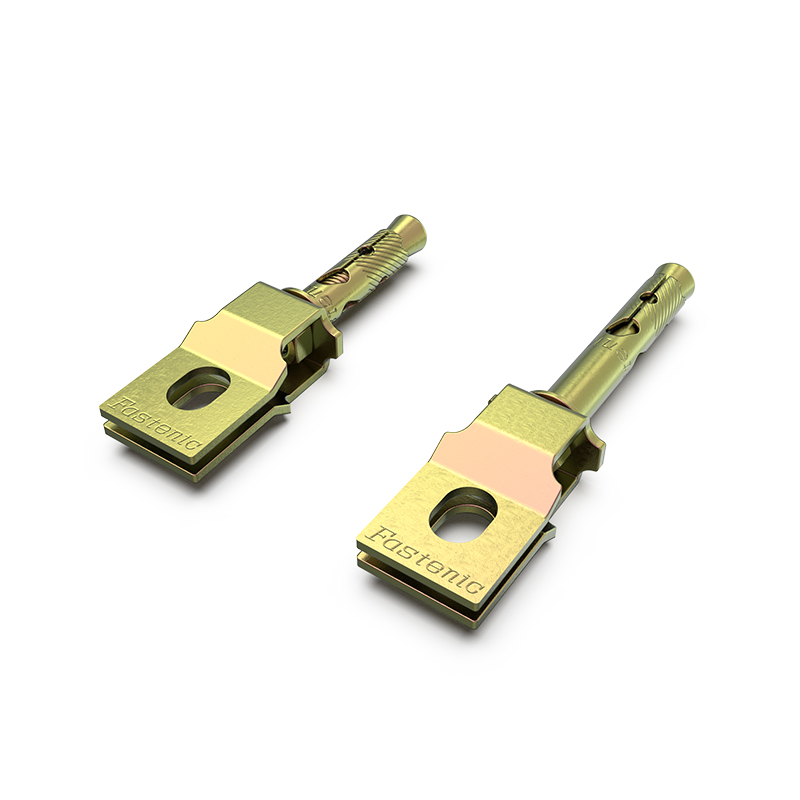

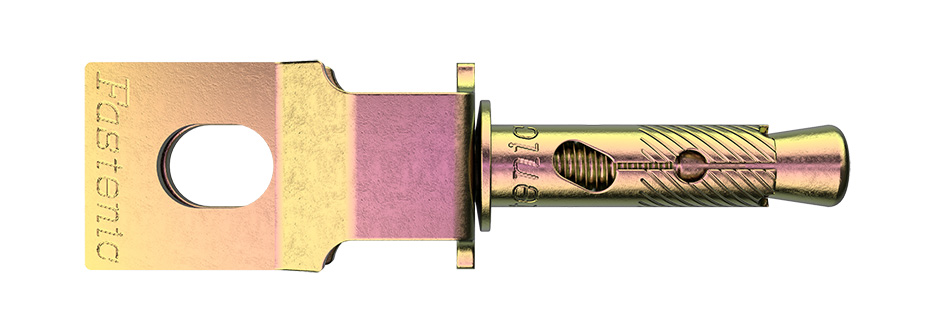

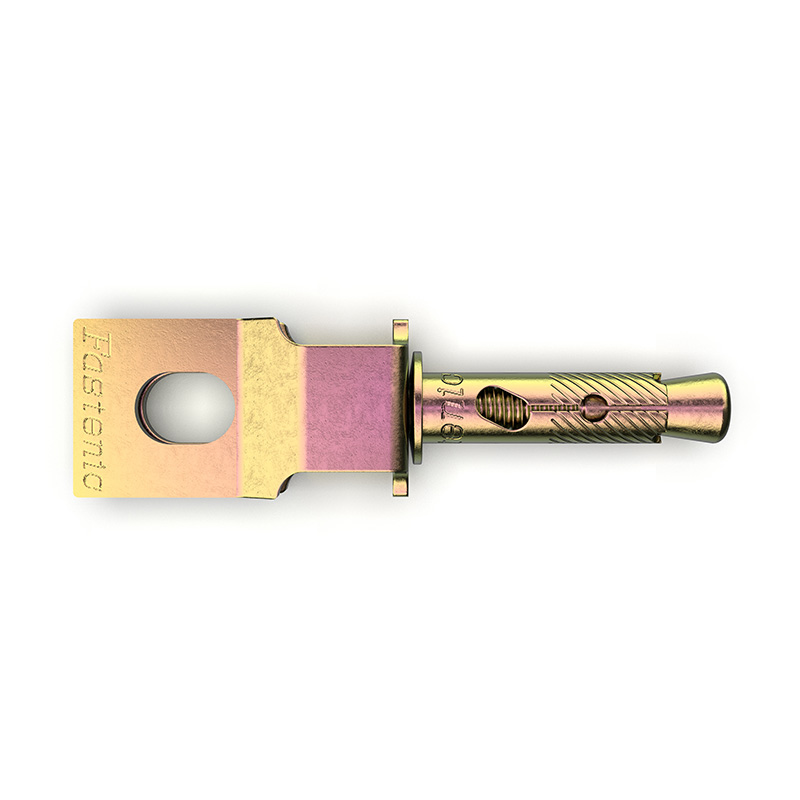

Hanger Anchor - HB

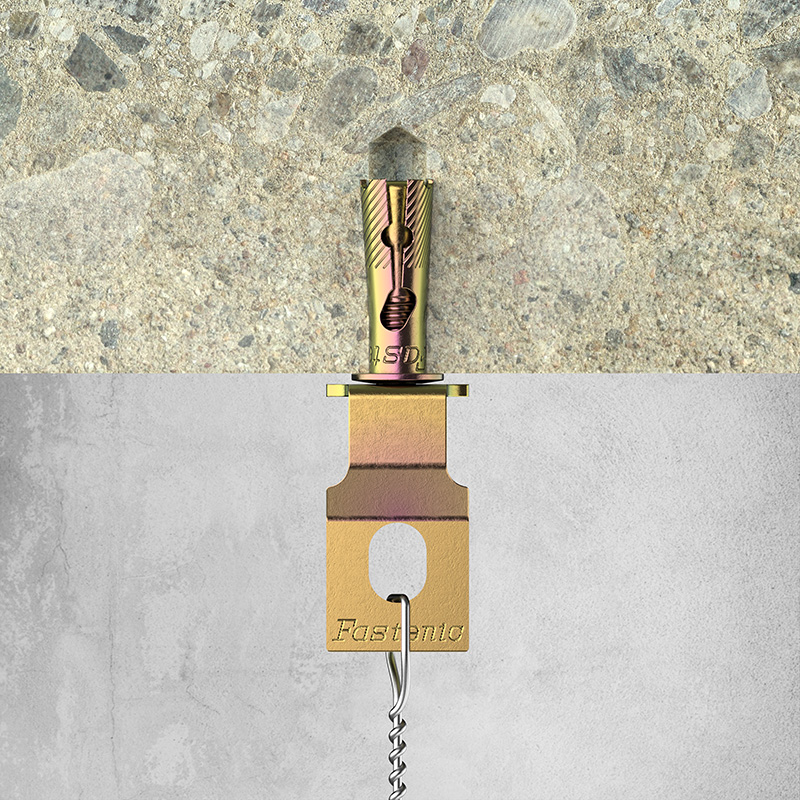

Hanger anchors are widely used for masonry, anchors and concrete surface, like ceiling hanging.
- Manufactured from yellow zinc electroplated steel.

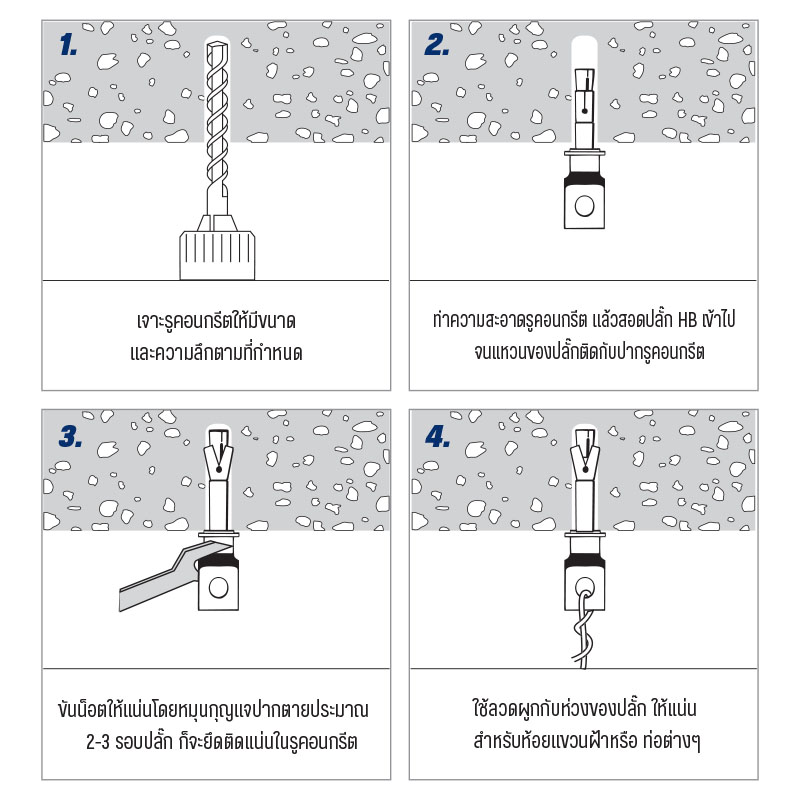

- Easy to Install - Expansion is created by tightening a threaded bolt which draws a tapered cone expanding a sleeve against the walls of the hole
Hanger anchors are widely used for masonry, anchors and concrete surface, like ceiling hanging.
- Manufactured from yellow zinc electroplated steel.
- Easy to Install - Expansion is created by tightening a threaded bolt which draws a tapered cone expanding a sleeve against the walls of the hole
| SKU | Thread Size | Anchor Length (mm.) | Drill Size (mm.) | Drill Hole Depth (mm.) | Pull-Out (kN) | Shear (kN) |
|---|---|---|---|---|---|---|
| HB-6525 | - | 57 | 6.5 | 25 | 1.1 | 1.2 |
| HB-6538 | - | 69 | 6.5 | 38 | 1.1 | 1.2 |
