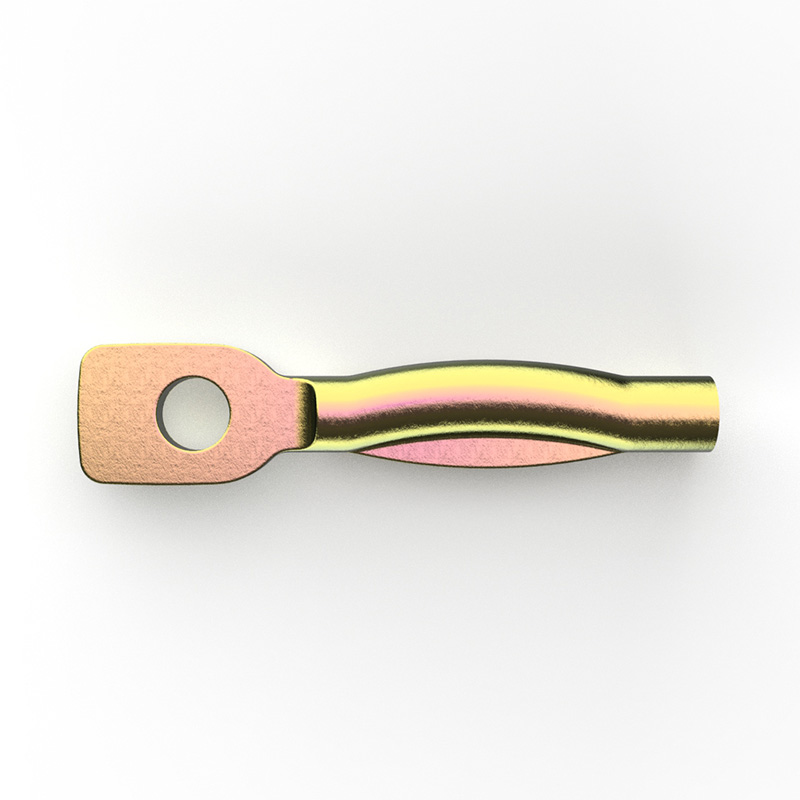

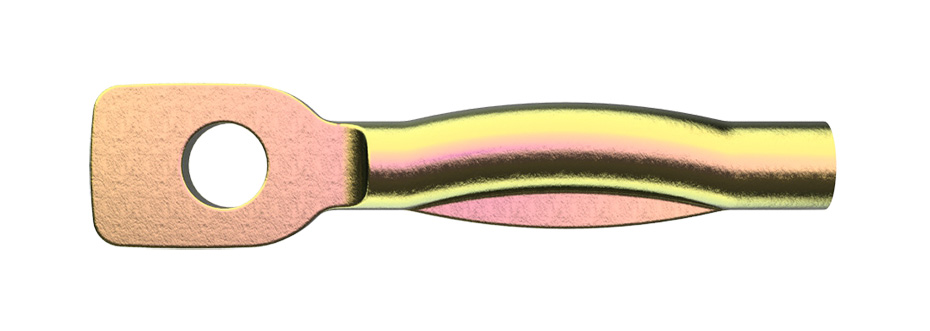

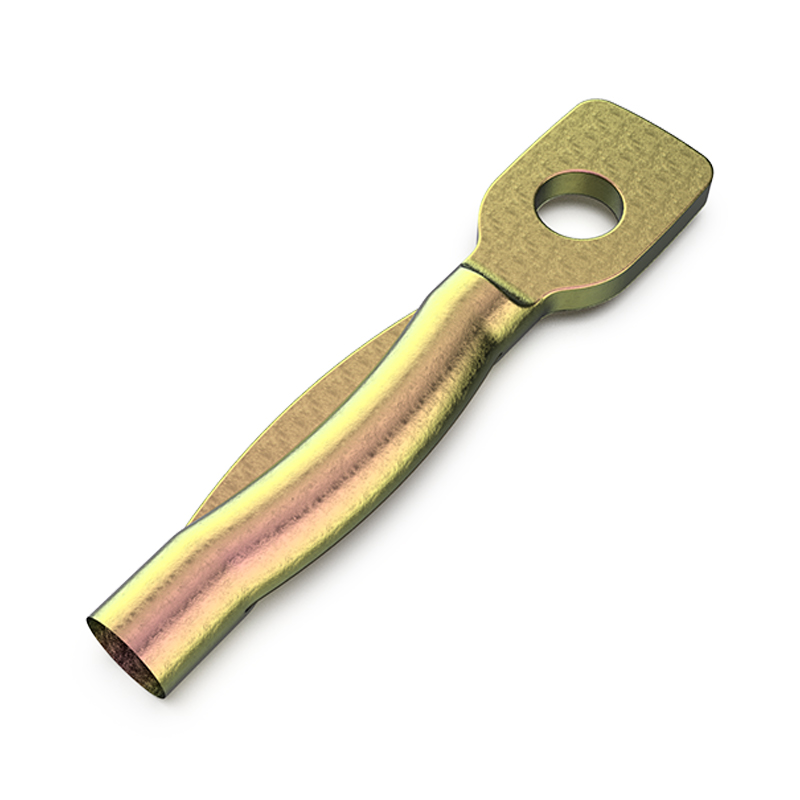

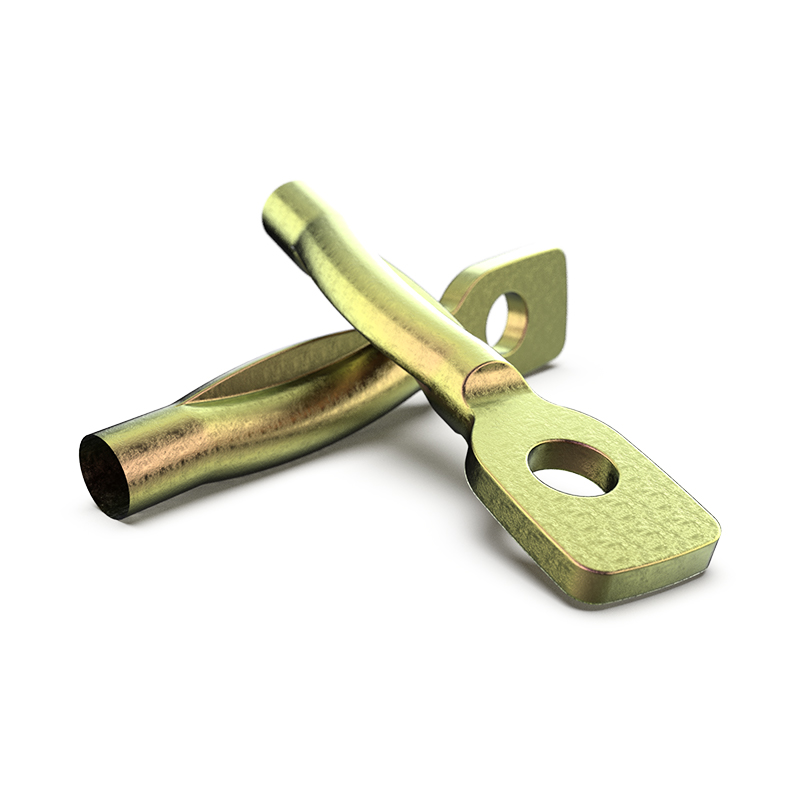

Hanger Split Anchor - HP

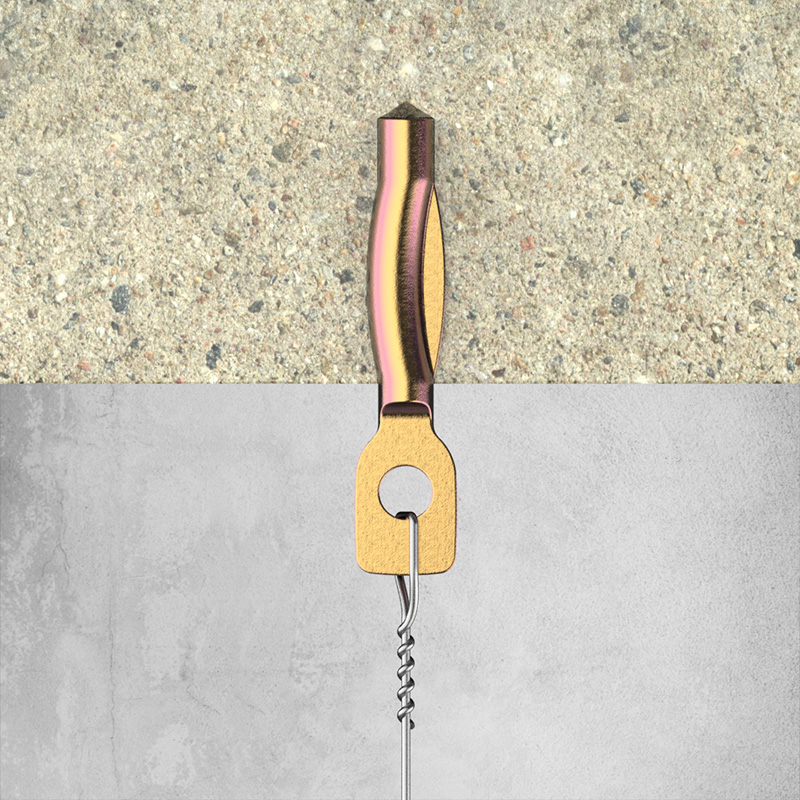

Hanger anchors are widely used for masonry, anchors and concrete surface, like ceiling hanging.
- Manufactured from yellow zinc electroplated steel.
- Easy to Install - Expansion is created by tightening a threaded bolt which draws a tapered cone expanding a sleeve against the walls of the hole
SKU Thread Size Anchor Length (mm.) Drill Size (mm.) Drill Hole Depth (mm.) Pull-Out (kN) Shear (kN)
HP-6550 - 50 8.0 30 0.53 0.60

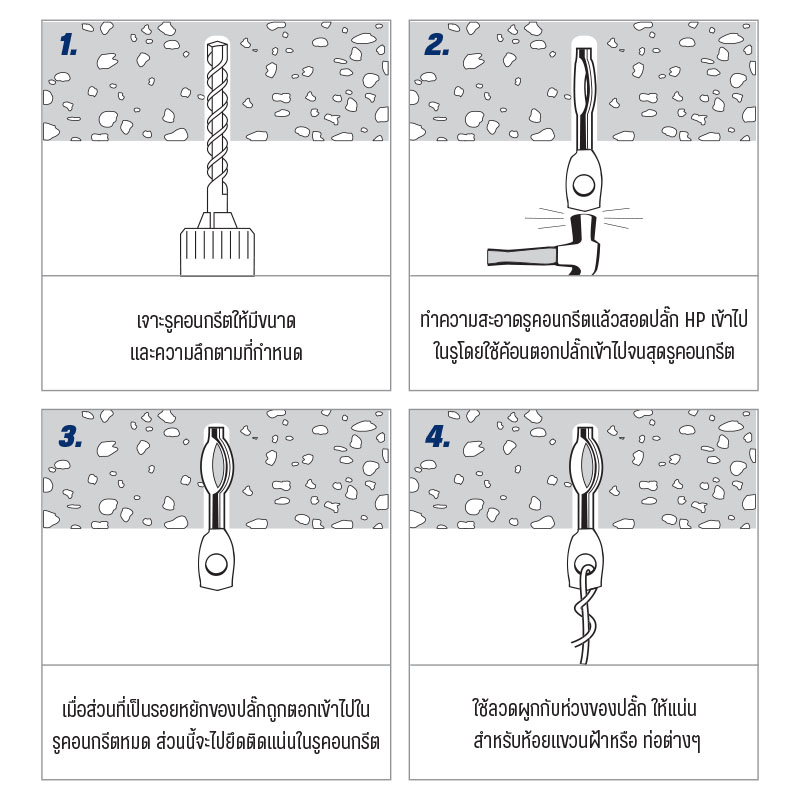

Installation guide
