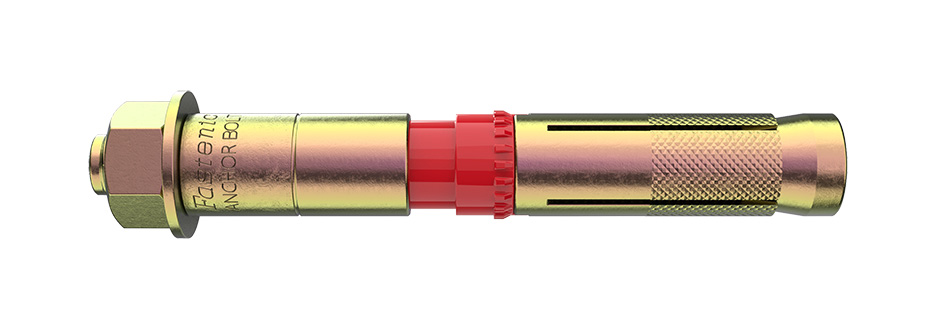

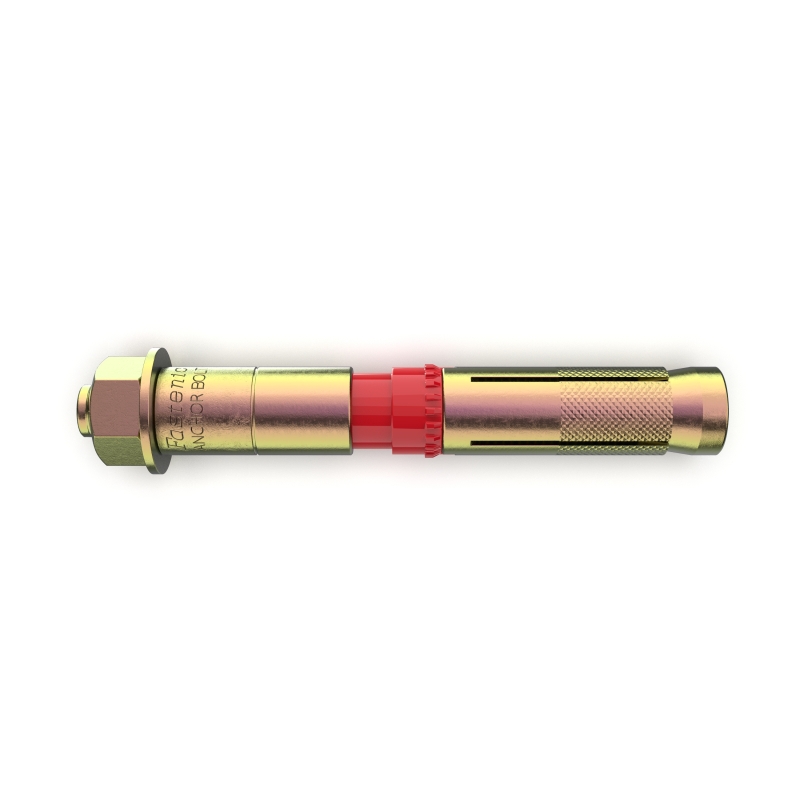

Heavy Duty Anchor - HV
High performance Heavy-Duty Anchor for high and safe.
- High and safe loading capacity in compression zone.
- Forced controlled expansion anchor.

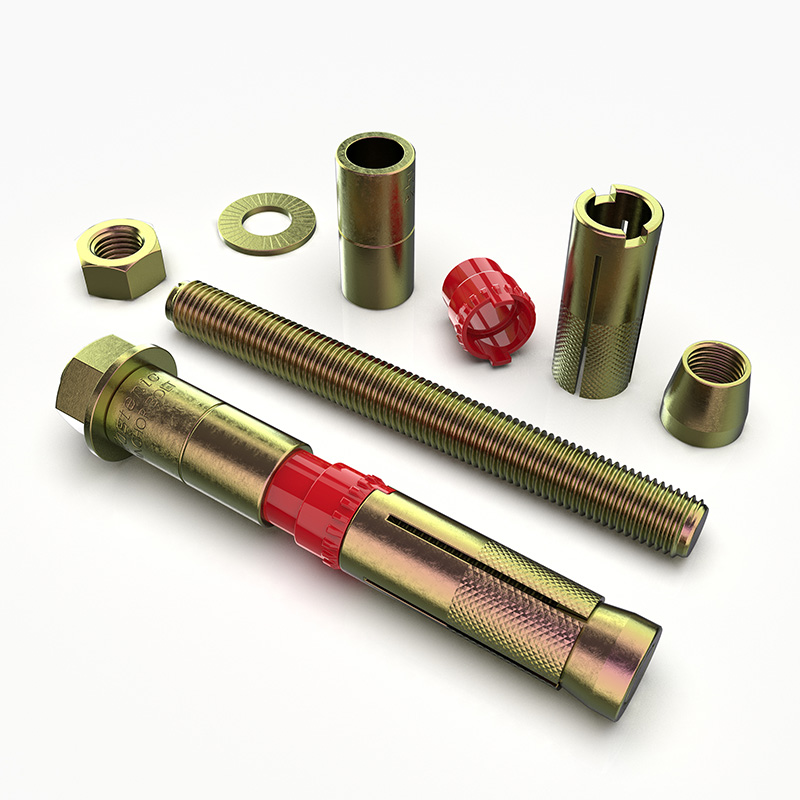

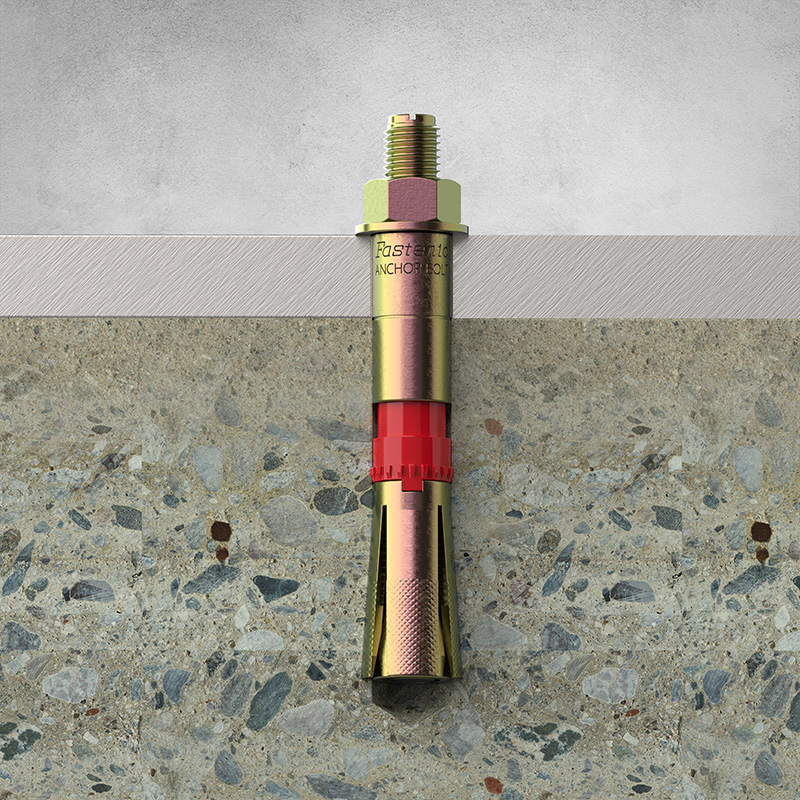

- When tightening the bolt or nut, the expansion cone is pulled into
the expansion sleeve, expanding and wedging it inside the base material
- Supplied complete unit and ready to use.
- Quick and easy installation-push through fastening.
- Nylon Ring-prevent rotation when tightening bolt or nut and bridges small gaps.
- Finished with a rust resistant yellow zinc plated.

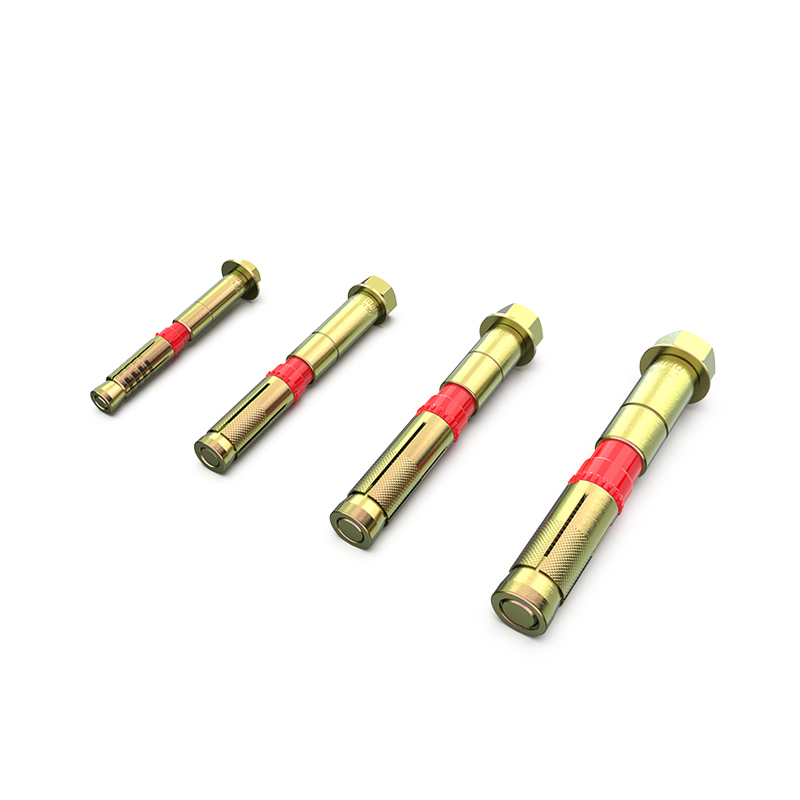

SKU Thread Size Anchor Length (mm.) Drill Size (mm.) Drill Hole Depth (mm.) Pull-Out (kN) Shear (kN)
HV-12150 M12 135 18 120 13.0 20.5
HV-16180 M16 165 24 140 24.0 38.4
HV-20200 M20 175 28 145 37.2 58.6
HV-24220 M24 195 32 150 45.5 76.6

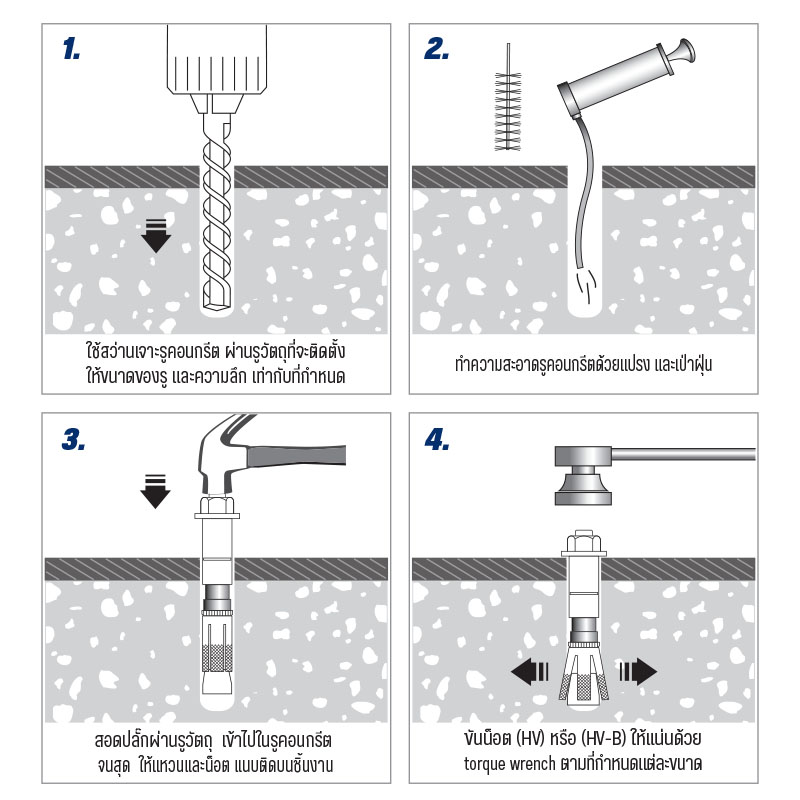

Installation guide
