AS-88

High Tensile Stud Anchor Rods - AS-88

AS-88

High Tensile Stud Anchor Rods - AS-88

Please select product

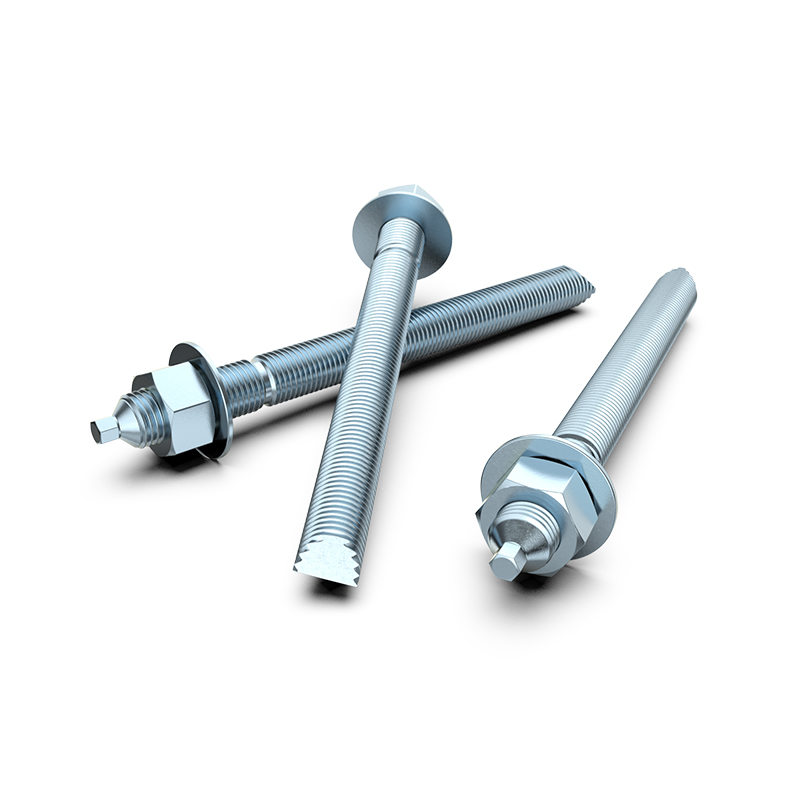

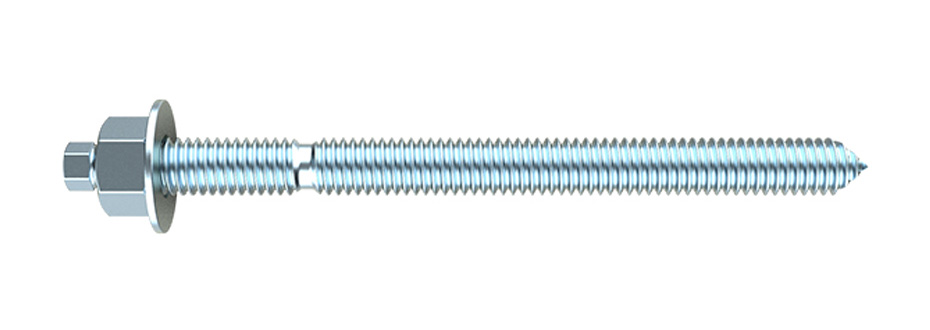

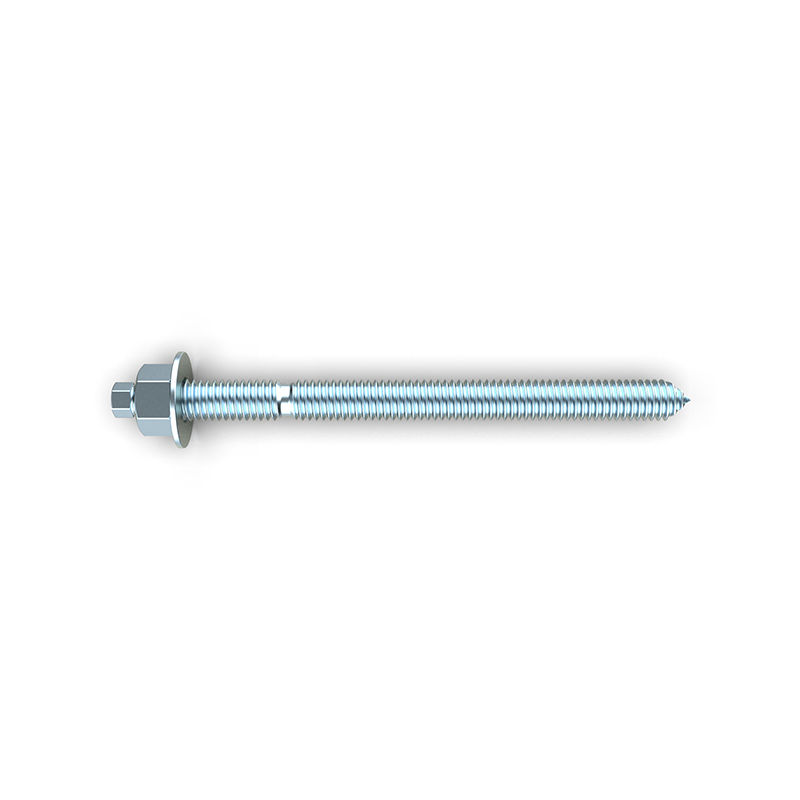

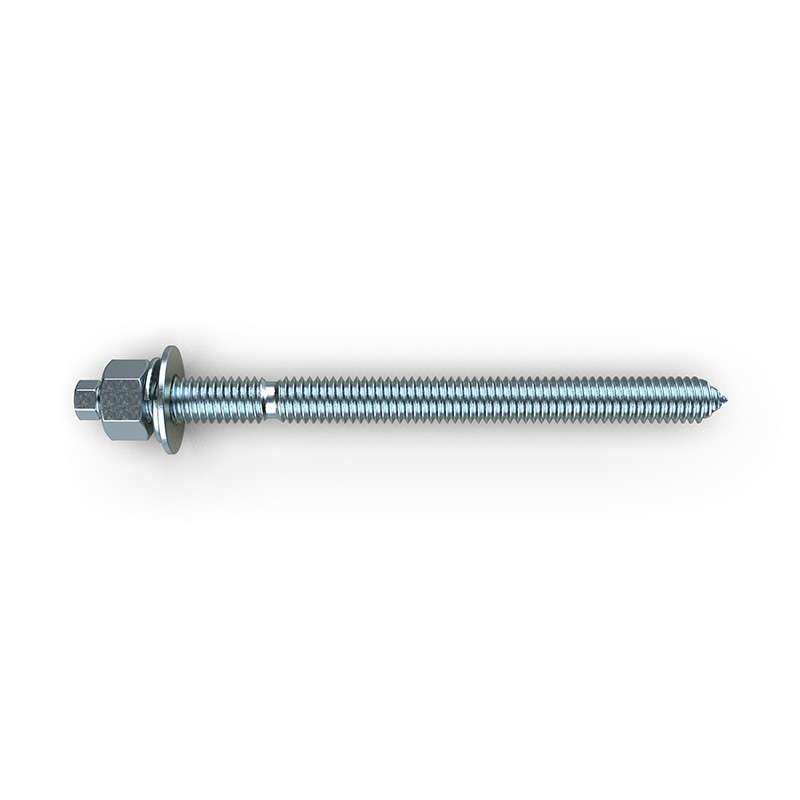

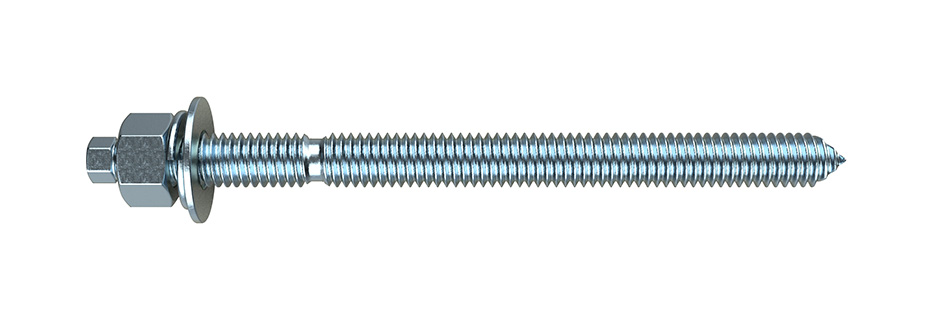

Stud Anchor Rod - AS-88

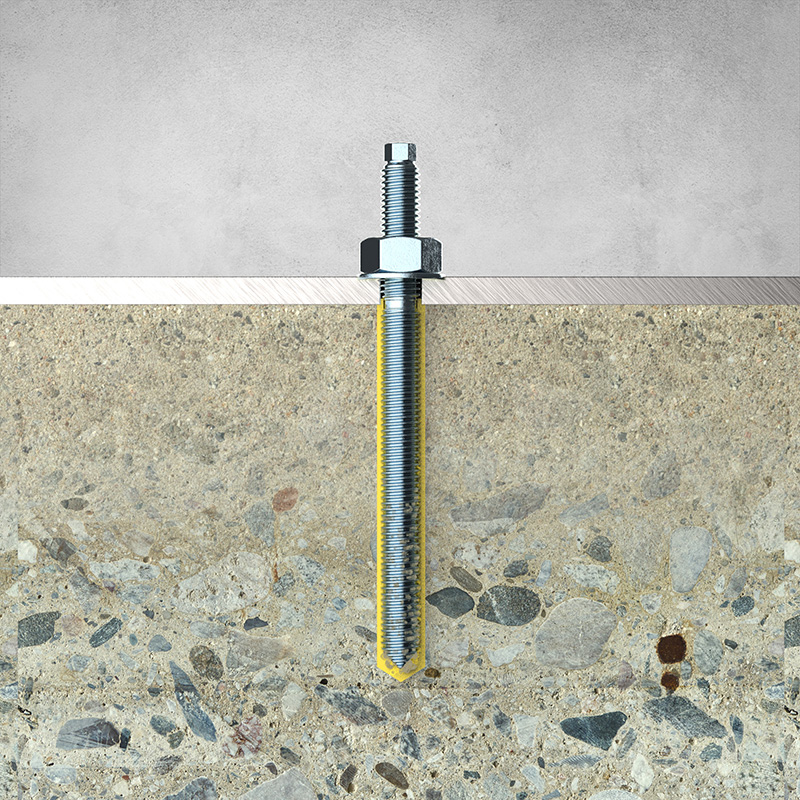

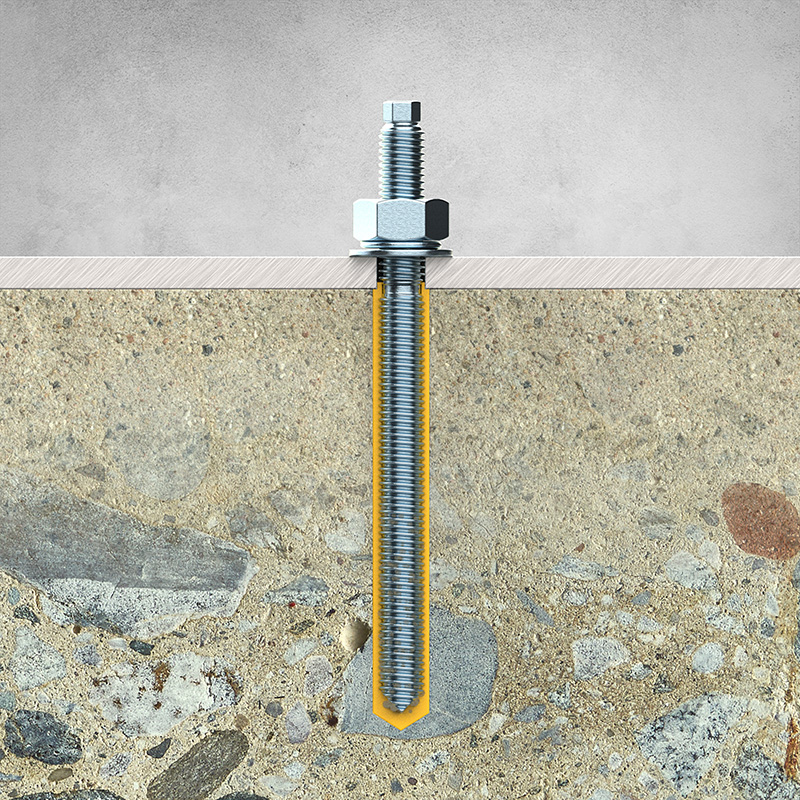

for use with chemical anchor CM fastenic
- manufactured by high tensile steel 8.8
- come with nut an washer

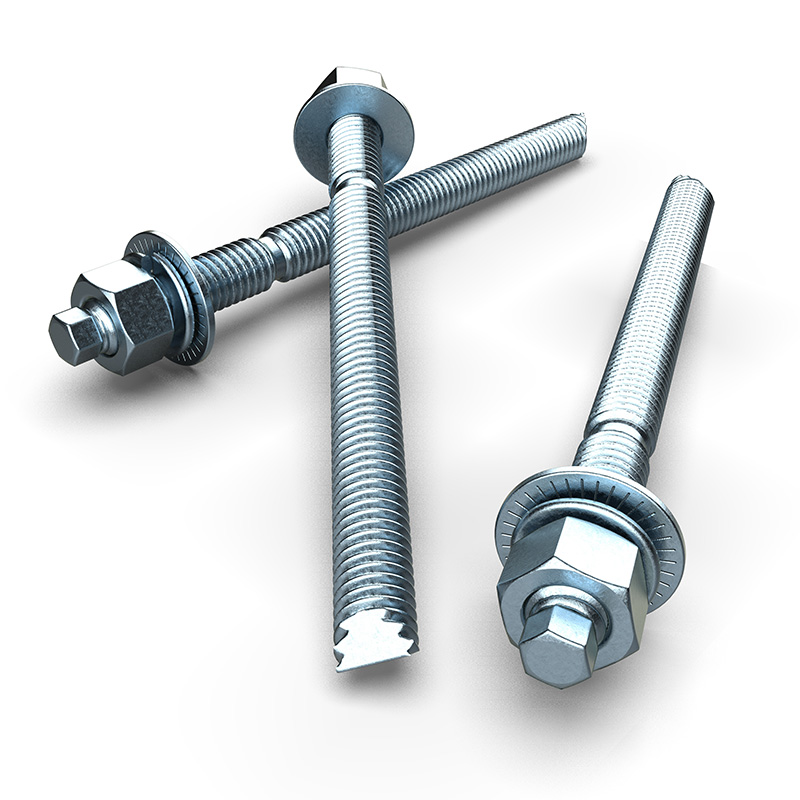

- Hexagon head and sharpen tip make it easy to install with rotary hammer
- Marked the embedment level

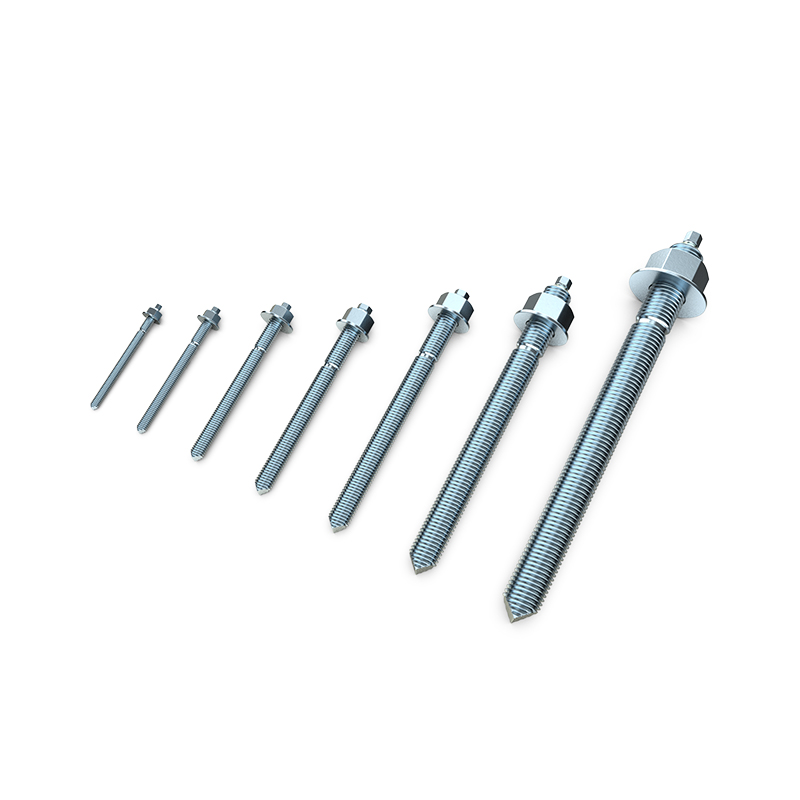

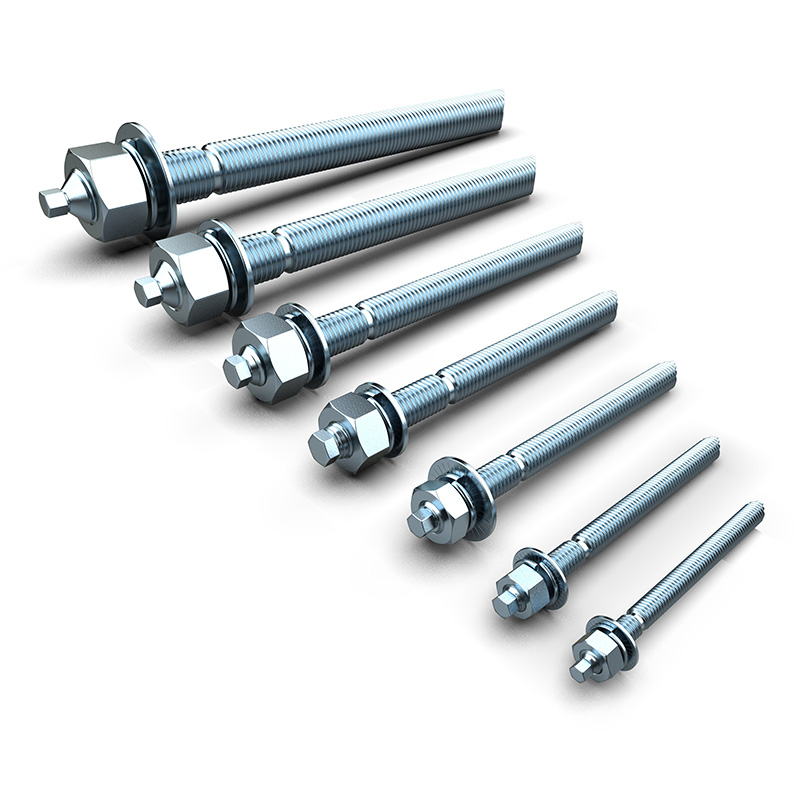

SKU	Thread Size	Anchor Length (mm.)	Drill Size (mm.)	Drill Hole Depth (mm.)	Pull-Out (kN)	Shear (kN)
AS-8110-88	M8	110	10	80	9.2	5.6
AS-10130-88	M10	130	12	90	14.6	8.8
AS-12160-88	M12	160	14	110	21.3	12.8
AS-16190-88	M16	190	18	125	40.0	24.1
AS-20240-88	M20	240	25	170	62.6	37.6
AS-24290-88	M24	290	28	210	86.4	51.9
AS-27340-88	M27	340	32	250	113.8	68.3
AS-30380-88	M30	380	35	280	138.4	83.0
