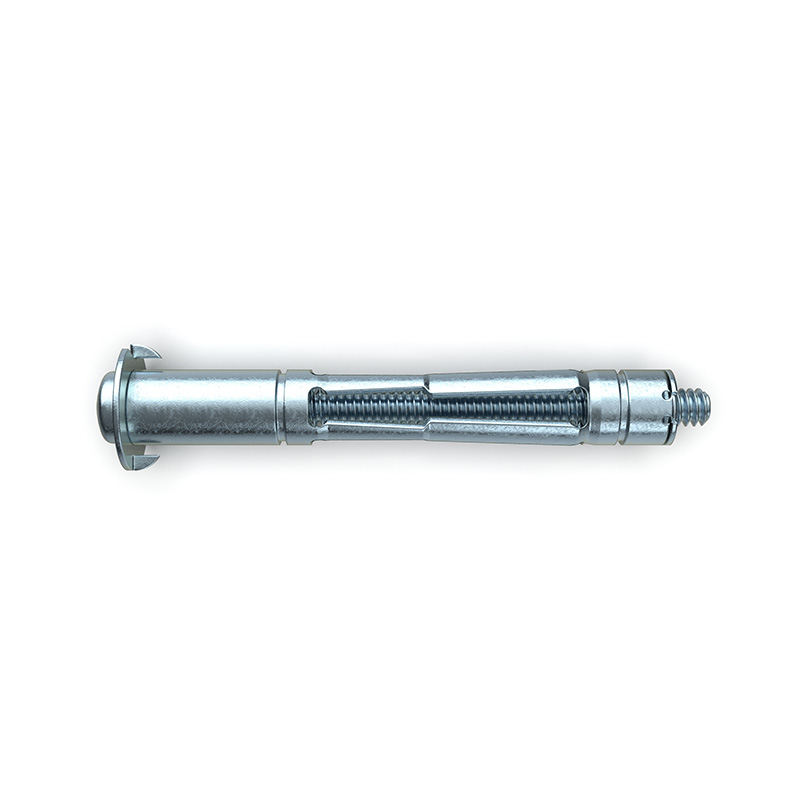

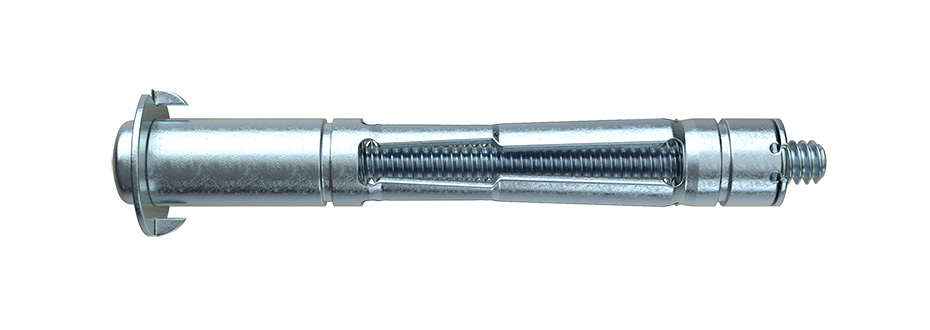

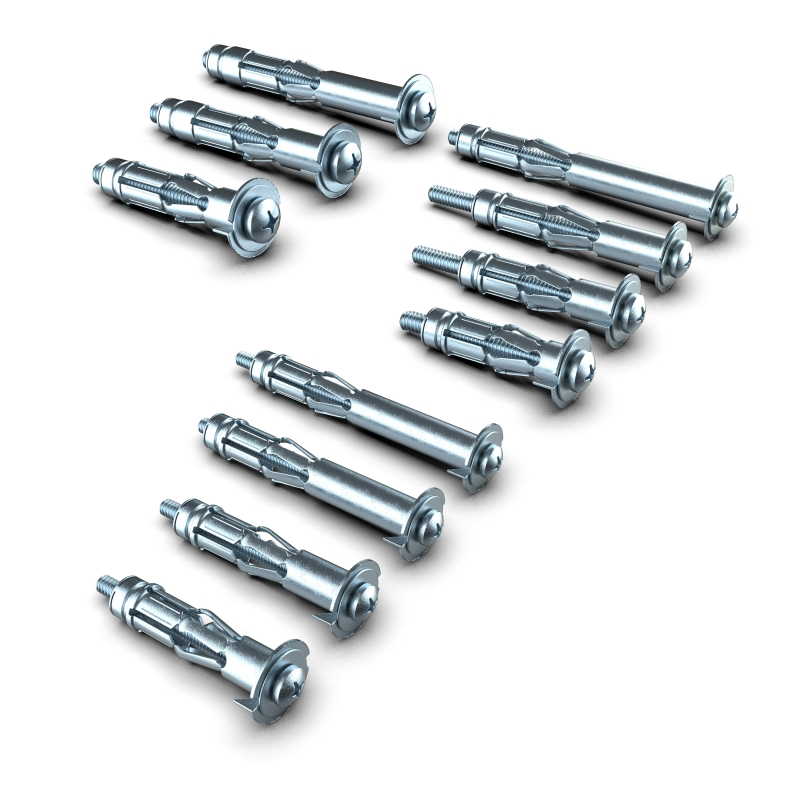

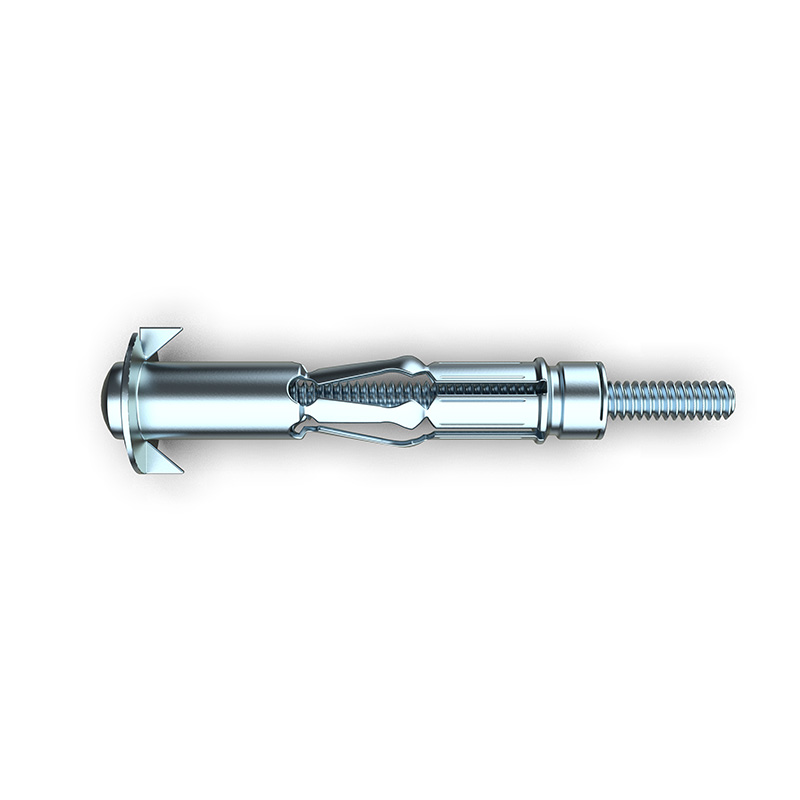

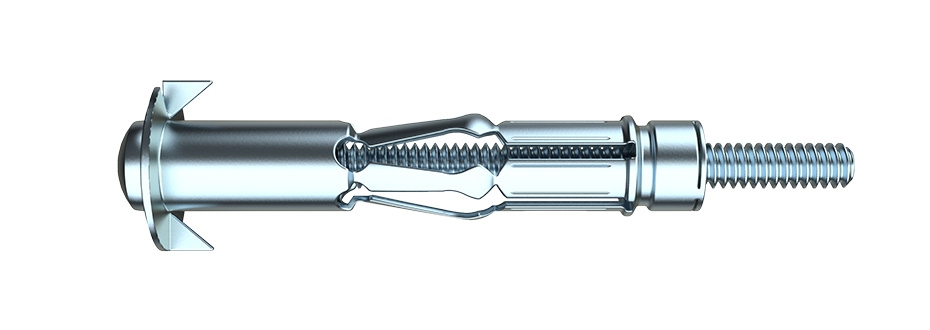

Hollow-Wall Anchor - HA
Screw Anchors for Drywall, Plaster, and Wood Paneling
- For Drywall thickness from 3mm. upper

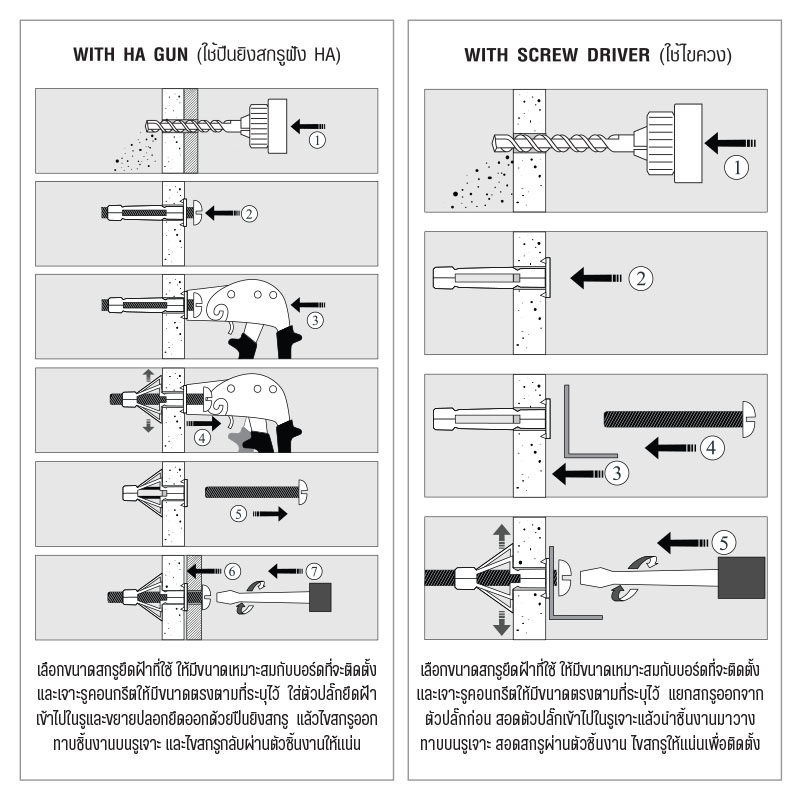

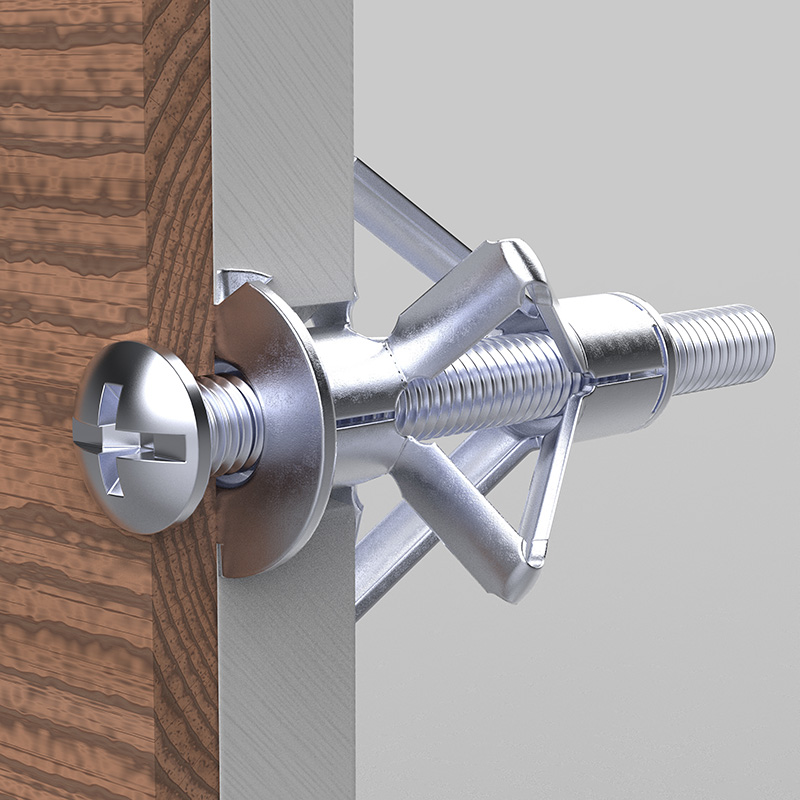

- When tightening the screw with screw driver or assembly pliers (HA-Gun), the prop segments fold open along the back of board and support the plug.
- The large contact pressure radius helps to distribute the forces and provides high load values
Screw Anchors for Drywall, Plaster, and Wood Paneling
- For Drywall thickness from 3mm. upper
- When tightening the screw with screw driver or assembly pliers (HA-Gun), the prop segments fold open along the back of board and support the plug.
- The large contact pressure radius helps to distribute the forces and provides high load values

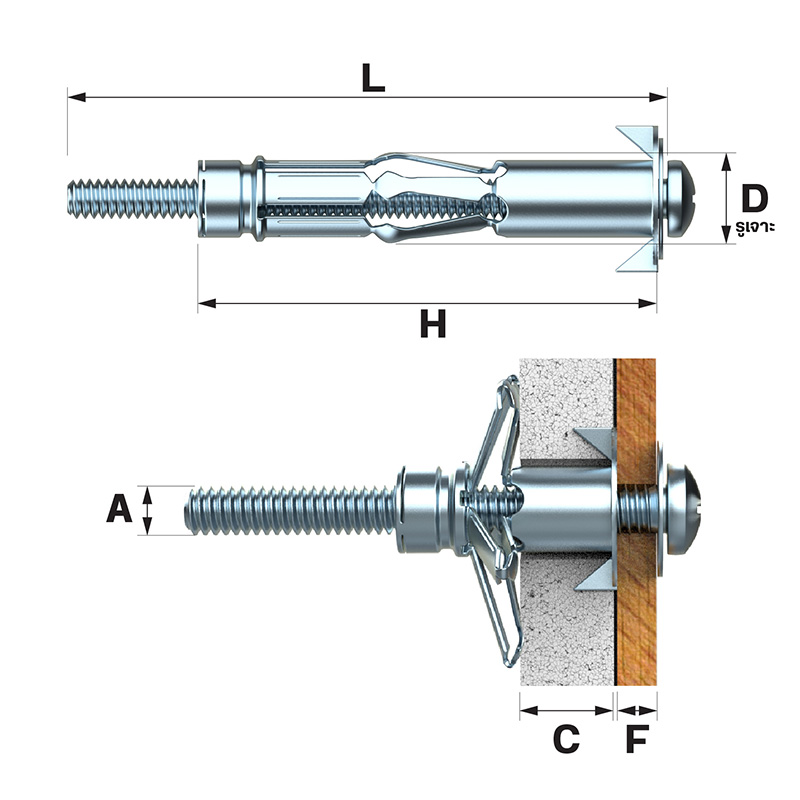

| SKU | Thread Size | Anchor Length (mm.) | D (mm.) | H (mm.) | C (mm.) | A (mm.) | F (mm.) | Pull-out (kN) | Shear (kN) |
|---|---|---|---|---|---|---|---|---|---|
| HA-405 | M4 | 30 | 8 | 22 | 3-5 | 4 | 2 | 0.1 | 0.14 |
| HA-409 | M4 | 40 | 8 | 34 | 3-9 | 4 | 4 | 0.1 | 0.14 |
| HA-416 | M4 | 45 | 8 | 40 | 5-15 | 4 | 4 | 0.1 | 0.14 |
| HA-422 | M4 | 52 | 8 | 52 | 3-20 | 4 | 3 | 0.1 | 0.14 |
| HA-423 | M4 | 60 | 8 | 53 | 18-28 | 4 | 2 | 0.18 | 0.23 |
| HA-427 | M4 | 65 | 8 | 59 | 31-38 | 4 | 2 | 0.18 | 0.23 |
| HA-510 | M5 | 45 | 10 | 37 | 6-13 | 5 | 3 | 0.18 | 0.23 |
| HA-514 | M5 | 58 | 10 | 50 | 3-16 | 5 | 4 | 0.18 | 0.23 |
| HA-527 | M5 | 71 | 10 | 63 | 14-32 | 5 | 4 | 0.18 | 0.23 |
| HA-545 | M5 | 88 | 10 | 80 | 32-45 | 5 | 2 | 0.18 | 0.23 |
| HA-610 | M6 | 45 | 11 | 37 | 6-13 | 6 | 3 | 0.29 | 0.34 |
| HA-614 | M6 | 58 | 11 | 50 | 3-16 | 6 | 3 | 0.29 | 0.34 |
| HA-627 | M6 | 71 | 11 | 63 | 14-32 | 6 | 4 | 0.29 | 0.34 |
| HA-645 | M6 | 88 | 12 | 80 | 32-45 | 6 | 3 | 0.29 | 0.34 |
