Application
The Fastenic Lifting Anchor type LA is designed for lifting concrete panel, concrete beam, concrete slab, concrete pipe, etc.
Function
Fastenic Lifting Anchor LA type transfers force direct to the anchor foot in the concrete which allow high permissibleloading with short embedment.
The Fastenic Lifting Anchor type LA is designed for lifting concrete panel, concrete beam, concrete slab, concrete pipe, etc.
Function
Fastenic Lifting Anchor LA type transfers force direct to the anchor foot in the concrete which allow high permissibleloading with short embedment.

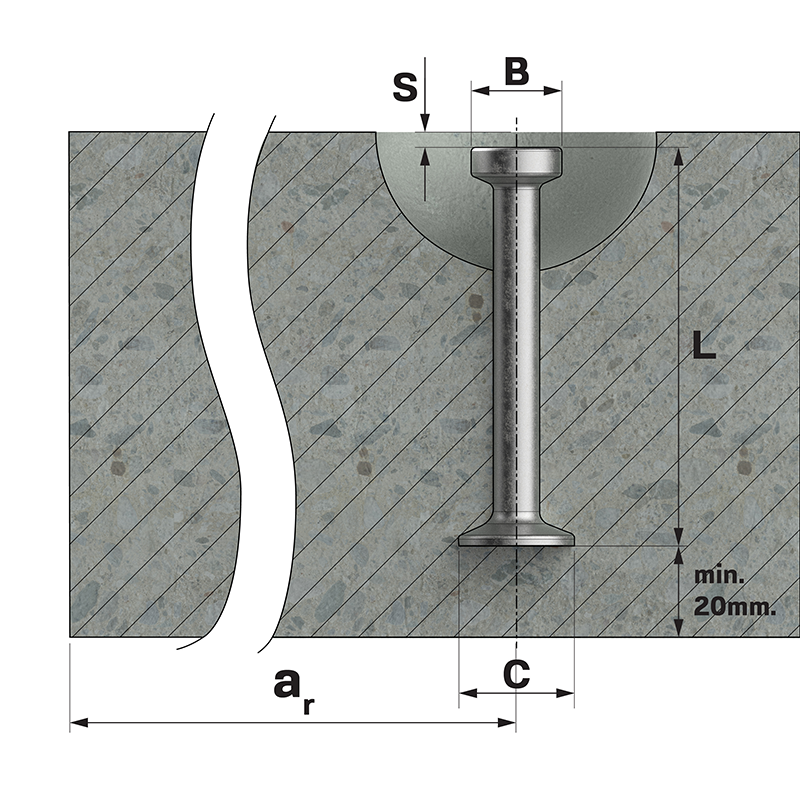

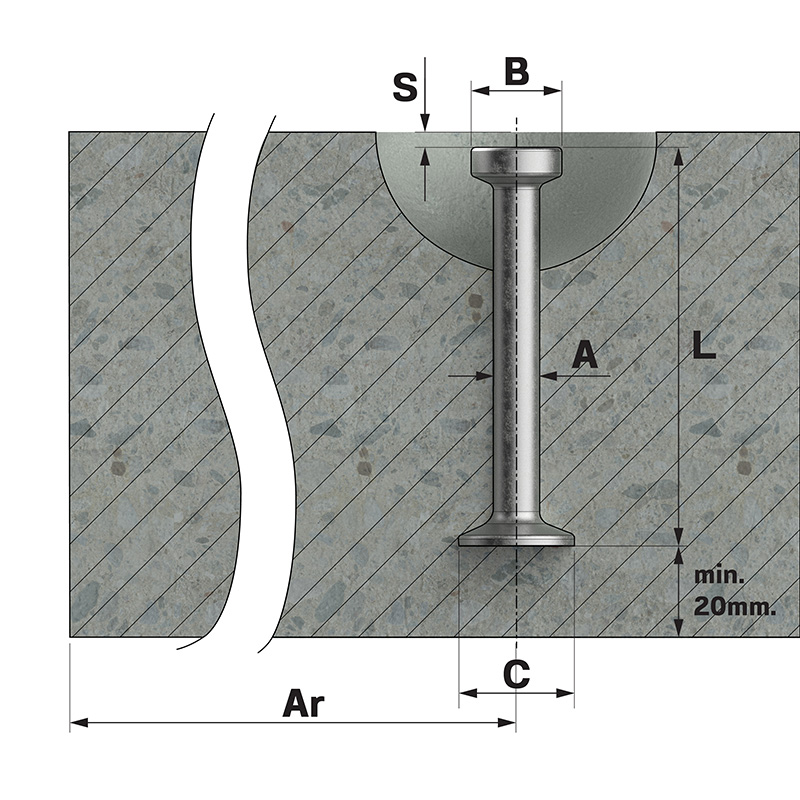

| SKU | A (mm.) | B (mm.) | C (mm.) | S (mm.) | L (mm.) | ar (mm.) | SWL/ton |
|---|---|---|---|---|---|---|---|
| LA-1065 | 10 | 19 | 25 | 10 | 65 | 230 | 1.3 |
| LA-1077 | 10 | 19 | 25 | 10 | 77 | 270 | 1.3 |
| LA-1085 | 10 | 19 | 25 | 10 | 85 | 290 | 1.3 |
| LA-1097 | 10 | 19 | 25 | 10 | 97 | 330 | 1.3 |
| LA-10120 | 10 | 19 | 25 | 10 | 120 | 390 | 1.3 |
| LA-1455 | 14 | 26 | 35 | 11 | 55 | 200 | 2.5 |
| LA-1465 | 14 | 26 | 35 | 11 | 65 | 230 | 2.5 |
| LA-1485 | 14 | 26 | 35 | 11 | 85 | 300 | 2.5 |
| LA-1495 | 14 | 26 | 35 | 11 | 95 | 320 | 2.5 |
| LA-1497 | 14 | 26 | 35 | 11 | 97 | 340 | 2.5 |
| LA-14120 | 14 | 26 | 35 | 11 | 120 | 400 | 2.5 |
| LA-14170 | 14 | 26 | 35 | 11 | 170 | 550 | 2.5 |
| LA-20120 | 20 | 38 | 50 | 15 | 120 | 420 | 5.0 |
| LA-20180 | 20 | 38 | 50 | 15 | 180 | 600 | 5.0 |
| LA-20240 | 20 | 38 | 50 | 15 | 240 | 800 | 5.0 |
| LA-20340 | 20 | 38 | 50 | 15 | 340 | 1100 | 5.0 |
| LA-24140 | 24 | 45 | 60 | 15 | 140 | 480 | 7.5 |
| LA-24165 | 24 | 45 | 60 | 15 | 165 | 550 | 7.5 |
| LA-24200 | 24 | 45 | 60 | 15 | 200 | 660 | 7.5 |
| LA-24300 | 24 | 45 | 60 | 15 | 300 | 960 | 7.5 |
| LA-24440 | 24 | 45 | 60 | 15 | 440 | 1380 | 7.5 |

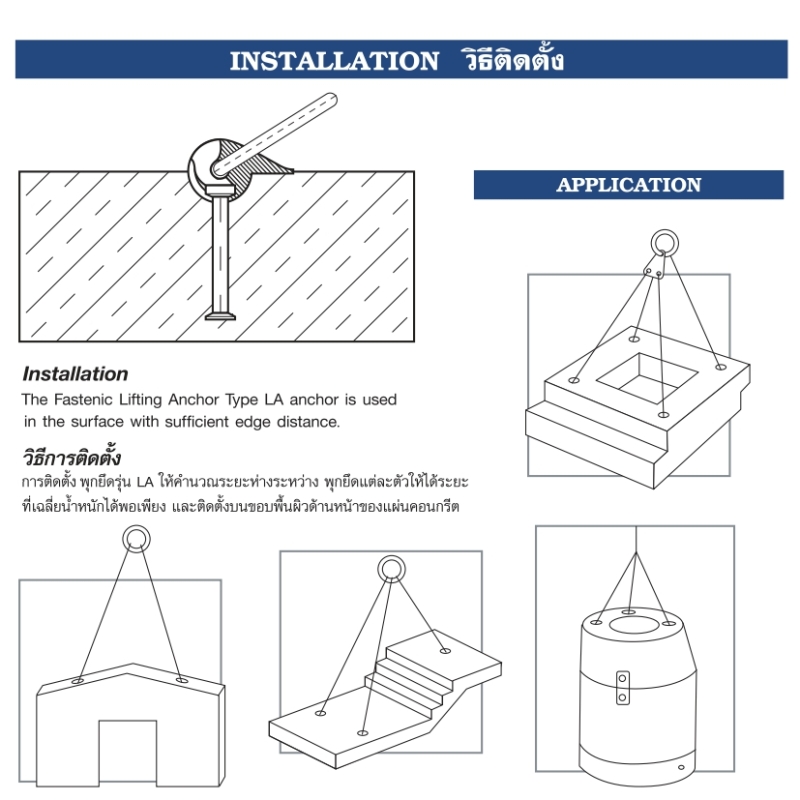

Installation guide
