Lifting hook (Head Link)-LH

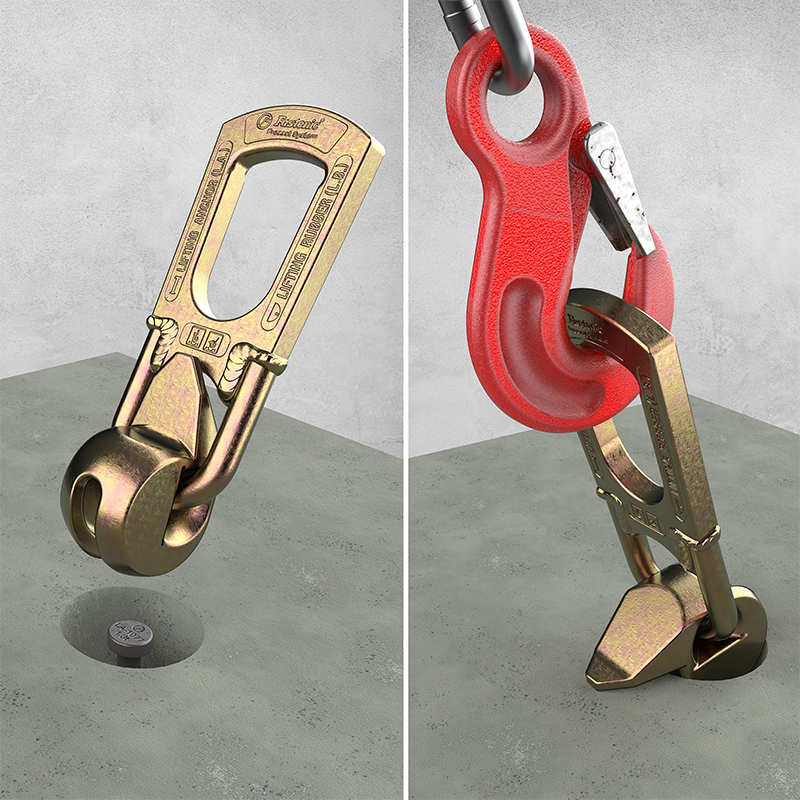

- Lifting hook is design for securely link
- Lifting anchor for transportation.
- After clamped into the anchor, its flap design prevent Lifting Hook loosing from the anchor.
- Lifting hook is design for securely link
- Lifting anchor for transportation.
- After clamped into the anchor, its flap design prevent Lifting Hook loosing from the anchor.

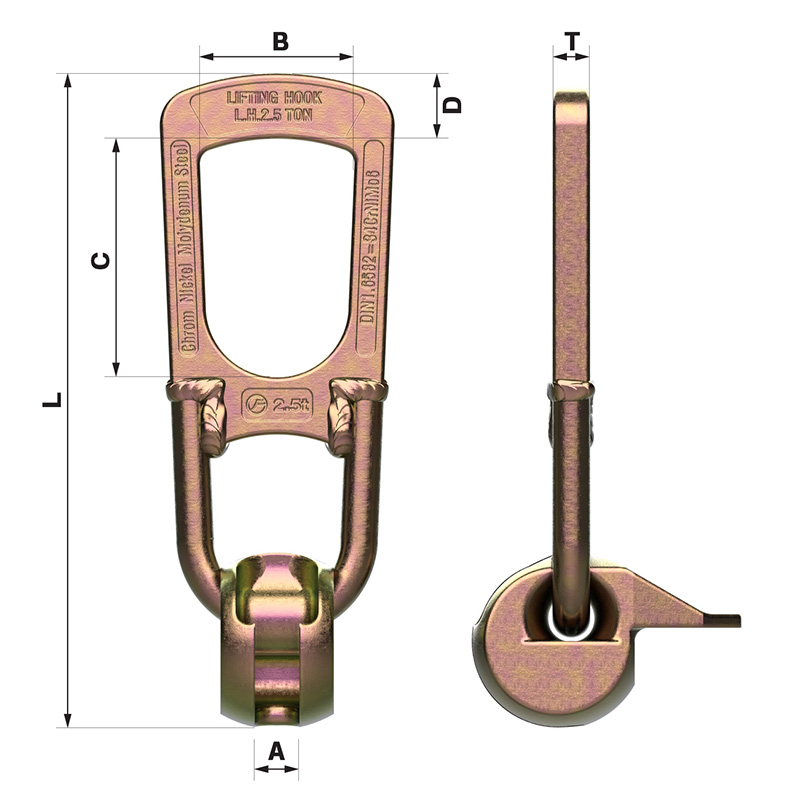

| SKU | A (mm.) | B (mm.) | C (mm.) | D (mm.) | L (mm.) | T (mm.) | SWL |
|---|---|---|---|---|---|---|---|
| LH-1310 | 11 | 42 | 70 | 20 | 185 | 12 | 1.3t |
| LH-2514 | 16 | 53 | 85 | 25 | 240 | 14 | 2.5t |
| LH-5020 | 21 | 70 | 88 | 37 | 285 | 16 | 5.0t |
| LH-7524 | 25 | 88 | 115 | 50 | 400 | 25 | 7.5t |
