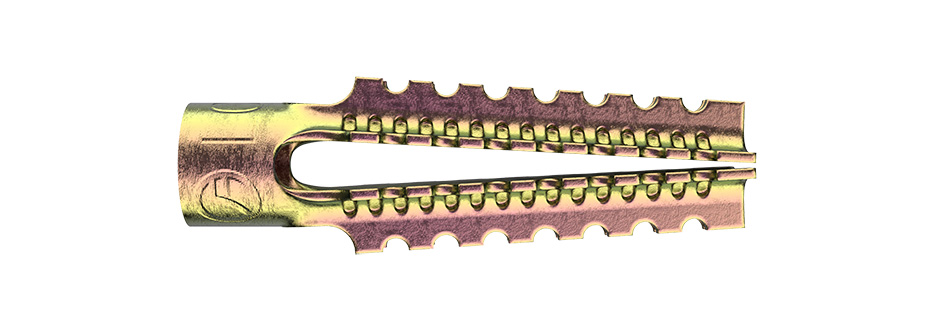

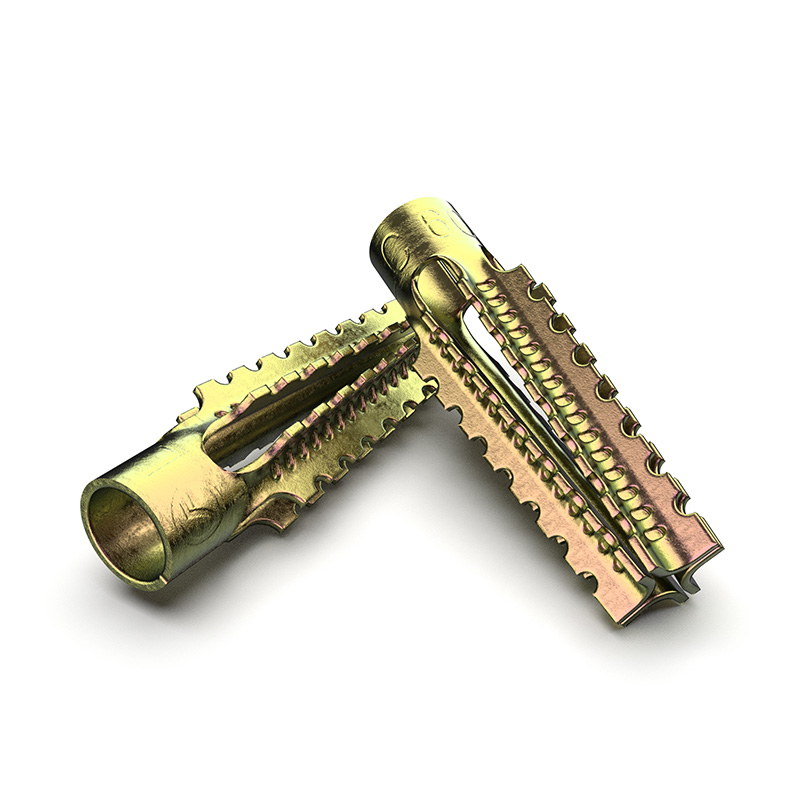

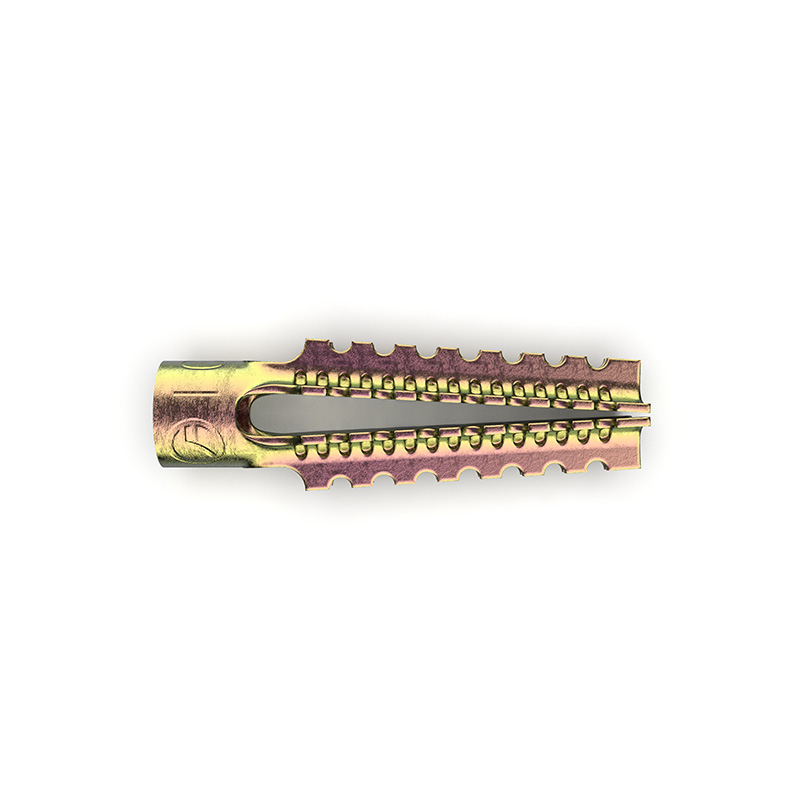

Light-Weight Concrete Anchor - LC
Suitable for wall, bubble brick, light exterior wall ,lightweight wall, porous brick

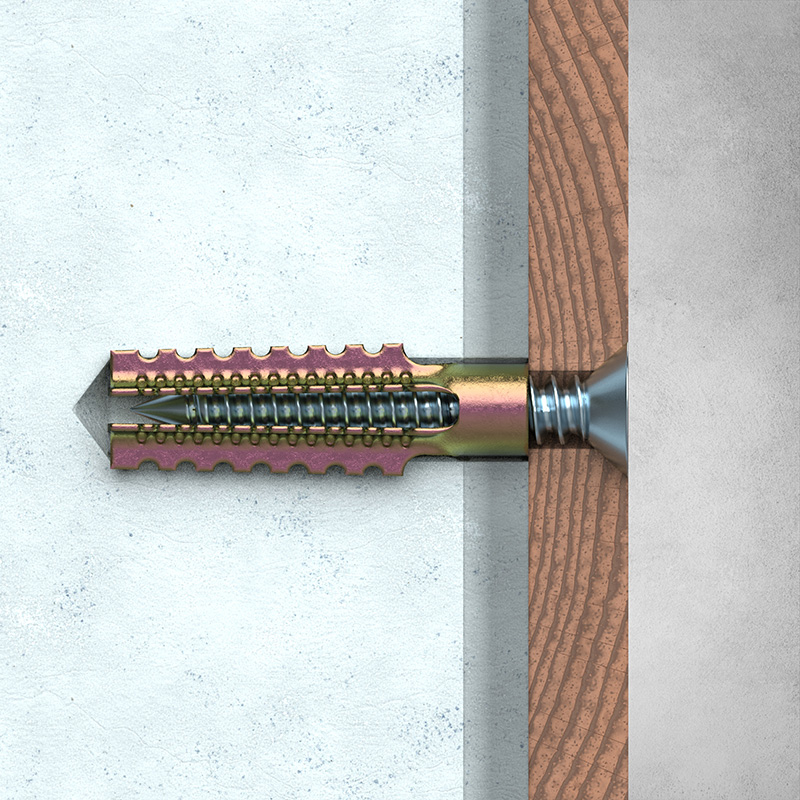

- The edge of the anchor is jagged to provide a stronger grip and ensure better holding power.

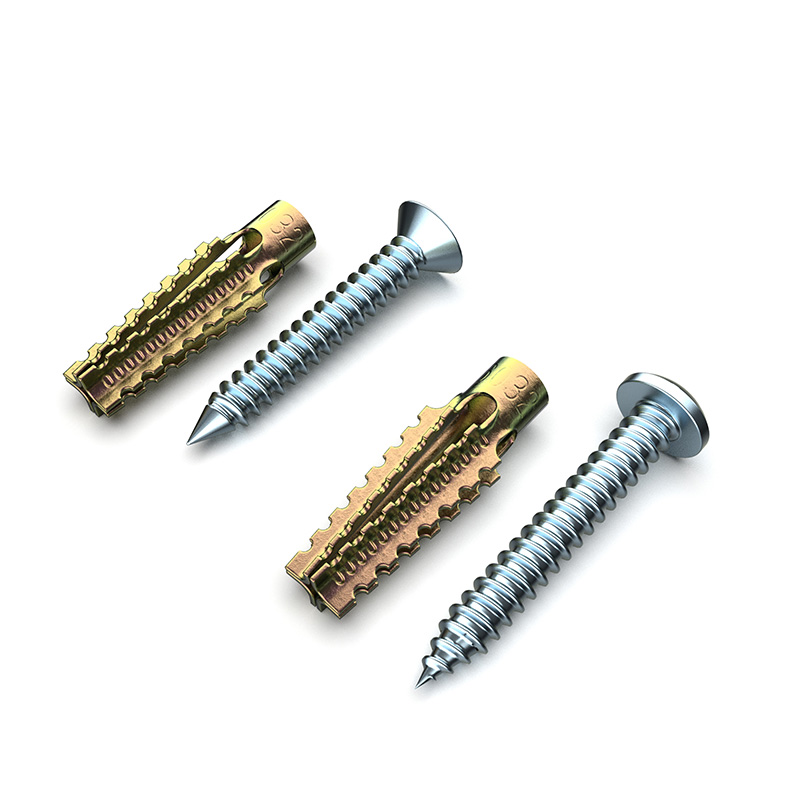

- Use with Tapping screw #12 x 1-1/2 inch
- Manufactured by yellow zinc electroplated steel
Suitable for wall, bubble brick, light exterior wall ,lightweight wall, porous brick
- The edge of the anchor is jagged to provide a stronger grip and ensure better holding power.
- Use with Tapping screw #12 x 1-1/2 inch
- Manufactured by yellow zinc electroplated steel
| SKU | Thread Size | Anchor Length (mm.) | Drill Size (mm.) | Drill Hole Depth (mm.) | Pull-Out (kN) | Shear (kN) |
|---|---|---|---|---|---|---|
| LC-6032 | #12 - 1-1/2 in | 32 | 8 | 32-35 | 0.3 | 0.4 |
