M-Press Anchor - MP
Please select product

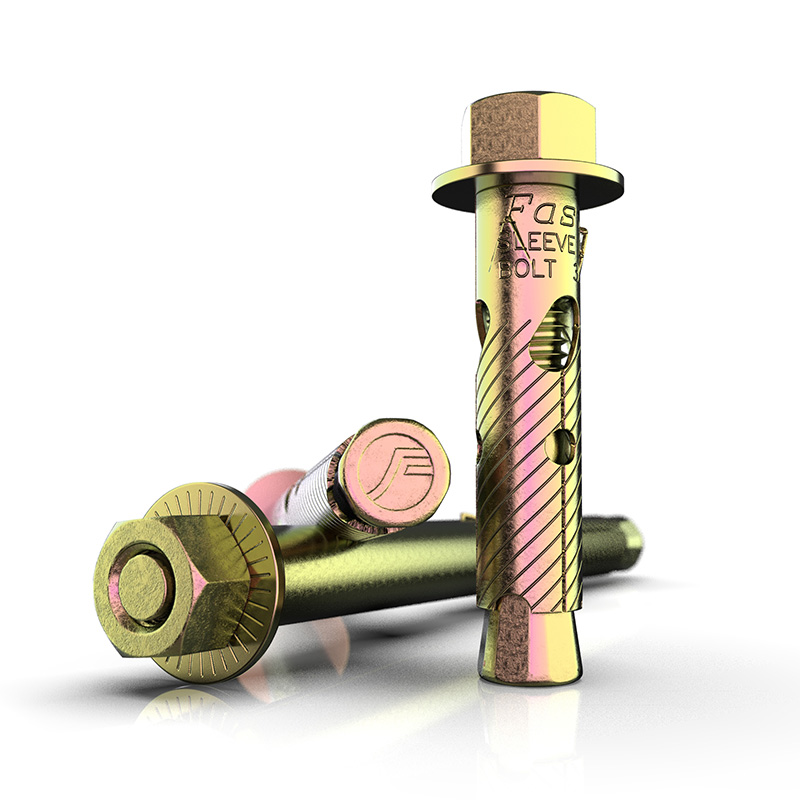

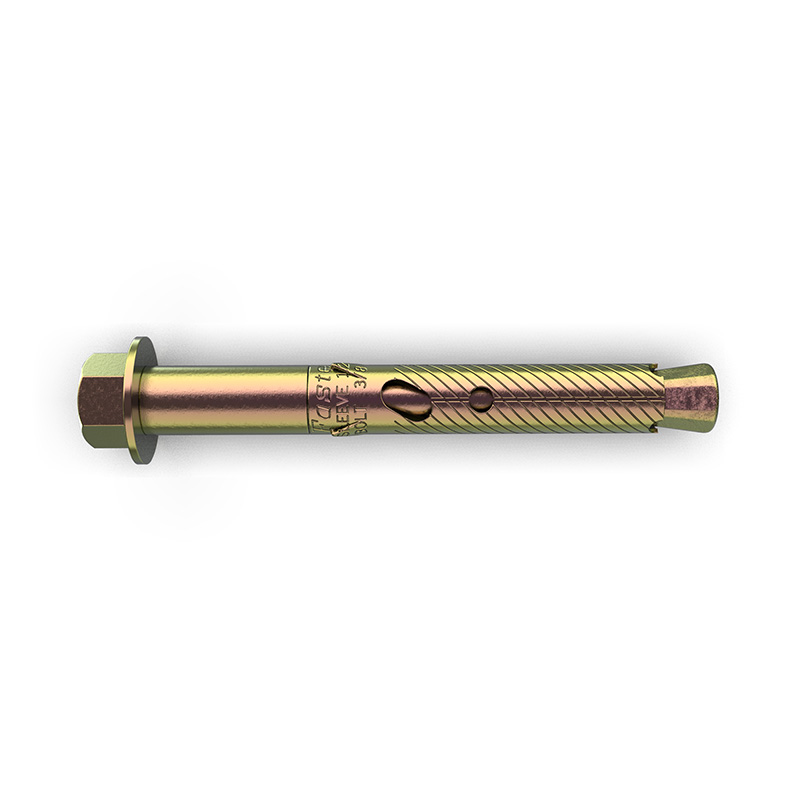

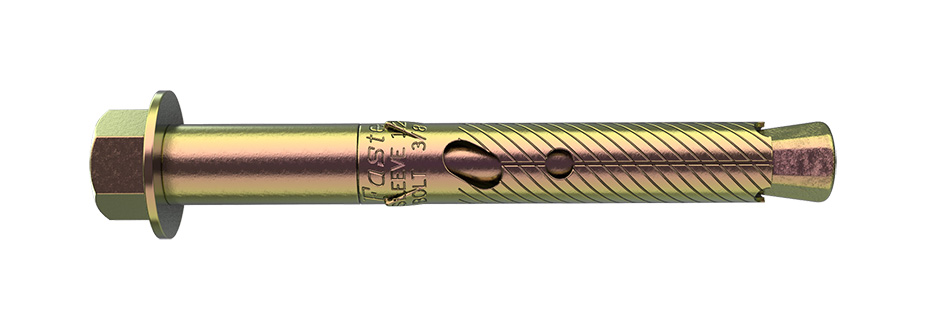

M-Press Anchor - MP
Complete, quick and easy to install
- Pre-assembled sleeve anchor is a complete unit ready to use.
- Drilled hole is same diameter as anchor diameter.

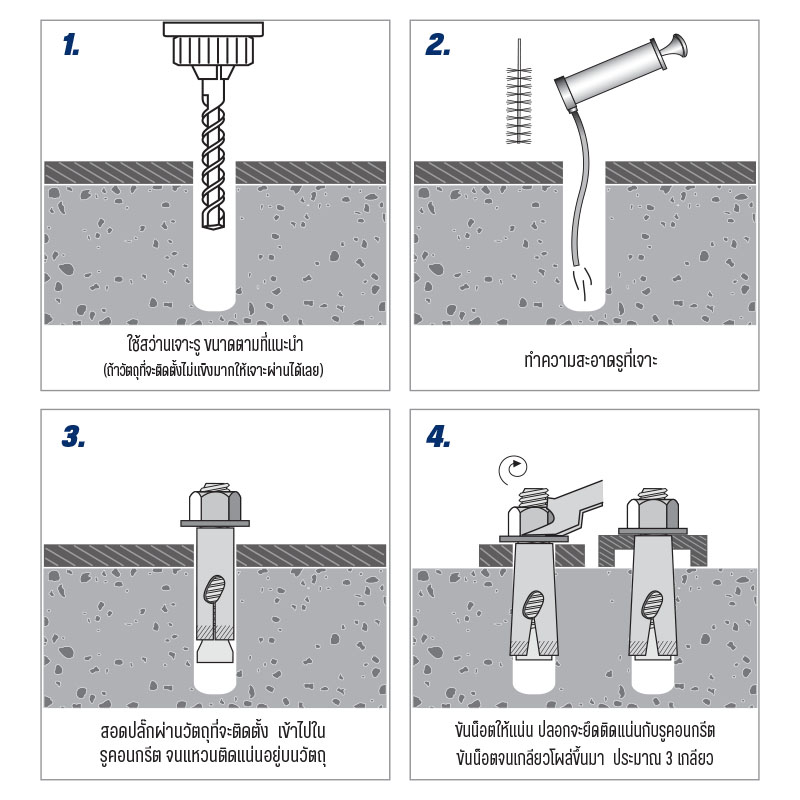

- Eliminate hole layout time – just drill right through mounting holes in fixture.

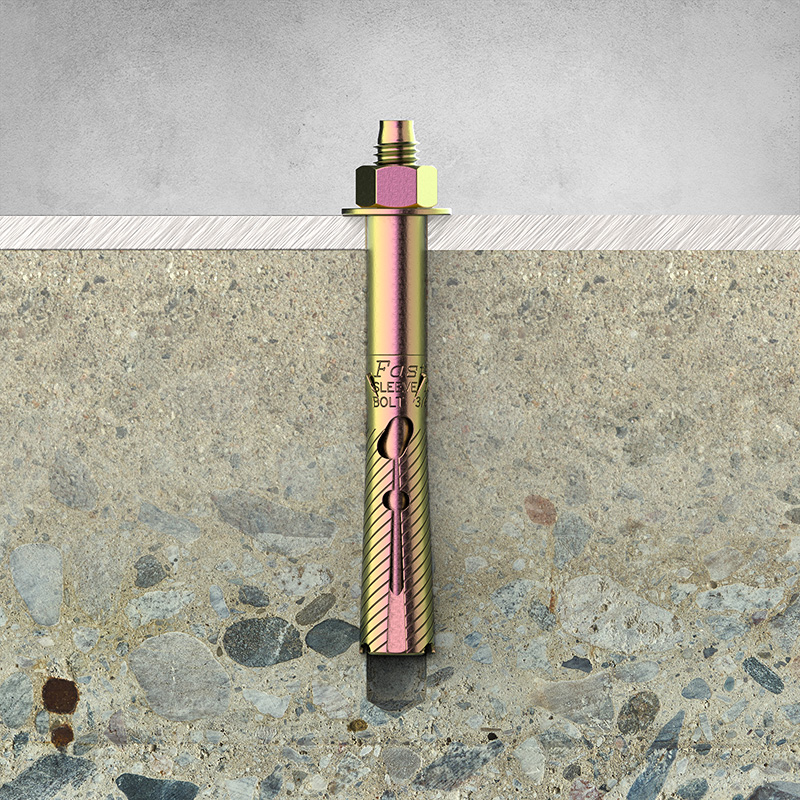

- Under load the MPRESS Anchor Bolt expand against the wall of the hole and are locked
firmly in place.
- For medium and heavy duty fastening in solid type materials.
Complete, quick and easy to install
- Pre-assembled sleeve anchor is a complete unit ready to use.
- Drilled hole is same diameter as anchor diameter.
- Eliminate hole layout time – just drill right through mounting holes in fixture.
- Under load the MPRESS Anchor Bolt expand against the wall of the hole and are locked
firmly in place.
- For medium and heavy duty fastening in solid type materials.

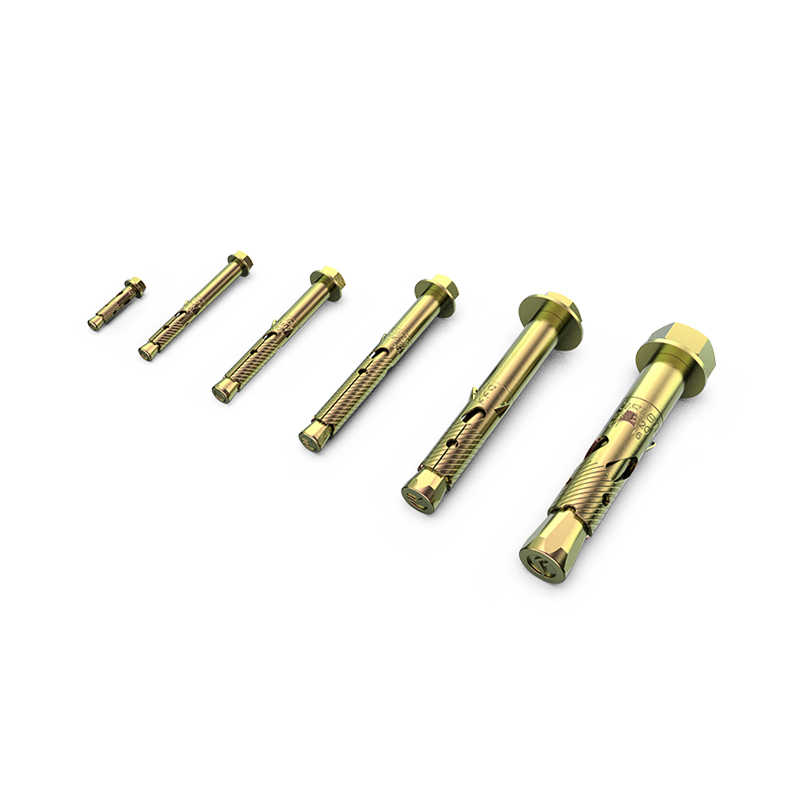

| SKU | Thread Size | Anchor Length (mm.) | Drill Size (mm.) | Drill Hole Depth (mm.) | Pull-Out (kN) | Shear (kN) |
|---|---|---|---|---|---|---|
| MP-6525 | BSW 3/16 in / M5 | 33 | 6.5 | 20 | 1.1 | 1.2 |
| MP-6538 | BSW 3/16 in / M5 | 45 | 6.5 | 30 | 1.1 | 1.2 |
| MP-6557 | BSW 3/16 in / M5 | 64 | 6.5 | 30 | 1.1 | 1.2 |
| MP-8040 | BSW 1/4 in /M6 | 45 | 8.0 | 32 | 2.5 | 2.0 |
| MP-8065 | BSW 1/4 in / M6 | 73 | 8.0 | 35 | 2.5 | 2.0 |
| MP-8091 | BSW 1/4 in / M6 | 99 | 8.0 | 35 | 2.5 | 2.0 |
| MP-10040 | BSW 5/16 in / M8 | 53 | 10.0 | 34 | 4.0 | 3.3 |
| MP-10048 | BSW 5/16 in / M8 | 58 | 10.0 | 38 | 4.0 | 3.3 |
| MP-10075 | BSW 5/16 in / M8 | 85 | 10.0 | 40 | 4.0 | 3.3 |
| MP-10102 | BSW 5/16 in / M8 | 112 | 10.0 | 40 | 4.0 | 3.3 |
| MP-12054 | BSW 3/8 in / M10 | 65 | 12.0 | 42 | 6.0 | 4.1 |
| MP-12068 | BSW 3/8 in / M10 | 79 | 12.0 | 50 | 6.0 | 4.1 |
| MP-12096 | BSW 3/8 in M10 | 107 | 12.0 | 50 | 6.0 | 4.1 |
| MP-12124 | BSW 3/8 in M10 | 135 | 12.0 | 50 | 6.0 | 4.1 |
| MP-16060 | BSW 1/2 in / M12 | 72 | 16.0 | 48 | 7.2 | 6.5 |
| MP-16104 | BSW 1/2 in / M12 | 118 | 16.0 | 55 | 7.2 | 6.5 |
| MP-16138 | BSW 1/2 in / M12 | 152 | 16.0 | 55 | 7.2 | 6.5 |
| MP-20080 | BSW 5/8 in / M16 | 97 | 20.0 | 60 | 9.4 | 12.5 |
| MP-20112 | BSW 5/8 in / M16 | 129 | 20.0 | 60 | 9.4 | 12.5 |
| MP-20156 | BSW 5/8 in / M16 | 173 | 20.0 | 60 | 9.4 | 12.5 |
