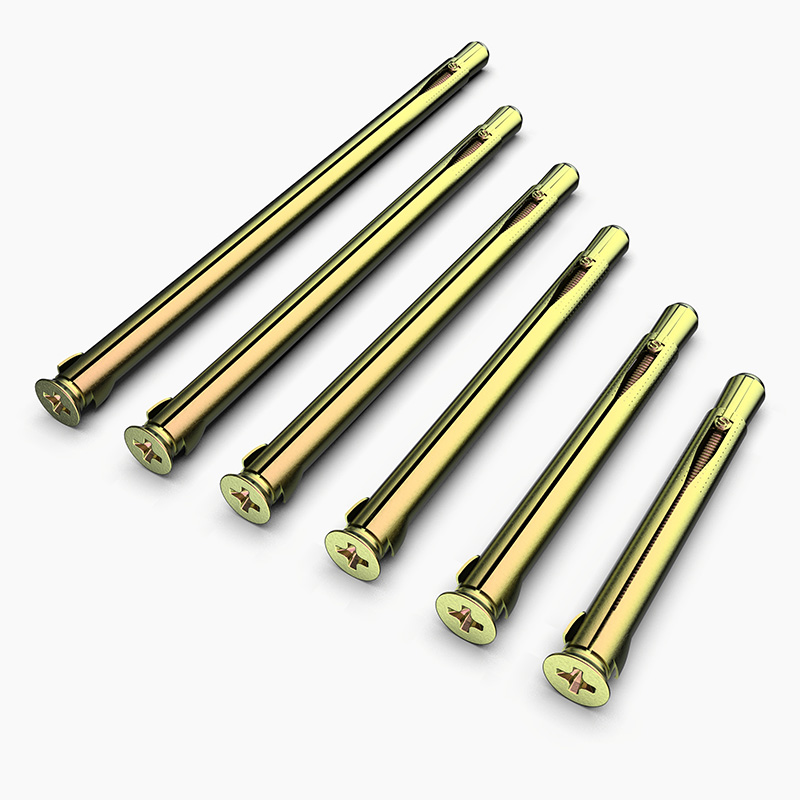

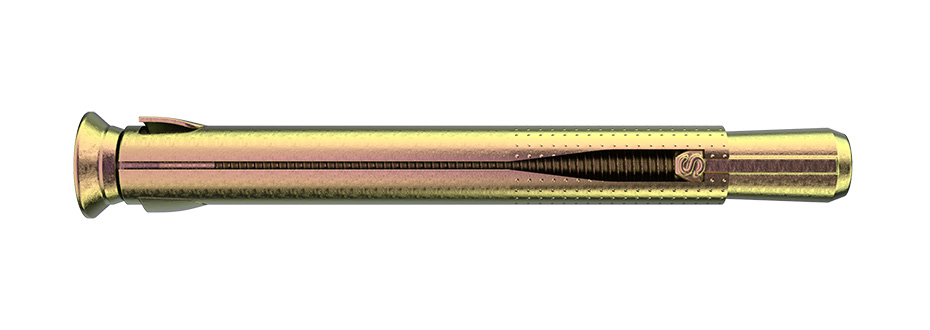

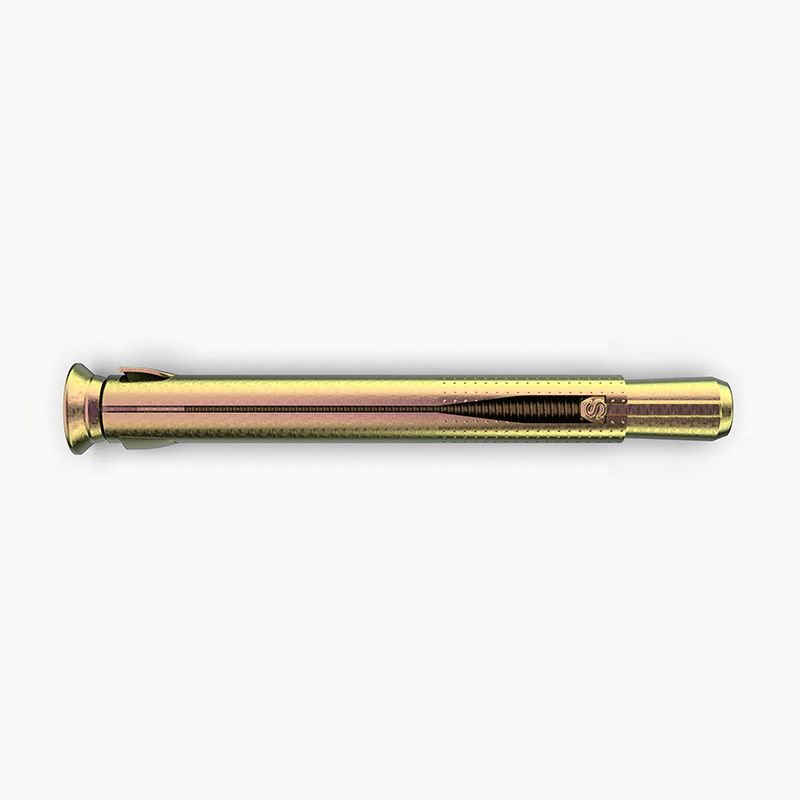

Metal Frame Anchor - MF
Please select product
Metal Frame Anchor - MF
Special Anchor used in solid and hollow masonry for door and window frames installation, and neat finished appearance.
- Preassembled anchor is a complete unit ready to use, quick and easy to install.
- Anchor diameter is the same as the hole diameter.

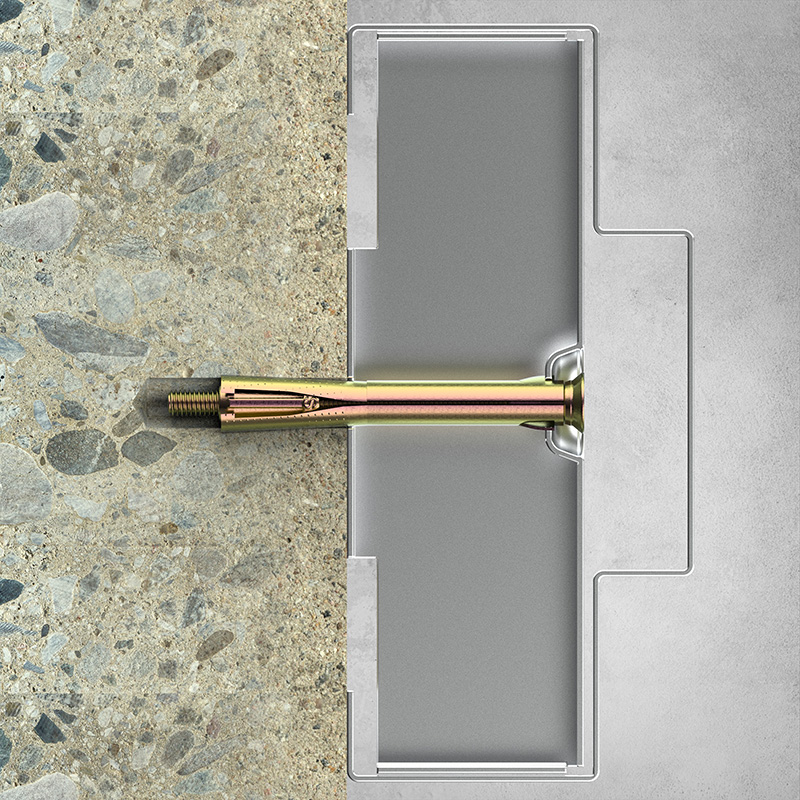

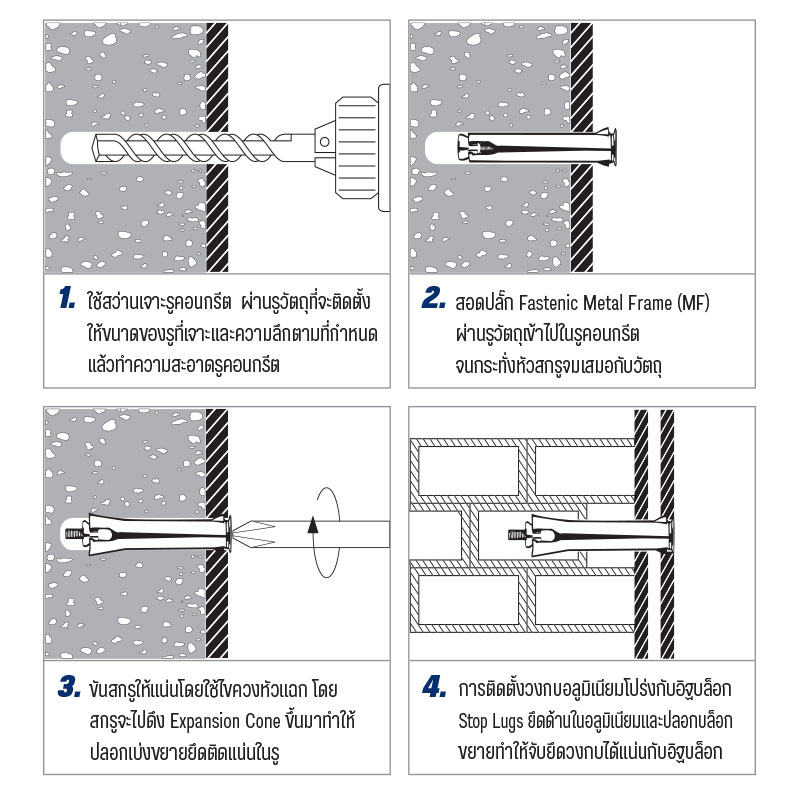

- Through-fixing installation.
- Stop lugs for solid and cavity fixtures.

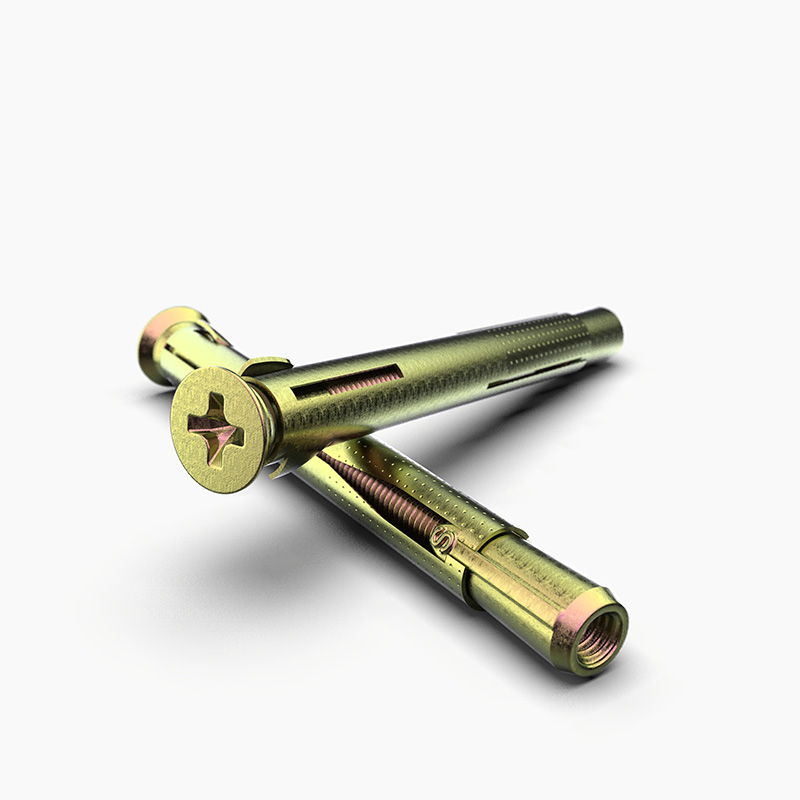

- Pozidrive screw.
Special Anchor used in solid and hollow masonry for door and window frames installation, and neat finished appearance.
- Preassembled anchor is a complete unit ready to use, quick and easy to install.
- Anchor diameter is the same as the hole diameter.
- Through-fixing installation.
- Stop lugs for solid and cavity fixtures.
- Pozidrive screw.
| SKU | Thread Size | Anchor Length (mm.) | Drill Size (mm.) | Drill Hole Depth (mm.) | Pull-Out (kN) | Shear (kN) |
|---|---|---|---|---|---|---|
| MF-1075 | M6 | 90 | 10 | 40 | 1.7 | 0.5 |
| MF-1090 | M6 | 105 | 10 | 40 | 1.7 | 0.5 |
| MF-10110 | M6 | 125 | 10 | 40 | 1.7 | 0.5 |
| MF-10130 | M6 | 145 | 10 | 40 | 1.7 | 0.5 |
| MF-10150 | M6 | 165 | 10 | 40 | 1.7 | 0.5 |
| MF-10180 | M6 | 195 | 10 | 40 | 1.7 | 0.5 |
