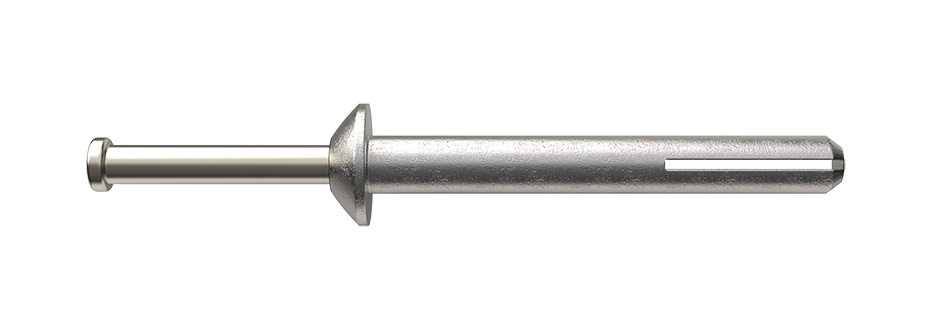

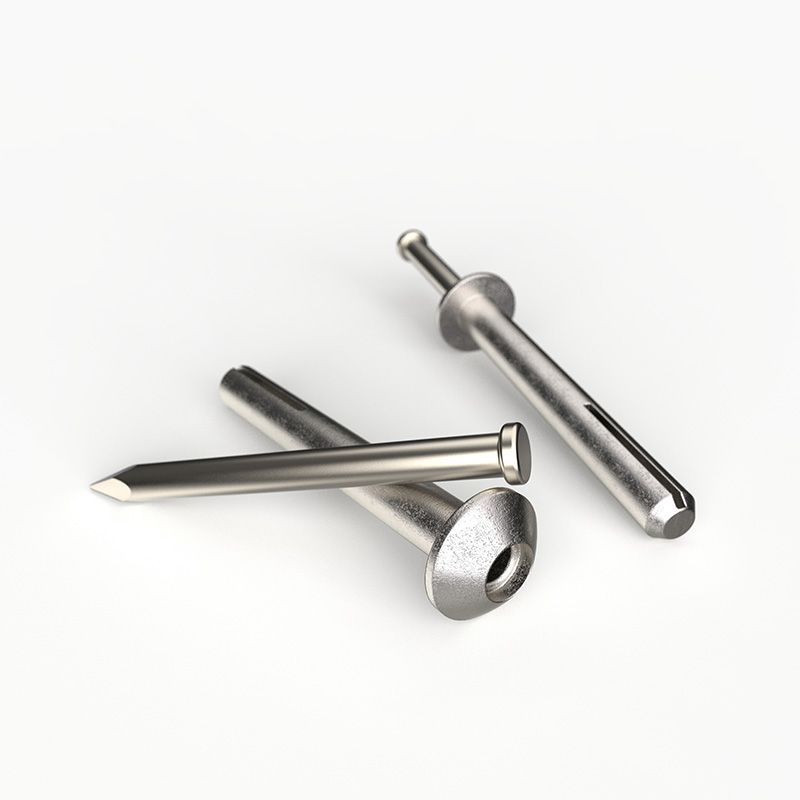

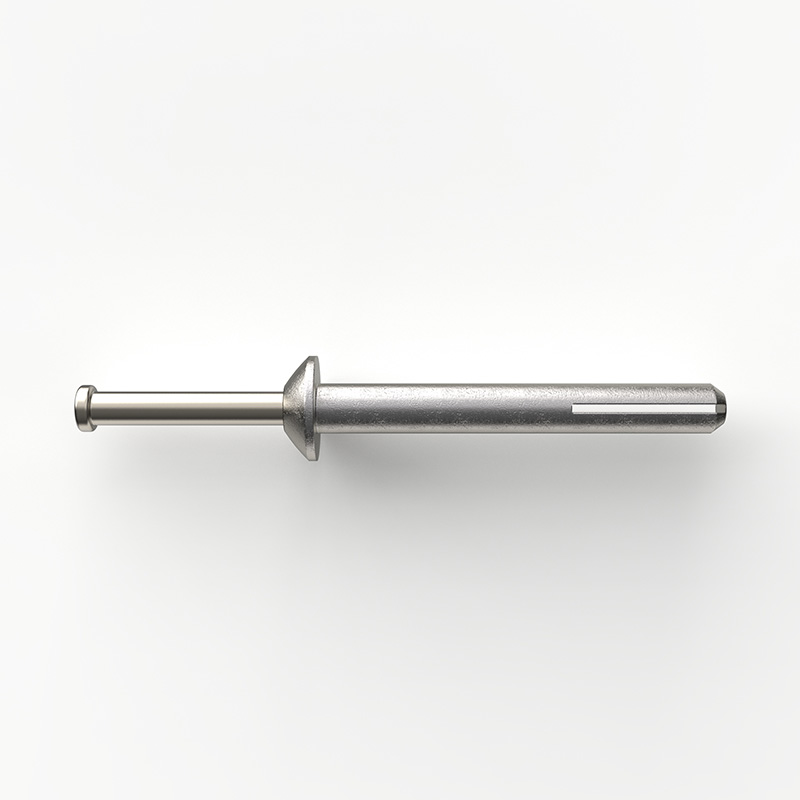

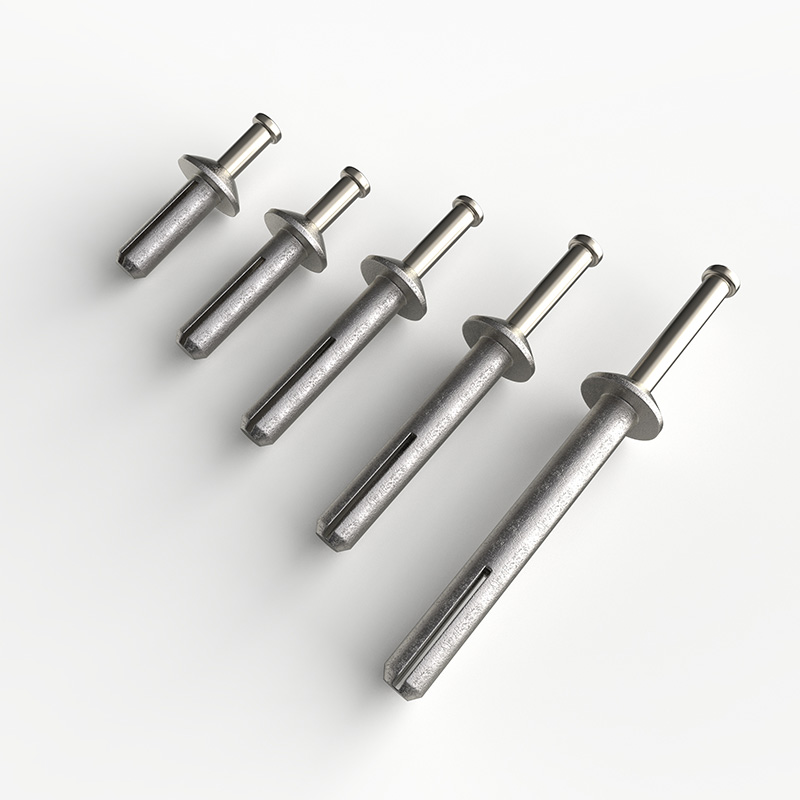

Nail Drive Anchor ND

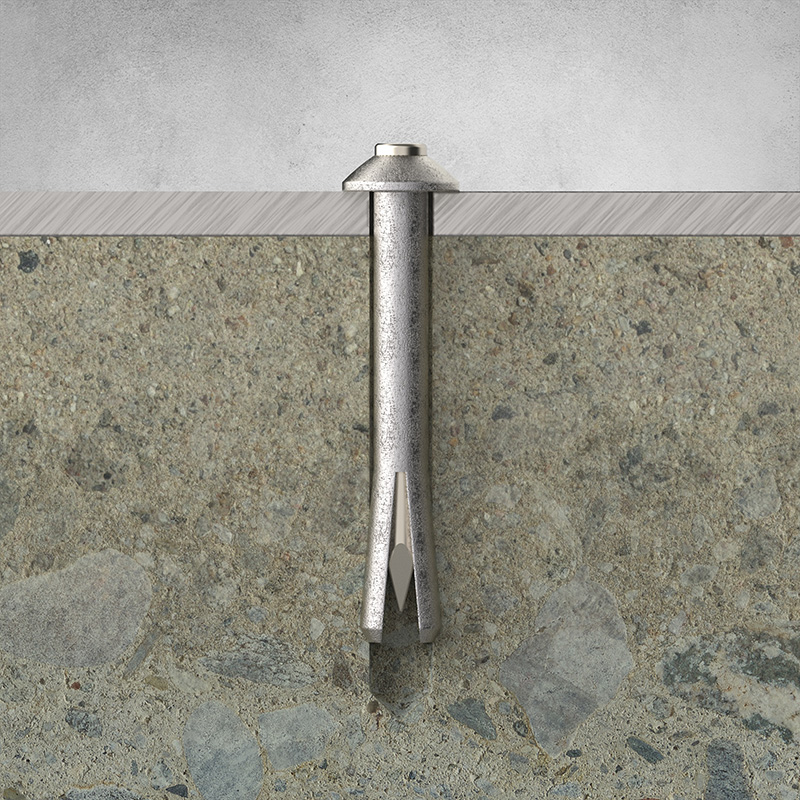

The Fastenic Nail Drive Anchor is versatile, fast and easy to use anchor complete in itself.
- Save time, requires a smaller hole, depth and eliminates the hole-spotting.

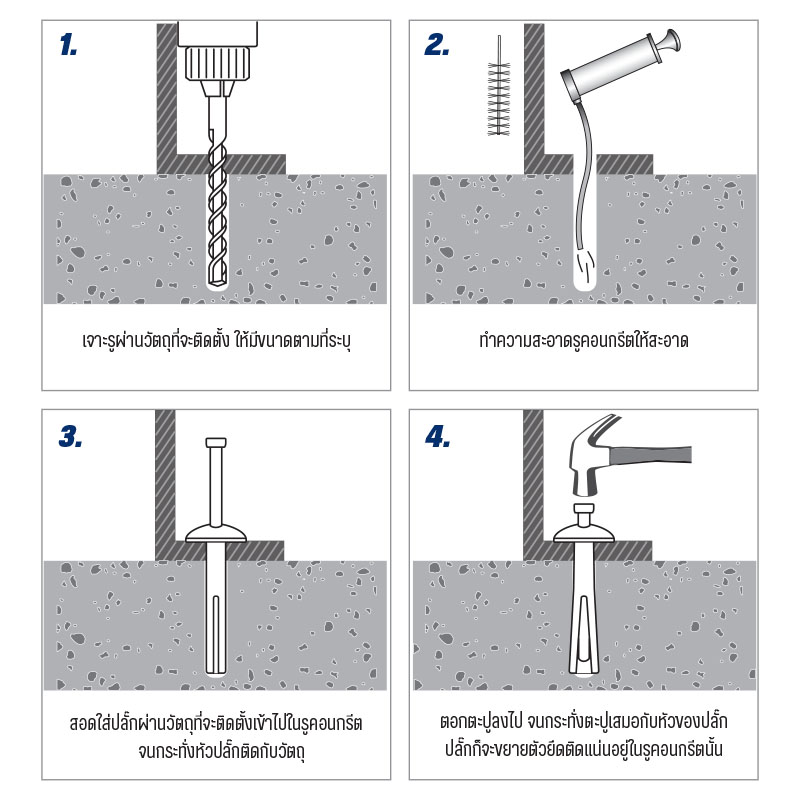

- Quickly hammered into place, nail acts as an expansion and locking pin.
- The fixture is locked, leaving it unaffected by vibration.
- The Fastenic Nail Drive Anchor is remarkable for fixing pipe clips, cable straps, brackets, electrical, plumbing and heating conducts or fixings.
- Can be used in brick, concrete, block, stone and masonry materials.
- There are Mushroom Head and Flat Head.
The Fastenic Nail Drive Anchor is versatile, fast and easy to use anchor complete in itself.
- Save time, requires a smaller hole, depth and eliminates the hole-spotting.
- Quickly hammered into place, nail acts as an expansion and locking pin.
- The fixture is locked, leaving it unaffected by vibration.
- The Fastenic Nail Drive Anchor is remarkable for fixing pipe clips, cable straps, brackets, electrical, plumbing and heating conducts or fixings.
- Can be used in brick, concrete, block, stone and masonry materials.
- There are Mushroom Head and Flat Head.
| SKU | Size Inch. | Drill Inch. | Anchor Langth Inch. | Pullout load kN | Shear load kN | Minimum embedment mm. | Fastens material up to mm. |
|---|---|---|---|---|---|---|---|
| ND-14034 | 1/4"x3/4" | 1/4" | 3/4" | 0.3 | 2.4 | 18 | 1 |
| ND-14100 | 1/4"x1" | 1/4" | 1" | 0.3 | 2.4 | 22 | 3 |
| ND-14114 | 1/4"x1 1/4" | 1/4" | 1 1/4" | 0.5 | 2.4 | 30 | 1 |
| ND-14112 | 1/4"x1 1/2" | 1/4" | 1 1/2" | 0.5 | 2.4 | 30 | 8 |
| ND-14200 | 1/4"x2" | 1/4" | 2" | 0.5 | 2.4 | 40 | 10 |
