LR
Rubber Recess Former - LR
LR
Rubber Recess Former - LR
Please select product

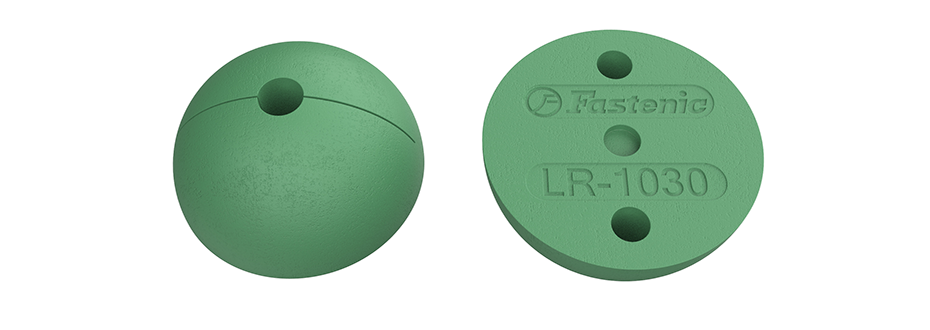

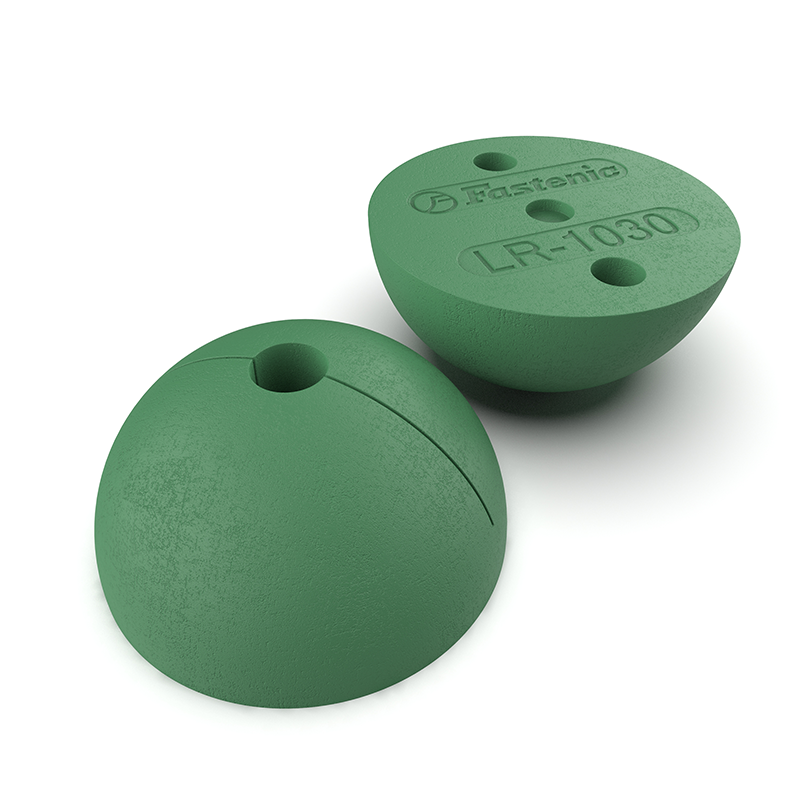

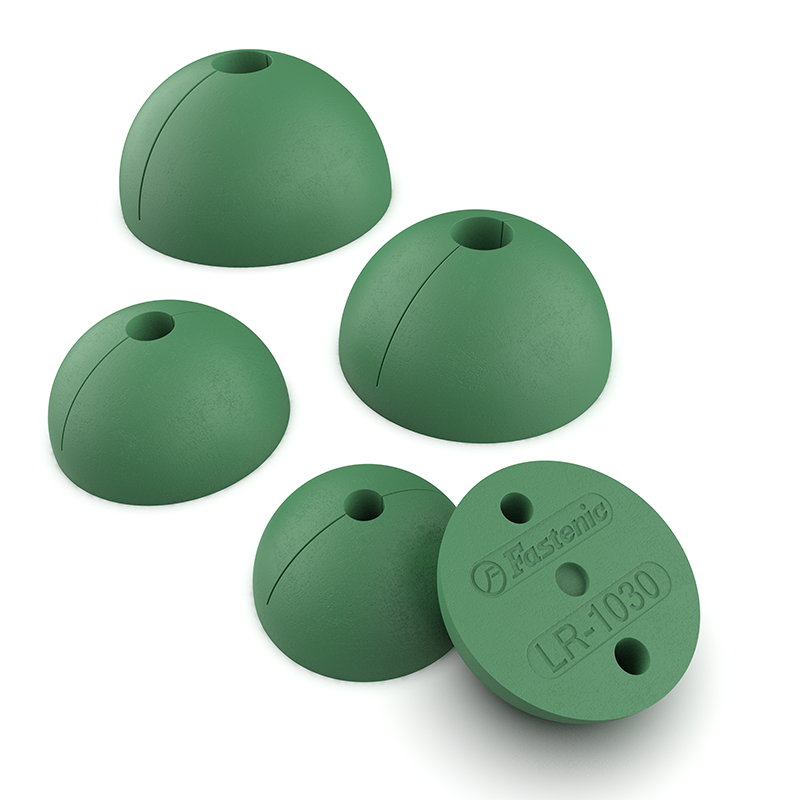

Rubber Recess Former - LR

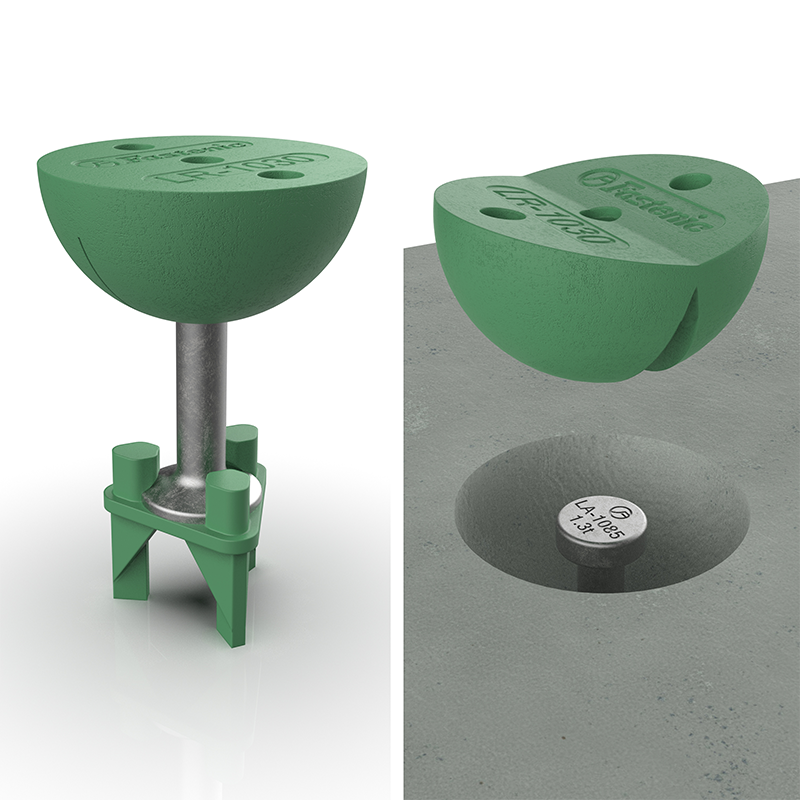

Rubber Recess Former is to form a round recess over lifting anchor head, where lifting hook will be clamped
Rubber Recess Former is to form a round recess over lifting anchor head, where lifting hook will be clamped

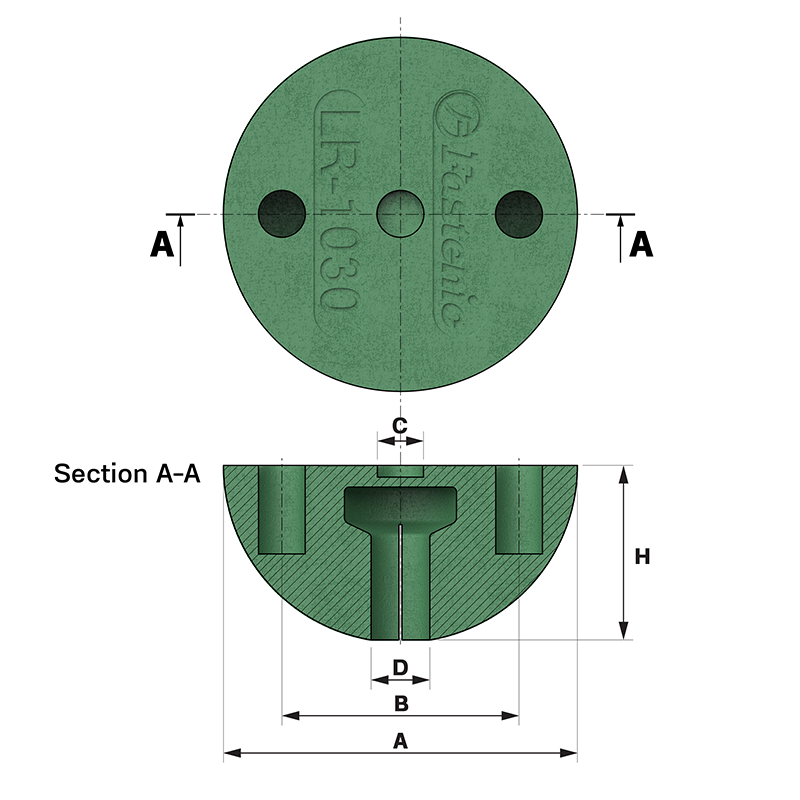

| SKU | For LA Type | H (mm.) | A (mm.) | B (mm.) | C (mm.) | D (mm.) |
|---|---|---|---|---|---|---|
| LR-1030 | 1.3 ton | 30 | 60 | 40 | 8 | 10 |
| LR-1437 | 2.5 ton | 34 | 74 | 45 | 12 | 14 |
| LR-2047 | 5.0 ton | 47 | 94 | 58 | 12 | 20 |
| LR-2459 | 7.5 ton | 59 | 118 | 72 | 12 | 24 |
