Self-Drilling Screw Flat Head - SDP
Self-drilling screws can be used for a wide variety of applications which involve fastening two different types of materials together. Used to fasten metal to wood or metal to metal.
- Manufactured from high quality steel
- Blue zinc electroplated anti-rust
Self-drilling screws can be used for a wide variety of applications which involve fastening two different types of materials together. Used to fasten metal to wood or metal to metal.
- Manufactured from high quality steel
- Blue zinc electroplated anti-rust

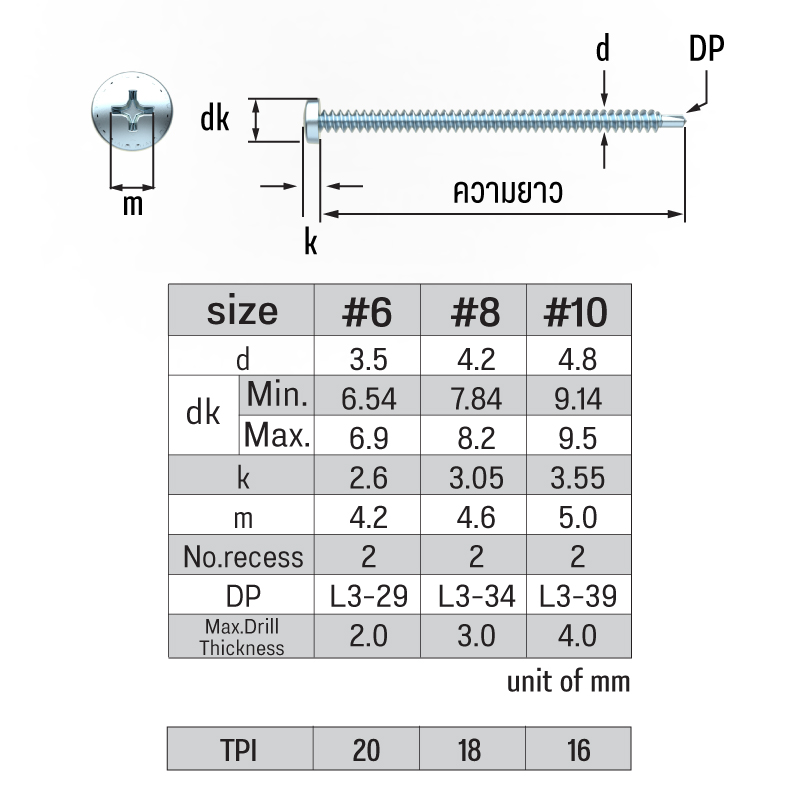

| SKU | Thread Size | Anchor Length (mm.) | Drill Size (mm.) | Drill Hole Depth (mm.) | Pull-Out (kN) | Shear (kN) |
|---|---|---|---|---|---|---|
| SDP-610 | #6 | 10 | ||||
| SDP-612 | #6 | 12 | ||||
| SDP-616 | #6 | 16 | ||||
| SDP-620 | #6 | 20 | ||||
| SDP-625 | #6 | 25 | ||||
| SDP-632 | #6 | 32 | ||||
| SDP-812 | #8 | 12 | ||||
| SDP-816 | #8 | 16 | ||||
| SDP-820 | #8 | 20 | ||||
| SDP-825 | #8 | 25 | ||||
| SDP-832 | #8 | 32 | ||||
| SDP-838 | #8 | 38 | ||||
| SDP-850 | #8 | 50 | ||||
| SDP-865 | #8 | 65 | ||||
| SDP-875 | #8 | 75 | ||||
| SDP-1016 | #10 | 16 | ||||
| SDP-1020 | #10 | 20 | ||||
| SDP-1025 | #10 | 25 | ||||
| SDP-1032 | #10 | 32 | ||||
| SDP-1040 | #10 | 40 | ||||
| SDP-1045 | #10 | 45 | ||||
| SDP-1050 | #10 | 50 | ||||
| SDP-1065 | #10 | 65 | ||||
| SDP-10100 | #10 | 100 |
