Self-Drilling Screw Hexagon Head - SDH
Please select product

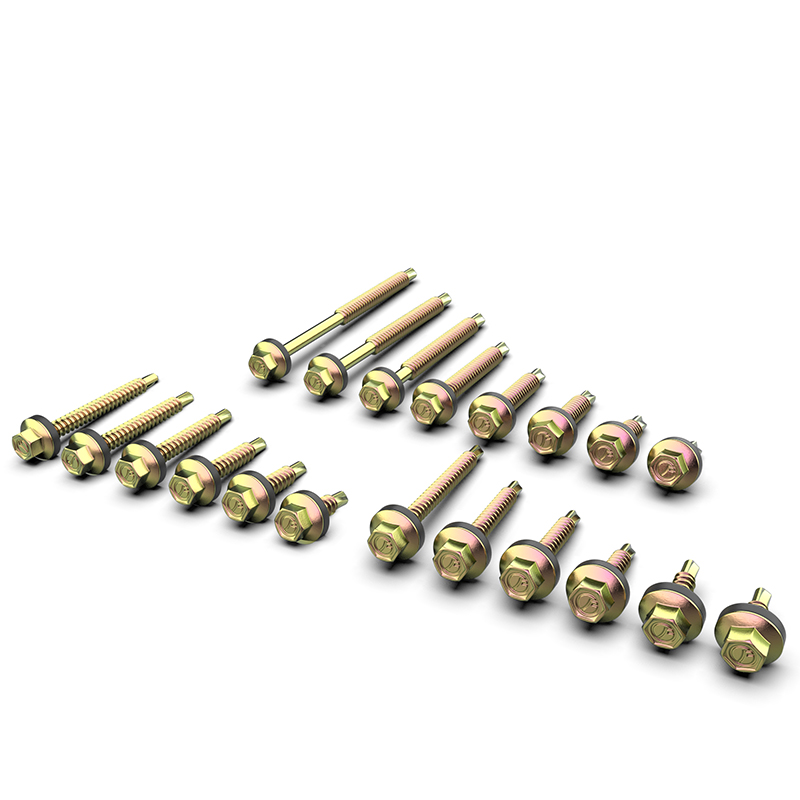

Self-Drilling Screw Hexagon Head - SDH
Self-drilling screws are capable of drilling their own pilot holes into sheet metal. Used to install curved roof tile and fiber-cement roof tile.
- Manufactured from high quality yellow-zinc electroplated steel.

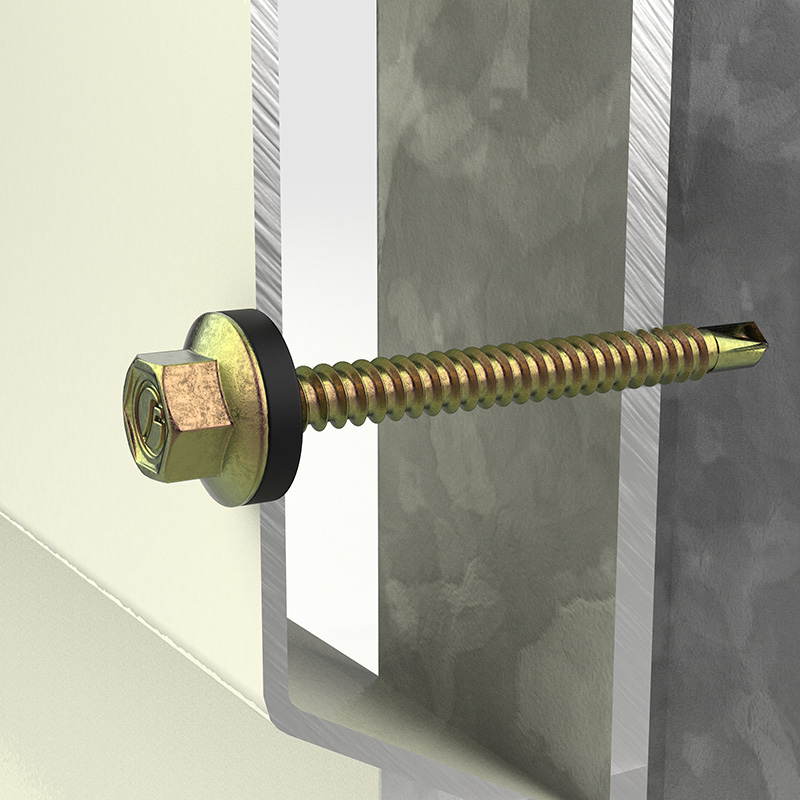

- Can be drilled through roof tiles and metal frame in one step.
- Fast and easy can install from roof top

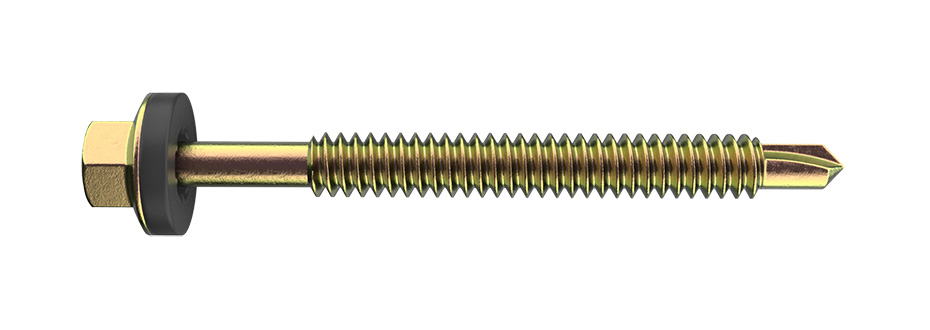

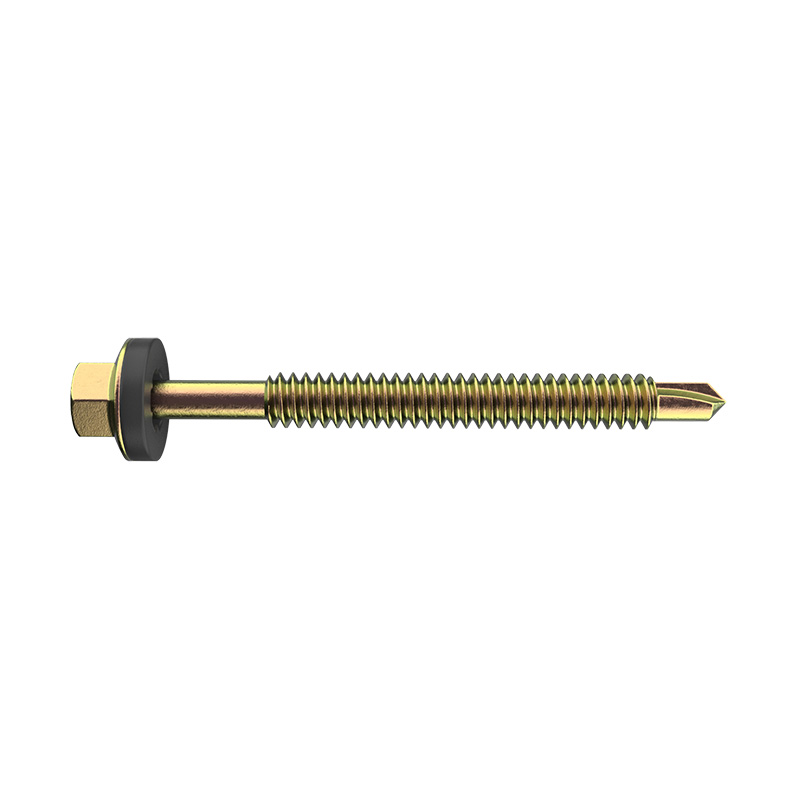

- Sealing hex washer head has a flange with an EPDM rubber washer to resist leakage, loosening, and damage to the mating surface
Self-drilling screws are capable of drilling their own pilot holes into sheet metal. Used to install curved roof tile and fiber-cement roof tile.
- Manufactured from high quality yellow-zinc electroplated steel.
- Can be drilled through roof tiles and metal frame in one step.
- Fast and easy can install from roof top
- Sealing hex washer head has a flange with an EPDM rubber washer to resist leakage, loosening, and damage to the mating surface

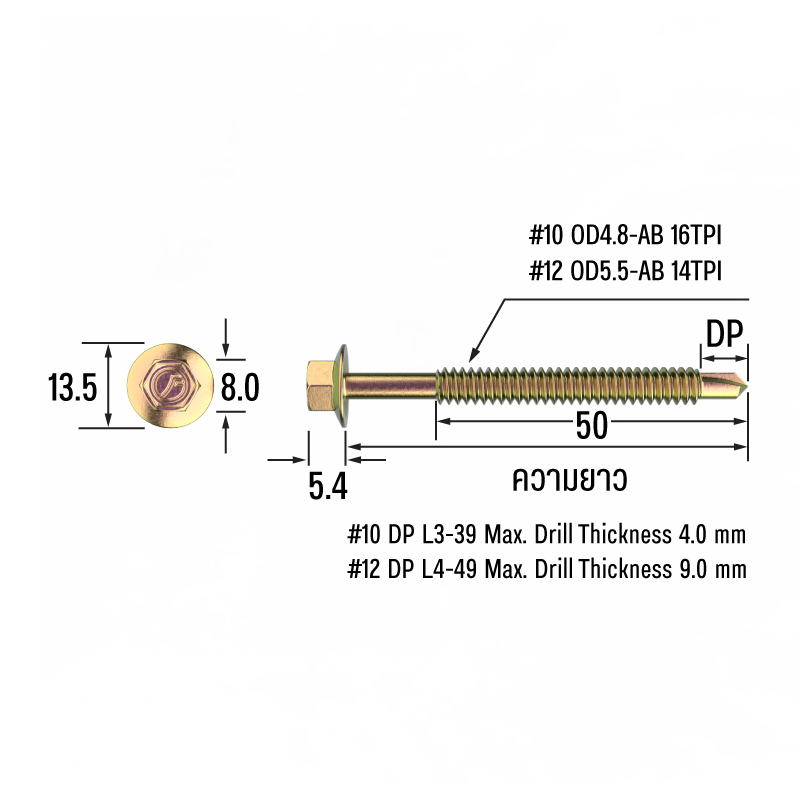

| SKU | Thread Size | Anchor Length (mm.) | Drill Size (mm.) | Drill Hole Depth (mm.) | Pull-Out (kN) | Shear (kN) |
|---|---|---|---|---|---|---|
| SDH-E-1016-Y | #10 | 16 | ||||
| SDH-E-1020-Y | #10 | 20 | ||||
| SDH-E-1025-Y | #10 | 25 | ||||
| SDH-E-1032-Y | #10 | 32 | ||||
| SDH-E-1038-Y | #10 | 38 | ||||
| SDH-E-1050-Y | #10 | 50 | ||||
| SDH-E-1220-Y | #12 | 20 | ||||
| SDH-E-1225-Y | #12 | 25 | ||||
| SDH-E-1232-Y | #12 | 32 | ||||
| SDH-E-1240-Y | #12 | 40 | ||||
| SDH-E-1245-Y | #12 | 45 | ||||
| SDH-E-1250-Y | #12 | 50 | ||||
| SDH-E-1420-Y | #14 | 20 | ||||
| SDH-E-1425-Y | #14 | 25 | ||||
| SDH-E-1432-Y | #14 | 32 | ||||
| SDH-E-1438-Y | #14 | 38 | ||||
| SDH-E-1450-Y | #14 | 50 | ||||
| SDH-E-1465-Y | #14 | 65 | ||||
| SDH-E-1475-Y | #14 | 75 |
