Self-Drilling Screw Hexagon Head - SDH-RDG
Please select product

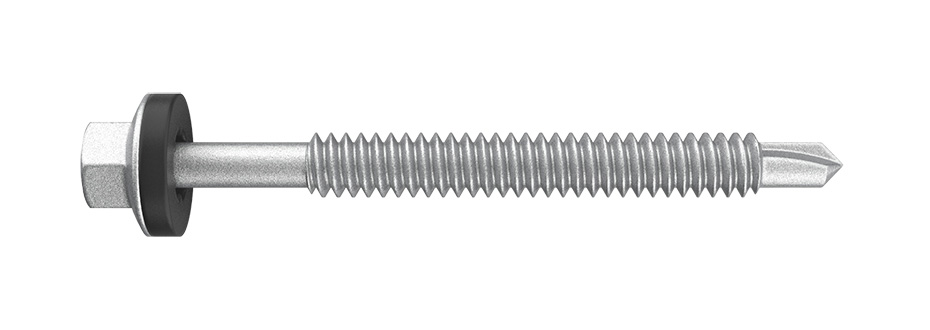

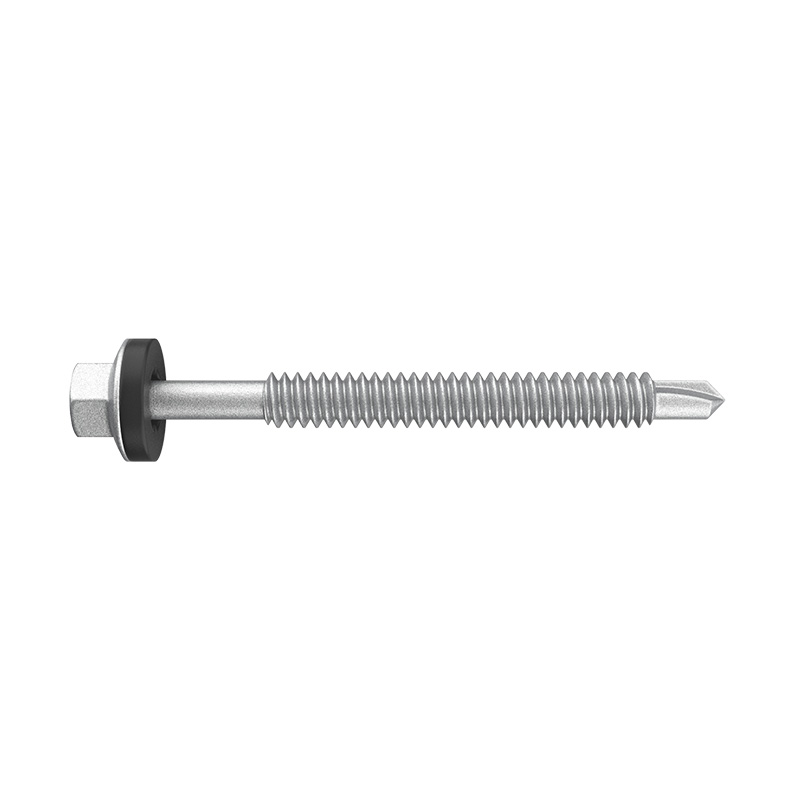

Self-Drilling Screw Hexagon Head - SDH-RDG
Self-drilling screws are capable of drilling their own pilot holes into sheet metal. Used to install curved roof tile and fiber-cement roof tile.
- Zinc Flack Coating - Salt spray test 1000 hr.

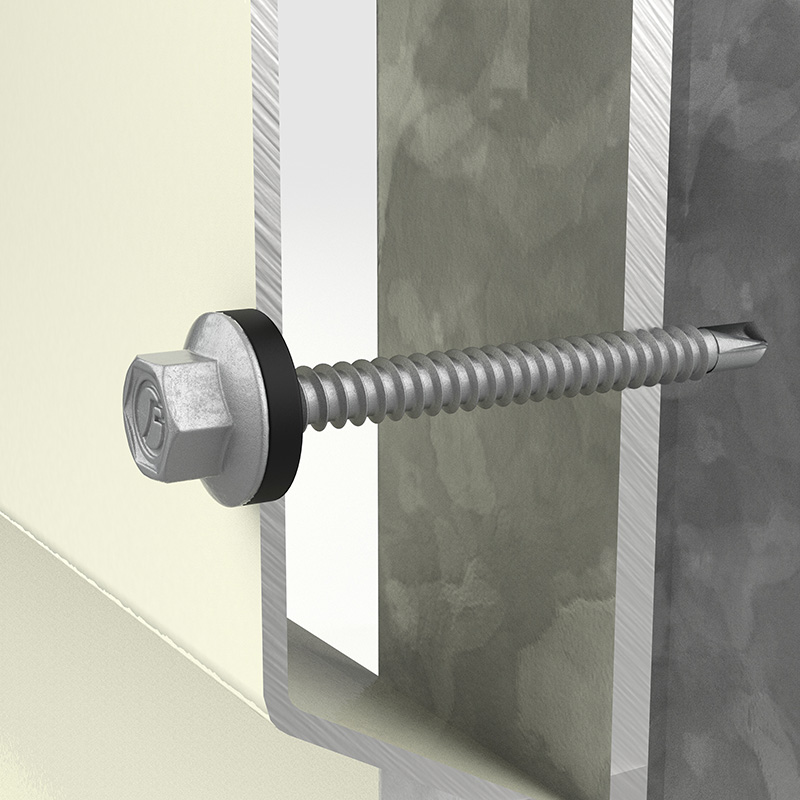

- Can be drilled through roof tiles and metal frame in one step.
- Fast and easy can install from roof top
- Sealing hex washer head has a flange with an EPDM rubber washer to resist leakage, loosening, and damage to the mating surface
Self-drilling screws are capable of drilling their own pilot holes into sheet metal. Used to install curved roof tile and fiber-cement roof tile.
- Zinc Flack Coating - Salt spray test 1000 hr.
- Can be drilled through roof tiles and metal frame in one step.
- Fast and easy can install from roof top
- Sealing hex washer head has a flange with an EPDM rubber washer to resist leakage, loosening, and damage to the mating surface

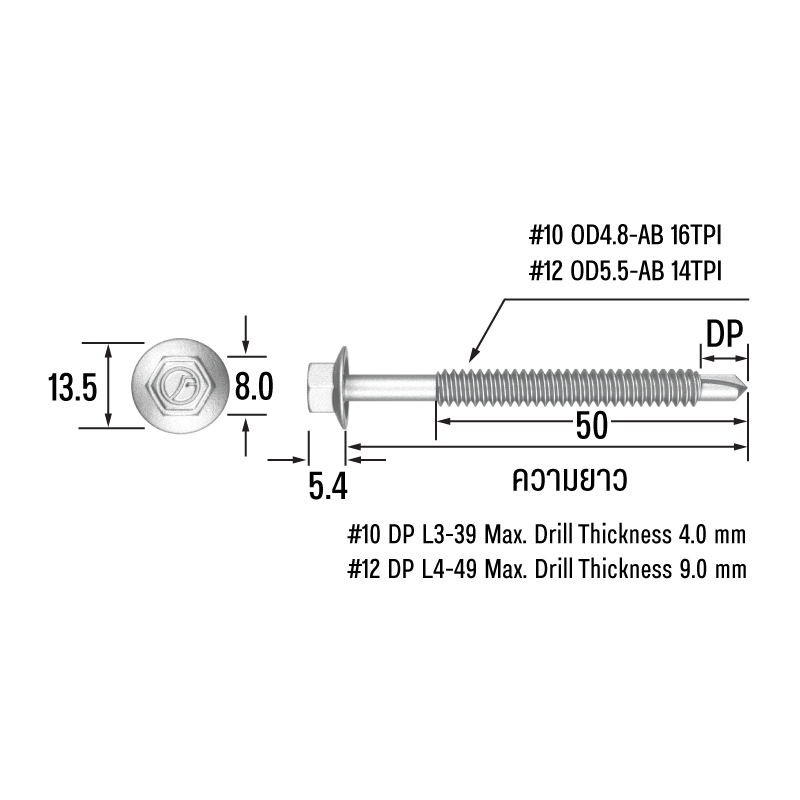

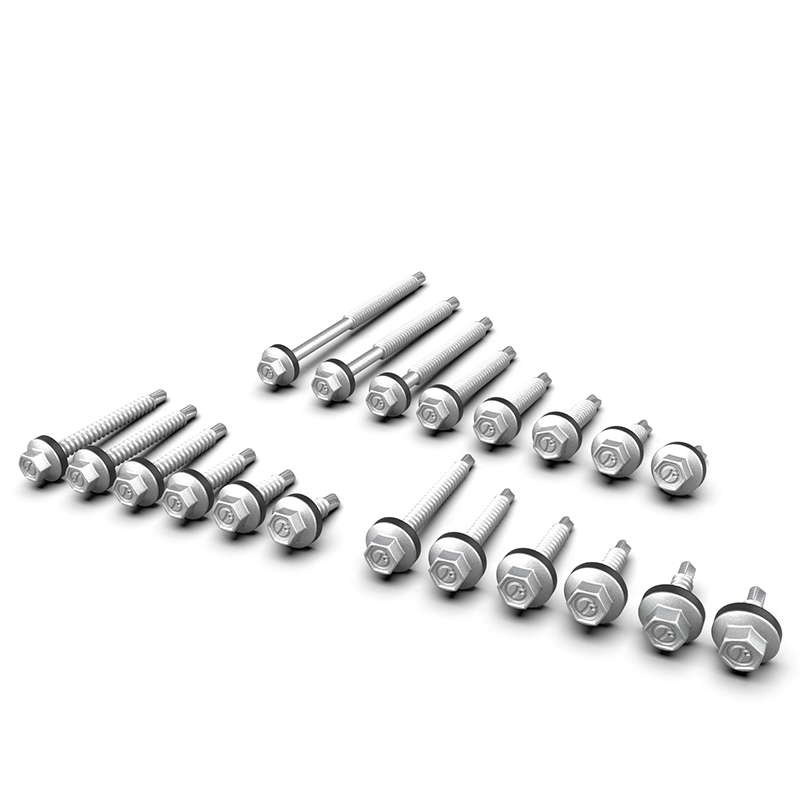

| SKU | Thread Size | Anchor Length (mm.) | Drill Size (mm.) | Drill Hole Depth (mm.) | Pull-Out (kN) | Shear (kN) |
|---|---|---|---|---|---|---|
| SDH-E-1016-D3 | #10 | 16 | ||||
| SDH-E-1020-D3 | #10 | 20 | ||||
| SDH-E-1025-D3 | #10 | 25 | ||||
| SDH-E-1032-D3 | #10 | 32 | ||||
| SDH-E-1038-D3 | #10 | 38 | ||||
| SDH-E-1050-D3 | #10 | 50 | ||||
| SDH-E-1220-D3 | #12 | 20 | ||||
| SDH-E-1225-D3 | #12 | 25 | ||||
| SDH-E-1232-D3 | #12 | 32 | ||||
| SDH-E-1240-D3 | #12 | 40 | ||||
| SDH-E-1245-D3 | #12 | 45 | ||||
| SDH-E-1250-D3 | #12 | 50 | ||||
| SDH-E-1420-D3 | #14 | 20 | ||||
| SDH-E-1425-D3 | #14 | 25 | ||||
| SDH-E-1432-D3 | #14 | 32 | ||||
| SDH-E-1438-D3 | #14 | 38 | ||||
| SDH-E-1450-D3 | #14 | 50 | ||||
| SDH-E-1465-D3 | #14 | 65 | ||||
| SDH-E-1475-D3 | #14 | 75 | ||||
| SDH-E-1485-D3 | #14 | 85 |
