SW-HD

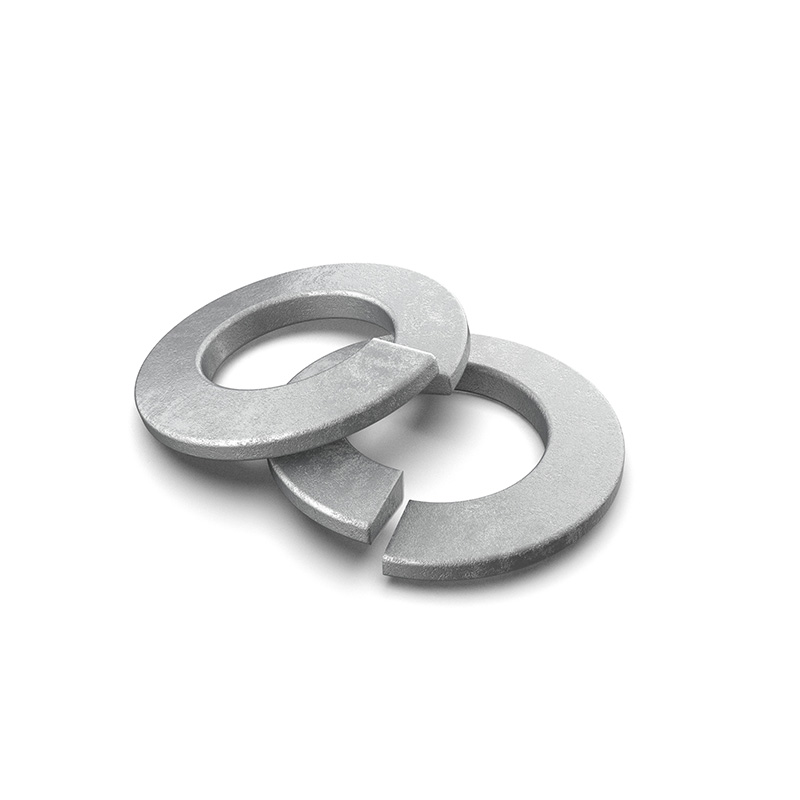

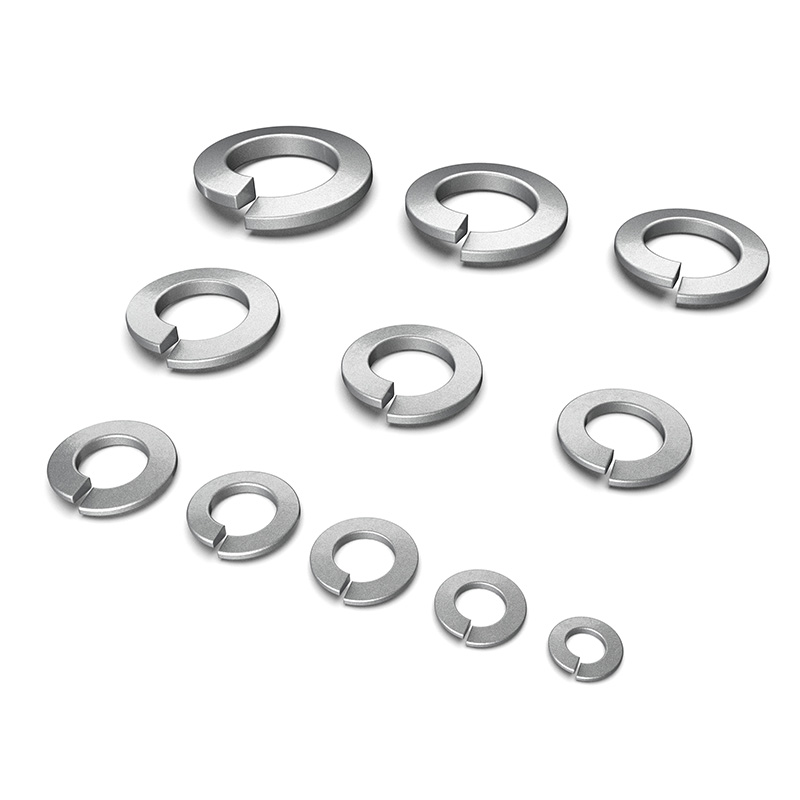

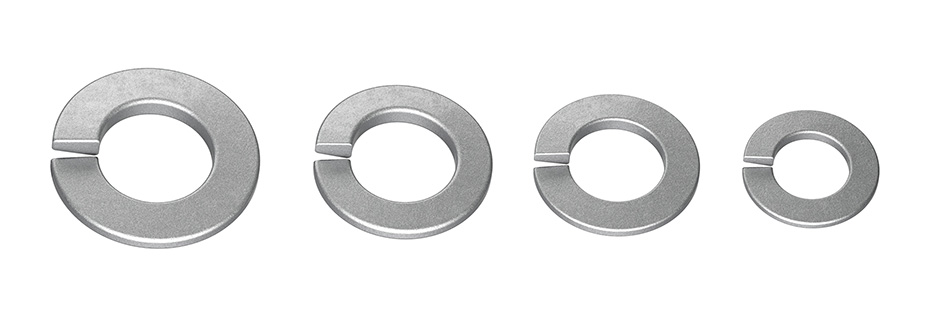

Spring Lock Washer (Hot Dip Gavanized) SW-HD

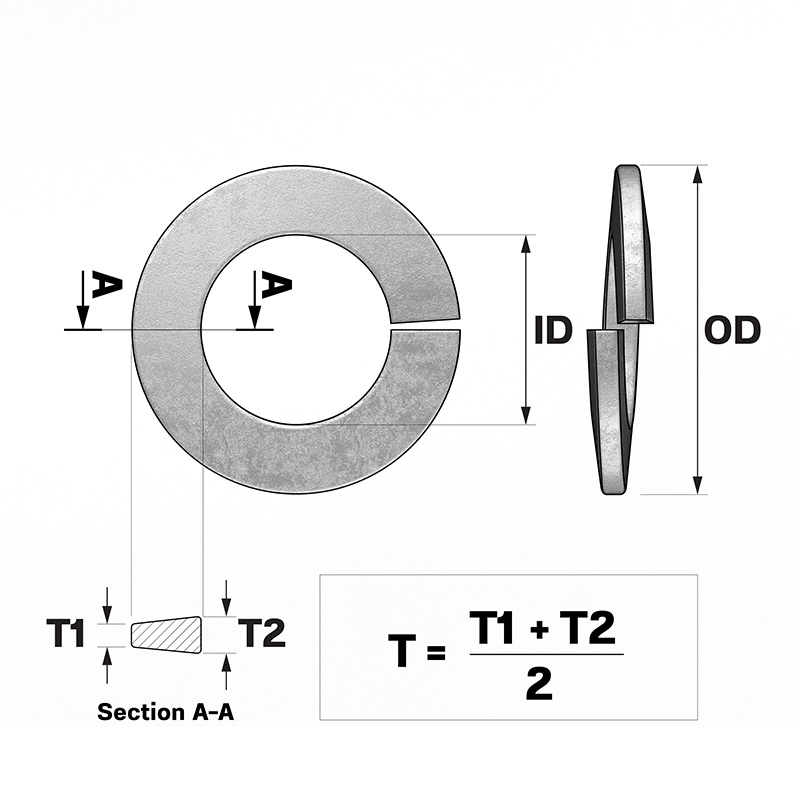

| SKU | ID Size (Inch) | ID Size (mm.) | OD Size (mm.) | Thivkness (mm.) |
|---|---|---|---|---|
| SW-14-HD | 1/4" | 6 | 11.3 | 1.2 |
| SW-516-HD | 5/16" | 8 | 14.4 | 1.3 |
| SW-38-HD | 3/8" | 10 | 17.5 | 1.6 |
| SW-716-HD | 7/16" | 11 | 18.8 | 2.1 |
| SW-12-HD | 1/2" | 12 | 22.0 | 2.2 |
| SW-916-HD | 9/16" | 14 | 23.8 | 2.2 |
| SW-58-HD | 5/8" | 16 | 26.5 | 2.9 |
| SW-1116-HD | 11/16" | 18 | 30.0 | 3.0 |
| SW-34-HD | 3/4" | 20 | 32.1 | 3.3 |
| SW-78-HD | 7/8" | 22 | 35.7 | 4.0 |
| SW-1-HD | 1" | 25 | 40.3 | 4.6 |
