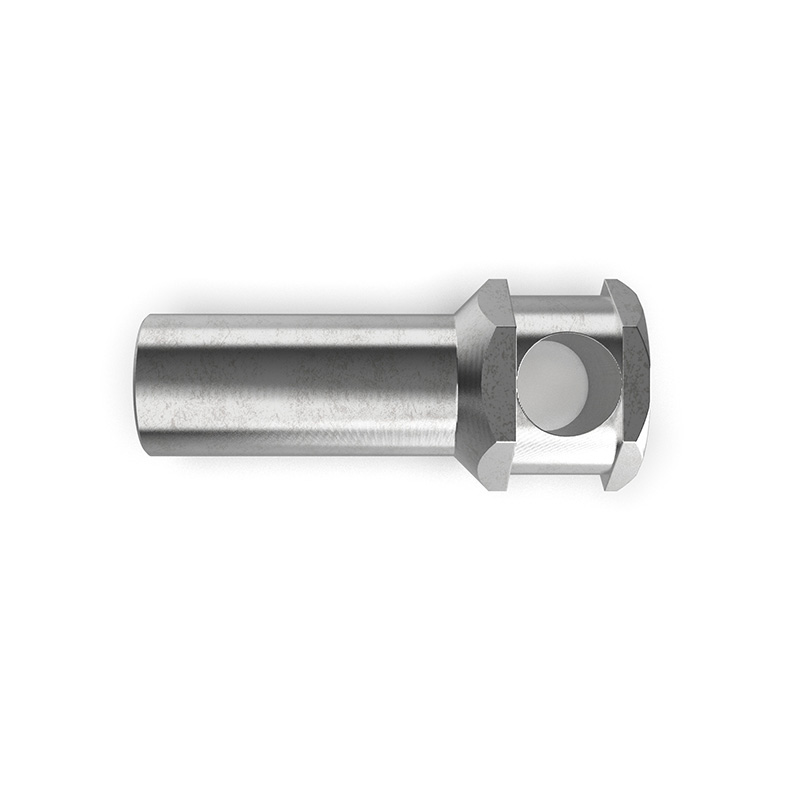

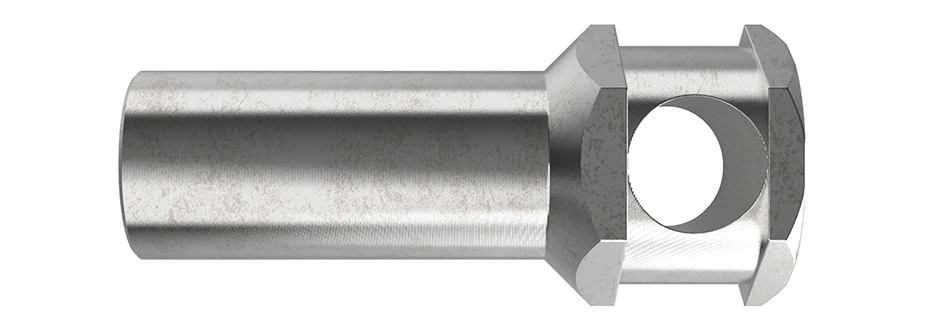

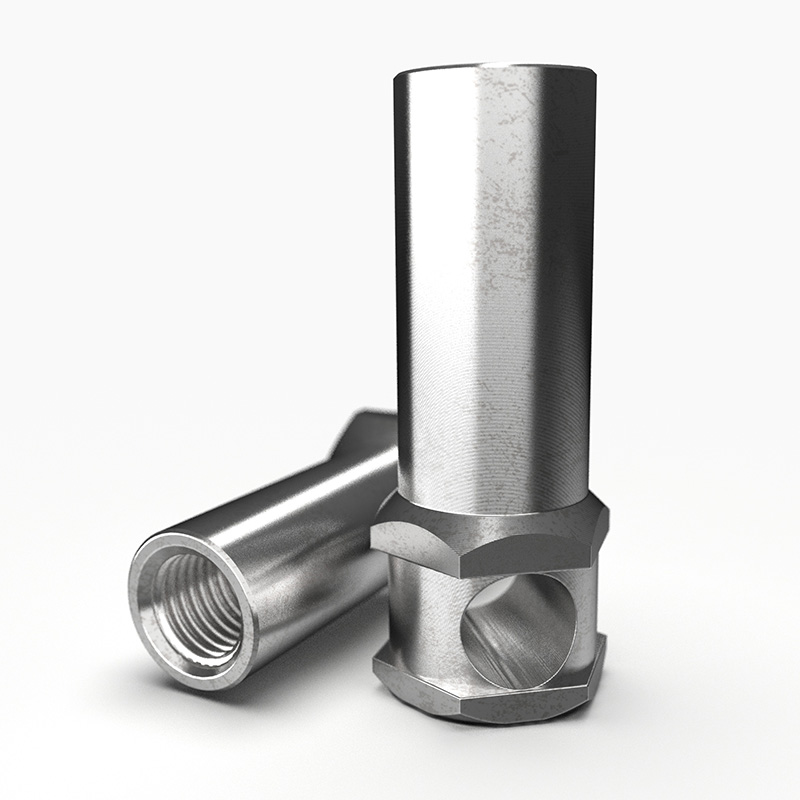

Stainless Steel Concrete insert - CF-SUS

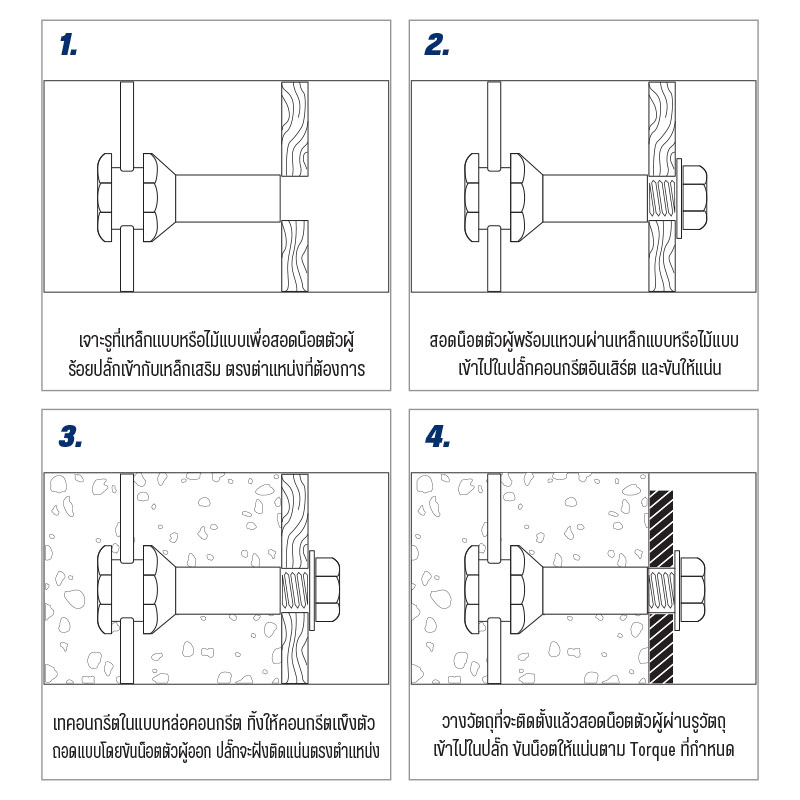

Fastenic Steel Concrete Inserts are designed for casting into concrete
at determined points to provide heavy power load capacity.
- Made from stainless steel
- Eliminate the drilling hole in concrete when fixing points are required in pre-cast concrete
and to avoid drilled holes hitting steel reinforcing bars in heavily reinforced structures.

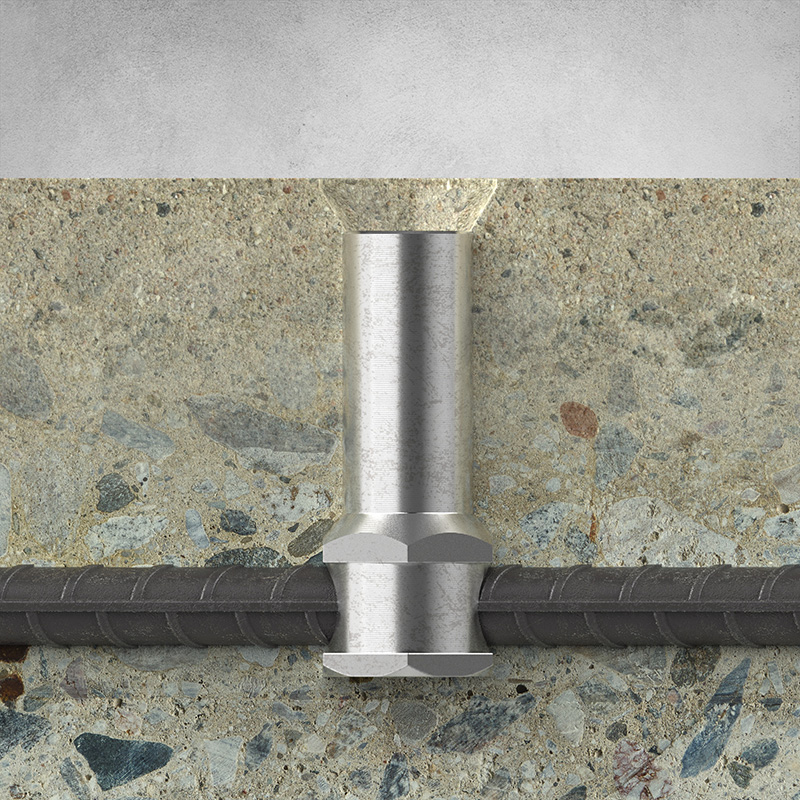

- Due to they are no expansion stresses, they make good close anchor spacing and
close edge distance when tied to reinforcement.
- For maximum load value of insert, hex bolt thread engagement must be at least 80% of the thread depth.
Fastenic Steel Concrete Inserts are designed for casting into concrete
at determined points to provide heavy power load capacity.
- Made from stainless steel
- Eliminate the drilling hole in concrete when fixing points are required in pre-cast concrete
and to avoid drilled holes hitting steel reinforcing bars in heavily reinforced structures.
- Due to they are no expansion stresses, they make good close anchor spacing and
close edge distance when tied to reinforcement.
- For maximum load value of insert, hex bolt thread engagement must be at least 80% of the thread depth.

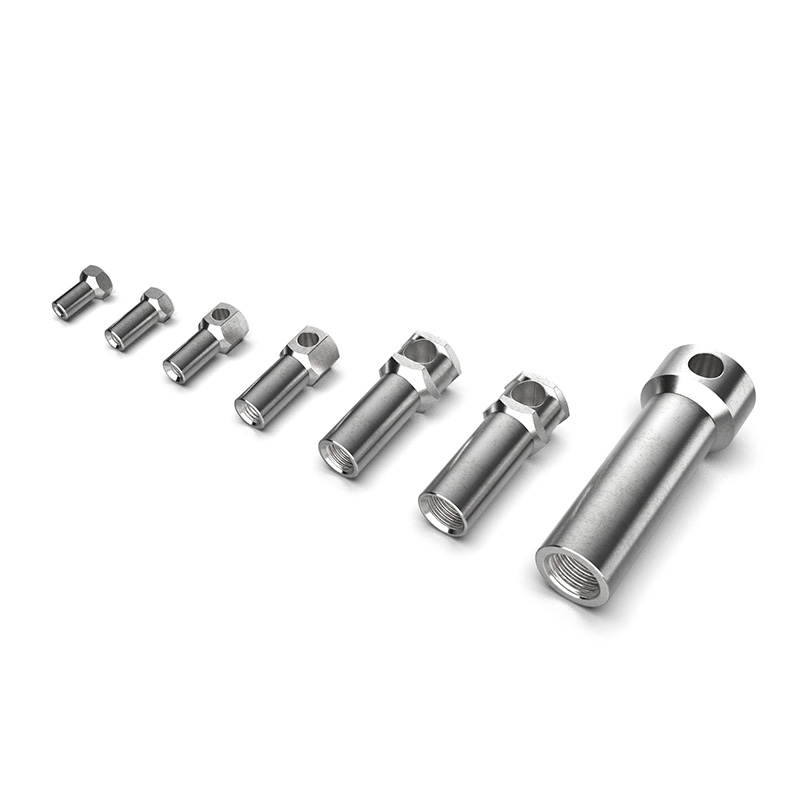

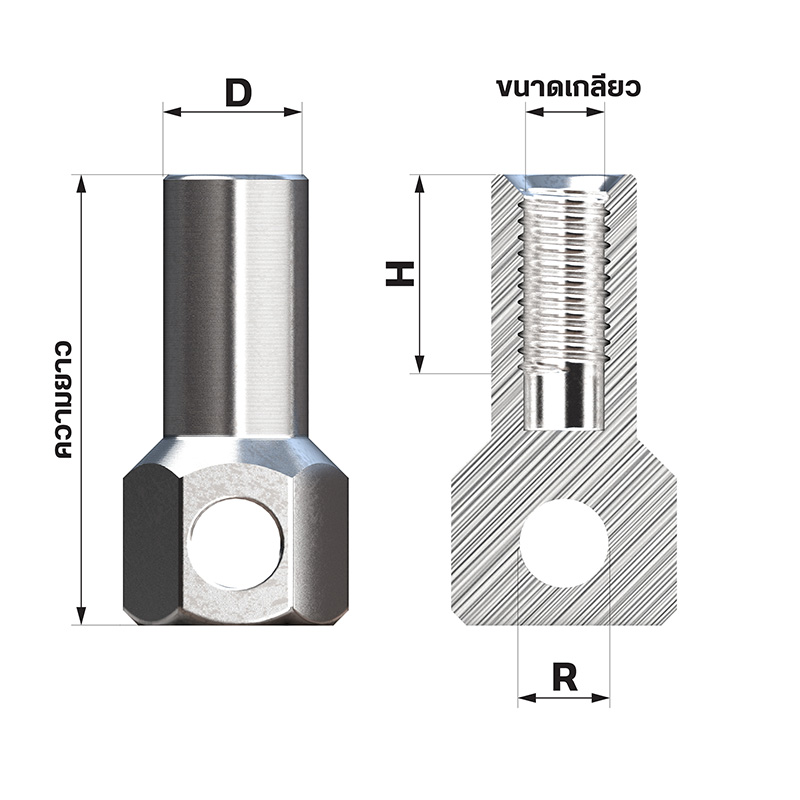

| SKU | Thread Size | Anchor Length (mm.) | Thread Length (mm.) | Ø Drill (mm.) | Size (mm.) | Pull-Out Load (kN.) | Anchor Shear (kN.) |
|---|---|---|---|---|---|---|---|
| CF-14-SUS | 1/4 in | 30 | 12 | 11 | - | 4.1 | 1.3 |
| CF-516-SUS | 5/16 in | 35 | 16 | 13 | - | 4.2 | 1.9 |
| CF-38-SUS | 3/8 in | 44 | 20 | 14.2 | 8.7 | 5.0 | 4.2 |
| CF-12-SUS | 1/2 in | 54 | 25 | 18 | 10 | 9.2 | 6.7 |
| CF-58-SUS | 5/8 in | 75 | 32 | 22.2 | 15 | 13.3 | 11.5 |
| CF-34-SUS | 3/4 in | 79 | 38 | 25 | 15 | 16.4 | 15.0 |
| CF-1-SUS | 1 in | 125 | 50 | 33.3 | 15 | 30.6 | 28.8 |
| CFM-6-SUS | M6 | 30 | 12 | 11 | - | 4.1 | 13 |
| CFM-8-SUS | M8 | 35 | 16 | 13 | - | 4.2 | 19 |
| CFM-10-SUS | M10 | 44 | 20 | 14.2 | 8.7 | 5.0 | 4.2 |
| CFM-12-SUS | M12 | 54 | 25 | 18 | 10 | 9.2 | 6.7 |
| CFM-16-SUS | M16 | 75 | 32 | 22.2 | 15 | 13.3 | 11.5 |
| CFM-20-SUS | M20 | 79 | 38 | 25 | 15 | 16.4 | 15.0 |
| CFM-24-SUS | M24 | 125 | 50 | 33.3 | 15 | 30.6 | 28.8 |
