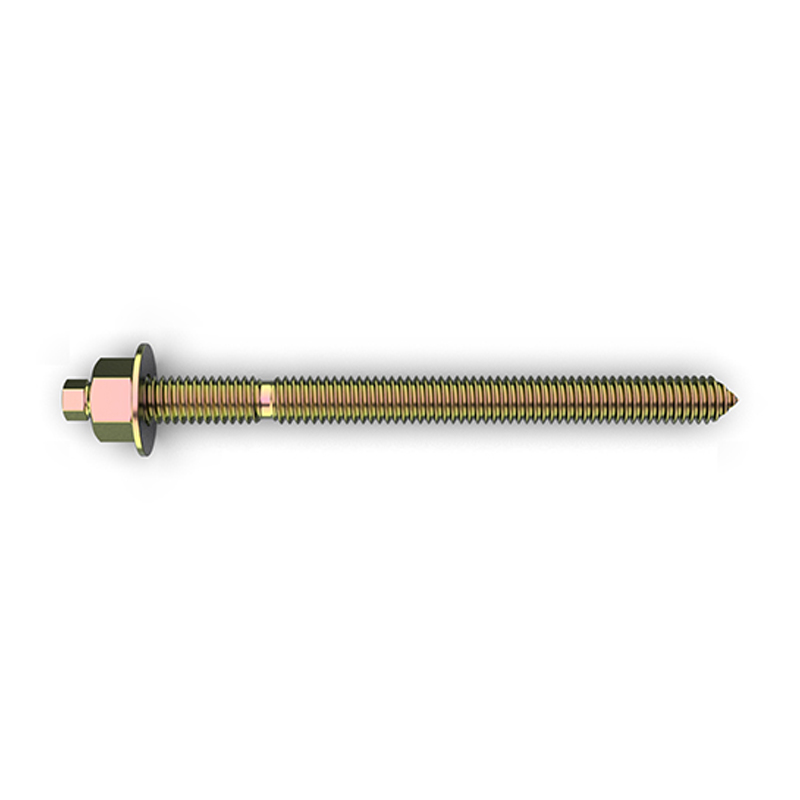

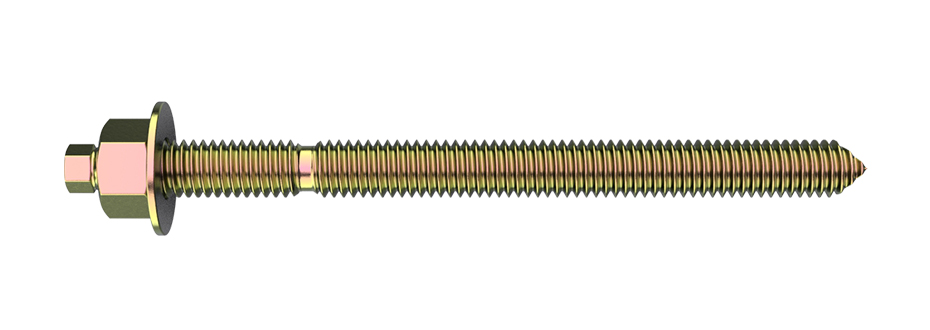

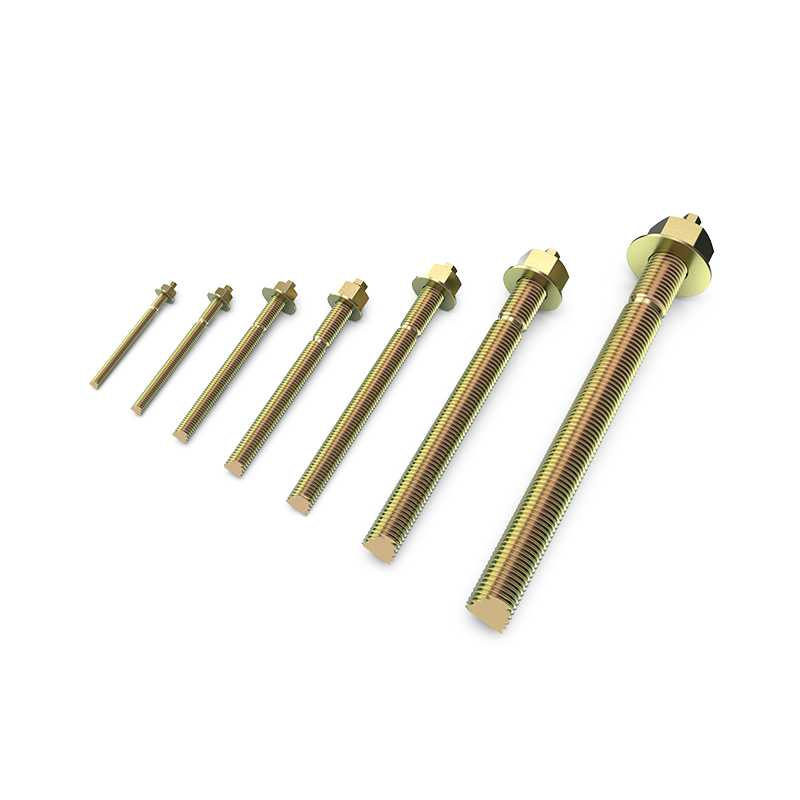

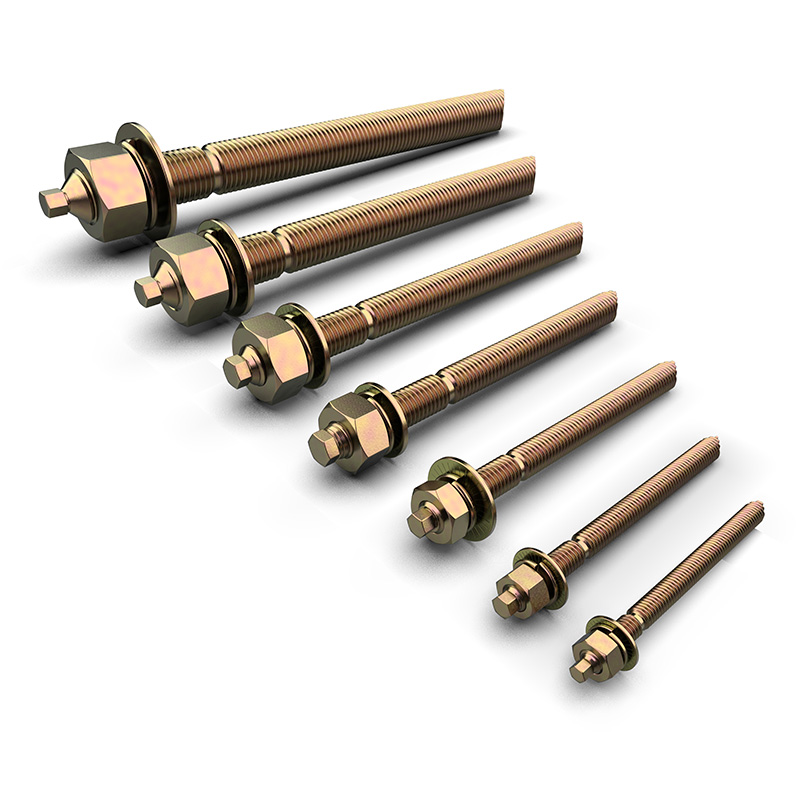

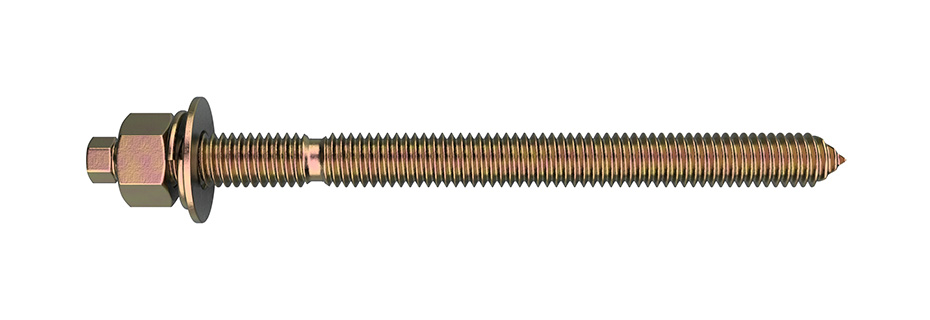

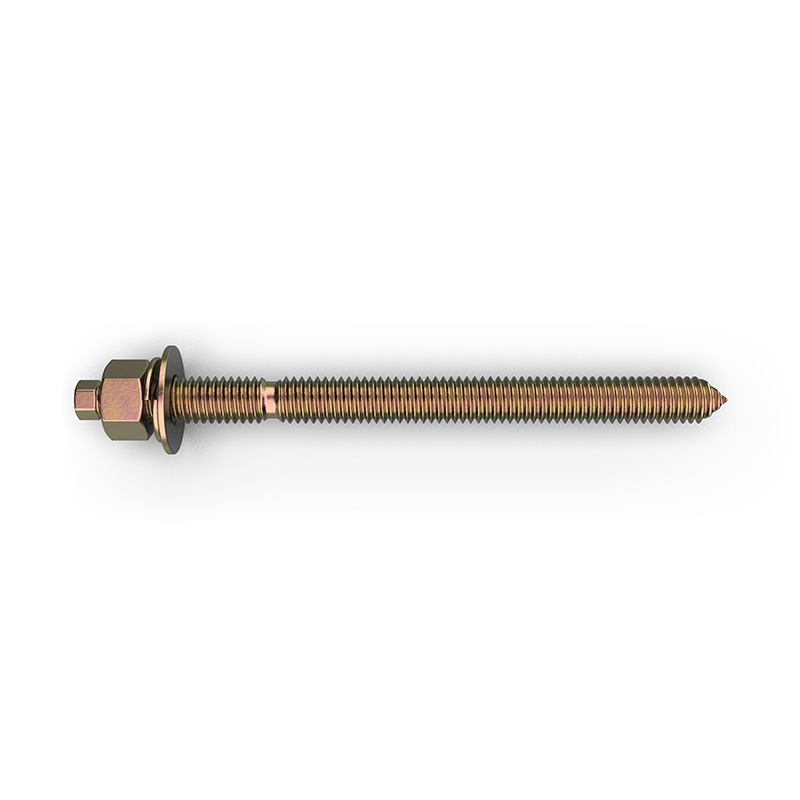

Stud Anchor Rod - AS

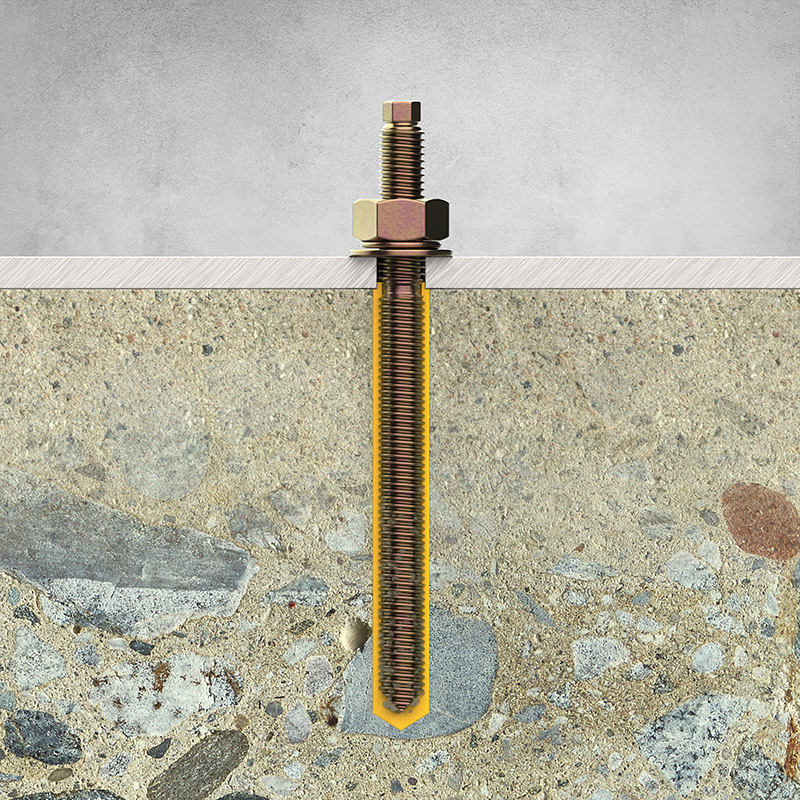

for use with chemical anchor CM fastenic
- manufactured by yellow zinc electroplated Steel
- come with nut an washer

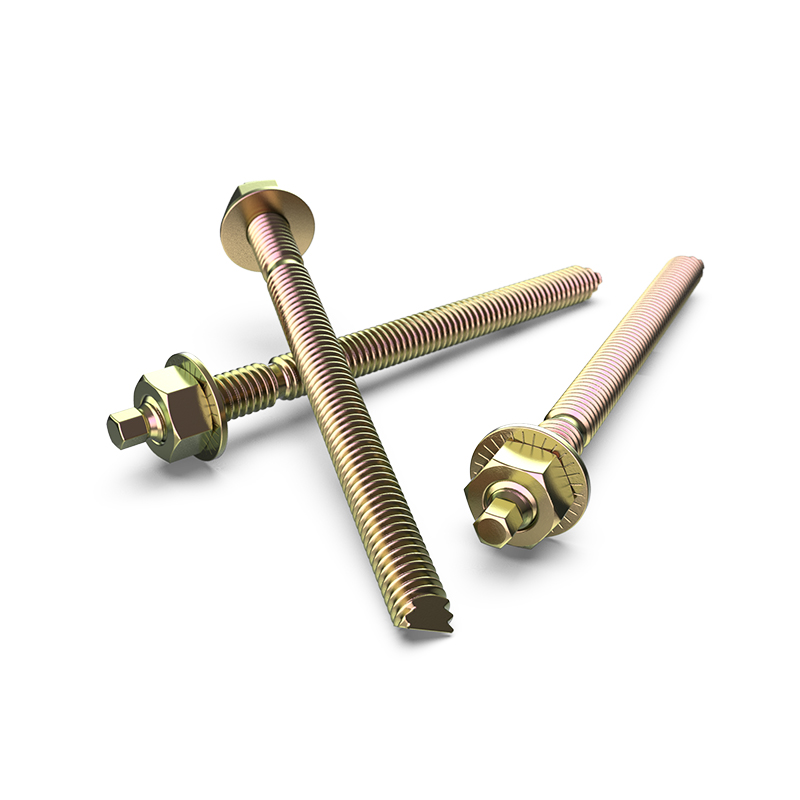

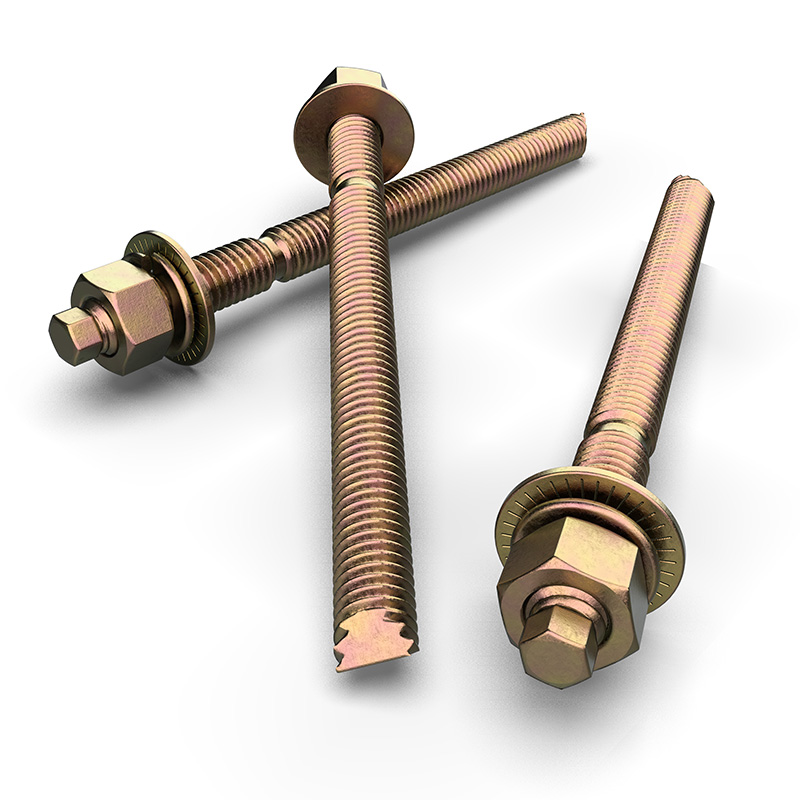

- Hexagon head and sharpen tip make it easy to install with rotary hammer

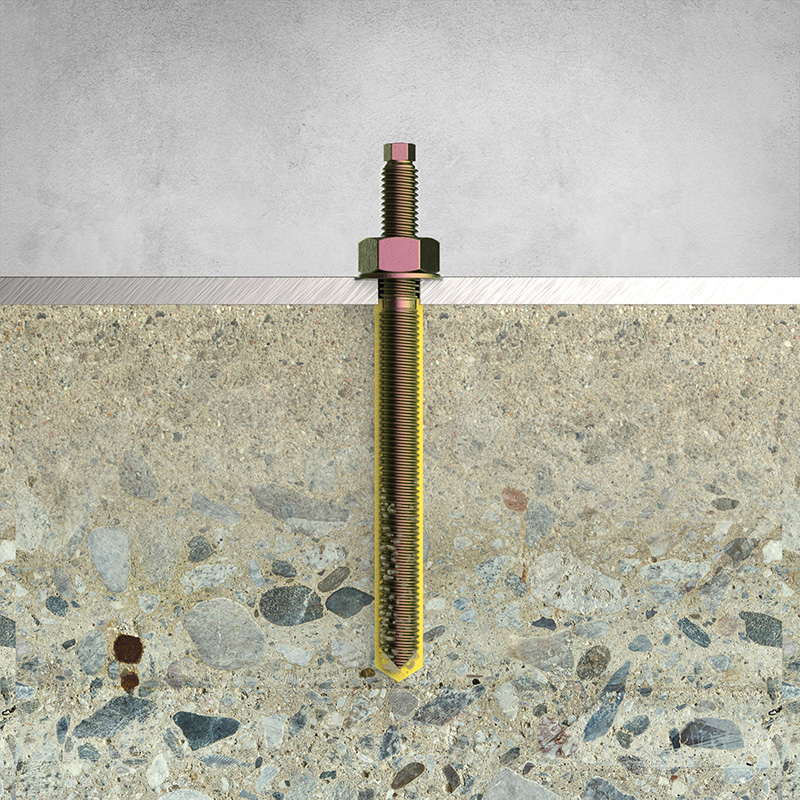

- Marked the embedment level

SKU	Thread Size	Anchor Length (mm.)	Drill Size (mm.)	Drill Hole Depth (mm.)	Pull-Out (kN)	Shear (kN)
AS-8110	M8	110	10	80	4.6	2.8
AS-10130	M10	130	12	90	7.3	4.4
AS-12160	M12	160	14	110	10.7	6.4
AS-16190	M16	190	18	125	20.4	12.0
AS-20240	M20	240	25	170	31.3	18.8
AS-24290	M24	290	28	210	43.2	25.9
AS-27340	M27	340	32	250	56.9	34.2
AS-30380	M30	380	35	280	64.9	41.5
