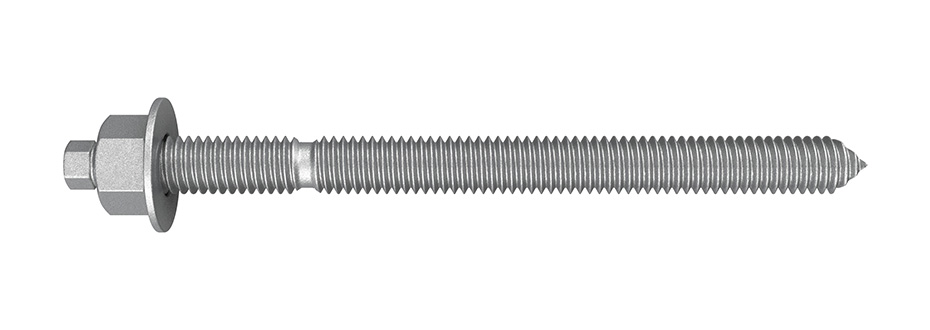

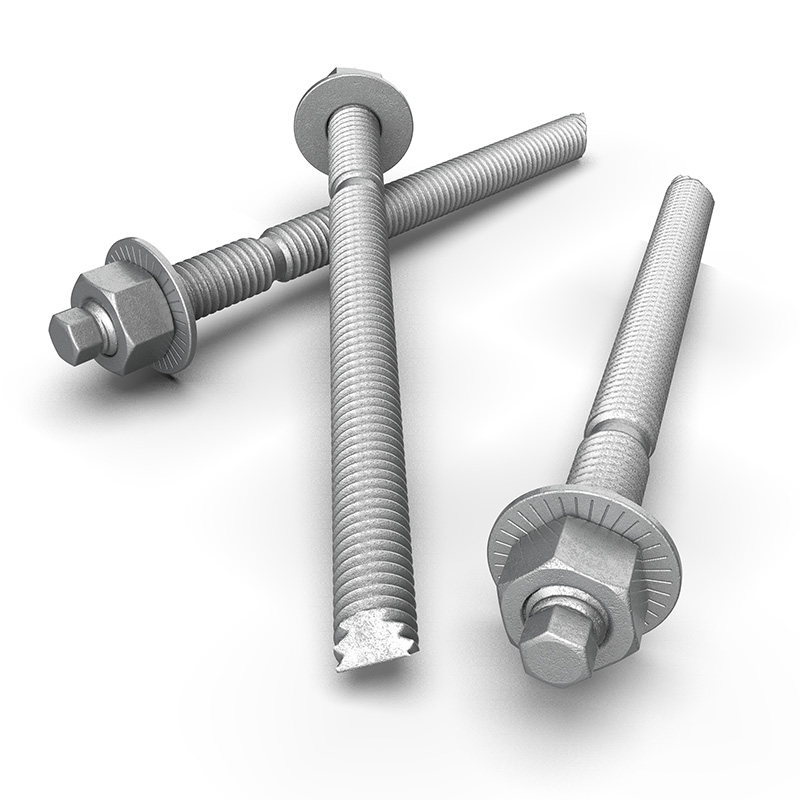

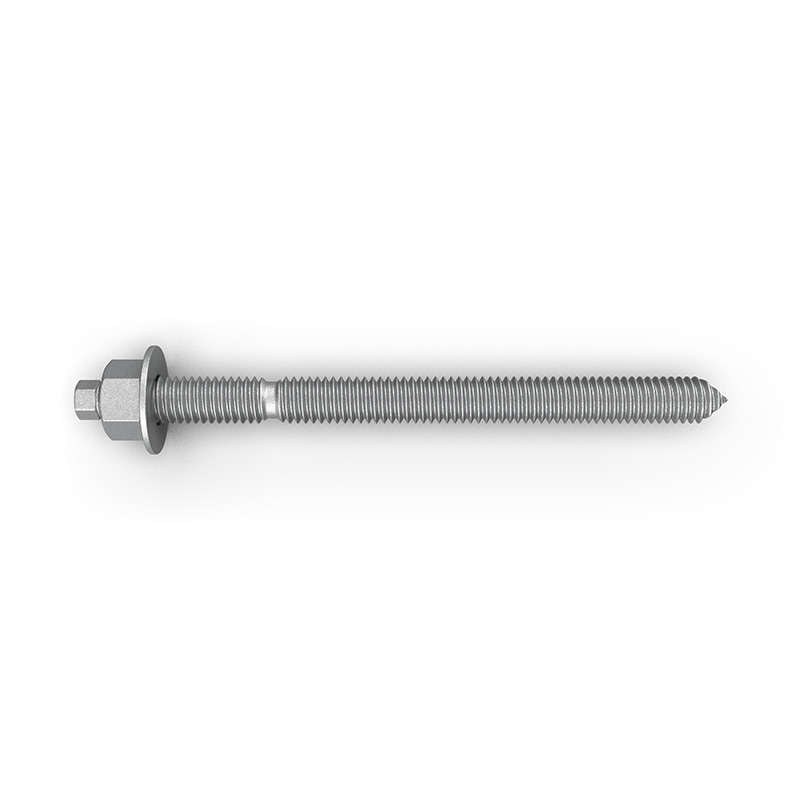

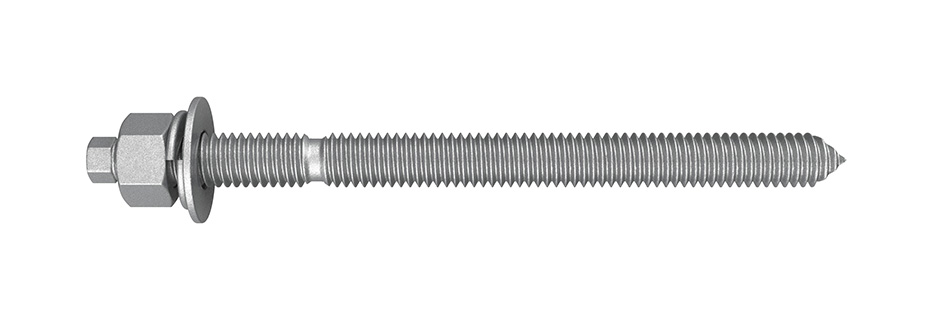

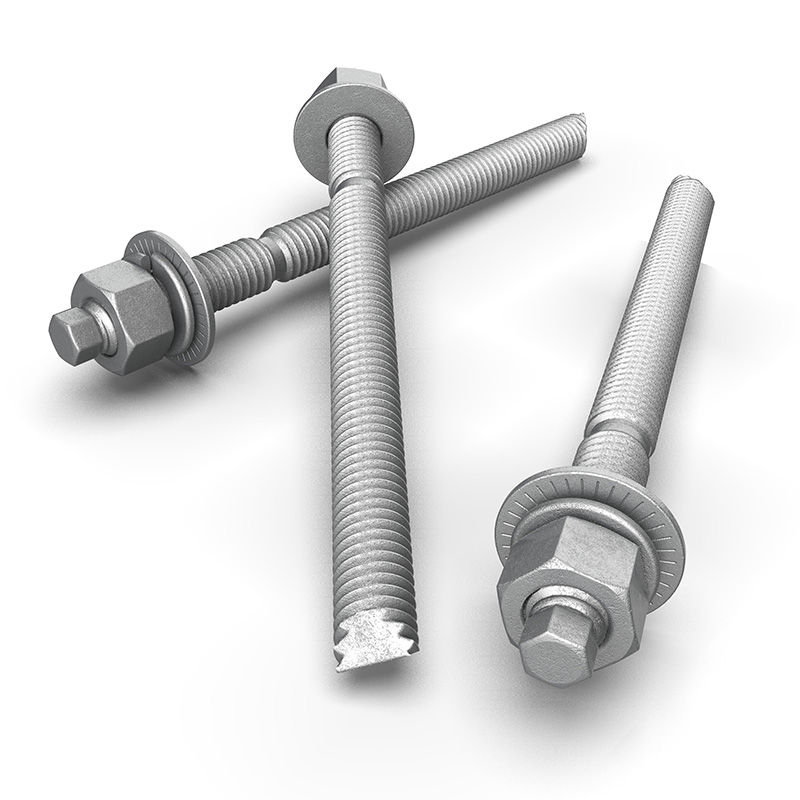

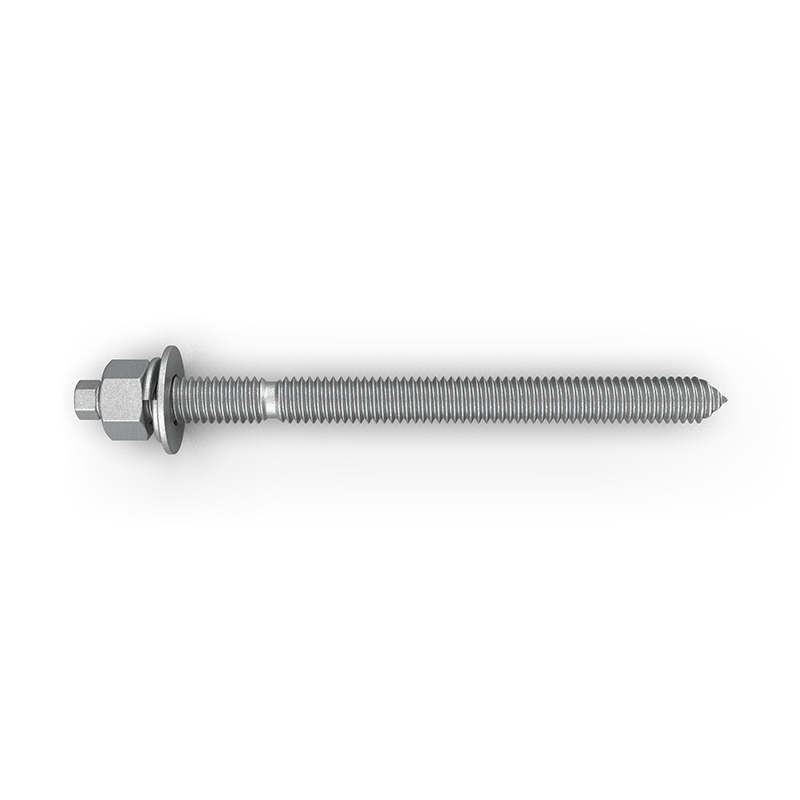

Stud Anchor Rod - AS-HDG

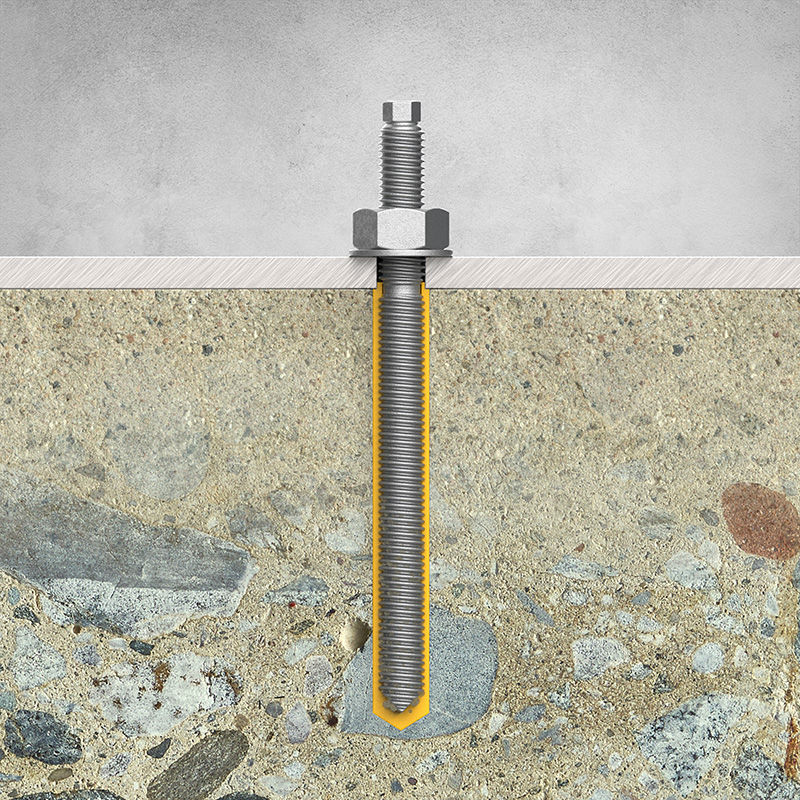

for use with chemical anchor CM fastenic
- Anti-rust coating Hot-Dip Galvanized
- come with nut and washer
- Hexagon head and sharpen tip make it easy to install with rotary hammer
- Marked the embedment level
for use with chemical anchor CM fastenic
- Anti-rust coating Hot-Dip Galvanized
- come with nut and washer
- Hexagon head and sharpen tip make it easy to install with rotary hammer
- Marked the embedment level

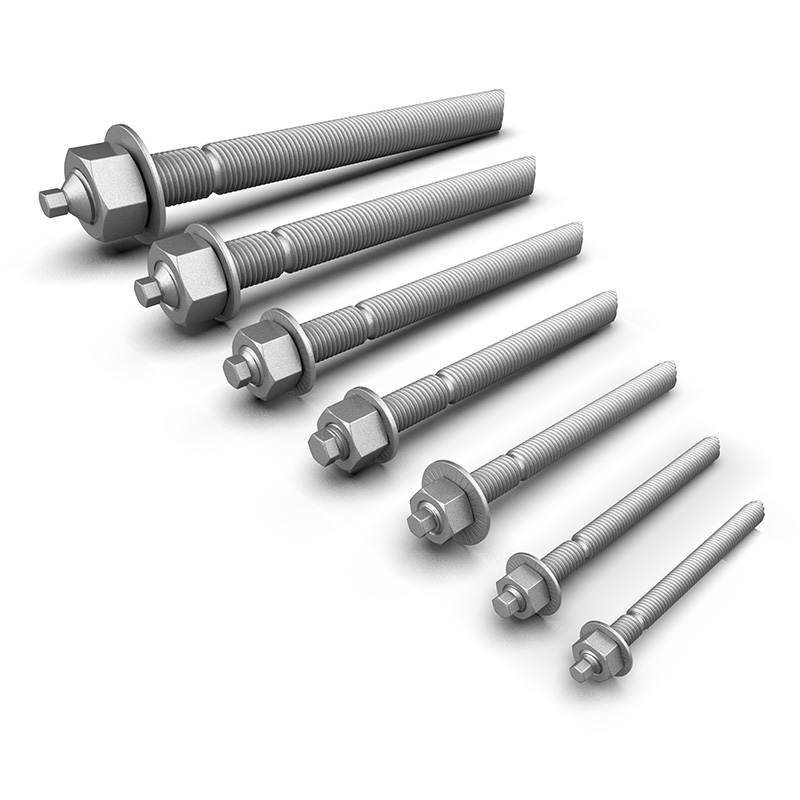

| SKU | Thread Size | Anchor Length (mm.) | Pull-Out (kN) | Shear (kN) |
|---|---|---|---|---|
| AS-8110-HDG | M8 | 110 | 4.6 | 2.8 |
| AS-10130-HDG | M10 | 130 | 7.3 | 4.4 |
| AS-12160-HDG | M12 | 160 | 10.7 | 6.4 |
| AS-16190-HDG | M16 | 190 | 20.4 | 12.0 |
| AS-20240-HDG | M20 | 240 | 31.3 | 18.8 |
| AS-24290-HDG | M24 | 290 | 43.2 | 25.9 |
| AS-27340-HDG | M27 | 340 | 56.9 | 34.2 |
| AS-30380-HDG | M30 | 380 | 64.2 | 41.5 |
