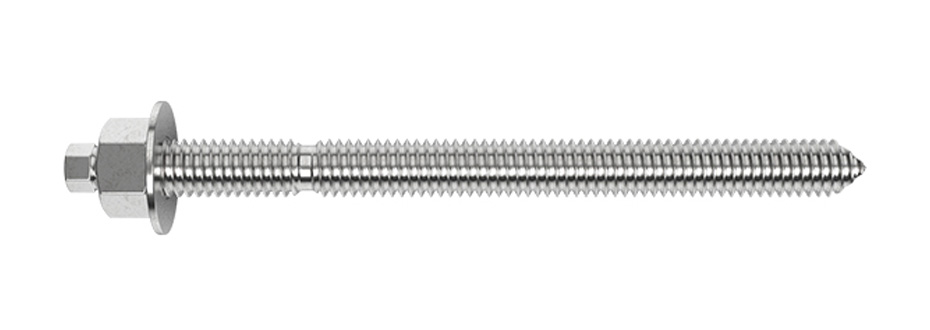

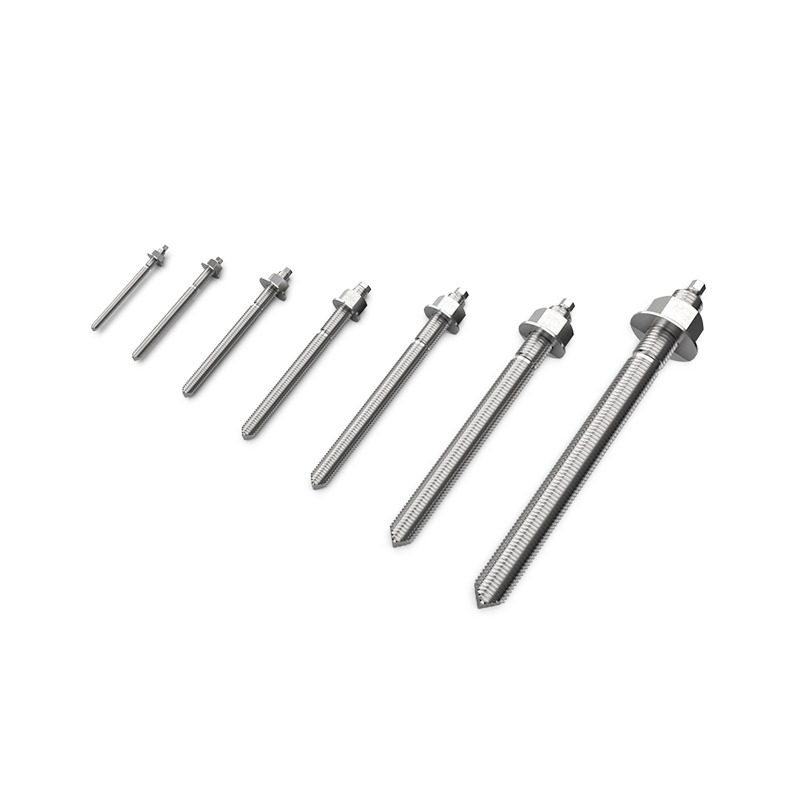

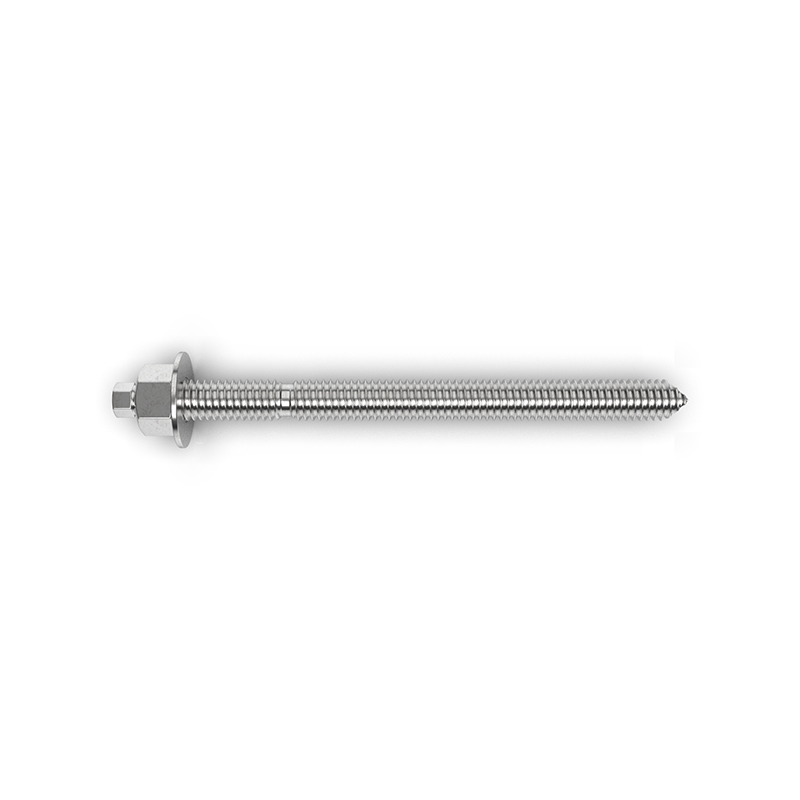

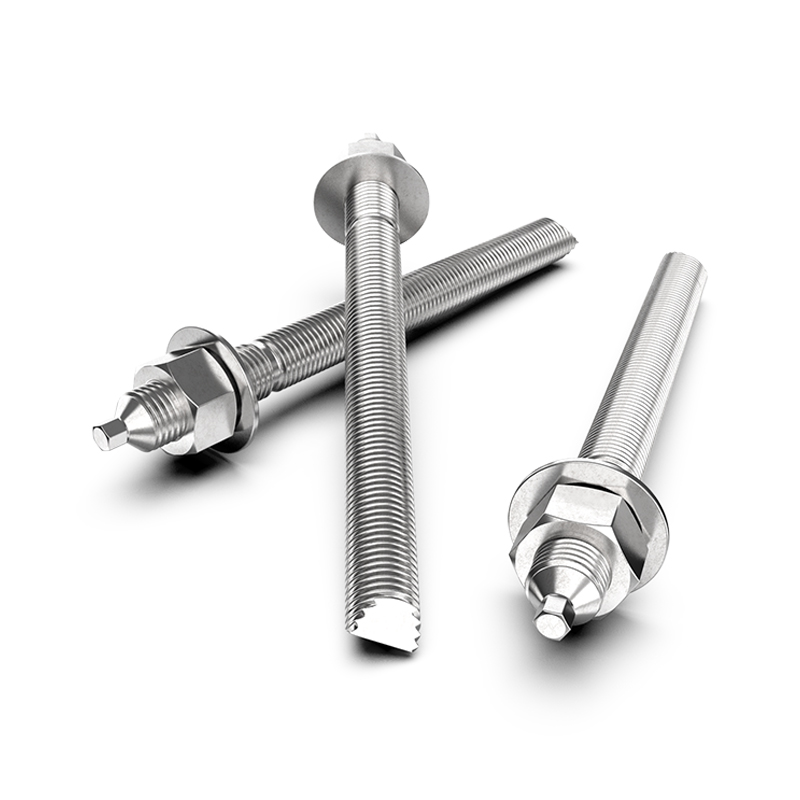

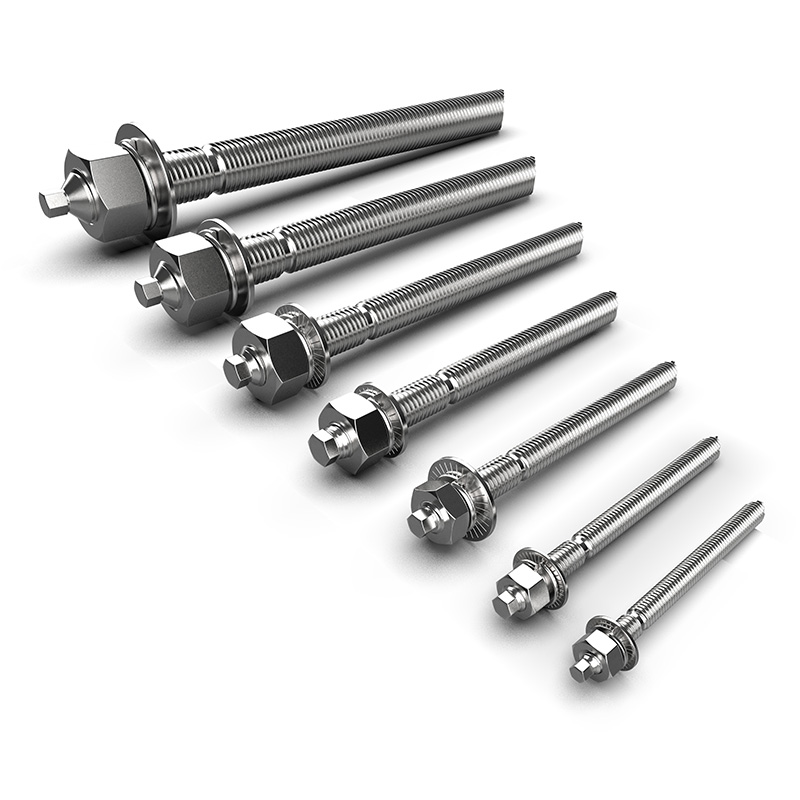

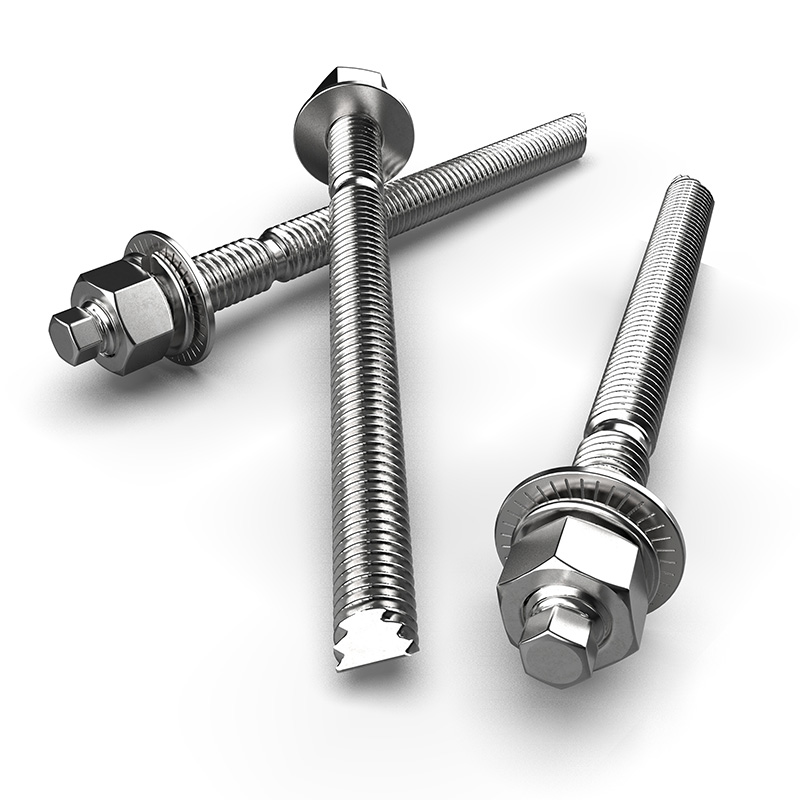

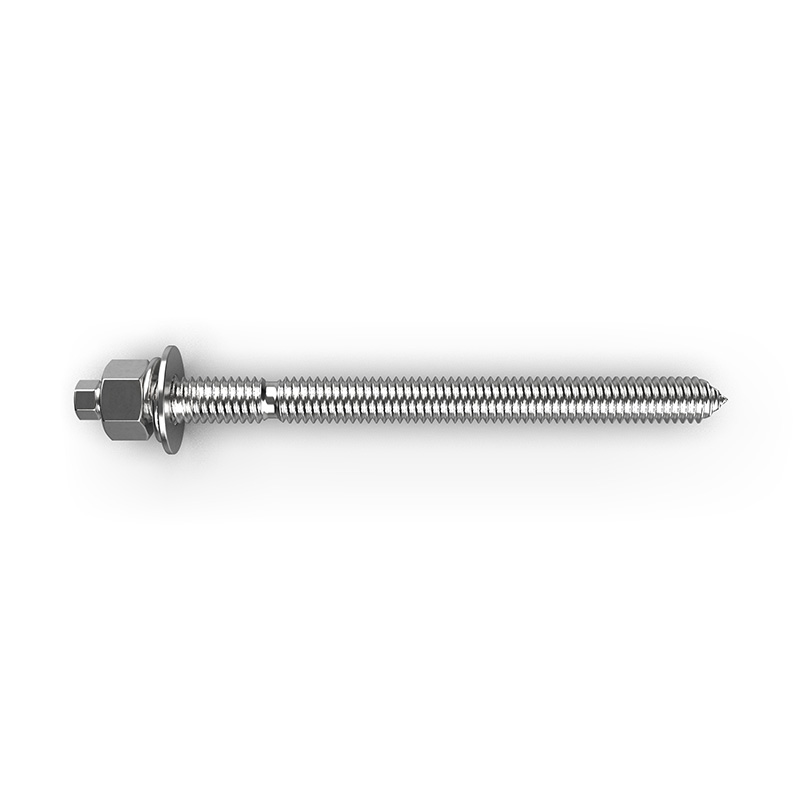

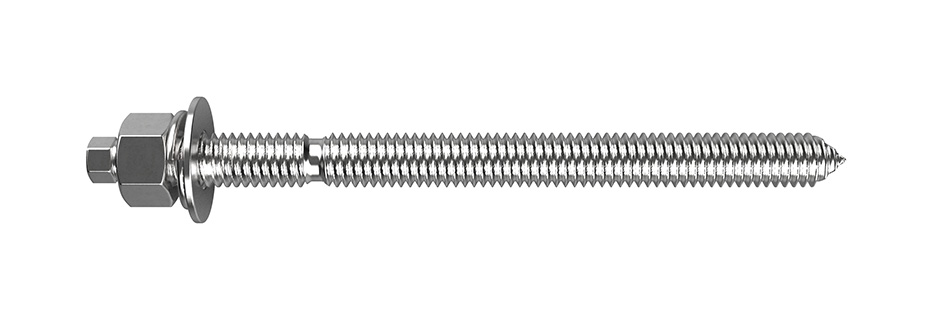

Stud Anchor Rod - AS-SUS

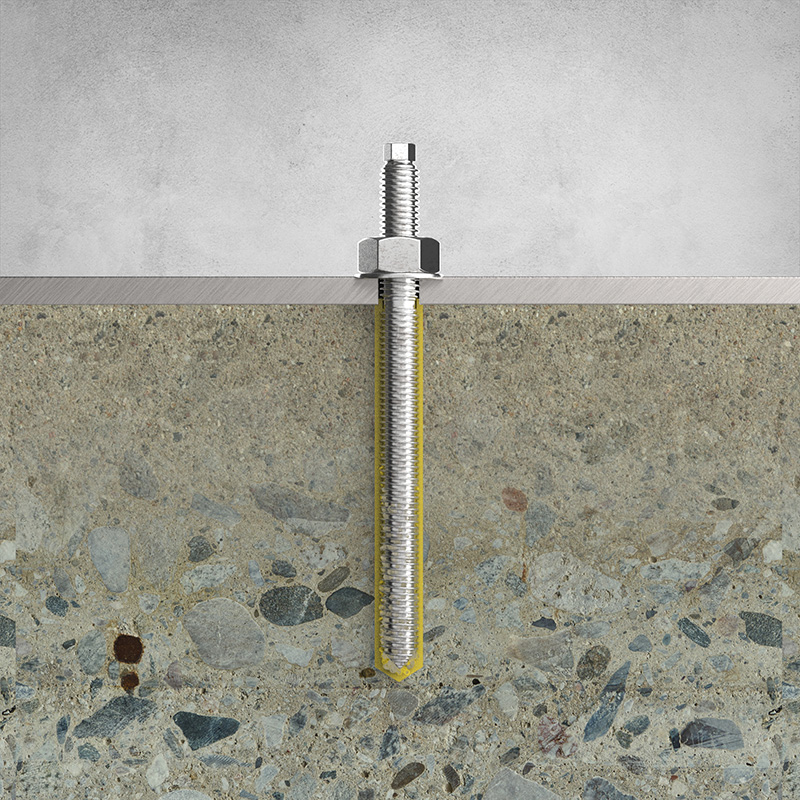

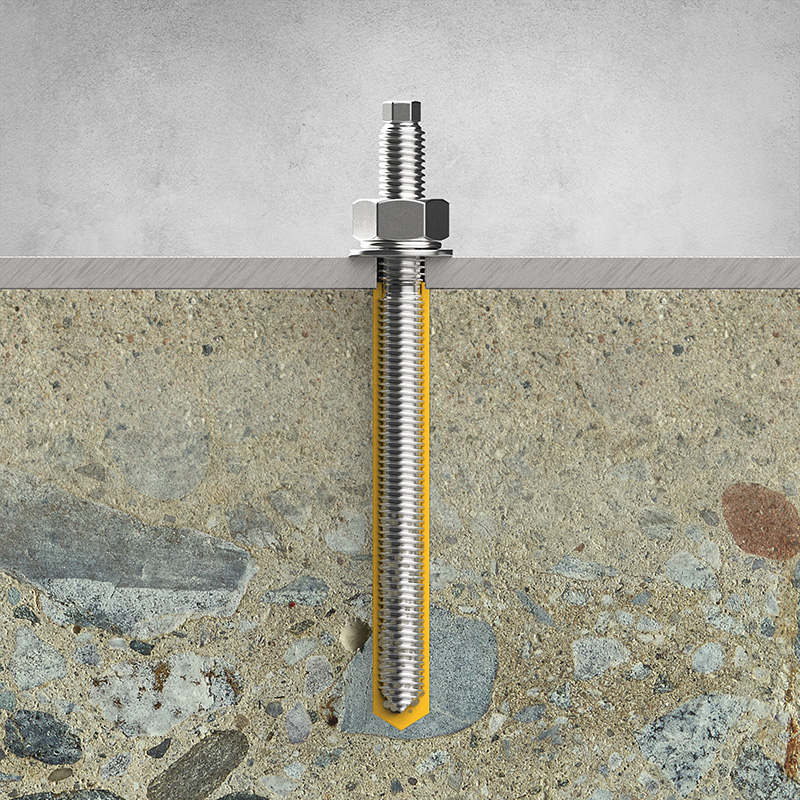

for use with chemical anchor CM fastenic
- manufactured by Stainless Steel 304
- come with nut an washer
- Hexagon head and sharpen tip make it easy to install with rotary hammer
- Marked the embedment level

SKU	Thread Size	Anchor Length (mm.)	Drill Size (mm.)	Drill Hole Depth (mm.)	Pull-Out (kN)	Shear (kN)
AS-8110-SUS	M8	110	10	80	5.7	3.5
AS-10130-SUS	M10	130	12	90	9.1	5.5
AS-12160-SUS	M12	160	14	110	13.3	8.0
AS-16190-SUS	M16	190	18	125	25.0	15.0
AS-20240-SUS	M20	240	25	170	39.1	23.5
AS-24290-SUS	M24	290	28	210	54.0	32.4
AS-27340-SUS	M27	340	32	250	71.1	42.7
AS-30380-SUS	M30	380	35	280	86.5	51.9
