ST-HDG
Stud Bolt-Hot dip Galvanized - ST-HDG
Please select product

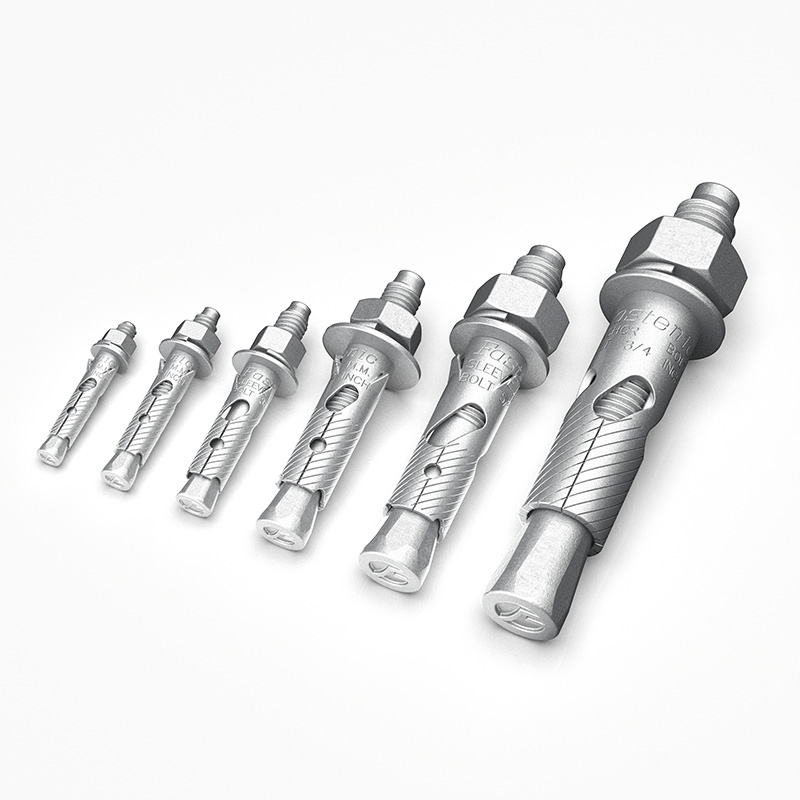

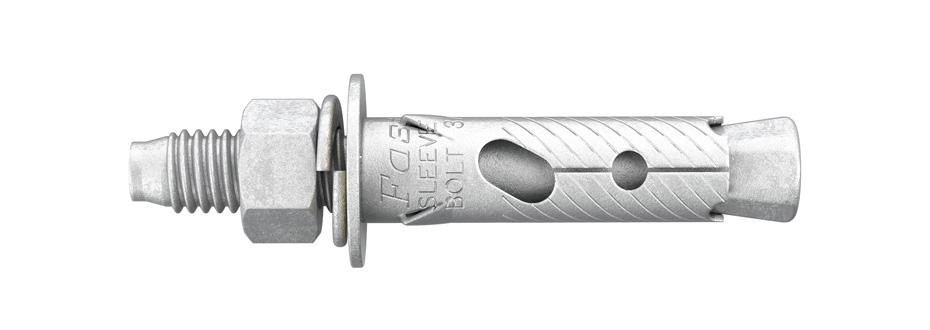

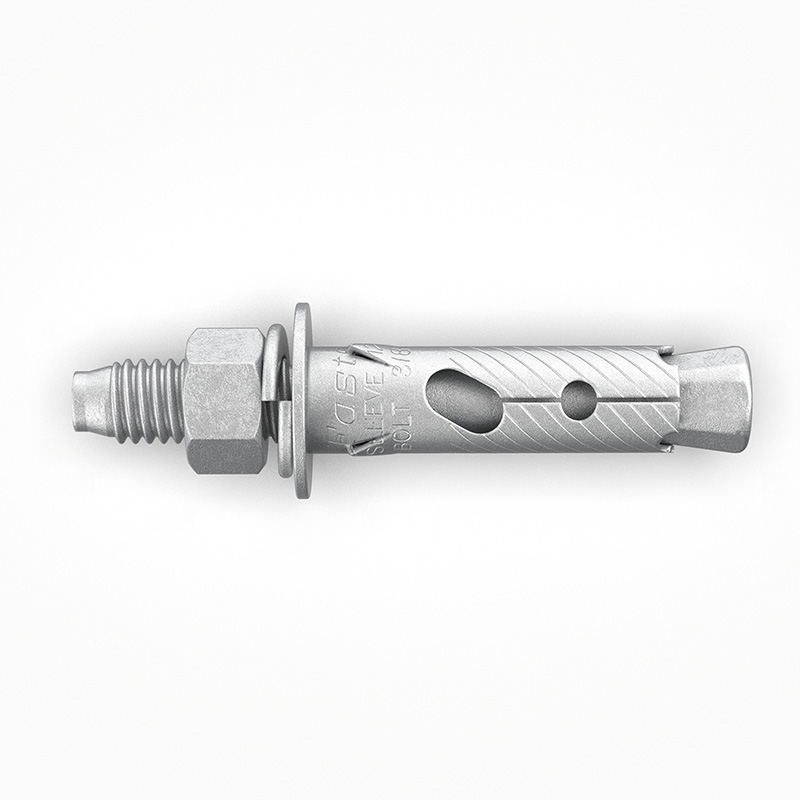

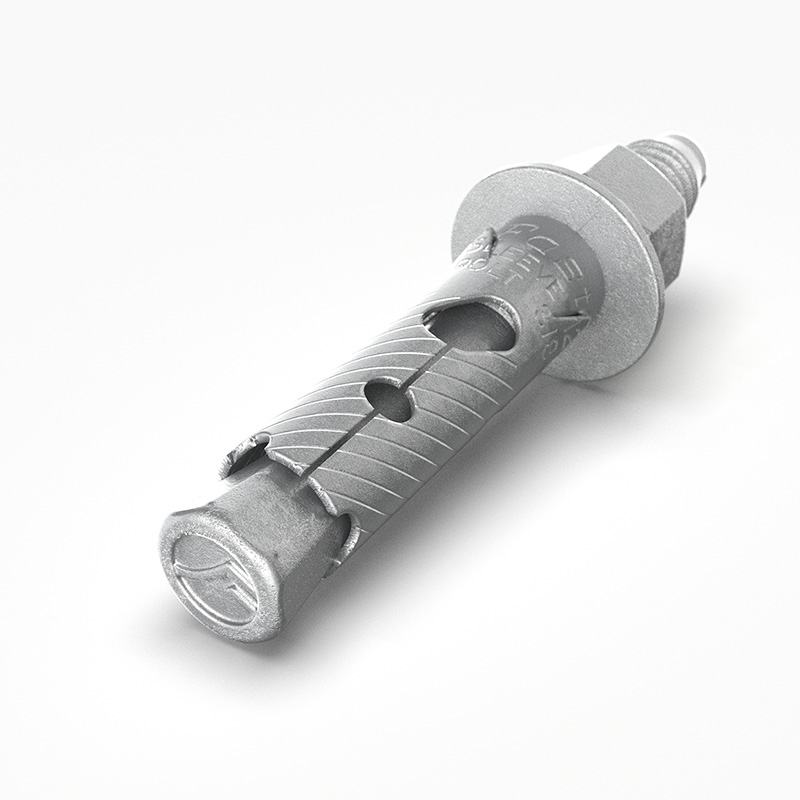

Stud bolts Fastenic ST-HDG
Easy to use and quick to install. Consists of a male expansion plug, sleeve, ring, spring washer and female plug in one piece. can be used to install immediately. Anti-rust coating Hot-Dip Galvanized
- No setting tools required
- Manufactured from grade A steel, yellow zinc plated.

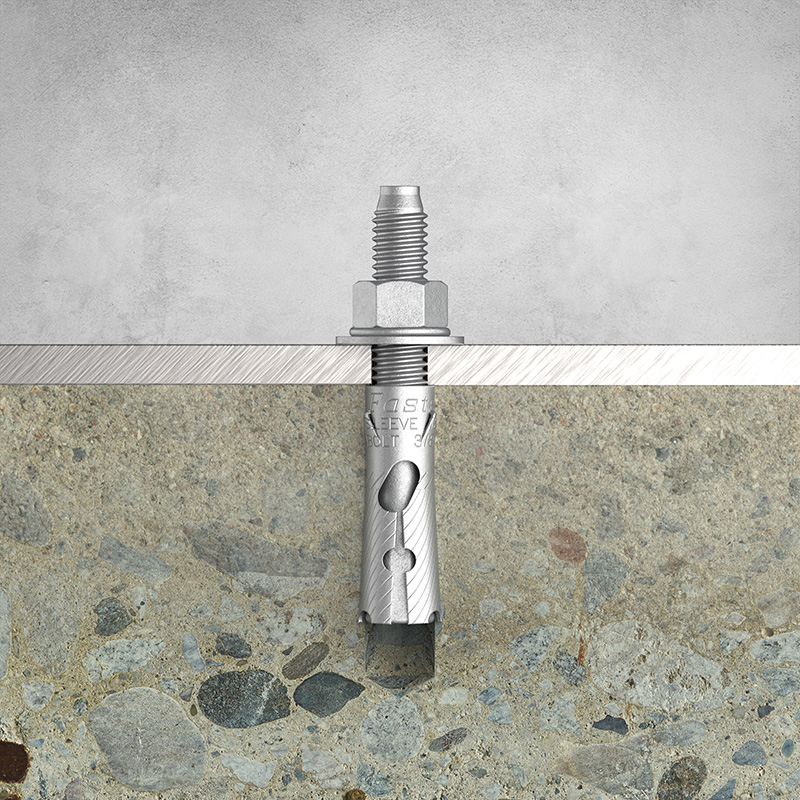

- When tightening the nut according to the specified torque value The surface of the casing expands as it adheres firmly to the concrete hole.
- Anti-rust coating Hot-Dip Galvanized
- perfect for outdoor use
Easy to use and quick to install. Consists of a male expansion plug, sleeve, ring, spring washer and female plug in one piece. can be used to install immediately. Anti-rust coating Hot-Dip Galvanized
- No setting tools required
- Manufactured from grade A steel, yellow zinc plated.
- When tightening the nut according to the specified torque value The surface of the casing expands as it adheres firmly to the concrete hole.
- Anti-rust coating Hot-Dip Galvanized
- perfect for outdoor use
| SKU | Thread Size | Anchor Length (mm.) | Drill Size (mm.) | Drill Hole Depth (mm.) | Pull-Out (kN) | Shear (kN) |
|---|---|---|---|---|---|---|
| ST-14-HDG | BSW 1/4 in | 50 | 8 | 38 | 2.5 | 3.2 |
| ST-516-HDG | BSW 5/16 in | 65 | 10 | 45 | 4.0 | 5.4 |
| ST-38-HDG | BSW 3/8 in | 75 | 12 | 50 | 6.0 | 7.9 |
| ST-12-HDG | BSW 1/2 in | 95 | 16 | 65 | 7.2 | 14 |
| ST-58-120-HDG | BSW 5/8 in | 120 | 20 | 75 | 17 | 24 |
| ST-58-160-HDG | BSW 5/8 in | 160 | 20 | 75 | 17 | 24 |
| ST-58-200-HDG | BSW 5/8 in | 200 | 20 | 75 | 17 | 24 |
| ST-34-160-HDG | BSW 3/4 in | 160 | 25 | 110 | 22 | 37 |
| ST-34-200-HDG | BSW 3/4 in | 200 | 25 | 110 | 22 | 37 |
