Stud Bolt-Stainless Steel - ST-SUS
Please select product
Stud bolts Fastenic ST-SUS

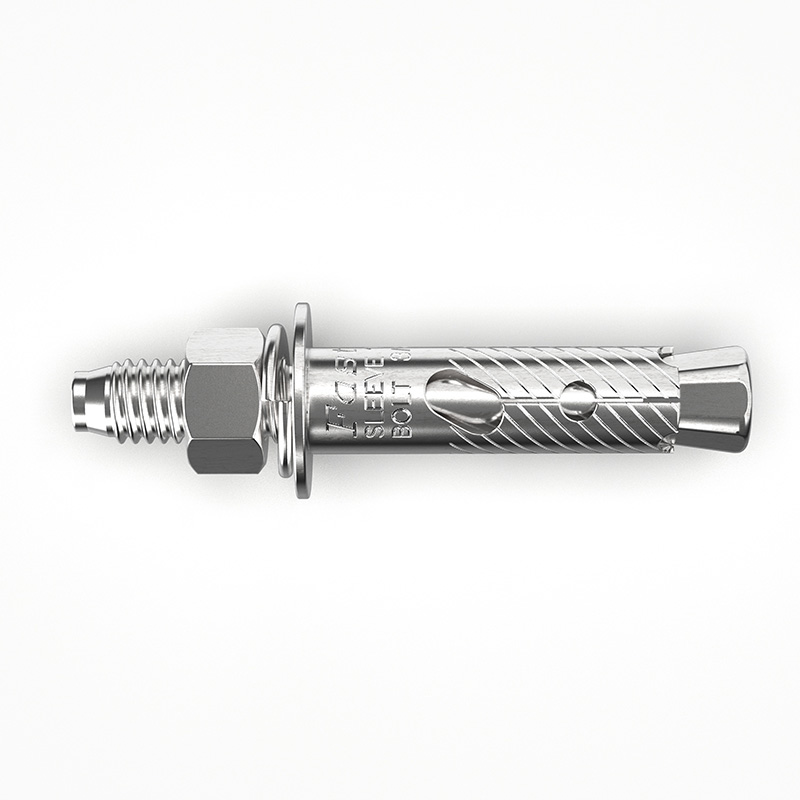

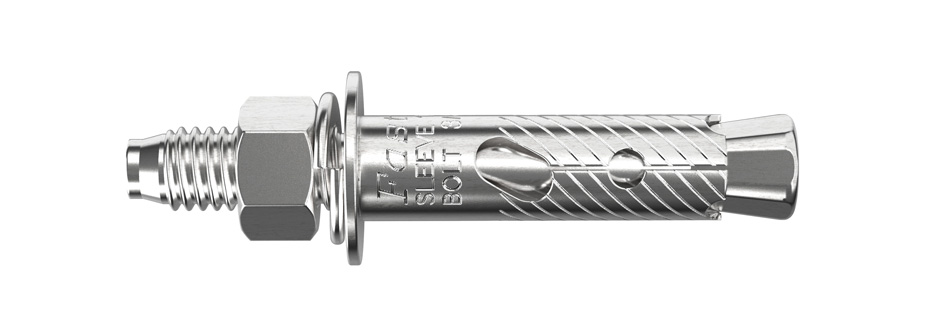

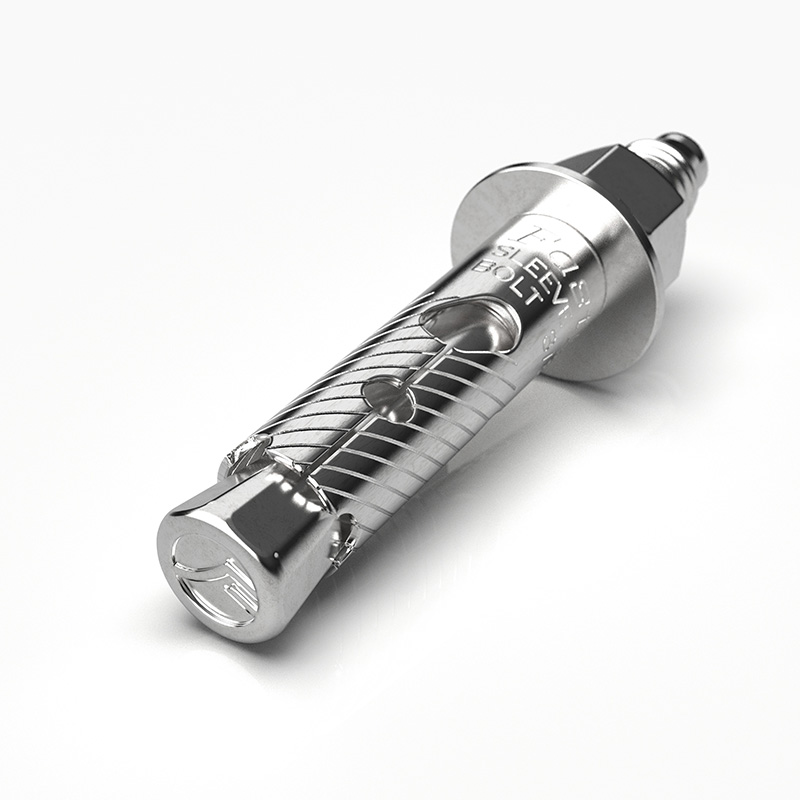

Stainless Steel Anchor. Easy to use and quick to install. Consists of a male expansion plug, sleeve, ring, spring washer and female plug in one piece. can be used to install immediately.
- No setting tools required
- Manufactured from Stainless Steel 304

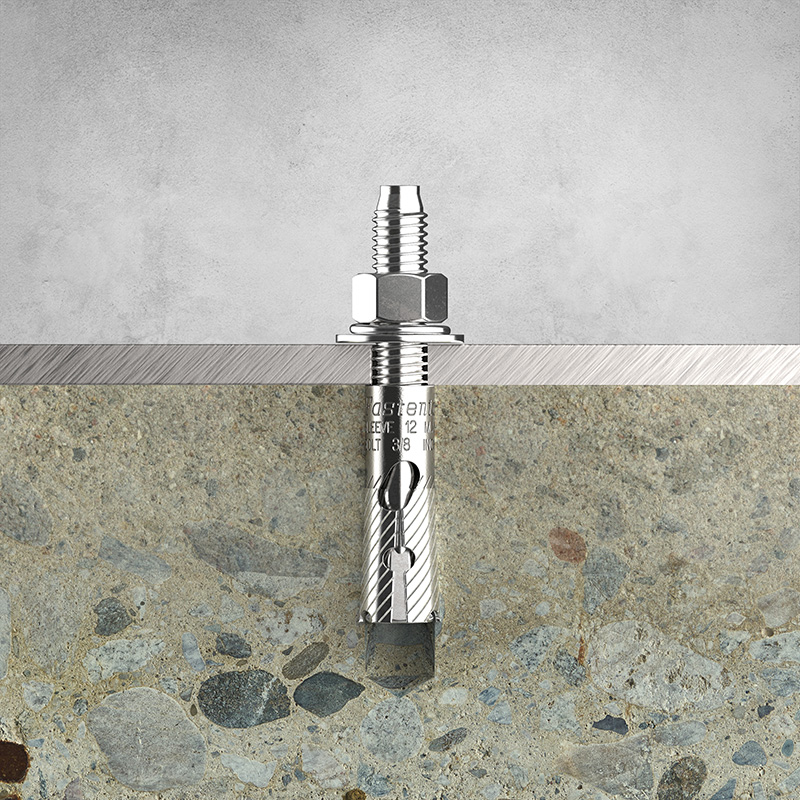

- When tightening the nut according to the specified torque value The surface of the casing expands as it adheres firmly to the concrete hole.
- perfect for outdoor use and high corrosion area such as seashore
Stainless Steel Anchor. Easy to use and quick to install. Consists of a male expansion plug, sleeve, ring, spring washer and female plug in one piece. can be used to install immediately.
- No setting tools required
- Manufactured from Stainless Steel 304
- When tightening the nut according to the specified torque value The surface of the casing expands as it adheres firmly to the concrete hole.
- perfect for outdoor use and high corrosion area such as seashore

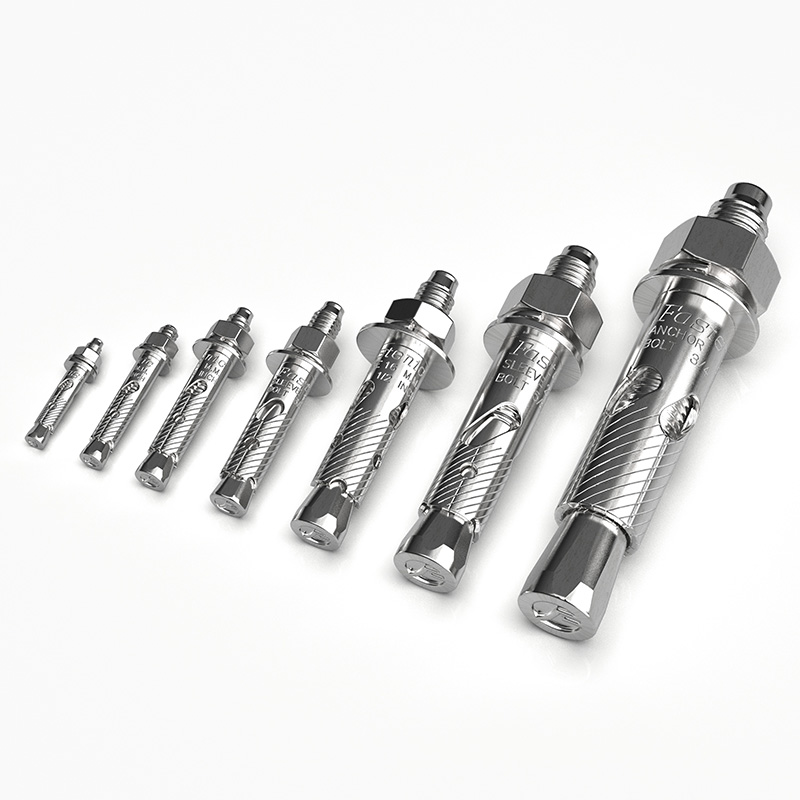

| SKU | Thread Size | Anchor Length (mm.) | Drill Size (mm.) | Drill Hole Depth (mm.) | Pull-Out (kN) | Shear (kN) |
|---|---|---|---|---|---|---|
| ST-316-SUS | BSW 3/16 in | 40 | 6.5 | 28 | 1.1 | 2.6 |
| ST-14-SUS | BSW 1/4 in | 52 | 8 | 38 | 2.5 | 3.9 |
| ST-516-SUS | BSW 5/16 in | 65 | 10 | 45 | 4.0 | 6.5 |
| ST-38-SUS | BSW 3/8 in | 73 | 12 | 50 | 6.0 | 9.6 |
| ST-12-SUS | BSW 1/2 in | 94 | 16 | 65 | 7.2 | 17.1 |
| ST-58-120-SUS | BSW 5/8 in | 120 | 20 | 80 | 17 | 29 |
| ST-58-160-SUS | BSW 5/8 in | 160 | 20 | 80 | 17 | 29 |
| ST-58-200-SUS | BSW 5/8 in | 200 | 20 | 80 | 17 | 29 |
| ST-34-160-SUS | BSW 3/4 in | 160 | 25 | 110 | 22 | 45 |
| ST-34-200-SUS | BSW 3/4 in | 200 | 25 | 110 | 22 | 45 |
