TK-Z
Turnbuckles Zinc - TK
TK-Z
Turnbuckles Zinc - TK
Please select product
Turnbuckles Zinc - TK

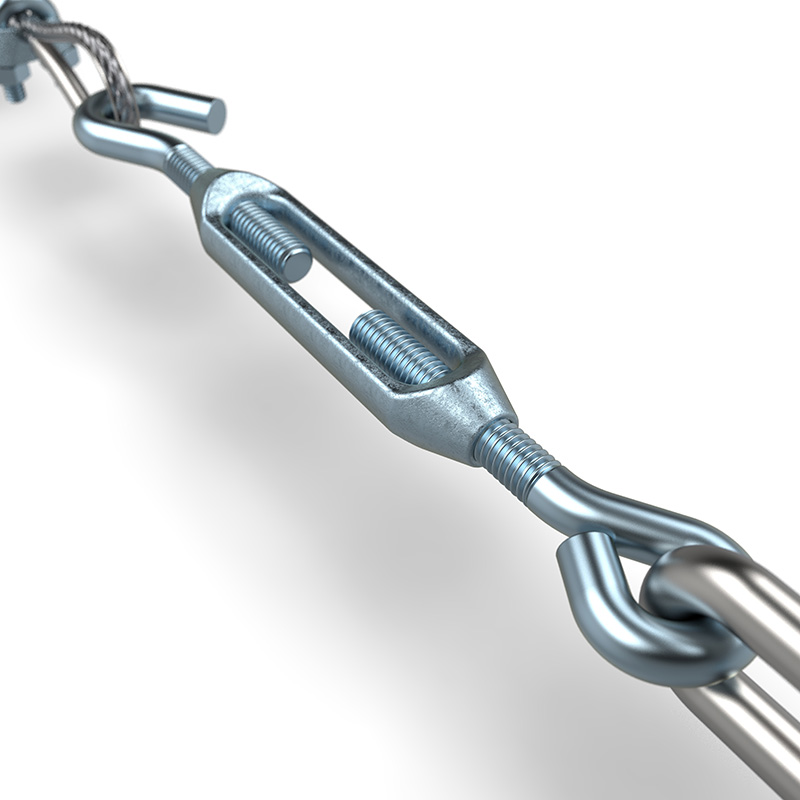

Turnbuckles supply tension by adjusting the length for supporting rope, wire rope, and chain .
- Torso made of Zinc alloy
- Turnbuckle is a couple of threaded eye bolts linked to its torso
Turnbuckles supply tension by adjusting the length for supporting rope, wire rope, and chain .
- Torso made of Zinc alloy
- Turnbuckle is a couple of threaded eye bolts linked to its torso

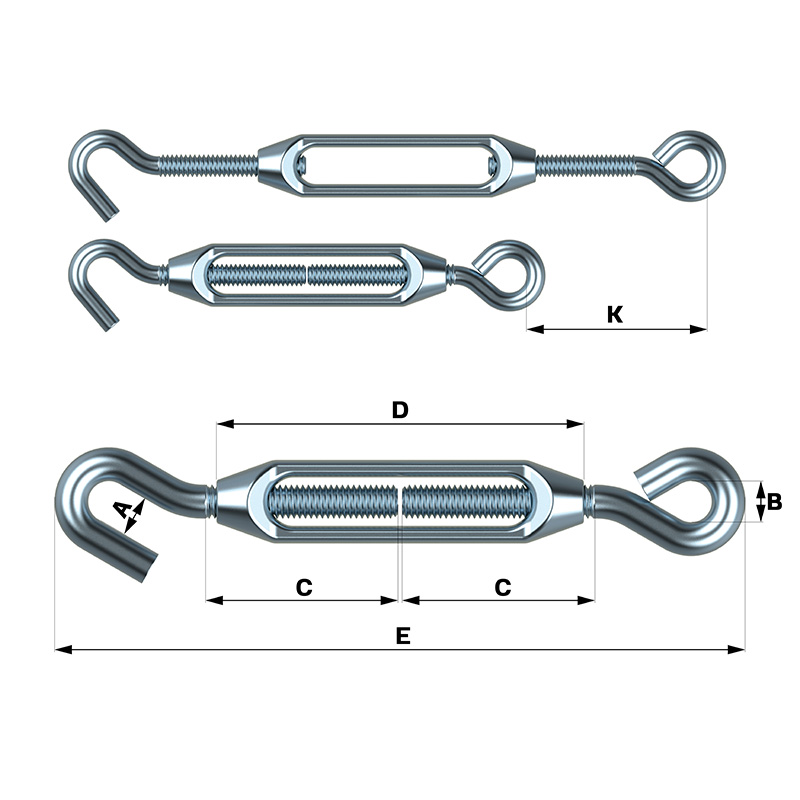

| SKU | Thread Size | A (mm.) | B (mm.) | C (mm.) | D (mm.) | E (mm.) | K (mm.) |
|---|---|---|---|---|---|---|---|
| TK-316-Z | BSW 3/16 in | 10 | 8 | 30 | 60 | 100 | 45 |
| TK-14-Z | BSW 1/4 in | 11 | 11 | 40 | 80 | 140 | 60 |
| TK-516-Z | BSW 5/16 in | 15 | 15 | 50 | 100 | 170 | 70 |
| TK-38-Z | BSW 3/8 in | 18 | 18 | 50 | 110 | 93 | 178 |
