Tri-Shield Hex Anchor - TH
Please select product

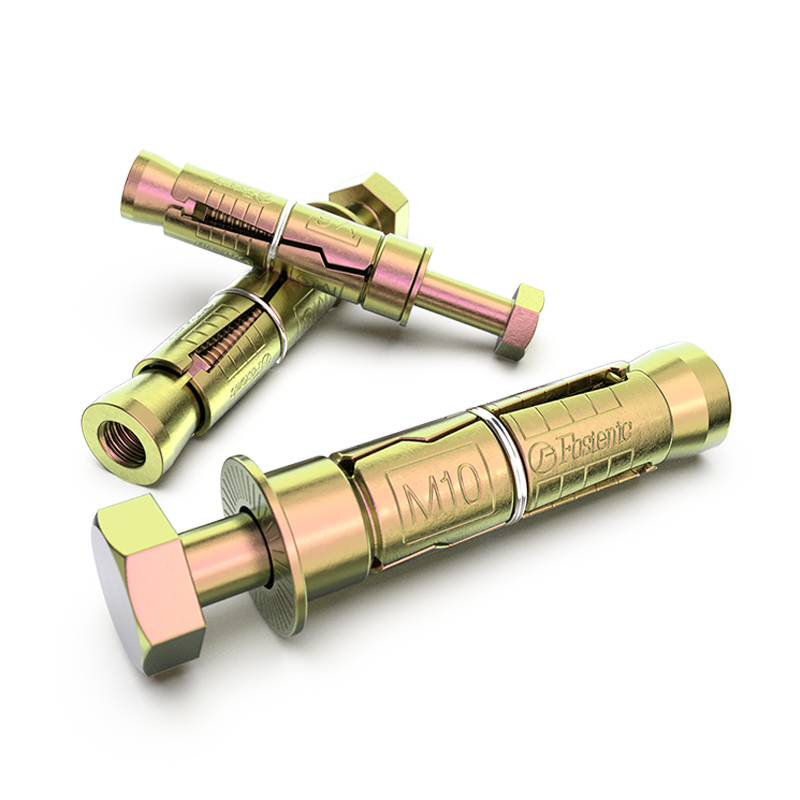

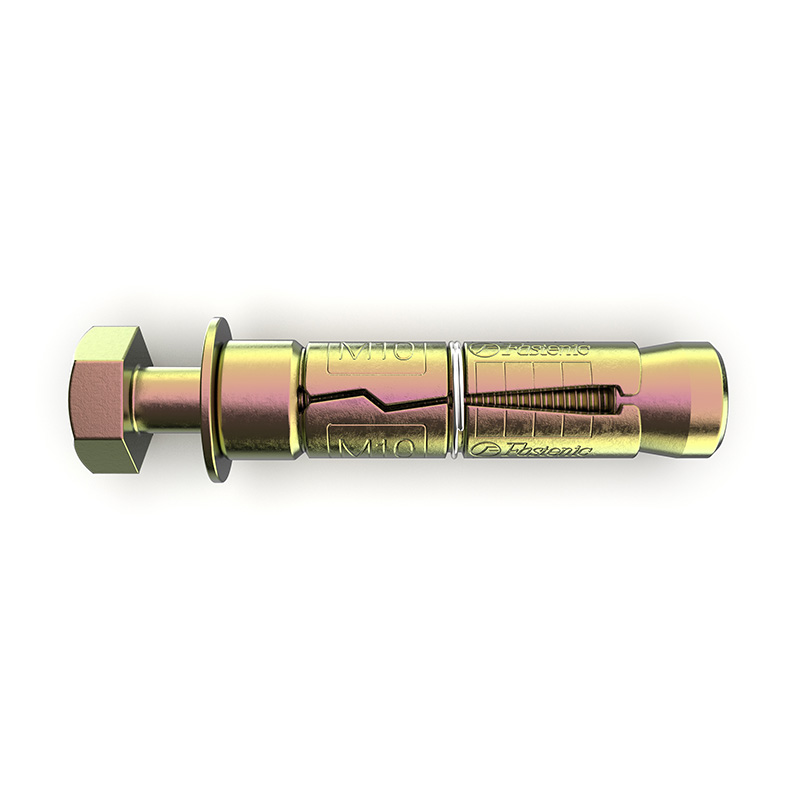

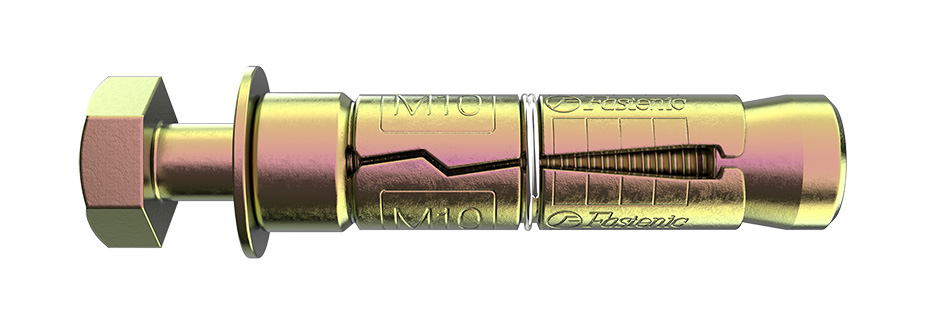

Tri-Shield Hex Anchor - TH
Heavy duty anchor which offers maximum fixture thickness and high load capacity.

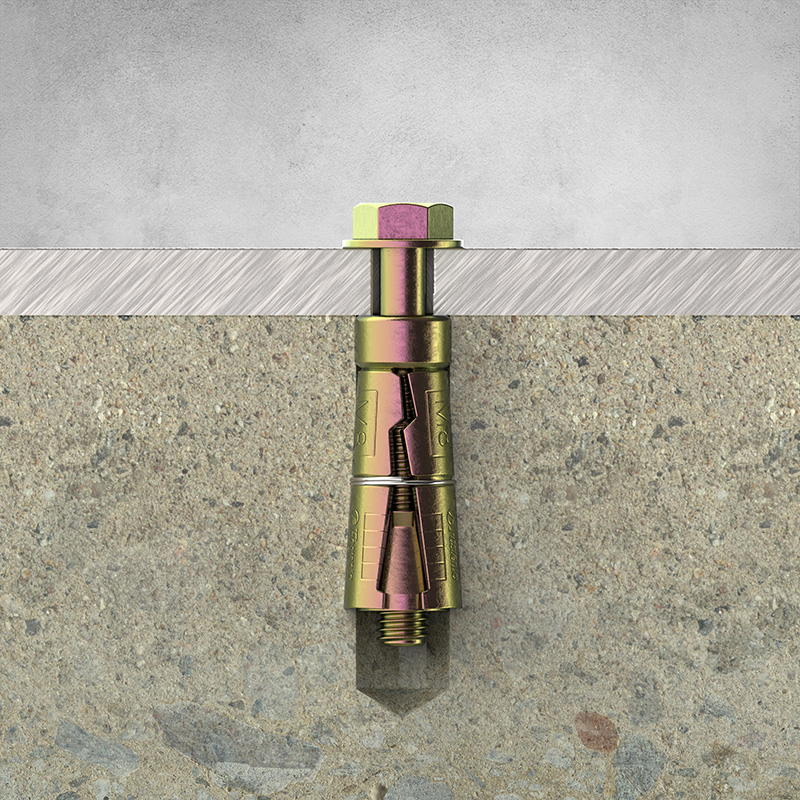

- Consists of three segmented shields assembly which is expanded by a conical nut or taper stud.
- The Fastenic Tri-Shields Anchor is more hole tolerant, it provides more degree of expansion which can provide better grip than others.

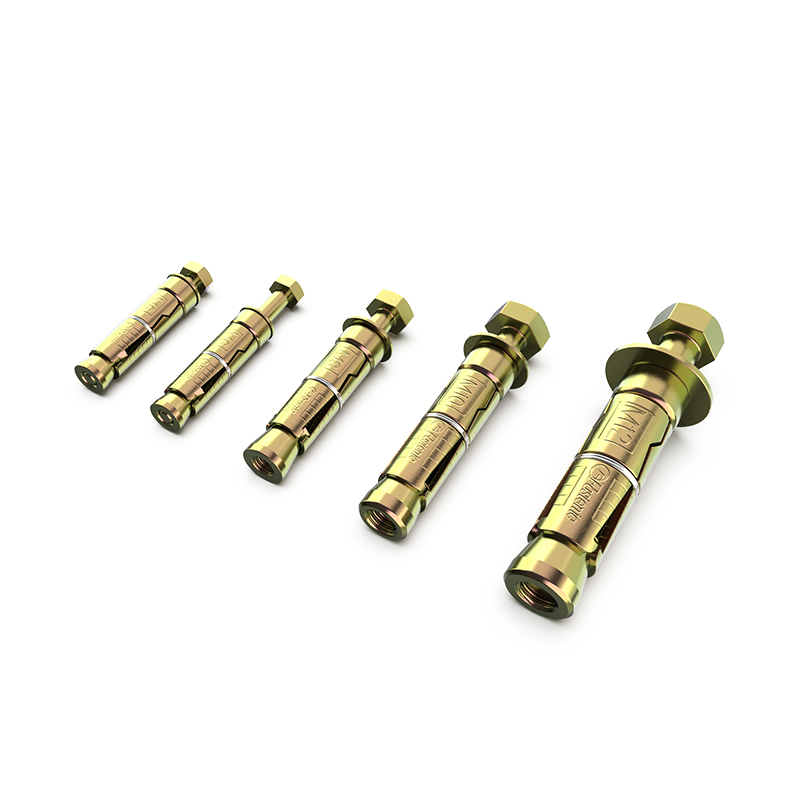

- There are various size and type for suitable fixings. They provide the most practical, versatile and problem solving in all applications.
Heavy duty anchor which offers maximum fixture thickness and high load capacity.
- Consists of three segmented shields assembly which is expanded by a conical nut or taper stud.
- The Fastenic Tri-Shields Anchor is more hole tolerant, it provides more degree of expansion which can provide better grip than others.
- There are various size and type for suitable fixings. They provide the most practical, versatile and problem solving in all applications.
| SKU | Thread Size | Anchor Length (mm.) | Drill Size (mm.) | Drill Hole Depth (mm.) | Pull-Out (kN) | Shear (kN) |
|---|---|---|---|---|---|---|
| TH-6050 | M6 | 50 | 12 | 50 | 2.4 | 2.0 |
| TH-6060 | M6 | 60 | 12 | 50 | 2.4 | 2.0 |
| TH-8060 | M8 | 60 | 14 | 60 | 4.4 | 3.0 |
| TH-1070 | M10 | 70 | 16 | 70 | 5.9 | 4.4 |
| TH-1290 | M12 | 90 | 20 | 85 | 9.0 | 7.0 |
