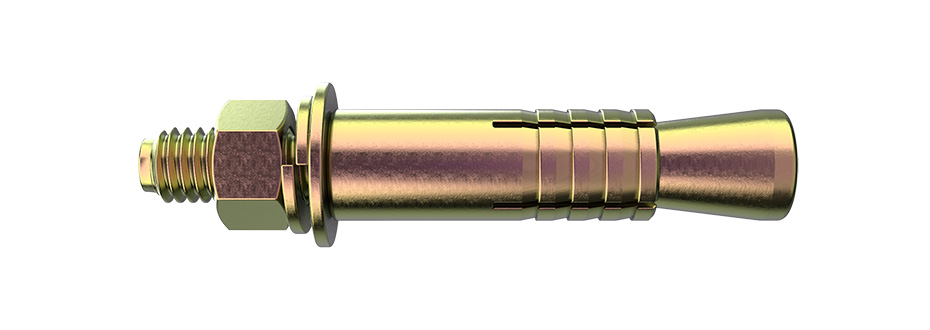

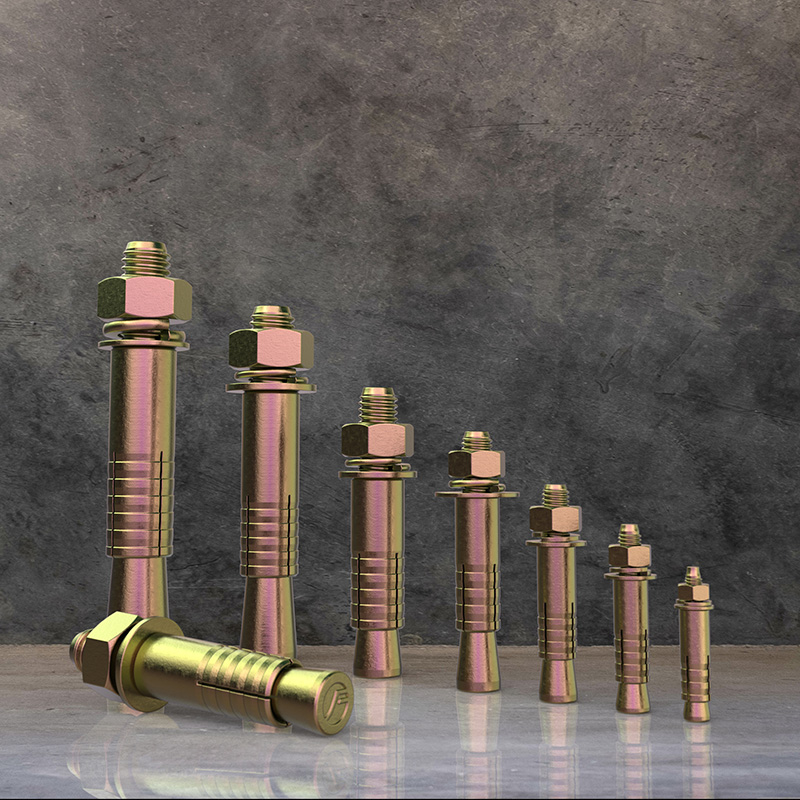

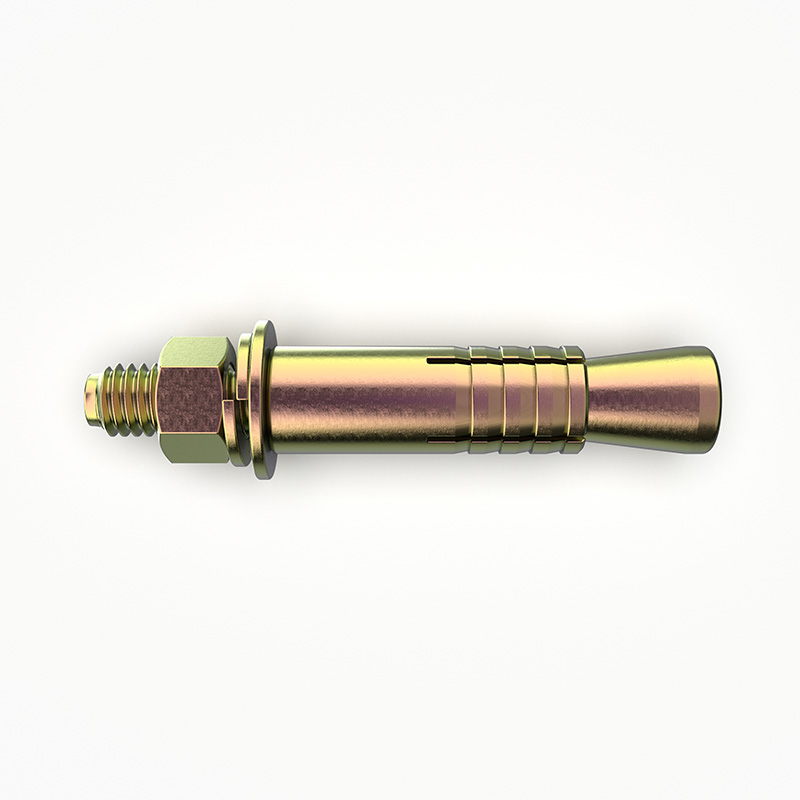

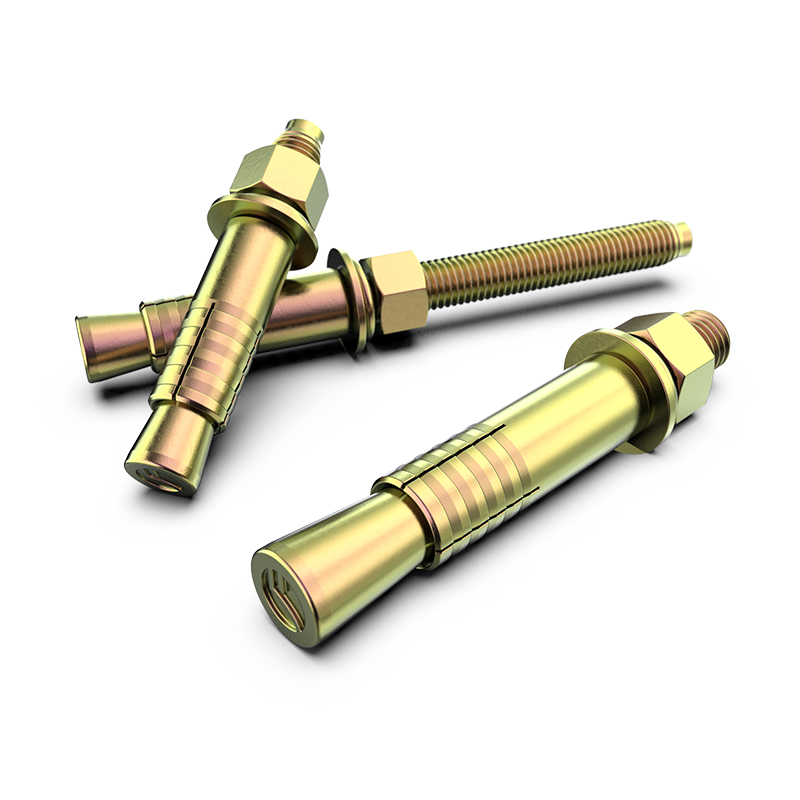

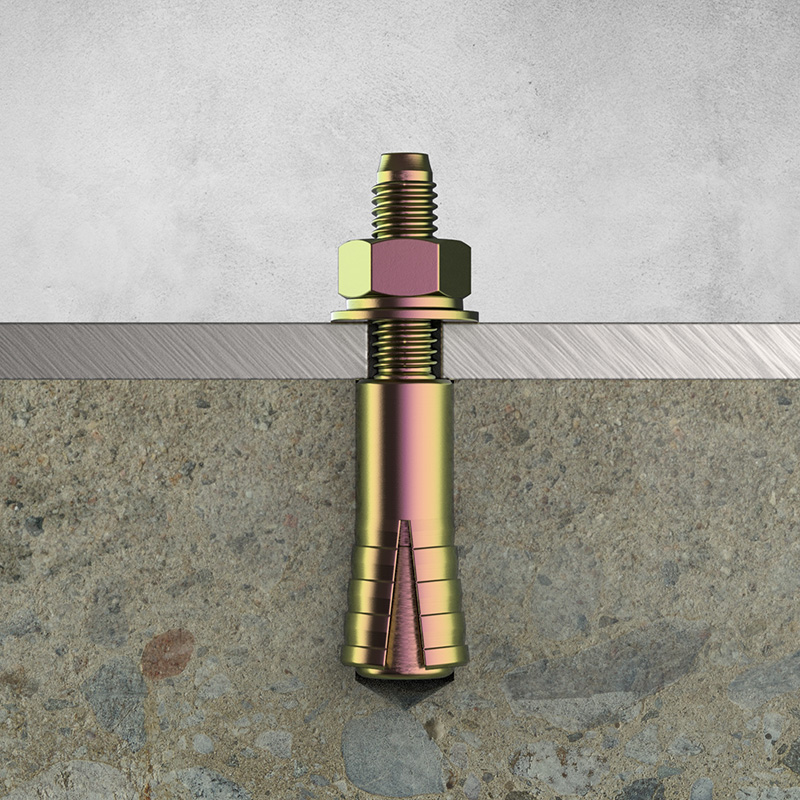

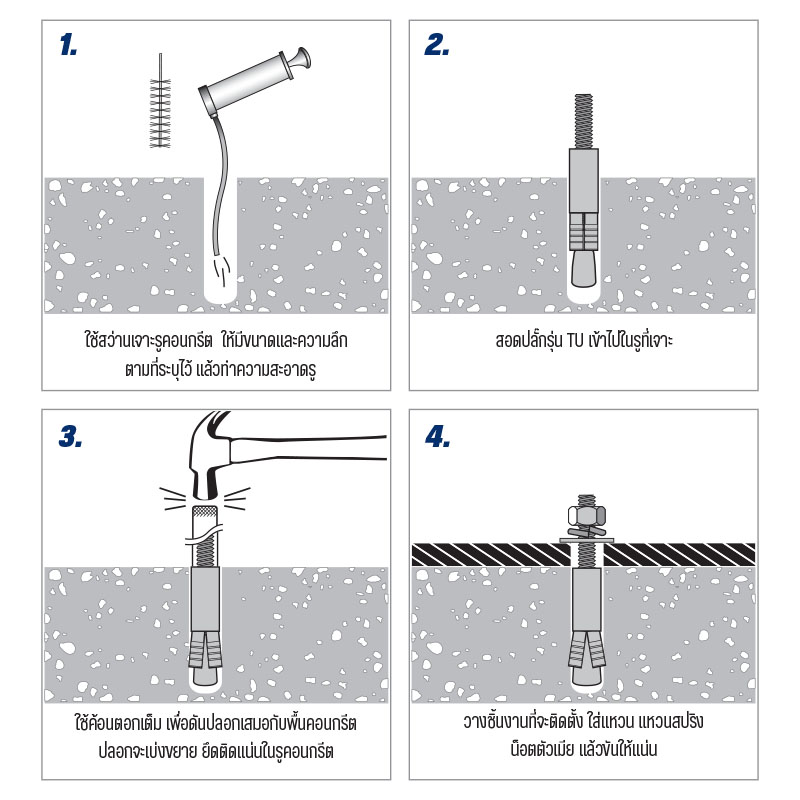

Tube Stud Anchor - TU
High performance heavy-duty anchor
- Preassembled anchor, ready to use.
- Spring washer prevents the nut, from loosing after installed.
- Vibration proof.
- Sleeve made from thick tube steel for high power holding.
- It is made of steel finished with rust resistant gold zinc plate
High performance heavy-duty anchor
- Preassembled anchor, ready to use.
- Spring washer prevents the nut, from loosing after installed.
- Vibration proof.
- Sleeve made from thick tube steel for high power holding.
- It is made of steel finished with rust resistant gold zinc plate
| SKU | Thread Size | Anchor Length (mm.) | Drill Size (mm.) | Drill Hole Depth (mm.) | Pull-Out (kN) | Shear (kN) |
|---|---|---|---|---|---|---|
| TU-6050 | M6 | 50 | 10 | 36 | 2.4 | 1.7 |
| TU-8065 | M8 | 65 | 12 | 45 | 3.8 | 3.1 |
| TU-1070 | M10 | 70 | 14 | 55 | 4.4 | 4.5 |
| TU-1080 | M10 | 80 | 14 | 55 | 4.4 | 4.5 |
| TU-10100 | M10 | 100 | 14 | 55 | 4.4 | 4.5 |
| TU-10120 | M10 | 120 | 14 | 55 | 4.4 | 4.5 |
| TU-10150 | M10 | 150 | 14 | 55 | 4.4 | 4.5 |
| TU-12100 | M12 | 100 | 17 | 75 | 6.9 | 6.7 |
| TU-12120 | M12 | 120 | 17 | 75 | 6.9 | 6.7 |
| TU-12160 | M12 | 160 | 17 | 75 | 6.9 | 6.7 |
| TU-12200 | M12 | 200 | 17 | 75 | 6.9 | 6.7 |
| TU-16120 | M16 | 120 | 22 | 80 | 9.1 | 11.8 |
| TU-16160 | M16 | 160 | 22 | 80 | 9.1 | 11.8 |
| TU-16200 | M16 | 200 | 22 | 80 | 9.1 | 11.8 |
| TU-20160 | M20 | 160 | 26 | 110 | 13.5 | 18.9 |
| TU-20200 | M20 | 200 | 26 | 110 | 13.5 | 18.9 |
| TU-22200 | M22 | 200 | 29 | 135 | 17.4 | 19.9 |
| TU-24200 | M24 | 200 | 32 | 140 | 23.5 | 23.1 |
