TK-R
Turnbuckles Steel - TK-R
TK-R
Turnbuckles Steel - TK-R
Please select product
Turnbuckles Steel - TK-R

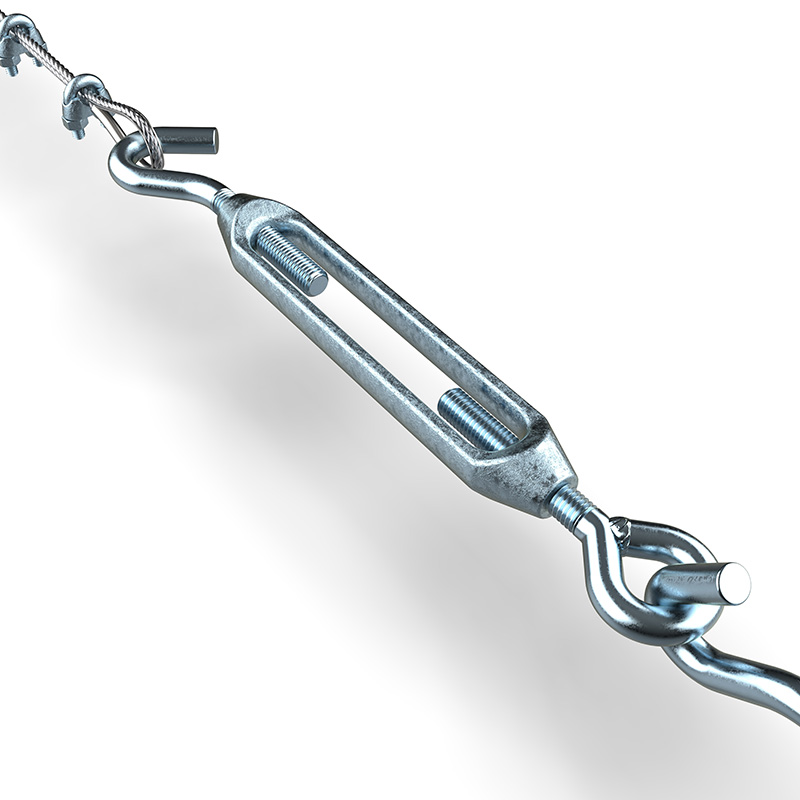

Turnbuckles supply tension by adjusting the length for supporting rope, wire rope, and chain .
- Torso made of casting Steel
- Turnbuckle is a couple of threaded eye bolts linked to its torso
Turnbuckles supply tension by adjusting the length for supporting rope, wire rope, and chain .
- Torso made of casting Steel
- Turnbuckle is a couple of threaded eye bolts linked to its torso

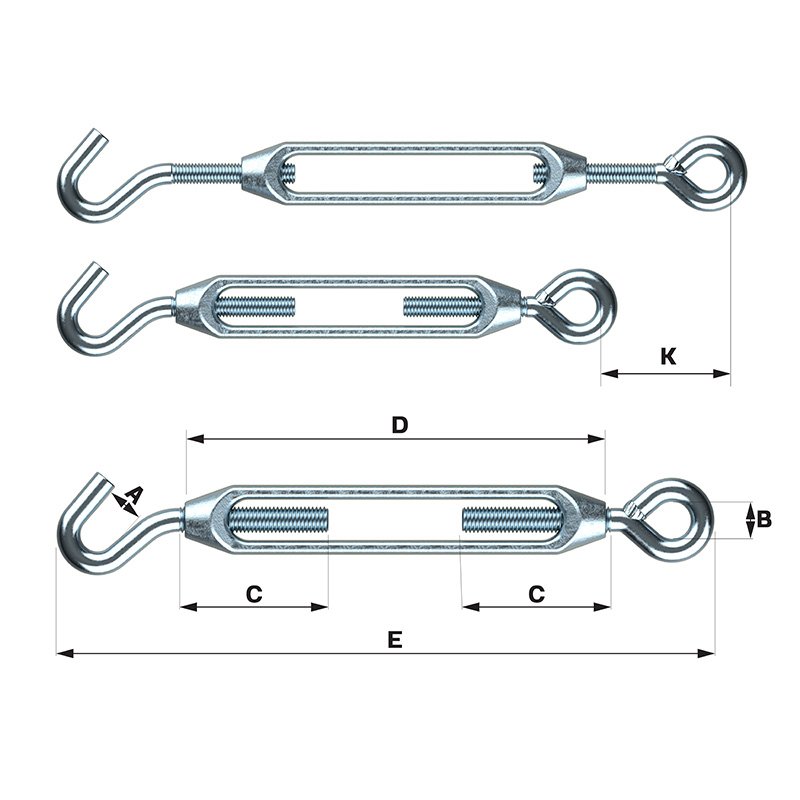

| SKU | Thread Size | A (mm.) | B (mm.) | C (mm.) | D (mm.) | E (mm.) | K (mm.) |
|---|---|---|---|---|---|---|---|
| TK-12-R | BSW 1/2 in | 20 | 20 | 80 | 210 | 320 | 115 |
| TK-58-R | BSW 5/8 in | 22 | 22 | 90 | 250 | 390 | 143 |
| TK-34-R | BSW 3/4 in | 26 | 26 | 110 | 310 | 480 | 160 |
| TK-78-R | BSW 7/8 in | 28 | 28 | 160 | 320 | 540 | 260 |
