WD

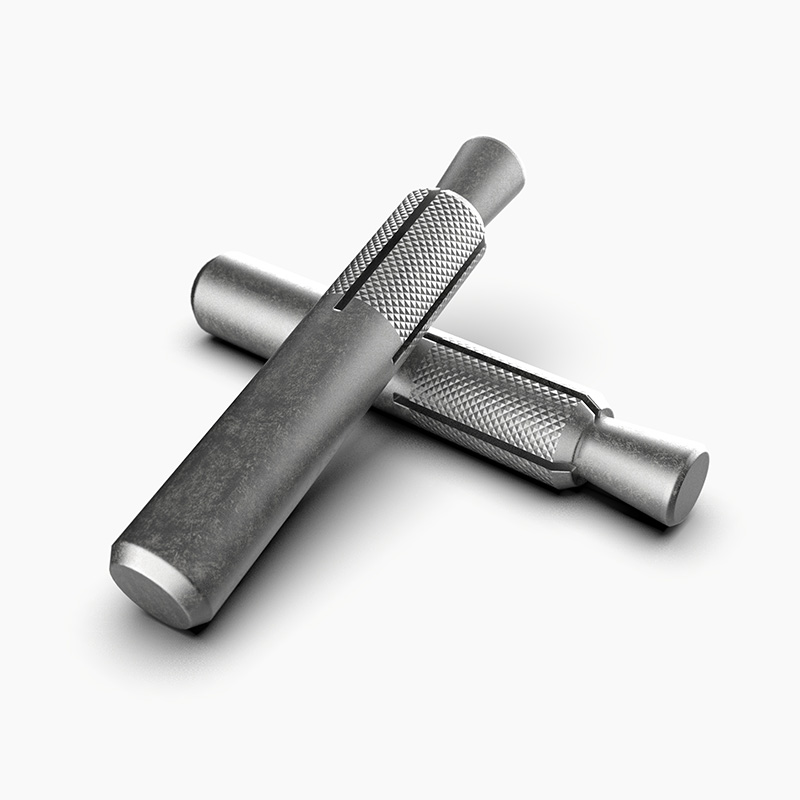

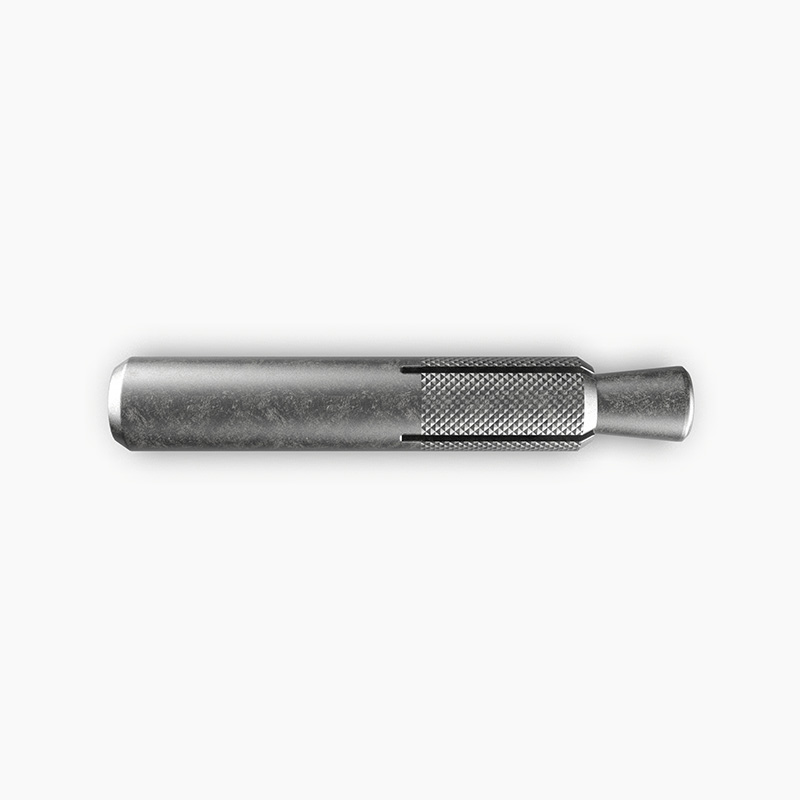

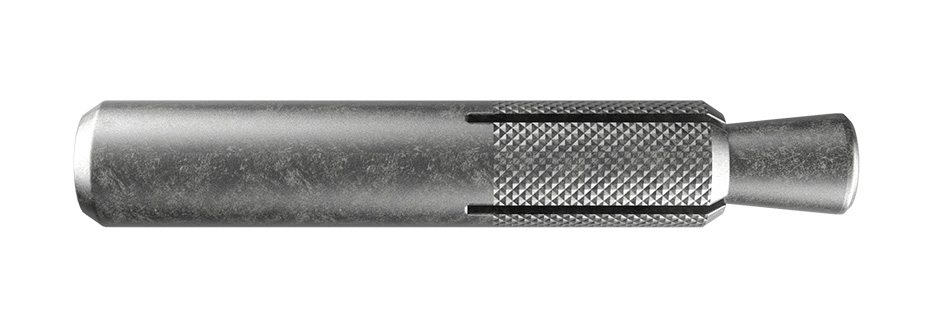

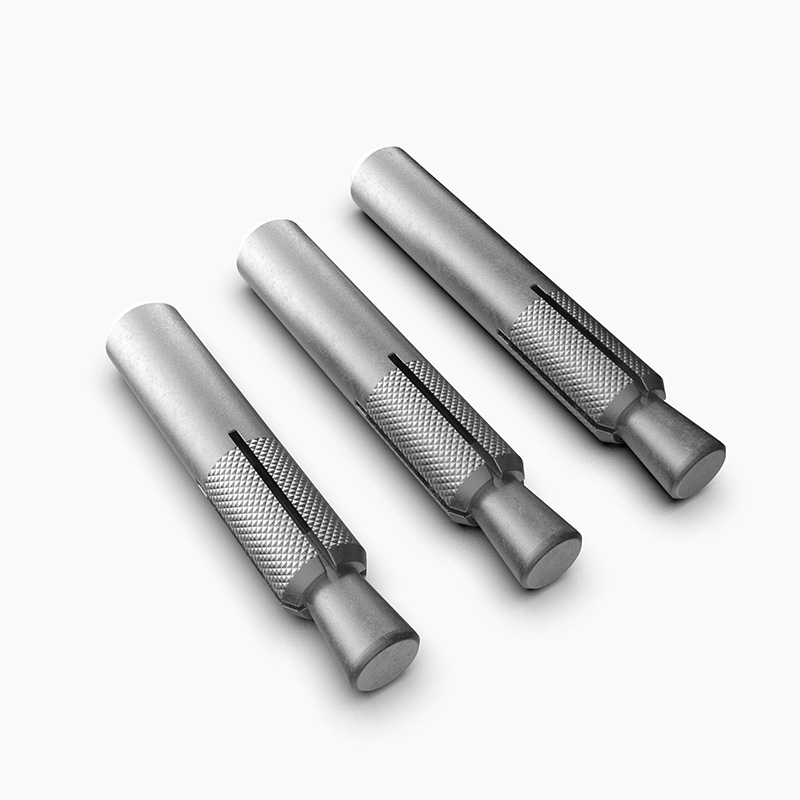

Welding Anchor WD

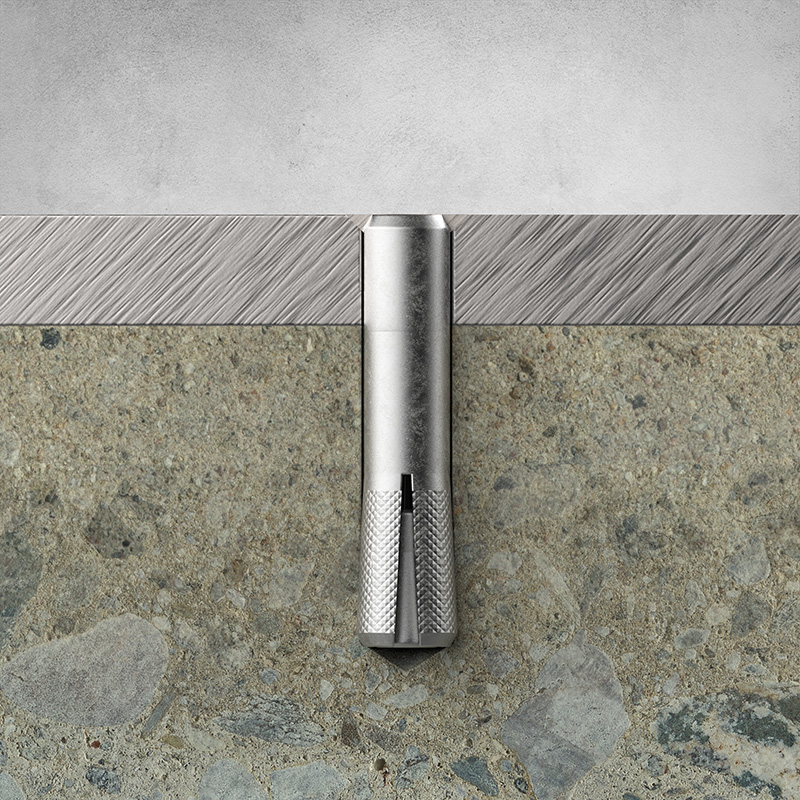

The anchor itself can be welded for installation of various metals.

SKU	Thread Size	Anchor Length (mm.)	Drill Size (mm.)	Drill Hole Depth (mm.)	Pull-Out (kN)	Shear (kN)
WD-1045	10mm	45	10.5	30	8.3	6.5
WD-1055	10mm	55	10.5	40	12.2	7.3
WD-1060	10mm	60	10.5	40	12.2	7.3
