Wire Rope Clip - WC

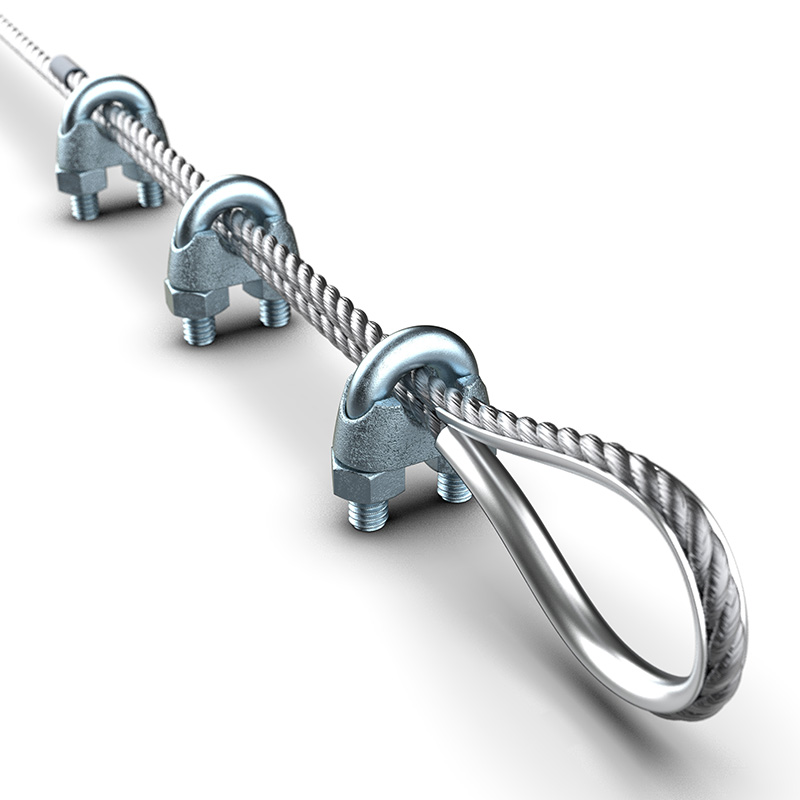

Use in noncritical applications, such as fencing, where the strength of a forged clamp is not required. Install clamps so the saddle is on the long (live) end and the U-bolt is on the short (dead) end.
Use in noncritical applications, such as fencing, where the strength of a forged clamp is not required. Install clamps so the saddle is on the long (live) end and the U-bolt is on the short (dead) end.

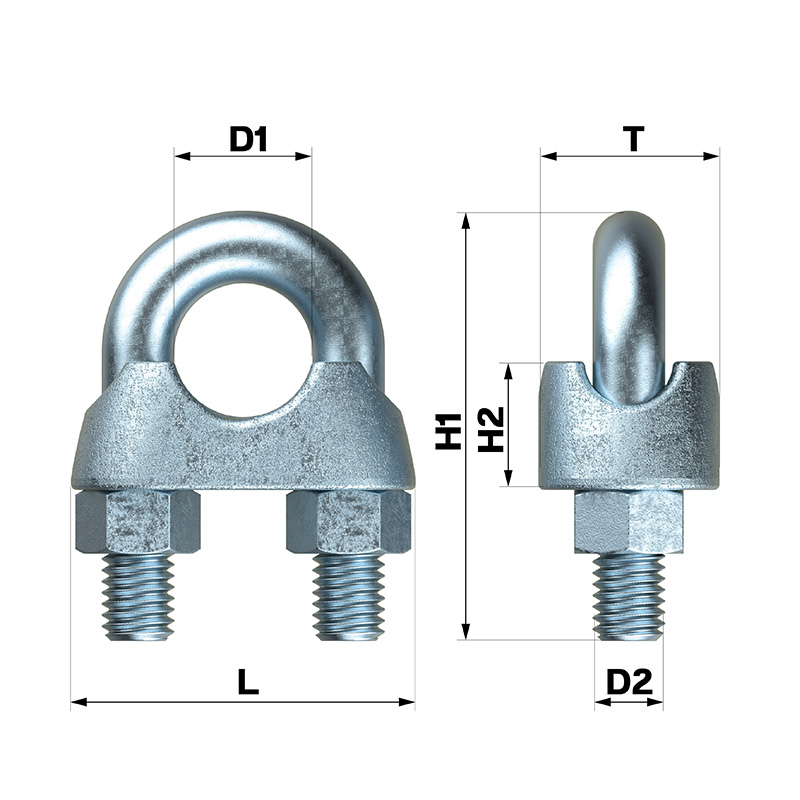

| SKU | D1 | T (mm.) | H1 (mm.) | H2 (mm.) | L (mm.) | D2 |
|---|---|---|---|---|---|---|
| WC-18 | 1/8" | 12 | 22 | 8 | 21 | 3/16" |
| WC-316 | 3/16" | 13 | 26 | 10 | 22 | 3/16" |
| WC-14 | 1/4" | 16 | 31 | 12 | 28 | 1/4" |
| WC-516 | 5/16" | 17 | 34 | 13 | 30 | 1/4" |
| WC-38 | 3/8" | 19 | 43 | 15 | 37 | 5/16" |
| WC-12 | 1/2" | 23 | 52 | 20 | 43 | 3/8" |
| WC-58 | 5/8" | 27 | 69 | 20 | 50 | 7/16" |
| WC-34 | 3/4" | 30 | 75 | 22 | 59 | 1/2" |
| WC-78 | 7/8" | 33 | 87 | 28 | 67 | 9/16" |
| WC-10 | 1" | 35 | 92 | 30 | 75 | 9/16" |
