Wedge Anchor-Hot dip Galvanized - WA-HDG
Please select product

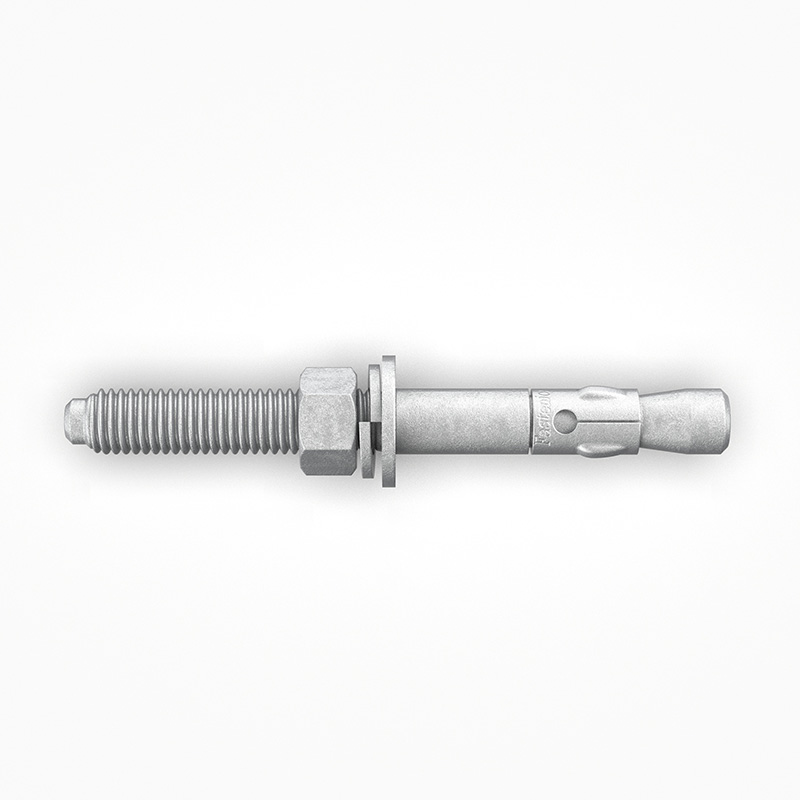

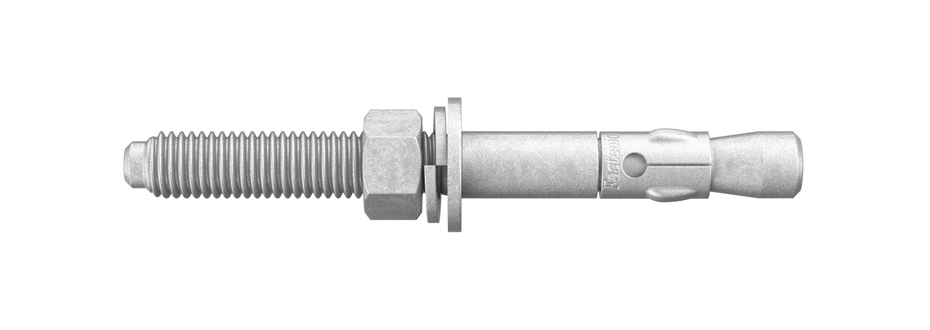

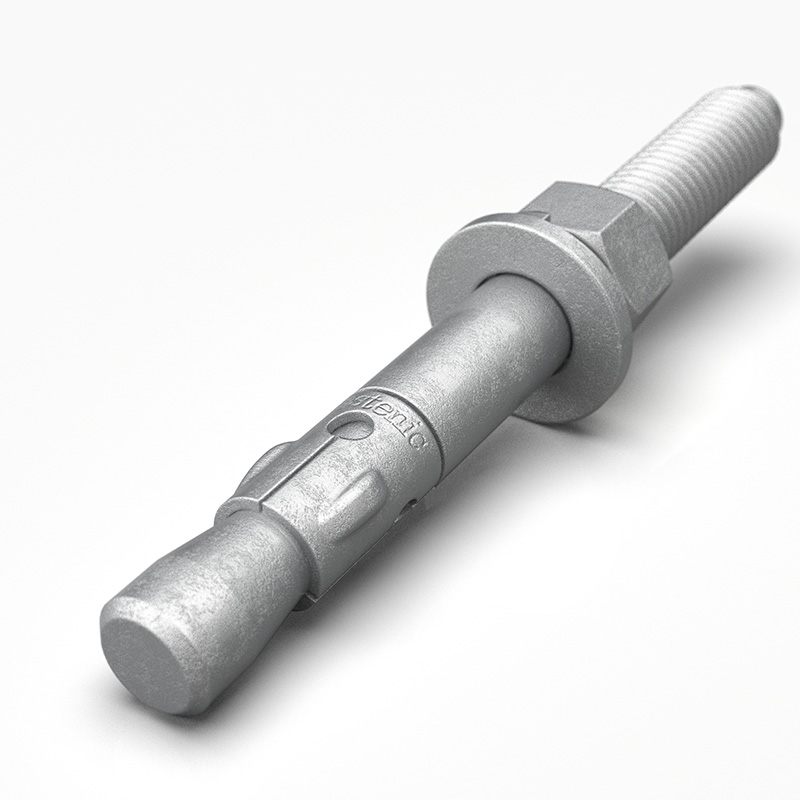

Wedge Anchor Fastenic WA-HDG
The ideal anchor for fast push-through fixture into concrete where excellent holding power is required. Anti-Rust Hot-dip Galvanize coated.
- No oversize concrete hole required. single drilling then install, no back and forth moving.
- Manufactured from grade A steel, Hot-dip Galvanize coated.

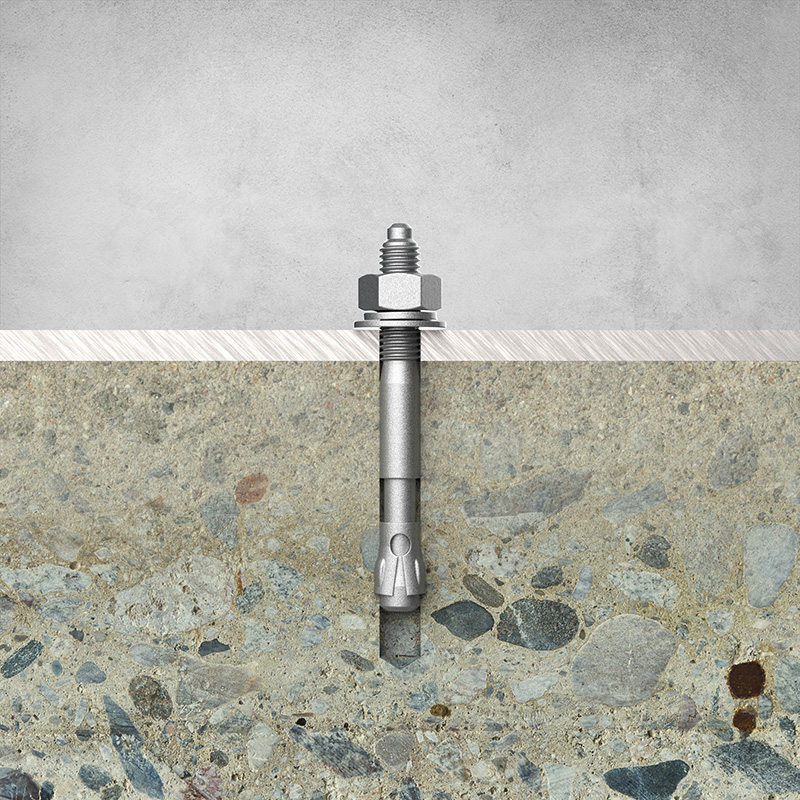

- When tightening the nut according to the specified torque value The surface of the casing expands as it adheres firmly to the concrete hole.
- Yellow zinc electroplated anti-rust.
- For outdoor use
The ideal anchor for fast push-through fixture into concrete where excellent holding power is required. Anti-Rust Hot-dip Galvanize coated.
- No oversize concrete hole required. single drilling then install, no back and forth moving.
- Manufactured from grade A steel, Hot-dip Galvanize coated.
- When tightening the nut according to the specified torque value The surface of the casing expands as it adheres firmly to the concrete hole.
- Yellow zinc electroplated anti-rust.
- For outdoor use

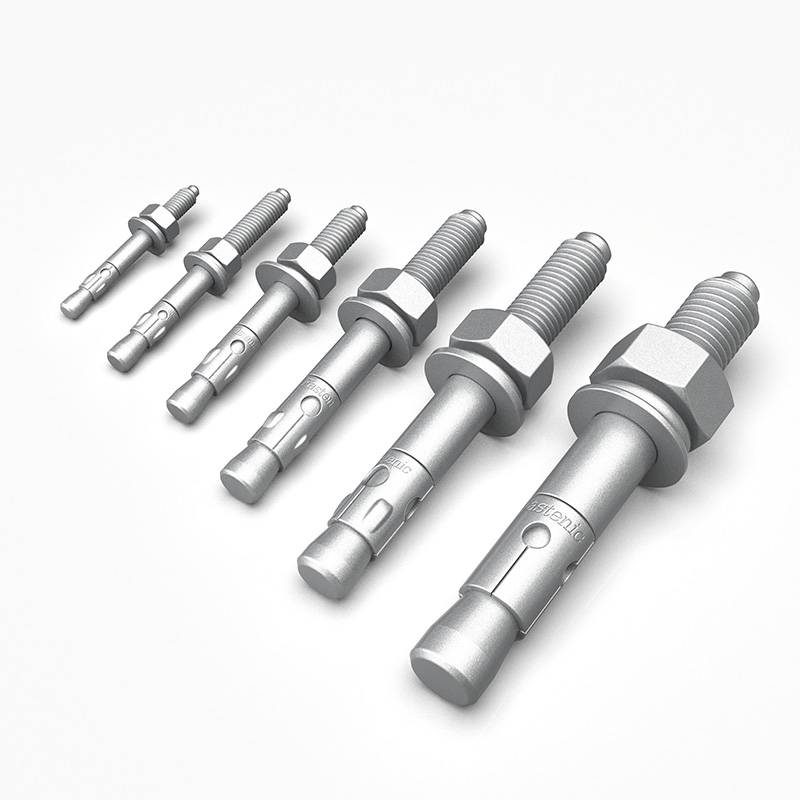

| SKU | Thread Size | Anchor Length (mm.) | Drill Size (mm.) | Drill Hole Depth (mm.) | Pull-Out (kN) | Shear (kN) |
|---|---|---|---|---|---|---|
| WA-8050-HDG | M8 | 50 | 8 | 45 | 2.5 | 2.4 |
| WA-8075-HDG | M8 | 75 | 8 | 60 | 2.5 | 2.4 |
| WA-8085-HDG | M8 | 85 | 8 | 65 | 2.5 | 2.4 |
| WA-80115-HDG | M8 | 115 | 8 | 80 | 2.5 | 2.4 |
| WA-1060-HDG | M10 | 60 | 10 | 50 | 3.5 | 3.9 |
| WA-1090-HDG | M10 | 90 | 10 | 70 | 6.0 | 3.9 |
| WA-10100-HDG | M10 | 100 | 10 | 70 | 6.0 | 3.9 |
| WA-10110-HDG | M10 | 110 | 10 | 75 | 6.5 | 3.9 |
| WA-10120-HDG | M10 | 120 | 10 | 80 | 6.5 | 3.9 |
| WA-10150-HDG | M10 | 150 | 10 | 90 | 6.5 | 3.9 |
| WA-1270-HDG | M12 | 70 | 12 | 60 | 4.6 | 5.7 |
| WA-12100-HDG | M12 | 100 | 12 | 85 | 8.0 | 5.7 |
| WA-12110-HDG | M12 | 110 | 12 | 90 | 9.0 | 5.7 |
| WA-12120-HDG | M12 | 120 | 12 | 100 | 9.5 | 5.7 |
| WA-12145-HDG | M12 | 145 | 12 | 100 | 9.5 | 5.7 |
| WA-12180-HDG | M12 | 180 | 12 | 110 | 9.5 | 5.7 |
| WA-12200-HDG | M12 | 200 | 12 | 110 | 9.5 | 5.7 |
| WA-16100-HDG | M16 | 100 | 16 | 85 | 7.9 | 10.9 |
| WA-16125-HDG | M16 | 125 | 16 | 95 | 9.5 | 10.9 |
| WA-16145-HDG | M16 | 145 | 16 | 100 | 10.3 | 10.9 |
| WA-16170-HDG | M16 | 170 | 16 | 115 | 12.9 | 10.9 |
| WA-16220-HDG | M16 | 220 | 16 | 130 | 15.8 | 10.9 |
| WA-20120-HDG | M20 | 120 | 20 | 100 | 10.0 | 18.2 |
| WA-20145-HDG | M20 | 145 | 20 | 110 | 11.7 | 18.2 |
| WA-20170-HDG | M20 | 170 | 20 | 120 | 13.5 | 18.2 |
| WA-20200-HDG | M20 | 200 | 20 | 140 | 17.4 | 18.2 |
| WA-20240-HDG | M20 | 240 | 20 | 160 | 21.5 | 18.2 |
| WA-20300-HDG | M20 | 300 | 20 | 180 | 26.0 | 18.2 |
| WA-25190-HDG | BSW 1 in | 190 | 25.4 | 170 | 23.0 | 26.4 |
| WA-25240-HDG | BSW 1 in | 240 | 25.4 | 190 | 27.7 | 26.4 |
