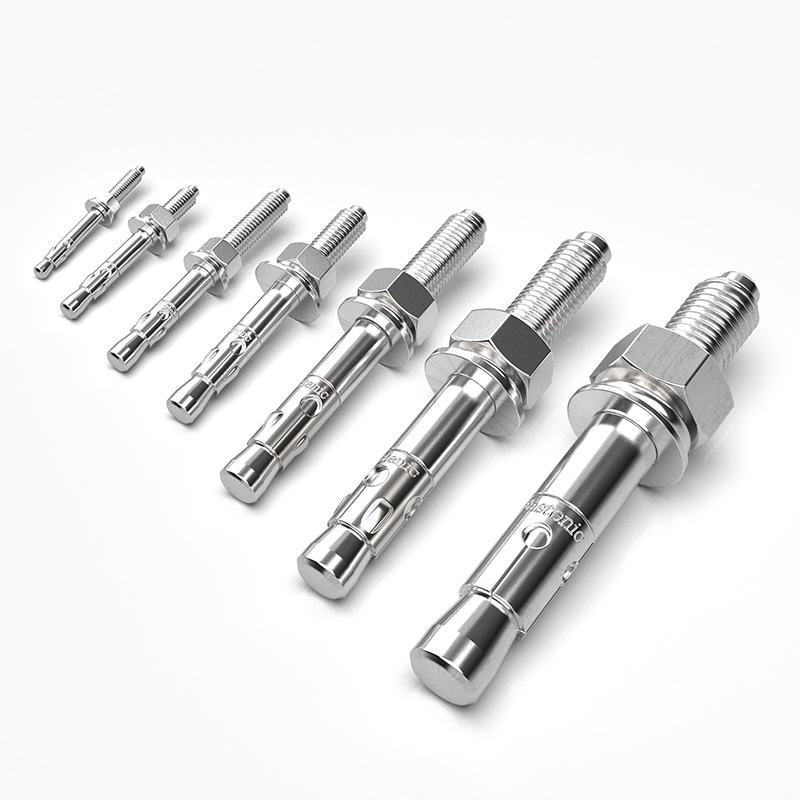

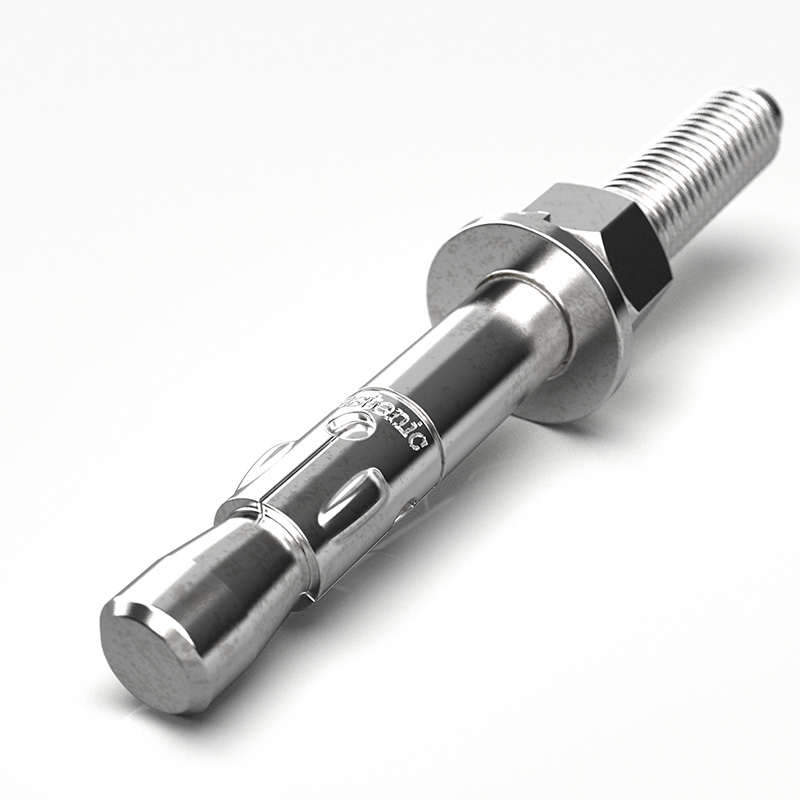

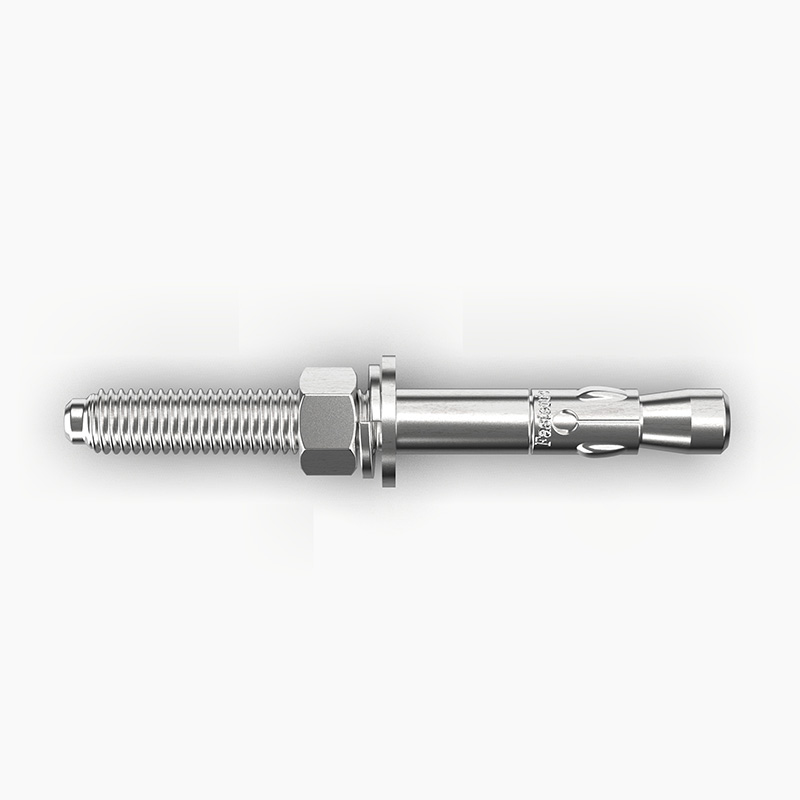

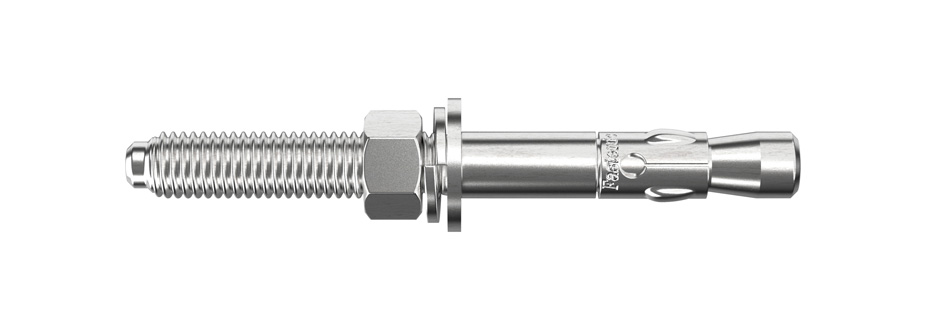

Wedge Anchor Fastenic WA-SUS
The ideal stainless steel anchor for fast push-through fixture into concrete where excellent holding power is required
- No oversize concrete hole required. single drilling then install, no back and forth moving.
- Manufactured from grade A steel, yellow zinc plated.

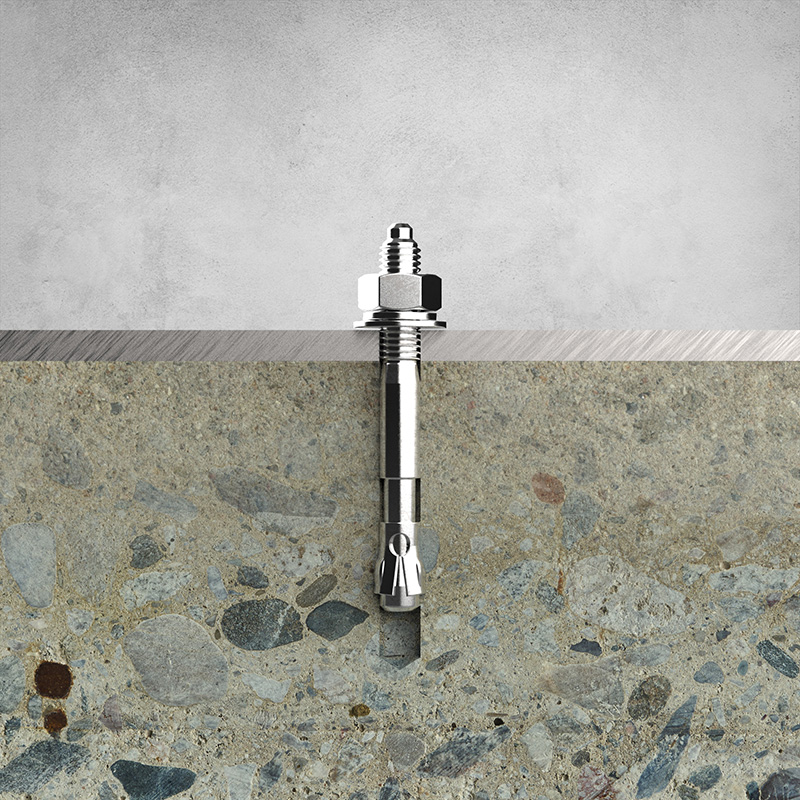

- When tightening the nut according to the specified torque value The surface of the casing expands as it adheres firmly to the concrete hole.
- Stainless Steel 304
- For outdoor or high corrosion area such as seashore

SKU	Thread Size	Anchor Length (mm.)	Drill Size (mm.)	Drill Hole Depth (mm.)	Pull-Out (kN)	Shear (kN)
WA-6045-SUS	M6	45	6	40	2.3	1.4
WA-6065-SUS	M6	65	6	50	2.3	1.4
WA-8050-SUS	M8	50	8	45	3.0	2.9
WA-8075-SUS	M8	75	8	60	4.9	2.9
WA-8085-SUS	M8	85	8	65	4.9	2.9
WA-80115-SUS	M8	115	8	80	4.9	2.9
WA-1060-SUS	M10	60	10	50	3.5	4.6
WA-1090-SUS	M10	90	10	70	6.1	4.6
WA-10100-SUS	M10	100	10	70	6.1	4.6
WA-10110-SUS	M10	110	10	75	6.8	4.6
WA-10120-SUS	M10	120	10	80	7.6	4.6
WA-10150-SUS	M10	150	10	90	7.8	4.6
WA-1270-SUS	M12	70	12	60	4.6	6.8
WA-12100-SUS	M12	100	12	85	8.2	6.8
WA-12110-SUS	M12	110	12	90	9.0	6.8
WA-12120-SUS	M12	120	12	100	10.6	6.8
WA-12145-SUS	M12	145	12	100	10.6	6.8
WA-12180-SUS	M12	180	12	110	11.3	6.8
WA-12200-SUS	M12	200	12	110	11.3	6.8
WA-16100-SUS	M16	100	16	85	7.9	13.0
WA-16125-SUS	M16	125	16	95	9.5	13.0
WA-16145-SUS	M16	145	16	100	10.3	13.0
WA-16170-SUS	M16	170	16	115	12.9	13.0
WA-16220-SUS	M16	220	16	130	15.8	13.0
WA-20120-SUS	M20	120	20	100	10.0	21.7
WA-20145-SUS	M20	145	20	110	11.7	21.7
WA-20170-SUS	M20	170	20	120	13.5	21.7
WA-20200-SUS	M20	200	20	140	17.3	21.7
WA-20240-SUS	M20	240	20	160	21.5	21.7
WA-20300-SUS	M20	300	20	180	26.0	21.7
WA-25190-SUS	BSW 1 in	190	25.4	170	23.1	31.4
WA-25240-SUS	BSW 1 in	240	25.4	190	27.7	31.4
